Safety is a top priority in the commercial vehicle industry. With trucks, buses, and other heavy-duty vehicles often carrying substantial loads or large numbers of passengers, the risk of accidents due to mechanical failure must be minimized. Among the various components that ensure safe operation, the braking system is more critical. Within this system, the four circuit protection valve plays a vital role. It's not just a small component but a crucial safeguard that can prevent catastrophic failures, making it essential for maintaining the safety and reliability of commercial vehicles.
Outline
Part 1 What is a Four Circuit Protection Valve
Part 2 How Does a Four Circuit Protection Valve Work
Part 3 The Role of Other Circuit Protection Valves in Commercial Vehicles
Part 4 Conclusion
FAQs
1. What is the primary function of a four circuit protection valve?
2. How often should a four circuit protection valve be maintained?
3. Can a four circuit protection valve be retrofitted to older vehicles?
4. What are the signs of a failing four circuit protection valve?
Part 1 What is a Four Circuit Protection Valve
The four circuit protection valve, also referred to as the Four-way Protection Valve or Multi-Circuit Protection Valve, is a critical component in the multi-circuit air brake systems of modern commercial vehicles. This valve is not just a passive part of the system; it is central to the pressure procurement process, which is responsible for safeguarding each individual compressed air circuit from potential failures in other circuits. This isolation is crucial because it ensures that a pressure loss or failure in one circuit does not significantly impair or disrupt the functionality of the other circuits. In essence, the valve operates by utilizing a combination of four overflow valves and non-return valves, which work in tandem to effectively isolate and protect each circuit within the system.
Typically, the vehicle's air brake circuits are divided into four main categories: Circuit 1 handles the one service brake, Circuit 2 manages the second service brake, Circuit 3 is dedicated to the spring-loaded parking brake and, if necessary, the trailer supply, and Circuit 4 is used for secondary consumers such as air suspension, door control, and the horn. In more complex vehicle systems with more than four circuits, the configuration can be expanded to include additional circuits for specific functions like the rear axle service brake, front axle service brake, trailer control, parking brake, gearbox, clutch, and air suspension.
Given that these compressed air brake systems are entirely dependent on external power sources, the integrity of each circuit is vital. Any leakage or failure within a circuit, if not adequately contained, could casue to a catastrophic loss of braking capability, potentially resulting in severe safety hazards. Therefore, the four circuit protection valve is not only a key component for maintaining the operational reliability of the vehicle but also an essential safeguard that enhances the overall safety of both the vehicle and its occupants.

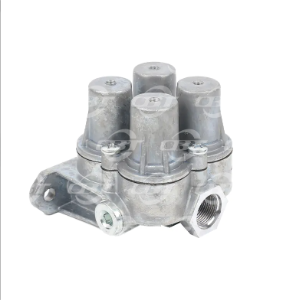

Image by AE4440 Four Circuit Protection Valve
Part 2 How Does a Four Circuit Protection Valve Work
The Four Circuit Protection Valve is responsible for independently distributing compressed air to the brake circuits, and in the event of a failure, one or more circuits protect the functional circuits from pressure drops. The four brake circuits are divided into two service brake circuits: one circuit is responsible for supplying compressed air to the emergency and parking brake system as well as the trailer connection, while the other circuit handles additional accessories such as the control of the exhaust throttle brake (engine brake). In the case of a failure in one brake circuit, the resulting pressure drop causes the non-return valve in the damaged circuit to close, maintaining a counterpressure that prevents the intact brake circuits from opening. This design divides the system's operation into three main processes:
1. Inflation Process: The air from the air compressor enters through the inlet and reaches the valves of the four circuits' pressure-limiting check valves. When the inlet pressure increases to a certain level that opens one of these check valves, the valve opens, and compressed air flows through the valve to the corresponding circuit's air storage. As the pressure continues to rise, other check valves open one after another, connecting all circuits together. The air compressor keeps supplying air until it reaches the unloading pressure set by the pressure regulator, at which point the system unloads, and the pressure stabilizes.
2. Air Consumption Process: When braking or using other air-powered equipment consumes a certain amount of compressed air, the system pressure drops. Before the pressure falls below the check valve's closing pressure, the valve remains open (just at a smaller opening). At this time, all circuits in the system are still connected. In other words, even though the protection valve divides the vehicle's air supply into multiple circuits, all air-powered equipment shares the air source until the valve closes (except for parts with one-way valves). When the pressure drops to the regulator's activation pressure, the air compressor starts supplying air again, returning to the previous inflation process.
3. Protection Process: If one circuit (let's say circuit 21) suddenly fails during vehicle operation, air will rapidly escape from circuit 21 (much faster than the air can be supplied), causing a sharp drop in system pressure. As the pressure drops quickly, when it falls to the protection pressure of that circuit (which is higher than the closing pressure of the check valve), the air pressure in circuit 21 will quickly drop to zero. The moment the valve closes, the pressure at that point becomes the circuit's closing pressure. Meanwhile, the other functioning circuits will maintain their pressure due to the remaining air, keeping their valves open. This means that as long as the compressor keeps supplying air, the air pressure in the functioning circuits will rise again. When the system pressure reaches the reopening pressure of the failed circuit (circuit 21), it will open again, returning to the previous unloading process. Thus, the reopening pressure of the failed circuit (protection pressure) becomes the pressure the other working circuits can achieve.
Part 3 The Role of Other Circuit Protection Valves in Commercial Vehicles
Commercial vehicles depend on a complex system of components to ensure safe and efficient operation, with the four types of circuit protection valves playing a particularly crucial role. These valves are essential in managing and regulating air pressure within the vehicle's braking system, directly impacting the vehicle's overall safety, stability, and control. Each valve is designed to handle specific functions within the braking system, ensuring that the vehicle can maintain proper braking force even under challenging conditions or in the event of a system failure. Their importance cannot be overstated, as they are integral to the reliable operation and safety of heavy-duty vehicles on the road.
1. Primary Circuit Protection Valve
Located near the brake pedal, the primary circuit protection valve is essential for safeguarding the service brake system. Its main role is to regulate and distribute air pressure to the primary brakes, ensuring precise deceleration control. Should this valve fail, it could cause to a loss of control over the primary brakes, posing significant safety risks.
2. Secondary Circuit Protection Valve
Similar in function to the primary circuit protection valve, the secondary circuit protection valve manages air pressure within the secondary brake circuit, which is responsible for the parking brakes. This valve ensures smooth engagement and disengagement of the parking brake. If the secondary valve malfunctions, it could cause difficulties in parking, potentially affecting both safety and efficiency.
3. Trailer Supply Valve
For commercial vehicles that tow, the trailer supply valve plays a crucial role. This valve controls the air pressure sent to the trailer's brake system, helping to maintain consistent and reliable braking for both the vehicle and the trailer. In scenarios involving heavy loads, the proper functioning of the trailer supply valve is essential to ensure operational safety.

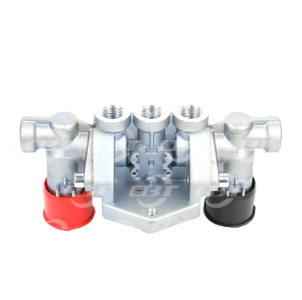

Image by 96300105100 Trailer release valve
4. Quick Release Valve
In emergency situations, quick and effective responses are critical, and the quick release valve is designed to meet this need within the braking system. When there is a sudden loss of air pressure, this valve quickly releases the pressure, allowing the brakes to disengage. This feature is crucial in preventing unintended brake engagement due to pressure loss, thereby reducing the risk of accidents or vehicle damage.
The four kinds of circuit protection valves are fundamental to the safety and reliability of commercial vehicles. As a China Wholesale OEM Truck Air Brake Parts Manufacturer, the OUBTE AUTO PARTS specializes in producing high-quality components for commercial and heavy vehicles. The four circuit protection valves provided not only ensure safe braking but also enhance operational efficiency, especially during towing and emergency situations. Regular maintenance and inspection of these valves are essential to ensure their proper function. Ignoring these critical components could cause to safety hazards and operational disruptions, compromising the overall performance of commercial vehicles.
Part 4 Conclusion
The four circuit protection valve plays a pivotal role in ensuring the safety and reliability of commercial vehicles. By isolating the different circuits within the air brake system, it prevents a failure in one circuit from compromising the entire system, thereby significantly reducing the risk of serious accidents. This function is especially crucial for heavy-duty vehicles, such as trucks and buses, which often transport substantial loads or large numbers of passengers.OUBTE Auto Parts, a manufacturer in China, is dedicated to producing high-quality four circuit protection valves, along with other key components such as quick release valves and trailer supply valves. These components not only enhance the operational efficiency of vehicles but also ensure safety under high-load and emergency conditions. Regular maintenance and inspection of these valves are essential to guarantee their proper function, thereby preventing potential safety hazards and ensuring the overall performance and safe operation of commercial vehicles.
FAQs
1. What is the primary function of a four circuit protection valve?
The primary function of a four circuit protection valve is to isolate the different air brake circuits in a commercial vehicle, ensuring that a failure in one circuit does not affect the others, thus maintaining overall braking system integrity.
2. How often should a four circuit protection valve be maintained?
It is recommended that the four circuit protection valve be inspected and maintained during routine vehicle servicing, typically every 6 to 12 months, depending on the vehicle's usage and operational environment.
3. Can a four circuit protection valve be retrofitted to older vehicles?
Yes, a four circuit protection valve is able to be retrofitted to older vehicles, provided the existing braking system is compatible with the valve's specifications.
4. What are the signs of a failing four circuit protection valve?
Signs of a failing four circuit protection valve include unusual braking behavior, inconsistent air pressure across circuits, or a noticeable drop in braking efficiency. Immediate inspection and replacement are advised if these symptoms occur.
