Relay valves are the unsung heroes of heavy vehicle brake systems, ensuring that these massive machines can stop safely and efficiently. Without them, controlling the braking force on large vehicles like trucks, buses, and trailers would be both unreliable and dangerous. Understanding the critical role that relay valves play in these systems is essential for anyone involved in the maintenance or operation of heavy vehicles.Companies like Oubote Auto Parts, known for their advanced relay valve technology, provide solutions that are essential for ensuring safe and efficient braking in heavy vehicles.
Outline
Part 1 What is a Relay Valve
Part 2 How Relay Valves Work in Air Brake Systems
Part 3 Identifying and Solving Common Problems
Part 4 Conclusion
Part 1 What is a Relay Valve
Relay valves are a type of pneumatic control valve that play a crucial role in the braking systems of heavy-duty trucks and trailers. In these vehicles, the time delay in transferring air from the brake pedal in the cab to the rear wheels can cause a significant lag in braking response. Relay valves help to eliminate this lag by significantly reducing the response time of the rear wheel brakes, ensuring they engage in sync with the front brakes. Without a relay valve, this lag could cause to delayed braking and compromised safety.
When the driver operates the brake pedal, the relay valve quickly receives the signal and opens, allowing air to flow rapidly into the brake chamber. This air flow pushes the diaphragm, which in turn drives the rod and slack adjuster, rotating the brake camshaft. As the brake camshaft rotates, the brake components—such as discs, wedges, or S-cams—press against the brake pads and linings, generating the friction needed to slow down and stop the vehicle. Relay valves are typically mounted near the rear brake compartment to ensure proper synchronization by providing remote air supply, thus improving the overall braking performance.
Part 2 How Relay Valves Work in Air Brake Systems
- Trailers
In trailers, the remote air supply is provided by a tank that refills when the emergency brakes are released using the red trailer-supply valve on the dashboard. In a dual-circuit air brake system, this tank receives air from both the primary and secondary reservoirs of the tractor, with a two-way check valve merging the air. The valve allows only the higher pressure air to pass through, continuing through the tractor-protection valve to the trailer's air tank. This system ensures that the trailer's brakes do not automatically engage if only one braking circuit fails, giving the driver better control and preventing sudden stops in dangerous locations like intersections.
The tractor-protection valve prevents air loss from the tractor's braking system in case of separation or damage to the air-lines. The tractor and trailer air-lines connect via gladhands, metal connectors that ensure a secure link. The combined air from both reservoirs prevents a single circuit failure from causing the trailer's spring brakes to apply, thus maintaining vehicle control and safety.
- Service brake relay valve
When a service brake relay valve is installed, the hose connecting to the primary delivery port of the foot-valve functions as a control line, meaning air from the foot-valve stops at the relay valve's control port. This setup allows only low-volume air signals to travel between the foot-valve and relay valve, significantly reducing the air volume needed and minimizing brake delay. When the brake pedal is pressed, the relay valve directs air from the remote supply to the rear brakes, matching the pressure of the foot-valve. Releasing the pedal closes the supply port and opens the exhaust port to avoid pneumatic short circuits, ensuring quick brake application and release.
For controlling trailer service brakes, the combined outputs of the foot-valve and trailer hand-valve (if available) are sent through the tractor-protection valve to the trailer relay valve via the blue service line. In tractors without a trailer hand valve, only the foot-valve outputs are directed to the trailer relay valve. However, the merged outputs still ensure trailer brake control even if one tractor braking circuit fails.
- Spring brake relay valve
A spring brake relay valve operates similarly to a service brake relay valve but serves the opposite function. When a significant pressure drop occurs at the control port, the valve opens its exhaust port, rapidly releasing air from the spring brake chambers, which applies the brakes quickly. This setup allows the spring brakes to engage faster than if the air had to discharge through the parking-control valve. In a dual-circuit system, air from both the primary and secondary reservoirs is merged, ensuring the spring brakes don't automatically apply due to a single circuit failure.

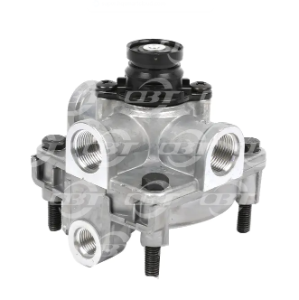

Trailer Relay Valves 9730110000
The parking-control valve's delivery port connects to the relay valve's control port, allowing the driver to control the spring brakes. However, this increased control requires the driver to manually apply the brakes if one circuit fails, particularly under heavy loads or high speeds. Failure to do so could cause to the front brakes overheating and potential catastrophic failure. The QR1C air valve speeds up the braking process, ensuring a one-second delay between trailer and service brake functions. The relay valve acts similarly to a transistor in an electronic circuit, regulating the air brake system efficiently.
Part 3 Identifying and Solving Common Problems

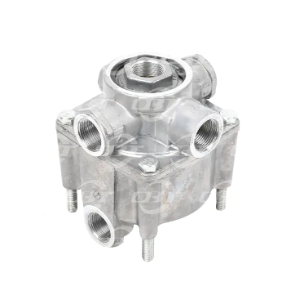

Air brake valve systems are critical for the braking capabilities of heavy vehicles. However, they can experience various issues that necessitate proper troubleshooting to maintain safety and functionality. Routine inspections and proper care are key, especially when using high-quality products like the 9710021500 Mounting:2x Φ 11.0mm relay emergency valve, which are designed for durability and easy maintenance.Below is a detailed guide for drivers and mechanics to diagnose and resolve common problems.
- Air Leaks:
Issue: Air leakage from the valve can be caused by damaged diaphragms, loose connections, or debris accumulation.
Steps: Begin with a thorough visual inspection for signs of damage or leaks. Ensure all connections are tightly secured, and clean the valve to remove any debris or corrosion. Replace damaged diaphragms or seals as necessary to restore airtight integrity.
- Valve Positioning Issues:
Issue: The valve may become stuck in either the open or closed position, often due to contamination from dirt, debris, or internal component malfunctions. This can cause to ineffective brake operation, causing safety concerns and reducing overall vehicle performance.
Steps: Clean the valve to eliminate obstructions or debris that may be causing the issue. Lubricate internal components according to the manufacturer's recommendations. If the problem persists, disassemble the valve for a more in-depth cleaning and replace any worn or damaged parts.
- Pressure Regulation Failures:
Issue: Blockages or faulty internal components can prevent the valve from properly relaying air pressure.
Steps:Start by thoroughly inspecting the air passages for any blockages and clear them to restore proper airflow. Next, carefully examine the internal components for any signs of damage, wear, or corrosion. If any parts are compromised, replace them promptly to ensure the valve operates correctly and maintains consistent air pressure throughout the braking system. Regular maintenance checks can help prevent these issues from arising, ensuring long-term reliability and safety of the vehicle's brake system.
- Managing Excessive Air Pressure:
Issue: Excessive air pressure within the brake system can result from malfunctioning pressure regulators or quick release valves.
Steps: Conduct tests to identify any faulty pressure regulators or quick release valves. Replace these components if they are not functioning properly, ensuring that the system maintains safe air pressure levels.
- Brake Engagement and Release Issues:
Issue: Air brakes may not engage or release properly due to misalignment or malfunction within the brake valve linkage or damage to the brake chamber diaphragms. Such issues can cause to inconsistent braking performance, posing significant safety risks.
Steps: Inspect the brake valve linkage to ensure it is properly adjusted and functional. Check the brake chamber diaphragms for any signs of damage or wear and replace them if necessary to maintain proper brake operation.
- Improving Brake Pedal Feel:
Issue: A soft or spongy brake pedal is usually caused by air trapped in the brake lines or worn brake linings. This can result in reduced braking efficiency and a lack of confidence in brake performance, which can be dangerous.
Steps: Bleed the brake system to remove any trapped air, ensuring a firm and responsive brake pedal. Inspect the brake linings for signs of wear, and replace them if needed to improve pedal feel and braking efficiency.
- Preventing Air Pressure Loss:
Issue: The valve may fail to hold air pressure due to leaky seals, gaskets, or internal damage.
Steps: Inspect the valve for faulty seals or gaskets that could be causing air pressure loss. Replace these components as necessary, and consider replacing the entire valve if internal damage is found.
Maintenance Recommendations
Routine Inspections: Conduct regular inspections of air brake systems in accordance with the manufacturer's guidelines. This proactive approach helps identify potential issues before they become serious problems, ensuring consistent brake performance and safety.
Lubrication: Regularly lubricate the valves using appropriate lubricants to ensure smooth operation and extend the lifespan of the components.
Adherence to Manufacturer Guidelines: Follow the manufacturer's instructions carefully when troubleshooting, maintaining, and replacing parts. Adhering to these guidelines is crucial for maintaining the reliability and effectiveness of the air brake system.
Seeking Professional Help:If issues persist despite troubleshooting, seek help from certified mechanics or professional service centers. Expert assistance can provide more accurate diagnostics and ensure that repairs are done correctly, preserving the safety and functionality of the vehicle.
By diligently following these troubleshooting steps and maintenance practices, drivers and mechanics can ensure that air brake valve systems operate smoothly and reliably, thereby contributing to safer and more efficient heavy vehicle operations. Regular maintenance and prompt attention to any issues are key to enhancing the lifespan and performance of air brake systems, ultimately enhancing the overall safety of the vehicle on the road.
Part 4 Conclusion
Relay valves are indispensable components in heavy vehicle brake systems, ensuring the safe and efficient operation of trucks, trailers, and buses. Their ability to synchronize brake engagement between the front and rear wheels, along with managing service and spring brakes in dual-circuit systems, makes them critical to avoiding brake lag and maintaining control in various driving conditions. Regular maintenance and prompt troubleshooting are essential to maximize the performance and lifespan of these valves, which in turn enhances overall vehicle safety.
For companies like Oubote Auto Parts , offering high-quality relay valves is crucial for meeting the safety and reliability demands of heavy vehicle operators. By investing in durable and precisely engineered relay valves, such as the 9710021500 Mounting:2x Φ 11.0mm relay emergency valve, businesses can ensure their vehicles operate smoothly, even under challenging conditions. These products are designed to provide peak performance and safety, contributing to the broader goal of enhancing heavy vehicle operations across the industry.
