In the air brake systems of heavy trucks and other commercial vehicles, air dryers are essential components. Positioned between the air compressor and the wet tank, these devices filter out water vapor, oil vapor, and other contaminants from the compressed air. This filtration process is critical, as it ensures that the air within the system remains clean and dry, which directly enhances the performance and reliability of the braking system. Without a properly functioning air dryer, moisture and impurities could accumulate in the brake system, causing to corrosion, freezing, and potential brake failure. As a result, air dryers are vital for maintaining the safety, efficiency, and longevity of air brake systems in commercial vehicles.
Outline
Part 1 How Air Dryers Work
Part 2 Key Functions and Benefits of Air Dryers
Part 3 Types of Air Dryers
Part 4 Maintenance and Replacement
Part 5 Conclusion
Part 1 How Air Dryers Work
Air dryers are designed to remove moisture, oil, and other contaminants from the compressed air used in the braking systems of heavy trucks and commercial vehicles. The working principle of air dryers involves a multi-stage process that ensures the air supplied to the brake system is clean and dry, thus preventing potential damage to critical components.

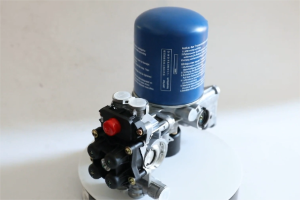

Air dryer
1. Initial Air Compression and Filtration
When the air is drawn into the system from the atmosphere, it passes through the air compressor. This compressor increases the air pressure but also introduces contaminants such as moisture, oil vapor, and solid particles into the compressed air. Before entering the air dryer, the air typically passes through a primary filter or separator that removes larger solid particles and some of the oil mist. This pre-filtration stage helps to reduce the load on the air dryer, improving its efficiency and extending its service life.
2. Desiccant-Based Drying Process
The heart of the air dryer is the desiccant bed, which plays a critical role in the drying process. The compressed air, now partially filtered, flows into the air dryer, where it encounters the desiccant material. Desiccants are highly absorbent substances, often made of silica gel or activated alumina, that can attract and retain moisture from the air.
As the compressed air passes through the desiccant, the moisture content is absorbed by the desiccant material. This process significantly reduces the dew point of the air, ensuring that it is dry enough to prevent condensation within the brake system. The dried air, now free from moisture and contaminants, exits the air dryer and is directed towards the storage tanks and braking system components.
3. Regeneration of the Desiccant
Over time, the desiccant material becomes saturated with moisture and loses its ability to absorb more water. To maintain the effectiveness of the air dryer, the desiccant must be regenerated. Most air dryers in heavy trucks and commercial vehicles are equipped with an automatic regeneration cycle. During this cycle, a small portion of the dry air is redirected back through the desiccant bed in the opposite direction. This reverse airflow removes the accumulated moisture from the desiccant, expelling it to the atmosphere through a purge valve. Once the desiccant is dry, the air dryer is ready for the next cycle of operation.
4. Secondary Filtration and Delivery
After the drying process, the air may pass through a secondary filter or coalescing filter that removes any remaining fine oil mist or particles. This final filtration step ensures that the air delivered to the storage tanks and brake system is completely clean and dry. The purified air is then stored under pressure in the air tanks, ready for use in the vehicle's braking system whenever needed.
5. Ensuring System Integrity
By consistently delivering clean, dry air, the air dryer prevents the formation of ice in the brake lines during cold weather, reduces the risk of corrosion inside the brake components, and extends the overall lifespan of the air brake system. Additionally, as modern commercial vehicles incorporate more advanced braking technologies, such as Anti-lock Braking Systems (ABS) and Electronic Stability Control (ESC), the need for contamination-free air becomes even more crucial. Air dryers play a vital role in ensuring these systems function reliably under all operating conditions.
Part 2 Key Functions and Benefits of Air Dryers
Air dryers are integral to the safe and efficient operation of air brake systems in heavy trucks and commercial vehicles. They perform several key functions that directly contribute to the overall reliability and durability of the braking system. Below is a detailed list of the main functions of air dryers and the benefits they provide:
1. Moisture Removal
One of the primary functions of an air dryer is to remove moisture from the compressed air. When air is compressed, the moisture it contains can condense, causing to water accumulation in the brake system. This moisture can cause several issues:
Prevention of Condensation: By removing water vapor, air dryers prevent condensation from occurring within the brake lines and air tanks. This is particularly important in colder climates, where condensation can freeze, causing to blockages in the brake lines.
Reduction of Corrosion: Moisture within the system can cause to the corrosion of metal components, such as valves, brake chambers, and other parts. By keeping the air dry, air dryers help to minimize the risk of rust and corrosion, extending the lifespan of these critical components.
2. Oil Removal
In addition to moisture, the air compressor may introduce oil vapor into the compressed air system. Over time, this oil can accumulate and cause damage to various components:
Protection Against Oil Contamination: Air dryers are equipped with filters that remove oil vapor from the compressed air. By preventing oil contamination, air dryers protect rubber seals, diaphragms, and other sensitive parts from deterioration. This helps to maintain the proper function of the braking system and reduces the need for frequent maintenance.
3. Extended Equipment Life
By effectively removing moisture, oil, and other contaminants, air dryers play a critical role in preserving the integrity of the air brake system:
Increased Longevity of System Components: Clean, dry air reduces the wear and tear on the system's components. This leads to fewer breakdowns, lower maintenance costs, and a longer service life for the entire braking system. For fleet operators, this translates into significant cost savings over time, as the need for repairs and part replacements is minimized.
4. Enhanced Safety
The primary purpose of the air brake system is to ensure safe braking performance under all operating conditions. Air dryers contribute to this by ensuring the reliability of the system:
Consistent Braking Performance: By delivering dry, contaminant-free air, air dryers prevent common issues like freezing, corrosion, and clogging, which could otherwise compromise the braking system. This is especially critical for modern vehicles equipped with advanced braking technologies like Anti-lock Braking Systems (ABS) and Electronic Stability Control (ESC), which require clean air to function optimally.
Adaptability to Environmental Conditions: Whether operating in harsh cold or high humidity, air dryers help maintain consistent brake performance, ensuring that the vehicle remains safe to operate in diverse environmental conditions.
5. Improved Operational Efficiency
Air dryers contribute not only to safety and longevity but also to the overall efficiency of the vehicle's braking system:
Reduced Downtime: By preventing issues related to moisture and oil contamination, air dryers reduce the likelihood of brake system failures that could result in vehicle downtime. This ensures that vehicles can remain operational for longer periods, improving fleet productivity.
Lower Maintenance Costs: With fewer contaminants in the system, there is less need for frequent maintenance, causing to reduced maintenance costs and longer intervals between service checks.
Part 3 Types of Air Dryers
For heavy trucks and commercial vehicles, desiccant air dryers and refrigerated air dryers are the better relevant types. Desiccant dryers are essential in demanding environments requiring ultra-dry air, while refrigerated dryers offer a more economical solution for less demanding conditions. Selecting the appropriate type based on your vehicle's operational needs will ensure the longevity and reliability of the air brake system.
1.Desiccant Air Dryers
Desiccant air dryers are highly effective in removing moisture from the compressed air systems of heavy trucks and commercial vehicles. These dryers use a desiccant material, such as silica gel or activated alumina, to absorb water vapor from the air, ensuring a low dew point. They are particularly beneficial in environments where air needs to be extremely dry, such as in cold climates where freezing could be an issue.

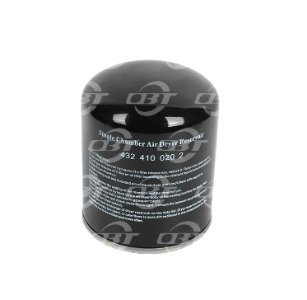

Image by Single Chamber Air Dryer Reservoir
Applications: Desiccant air dryers are ideal for heavy-duty trucks and commercial vehicles that operate in harsh environments or where advanced braking systems like ABS require ultra-dry air for reliable performance.
2. Refrigerated Air Dryers
Refrigerated air dryers are suitable for applications where moderate drying is sufficient. These dryers cool the compressed air, causing moisture to condense and be removed from the air stream. While they do not achieve as low a dew point as desiccant dryers, they are more cost-effective and easier to maintain.
Applications: Refrigerated air dryers are commonly used in commercial vehicles operating in temperate climates where freezing is not a concern, providing reliable moisture removal at a lower cost.
Part 4 Maintenance and Replacement
Proper maintenance of air dryers in heavy trucks and commercial vehicles is essential to prevent moisture-related issues in the air brake system. Regularly inspect and replace the desiccant cartridge according to the manufacturer's recommendations, typically every 2 to 3 years, or sooner in harsh conditions. Additionally, ensure the air tanks are drained daily to remove any accumulated moisture, and check the purge valve for proper operation to maintain system efficiency.
Timely maintenance, including desiccant and filter replacement, along with regular system inspections, helps extend the lifespan of the air brake system and ensures reliable performance, particularly in challenging environments or hash weather conditions.
Part 5 Conclusion
Air dryers are indispensable components in the air brake systems of heavy trucks and commercial vehicles, playing a crucial role in maintaining system efficiency, safety, and longevity. By effectively removing moisture, oil, and other contaminants from the compressed air, air dryers prevent issues such as corrosion, freezing, and component wear that could otherwise cause to brake failure. The choice between desiccant and refrigerated air dryers should be based on the specific operational requirements of the vehicle, ensuring peak performance in various environmental conditions.
Regular maintenance, including timely replacement of desiccant and filters, is essential to keep the air brake system functioning reliably. By adhering to a consistent maintenance schedule and selecting the appropriate type of air dryer, fleet operators can significantly reduce downtime, lower maintenance costs, and enhance the overall safety and efficiency of their vehicles. As commercial vehicles continue to evolve with advanced braking technologies, the role of air dryers will only become more critical in ensuring that these systems perform effectively across all conditions.
