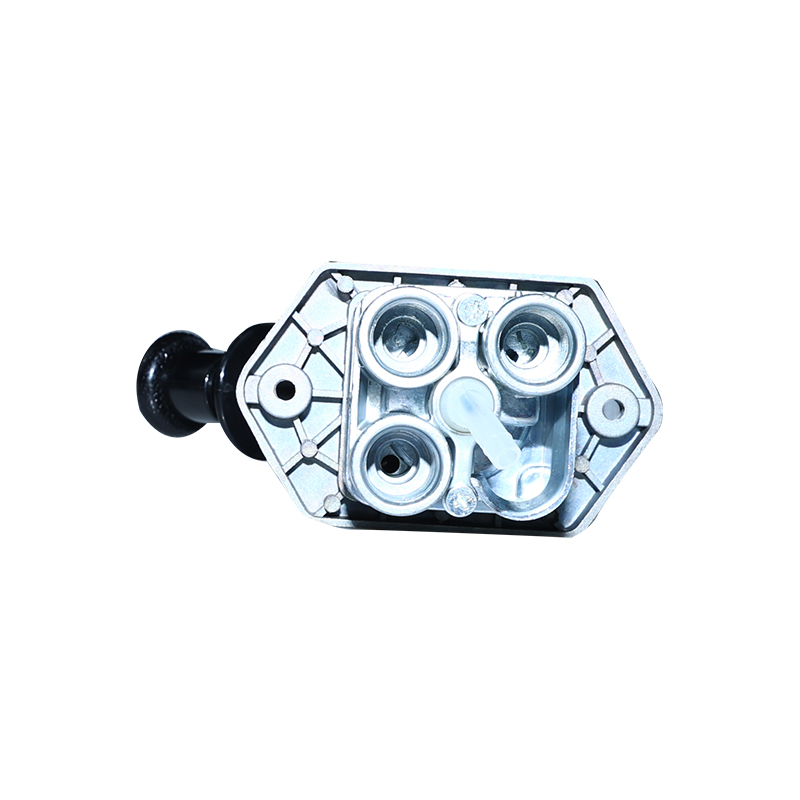

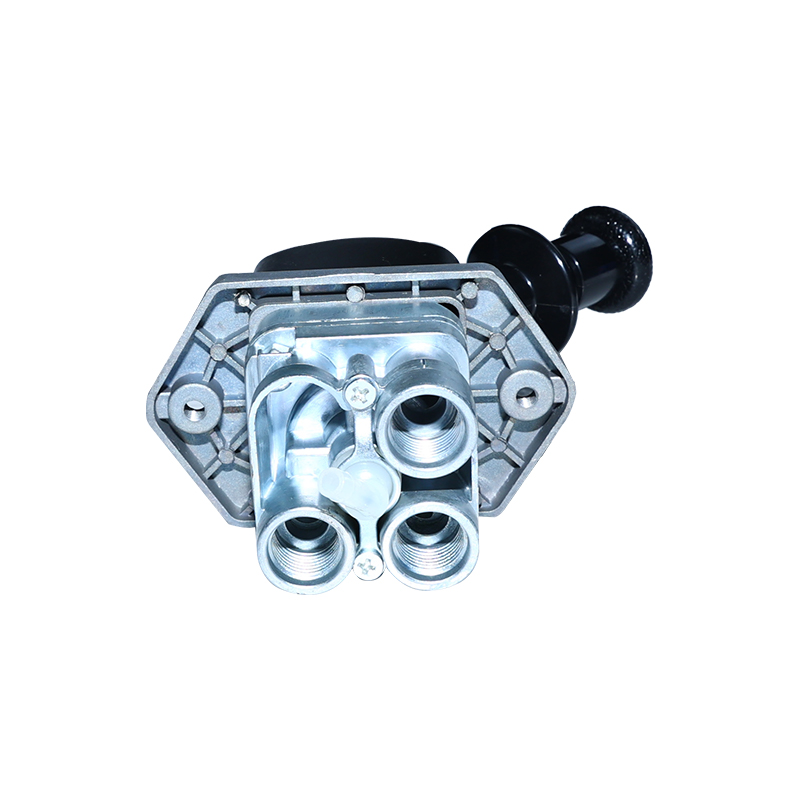

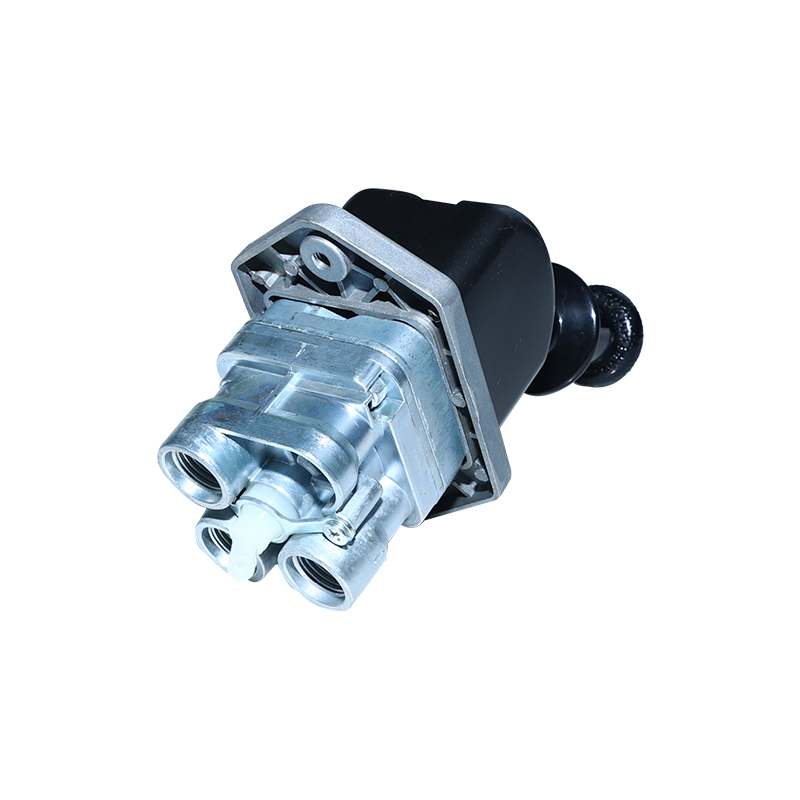

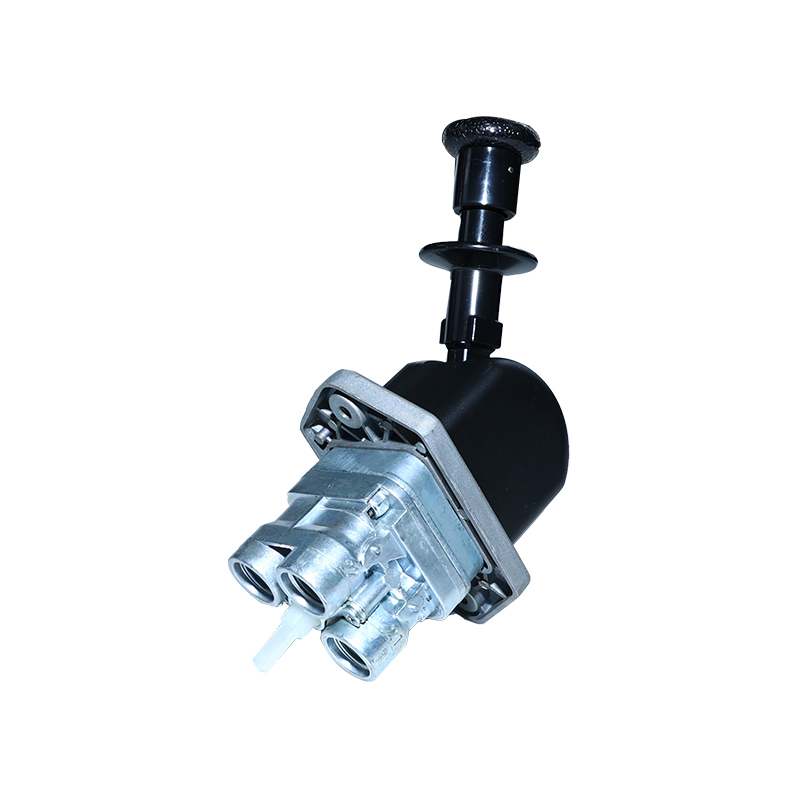

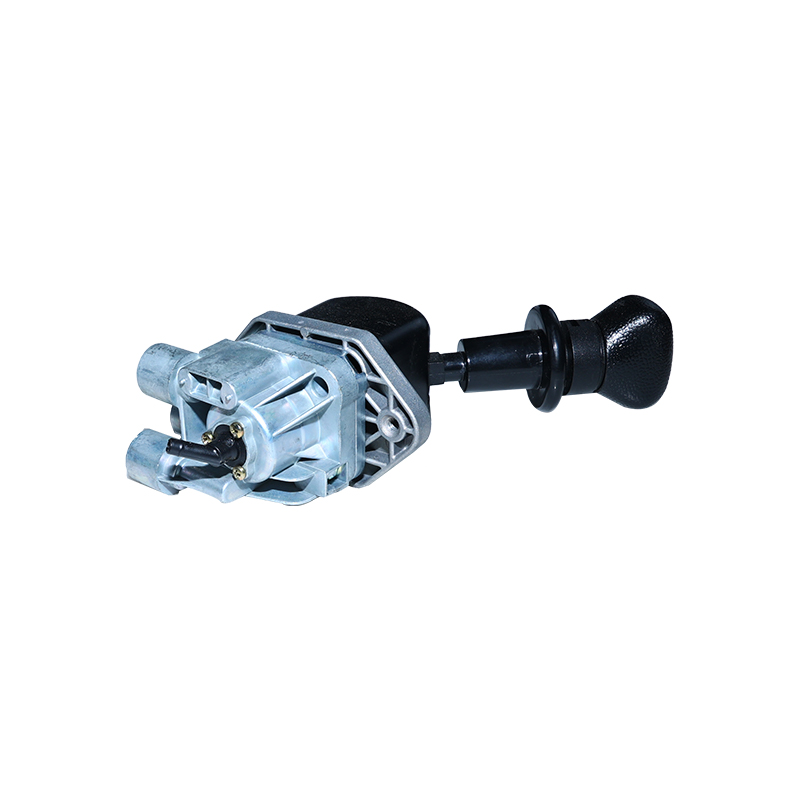

9617232080 Mounting:m6 for daewoo,daf hand brake valve

Details
Type of vehicle
Leave a message

How do hand valves work?

The tractor-protection valve and relay emergency valve are operated by application air, as explained in the foot-valve application. Closing the hand valve releases the brakes by closing off application air. Air pressure in the chambers and lines will exhaust, also as explained in the previous foot-valve application.

Actuation angle:	85°
Color:	Black/Black
Distance between holes:	80.0 mm
Exhaust:	Hose Nozzle Ø 6 mm
Max. operating pressure:	10.0 bar
Mounting:	M6
Port thread 1:	M16 x 1.5 JED - 464
Port thread 21:	M16 x 1.5 JED - 464
Port thread 22:	M16 x 1.5 JED - 464
Port threads:	M16 x 1.5 VOSS
Temperature range:	-40°C to +80°C
Calculated Volume (dm³):	1.1693
Size (mm x mm x mm):	172 x 103 x 66
Weight (kg):	0.612
Applicaion:	DAEWOO,DAF,HYUNDAI,IRISBUS,IVECO,RENAULT

DAEWOO3454402530
DAEWOO34544 02530
DAF1519269
HYUNDAI597107C700 HYUNDAI59710 7C700
IRISBUS5010145720
IVECO5010145720
RENAULT5010145720
