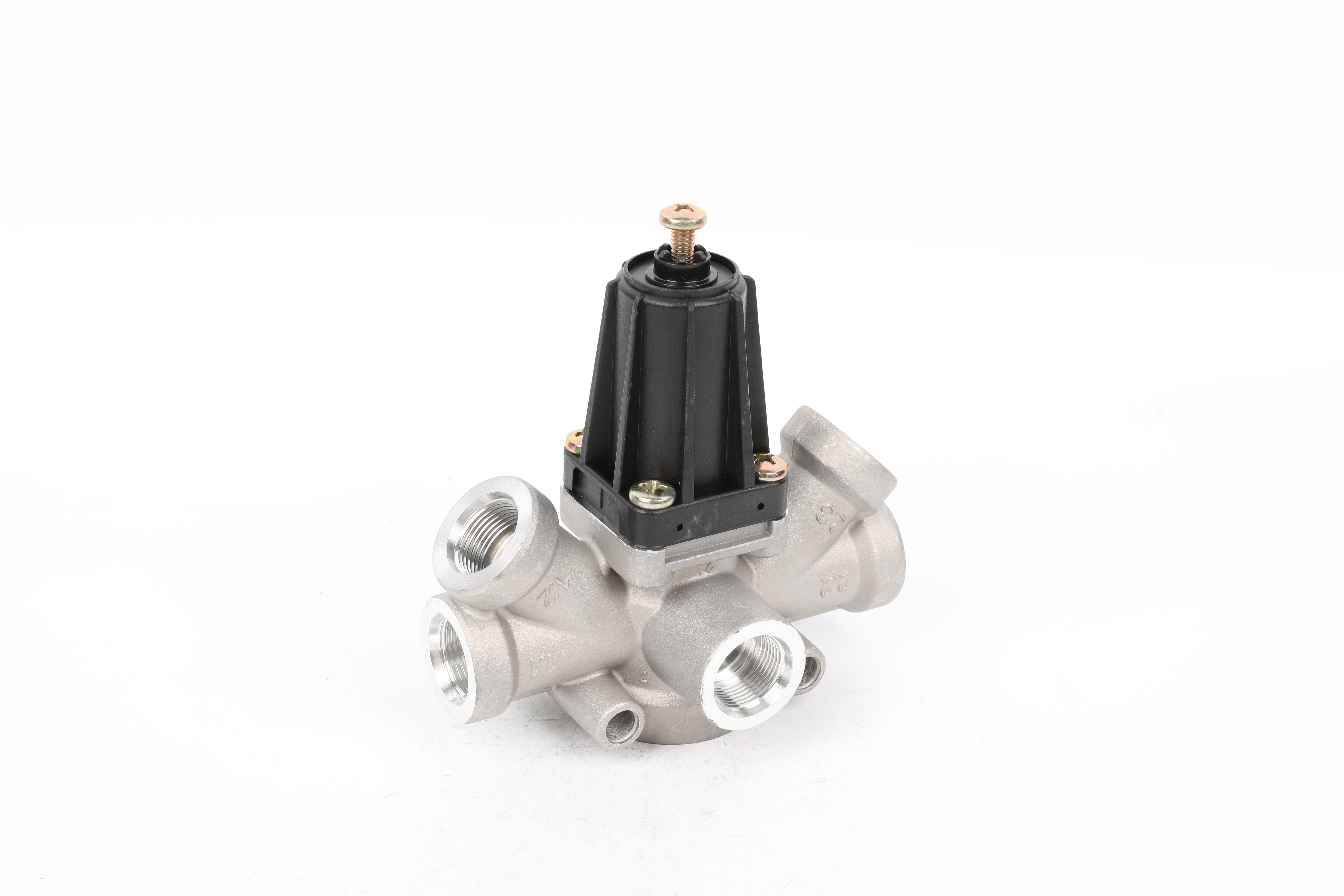

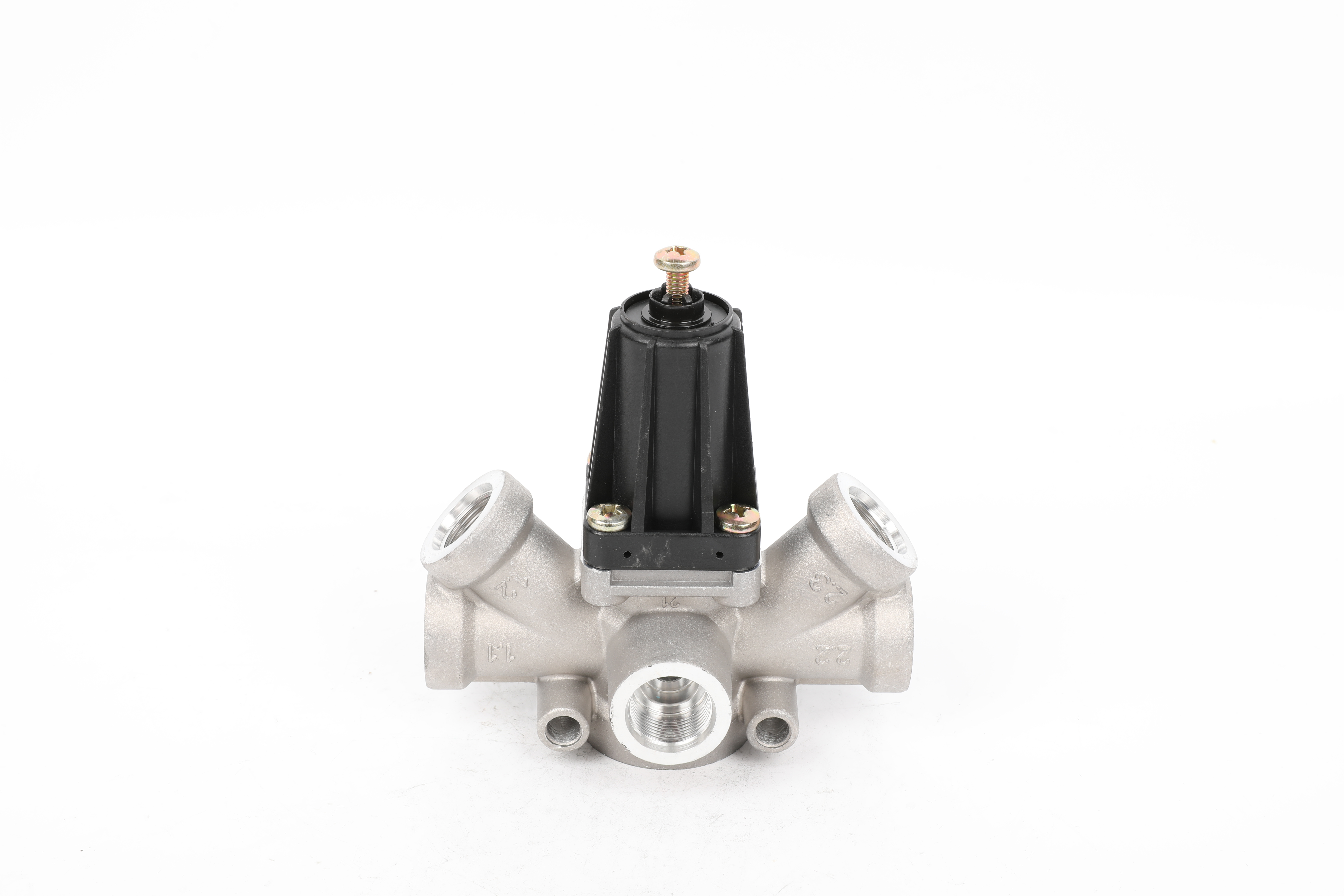

4750104000 Max. operating pressure:20.0 bar pressure limiting valve

Details
Type of vehicle
Leave a message

Why do I need a pressure limiting valve?

A pressure limiting valve (or PLV) will limit the strength of the incoming water pressure to save your property from damage caused by high water pressure. PLVs have become part of Australian standards in order to protect your home.

Delivered pressure:	8.0 at p1 = 9.8 bar
Distance between bolts:	56.0 mm
Exhaust:	Ø 4 mm
Max. operating pressure:	20.0 bar
Mounting:	2x Ø 8.6 mm
Port thread 1:	M22 x 1.5
Port thread 2:	M22 x 1.5
Temperature range:	-40°C to +80°C
Calculated Volume (dm³):	0.935
Size (mm x mm x mm):	170 x 50 x 110
Weight (kg):	0.544
Weight (lb):	1.1993
Application:	LEYLAND DAF, PACCAR,SCANIA ,MAN,DAF,

- DAF

  1305138
- DAF

  1506193
- LEYLAND DAF

  1305138
- MAN

  81521016286
- MAN

  ZG046230002
- PACCAR

  CD4750104000
- SCANIA

  1935020
