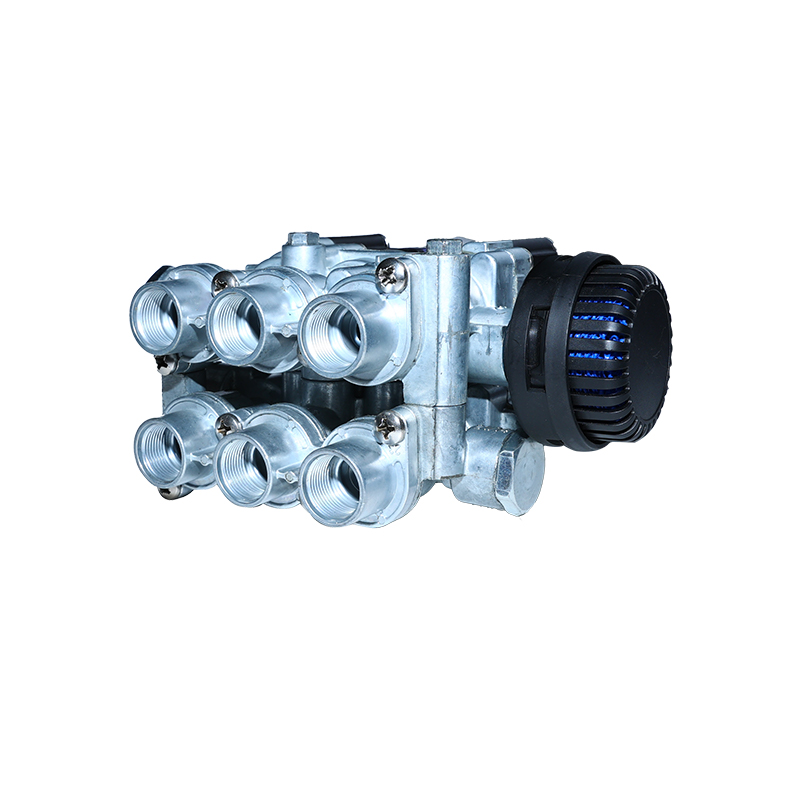

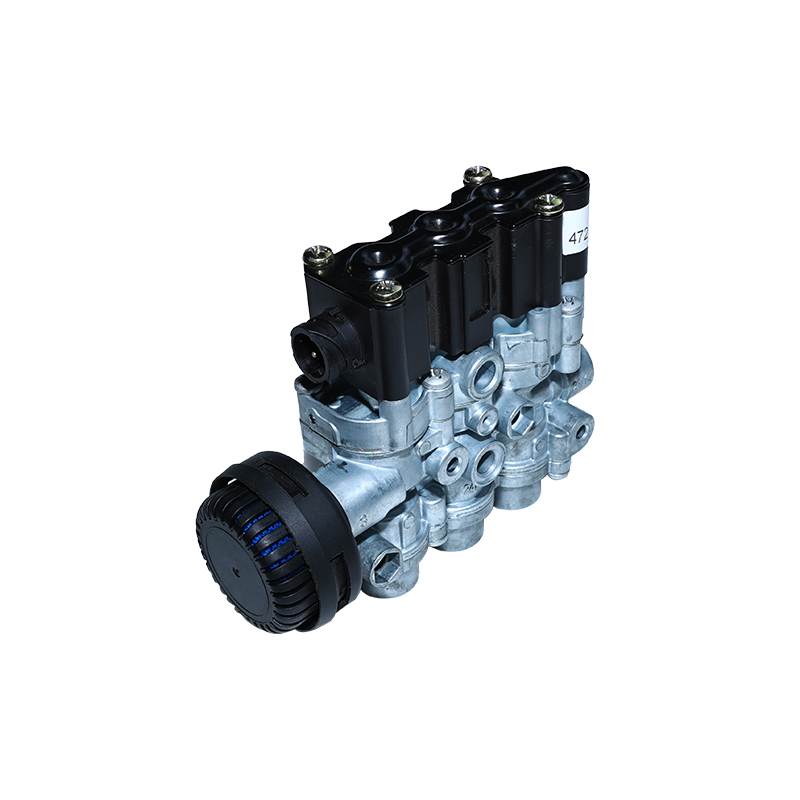

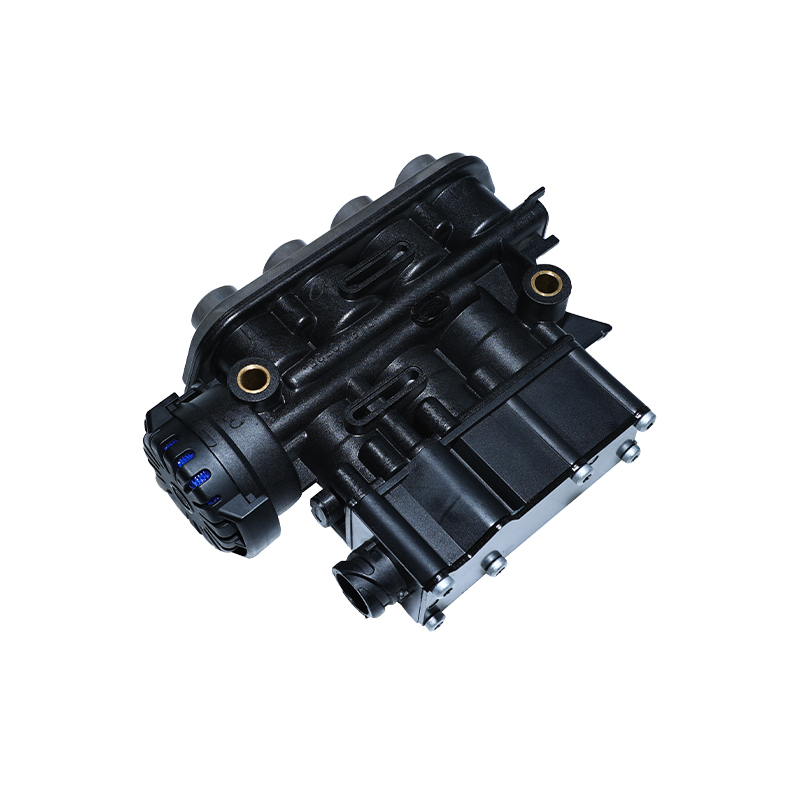

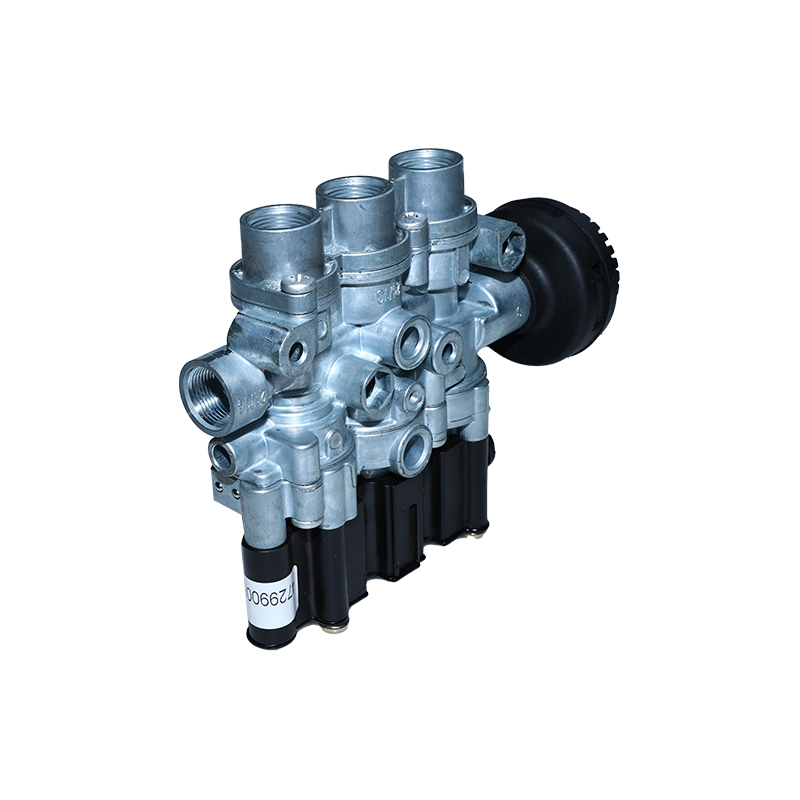

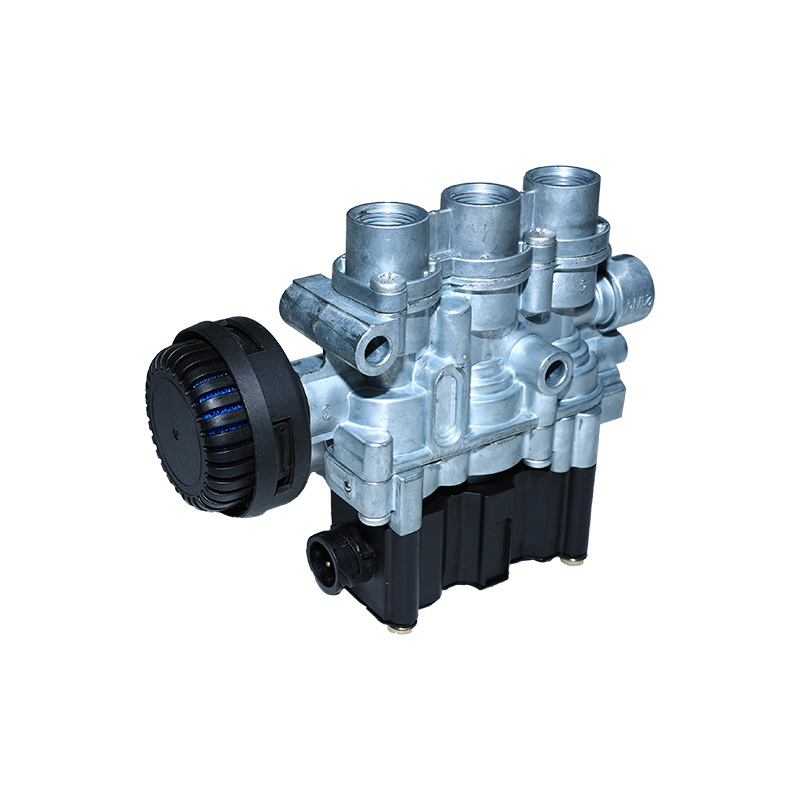

ECAS SOLENOID VALVE

REF No.: BT472 900 053 0

APPLICATION: MAN / MERCEDES / DAF / RENAULT / SCANIA / VOLKSWAGEN / VOLVO / KRONE

Ports: 11,21,22,23,25=M22x1.5

24V DC

Wabco ECAS valve 4729000530 4729000550 4729000600 4729000630 4729000650 4729000730 4729000610 4729000620

Application:	Rear axle
Electrical Connection:	Bayonet (DIN)
Max. operating pressure:	20.0 bar
Multi Nominal diameter (From Port 1 to x):	9.8 / 7.0 mm
Port thread 11:	M22 x 1.5 JED - 388
Port thread 21:	M22 x 1.5 JED - 388
Port thread 22:	M22 x 1.5 JED - 388
Port thread 23:	M22 x 1.5 JED - 388
Port thread 3:	Silencer 4324070600
Port threads:	M22 x 1.5 VOSS
Protection Class:	IP 6K6K
Rated Current:	320 mA
Temperature range:	-40°C to +80°C
Voltage:	24 V
Calculated Volume (dm³):	2.3662
Size (mm x mm x mm):	161 x 207 x 71
Weight (kg):	2.412
Weight (lb):	5.3175
APPLICATION:	ALEXANDER DENNIS,DAF,ERF,FAYMONVILLE,FUSO (MITSUBISHI) IRISBUS,ISUZU,IVECO,LANGENDORF,LEYLAND DAF,MAN,MERCEDES-BENZ NEOPLAN,ORTHAUS,RENAULT,SCANIA,SCHWARZMÜLLER,SOLARIS

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as Wholesale 4729000530 Electrical connection:bayonet (din) application:rear axle ecas solenoid valve Supplier and Custom 4729000530 Electrical connection:bayonet (din) application:rear axle ecas solenoid valve Company, Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
