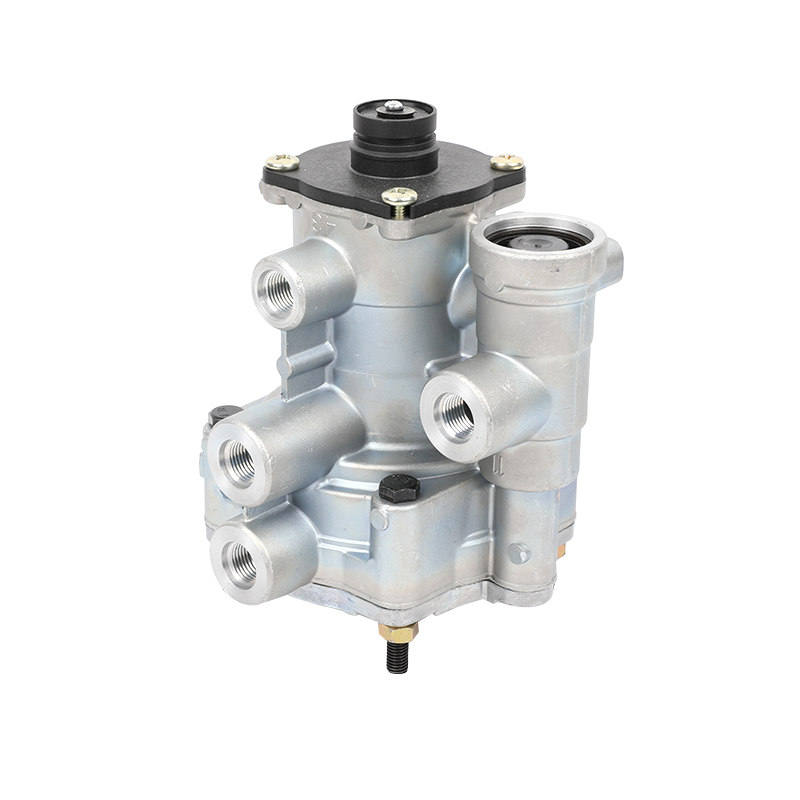

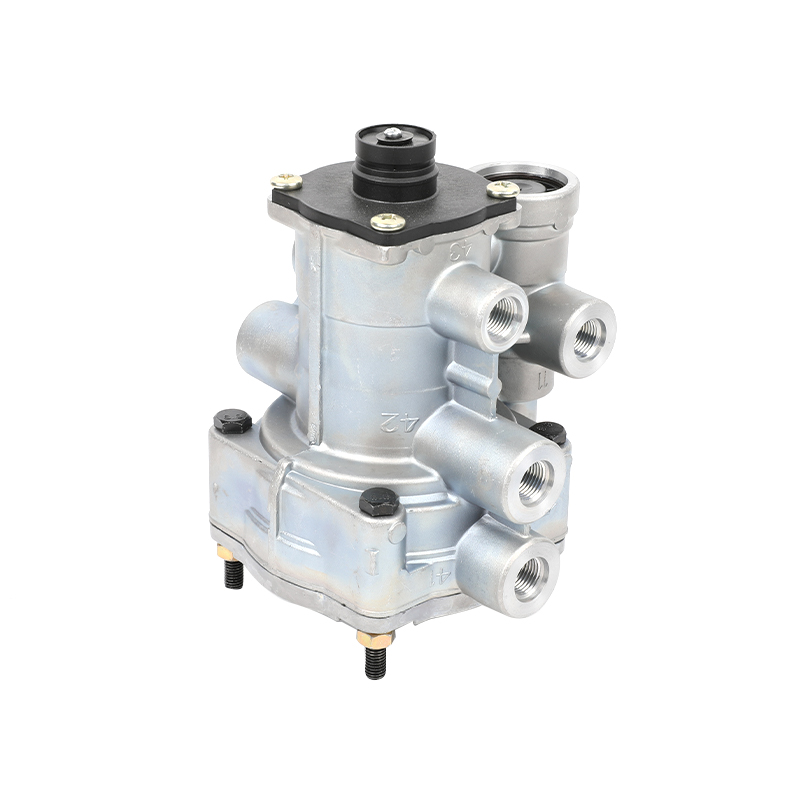

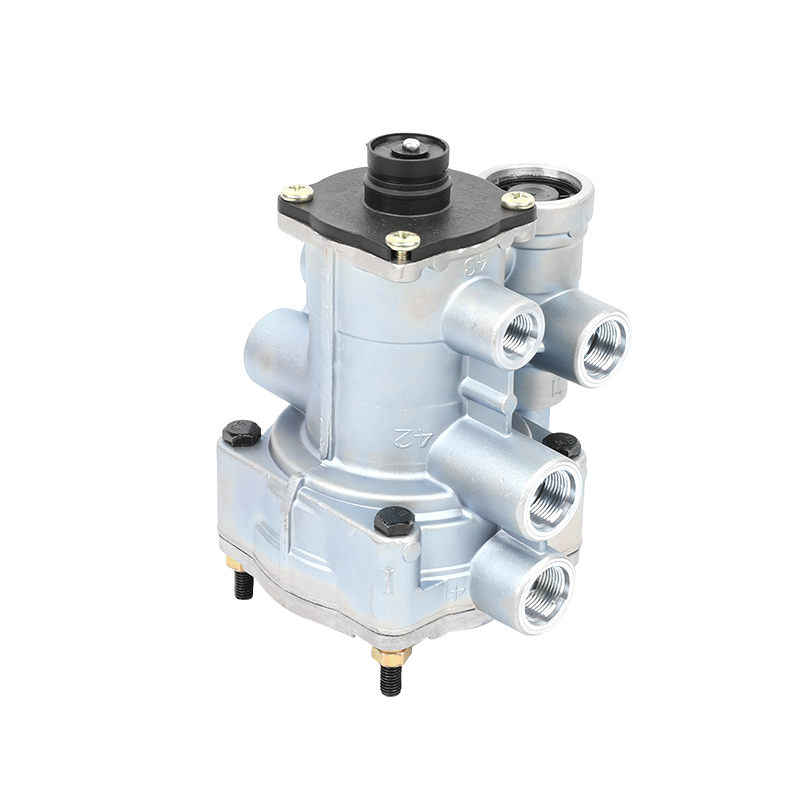

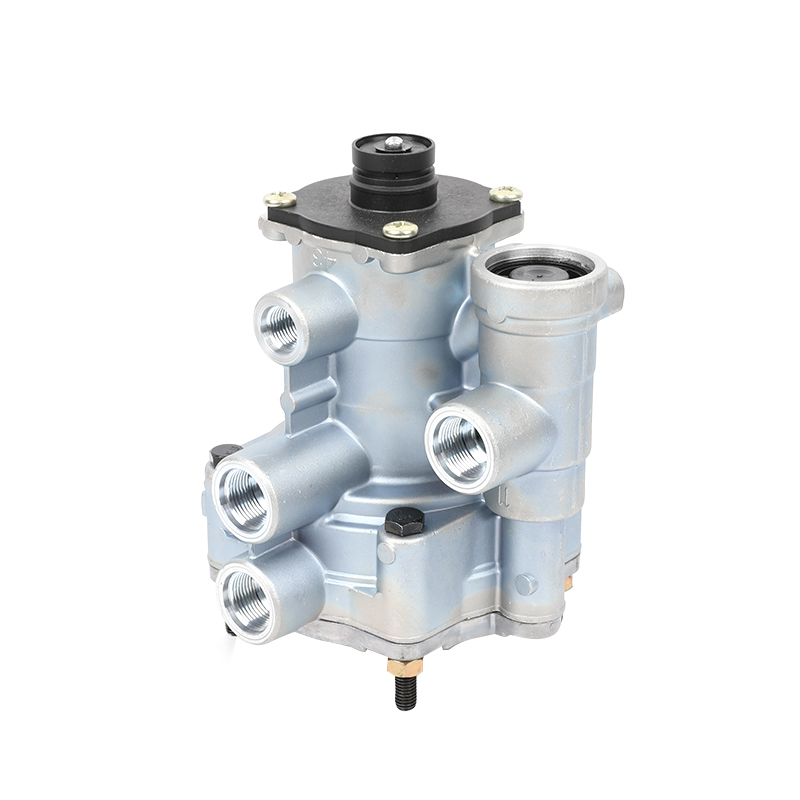

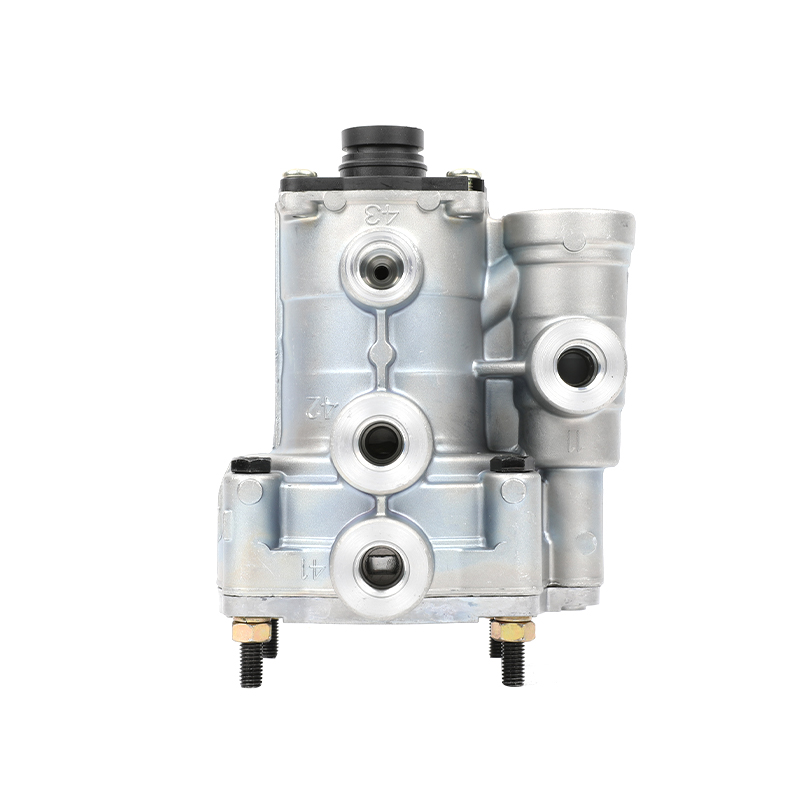

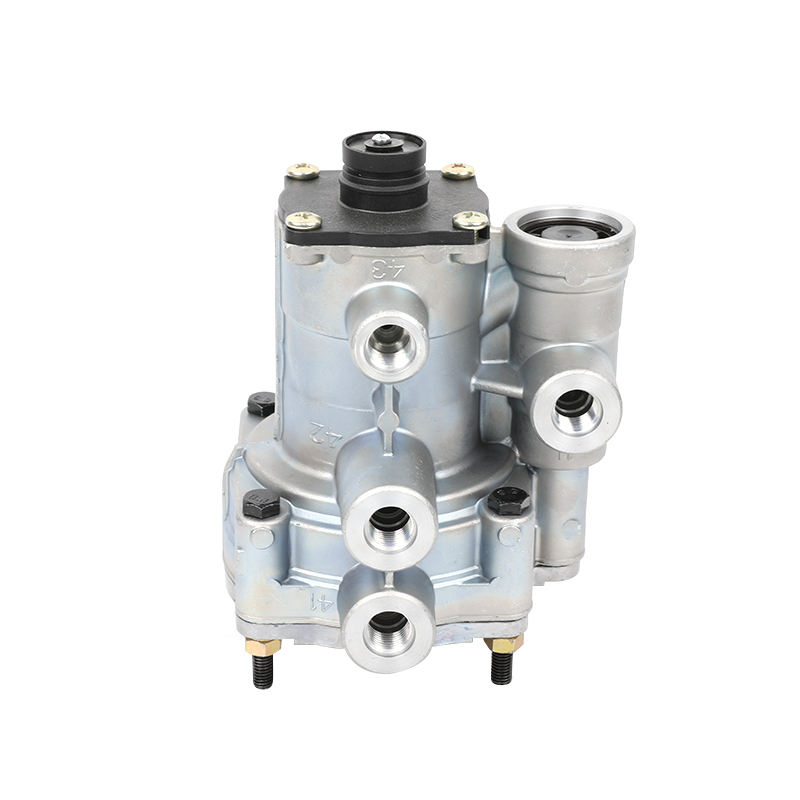

What does a trailer control valve do?
The trailer control valve in the towing vehicle causes the brake system of a trailer to be supplied with compressed air. It also controls the trailer brake system via the service brake system of the towing vehicle and via the parking and auxiliary brake valve.
|
Accessories: |
4334070120 |
|
Distance between bolts: |
85.0 x 85.0 mm |
|
Exhaust: |
Snap on contour |
|
Max. operating pressure: |
8.5 bar |
|
Mounting: |
4x M8 |
|
Multi Nominal diameter (From Port 1 to x): |
9 mm |
|
Port thread 11: |
M22 x 1.5 JED - 388 |
|
Port thread 12: |
M22 x 1.5 JED - 388 |
|
Port thread 22: |
M22 x 1.5 JED - 388 |
|
Port thread 41: |
M22 x 1.5 JED-388 |
|
Port thread 42: |
M22 x 1.5 JED-388 |
|
Port thread 43: |
M16 x 1.5 JED-388 |
|
Predominance: |
0.20 bar |
|
Temperature range: |
-40°C to +80°C |
|
Calculated Volume (dm³): |
3.8631 |
|
Size (mm x mm x mm): |
193 x 144 x 139 |
|
Weight (kg): |
2.098 |
|
Weight (lb): |
4.6253 |
|
Application: |
|
