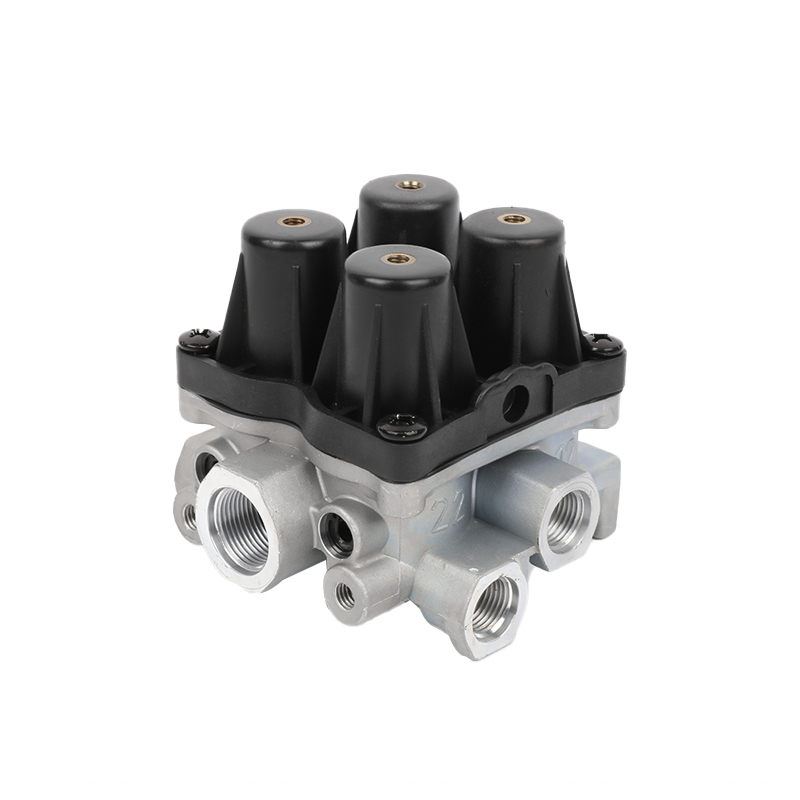

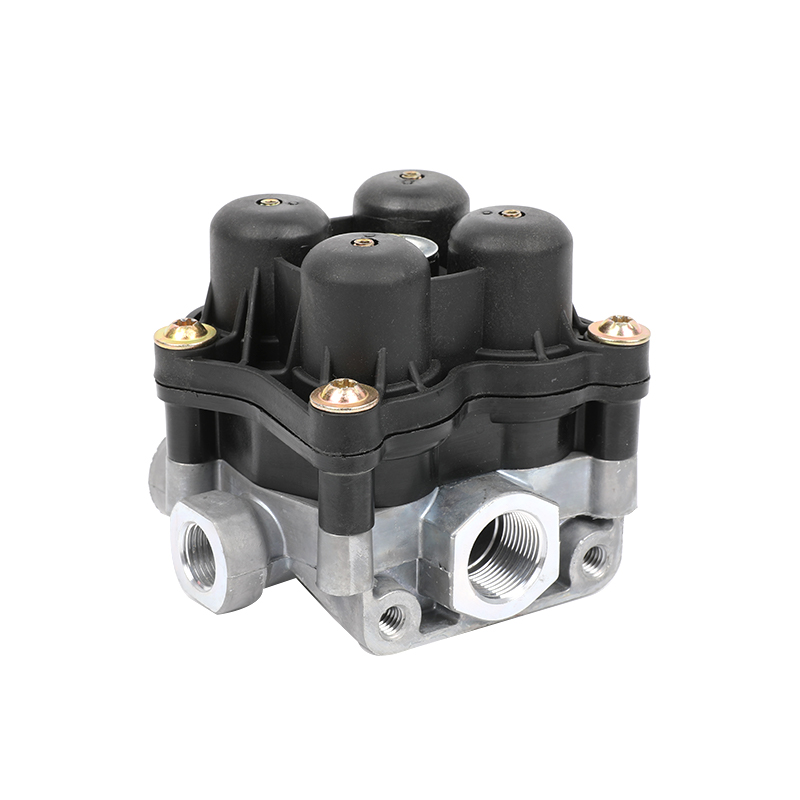

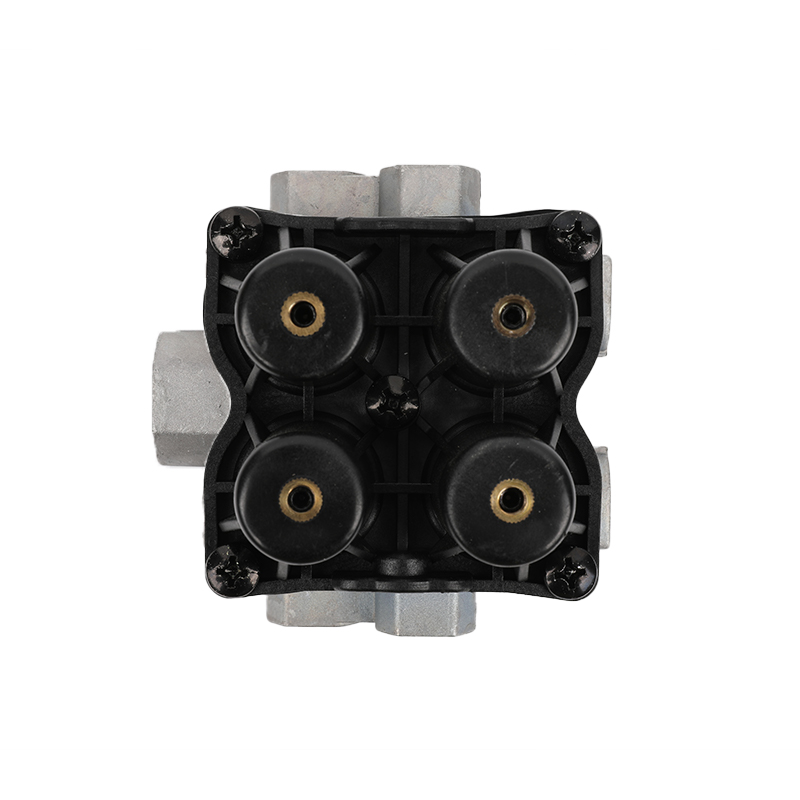

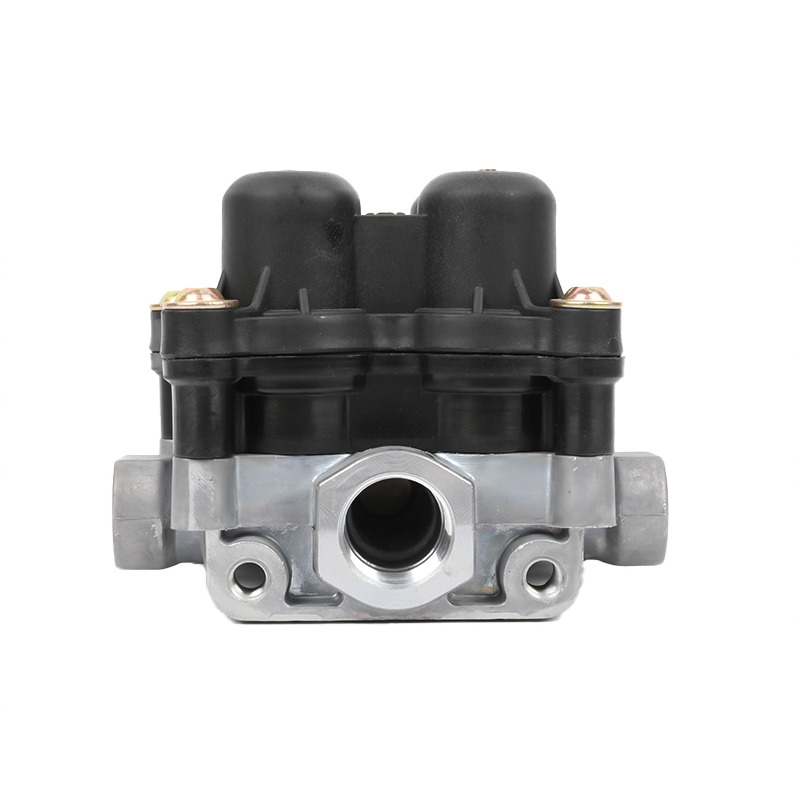

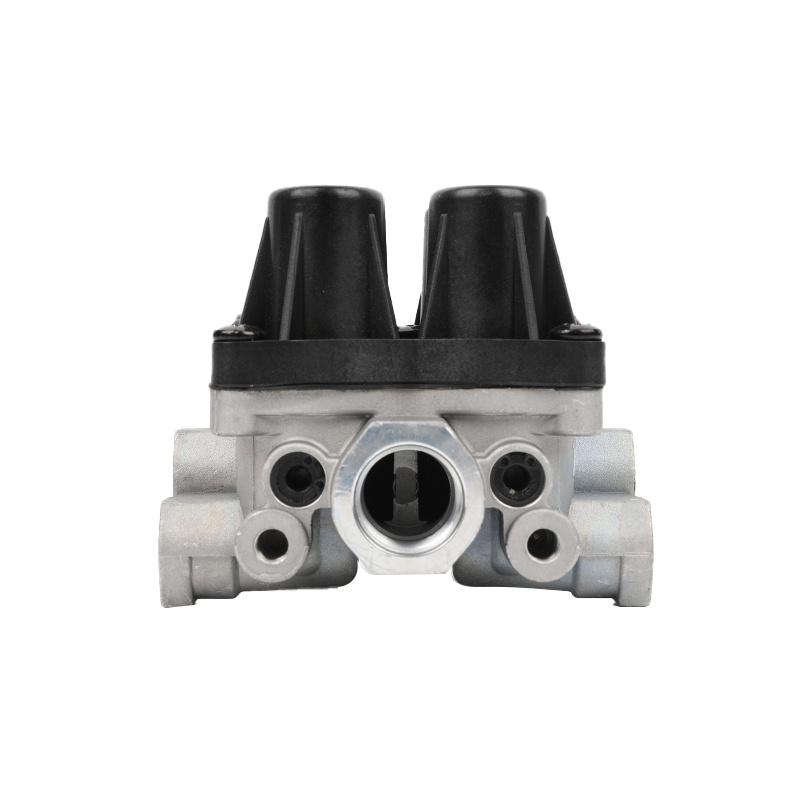

9347147400 Quadruple protection valve

Details
Type of vehicle
Leave a message

Charging pressure:	3.15 bar
Max. operating pressure:	13.0 bar
Opening pressure circuit 1+2:	5.8 + 5.8 bar
Port thread 1:	M22 x 1.5
Port thread 11:	M16 x 1.5
Port thread 12:	M16 x 1.5
Port thread 21:	M16 x 1.5
Port thread 22:	M16 x 1.5
Port thread 23:	M16 x 1.5
Port thread 4:	M16 x 1.5
Pressure sensor:	No
Technical specification:	OE specification
Temperature range:	-45°C to +90°C
Calculated Volume (dm³):	1.14048
Size (mm x mm x mm):	110 x 108 x 96
Weight (kg):	0.728
Weight (lb):	1.605

DAF1528375

PACCAR1528375

VOLVO21225479

VOLVO20755195

VOLVO20716313

VOLVO20452151

VOLVO20382309
If you want to know us, please contact us!

We always adhere to the quality policy of "innovation is infinity, to keep improving", adhering to the enterprise tenet of "veracity, customer regarded supreme".
- Company.
- E-mail*.
- Name*.
- Phone*.
- Message*.

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as Wholesale 9347147400 Quadruple protection valve Supplier and Custom 9347147400 Quadruple protection valve Company, Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
