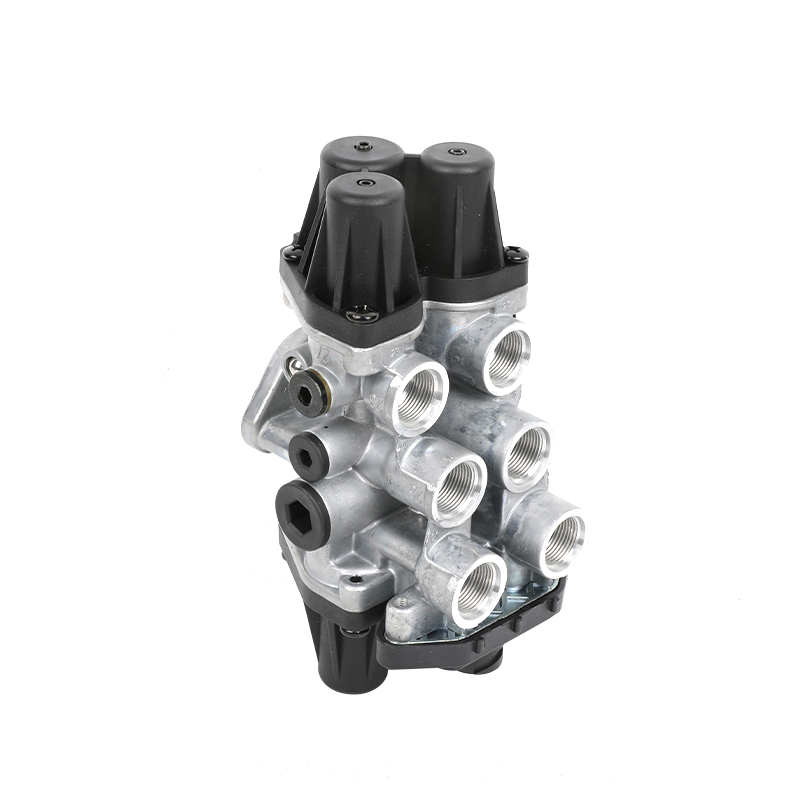

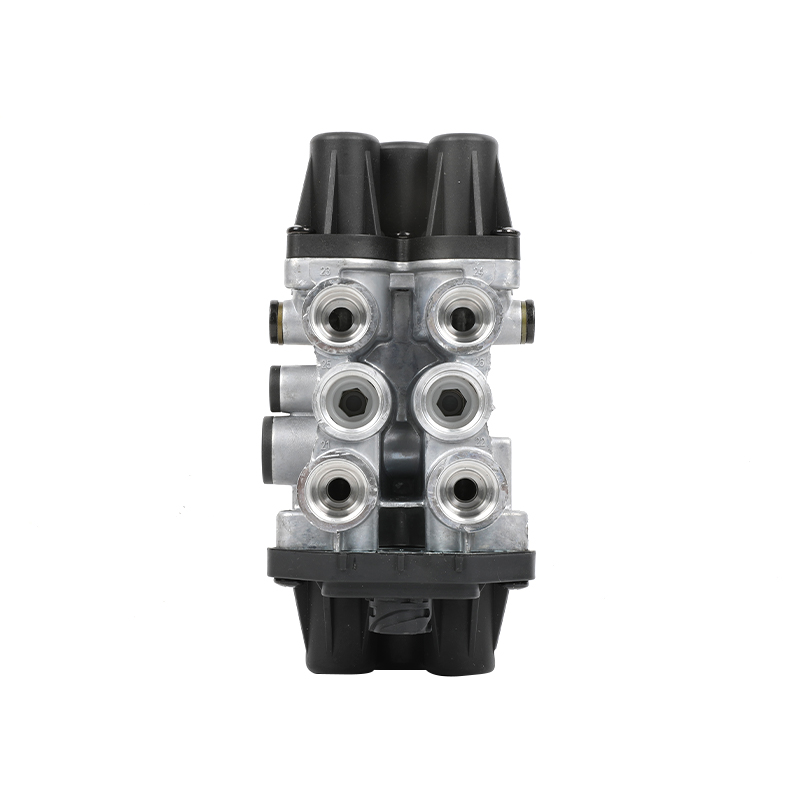

9347050050 For daf,man,benz quadruple protection valve

Details
Type of vehicle
Leave a message

The purpose of the Tractor Protection valve is to protect the tractor air brake system in the event of a trailer breakaway or severe air leak. They are also used to shut off air to the trailer before disconnecting the lines.

Charging pressure:	65.27 psi
Closing pressure dynamic 21:	101.5 psi
Closing pressure dynamic 22:	101.5 psi
Closing pressure dynamic 23:	65.3 psi
Closing pressure dynamic 24:	65.3 psi
Electrical Connection:	DIN 72585
Max. operating pressure:	188.5 psi
Opening pressure 21:	130.53 psi
Opening pressure 22:	130.53 psi
Opening pressure 23:	108.78 psi
Opening pressure 24:	108.78 psi
Port thread 1:	M22 x 1.5
Port thread 22:	M22 x 1.5
Port thread 24:	M22 x 1.5
Port thread 26:	M22 x 1.5
Calculated Volume (dm³):	3.069
Size (mm x mm x mm):	217 x 136 x 104
Weight (kg):	1.621
Weight (lb):	3.5737
Application:	DAF,EVOBUS,KÖGEL,MAN,MERCEDES-BENZ,PACCAR,SCANIA

EVOBUSA0034315506

FAUN99707005559

FAUN7005559

MERCEDES-BENZ0034315506

MERCEDES-BENZA0034315506
