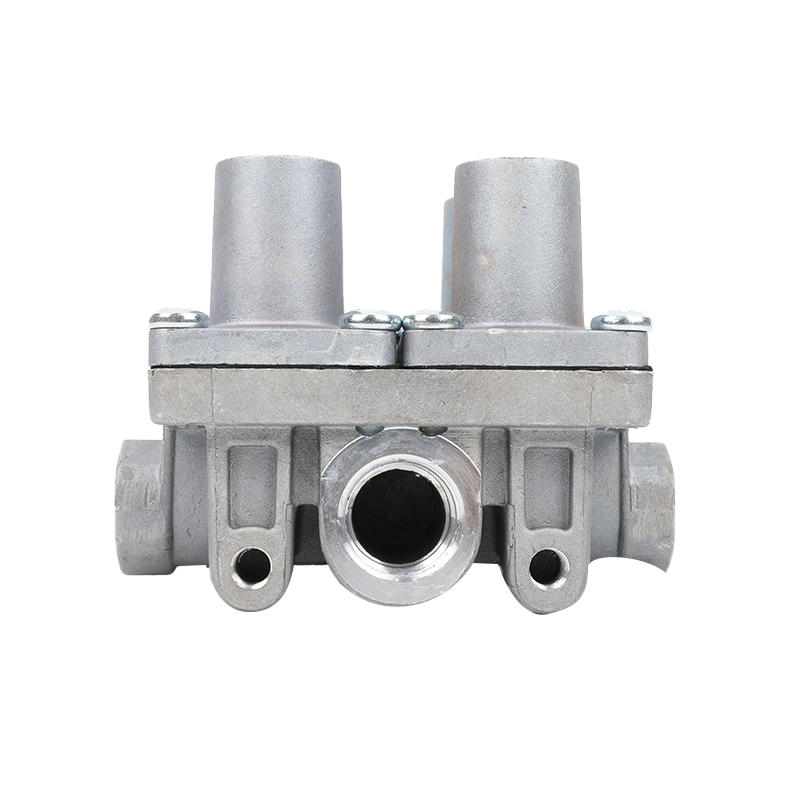

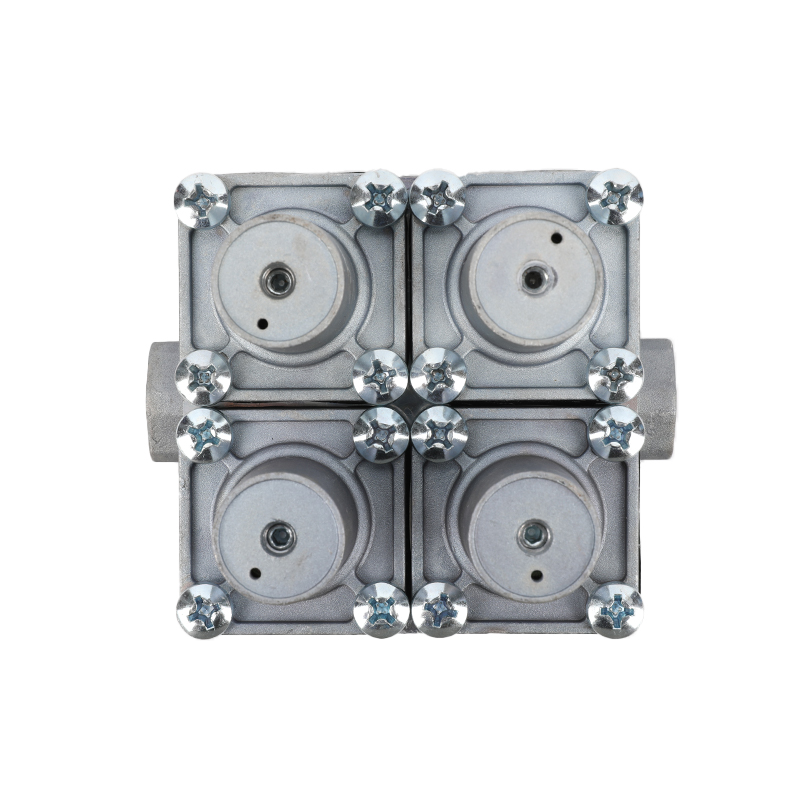

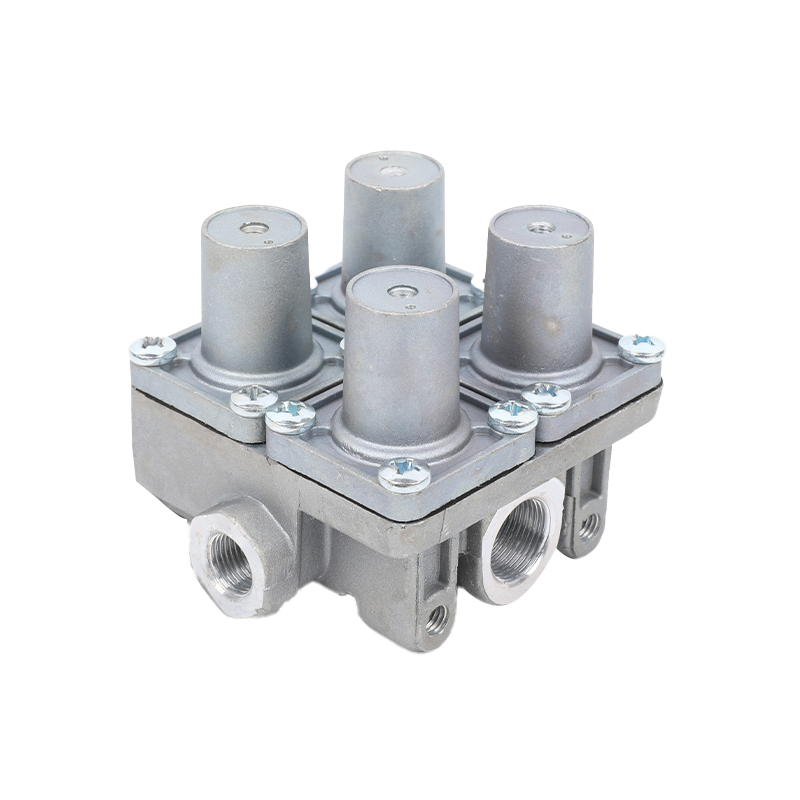

9347022500 Charging pressure:3.5 bar quadruple protection valve Wholesale

9347022500 Charging pressure:3.5 bar quadruple protection valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • Charging pressure:

    3.5 bar

    Closing pressure dynamic 21:

    6.7 bar

    Closing pressure dynamic 22:

     6.7 bar

    Closing pressure dynamic 23:

    6.7 bar

    Closing pressure dynamic 24:

    6.7 bar

    Max. operating pressure:

    20.0 bar

    Opening pressure 21:

    7 bar

    Opening pressure 22:

    7 bar

    Opening pressure 23:

    7 bar

    Opening pressure 24

    7 bar

    Opening pressure circuit 1+2

    7.0 + 7.0 bar

    Port thread 1

    M22 x 1.5

    Port thread 21

    M16 x 1.5

    Port thread 22:

    M16 x 1.5

    Port thread 23:

    M16 x 1.5

    Port thread 24:

    M16 x 1.5

    Port thread 4:

    M16 x 1.5

    Pressure sensor:

    No

    Technical specification:

    OE specification

    Temperature range:

    -40°C to +90°C

    Type:

    dynamic

    Calculated Volume (dm³):

    0.99745

    Size (mm x mm x mm):

    97 x 113 x 91

    Weight (kg):

    0.935

    Weight (lb):

    2.0613

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as Wholesale 9347022500 Charging pressure:3.5 bar quadruple protection valve Supplier and Custom 9347022500 Charging pressure:3.5 bar quadruple protection valve Company, Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
