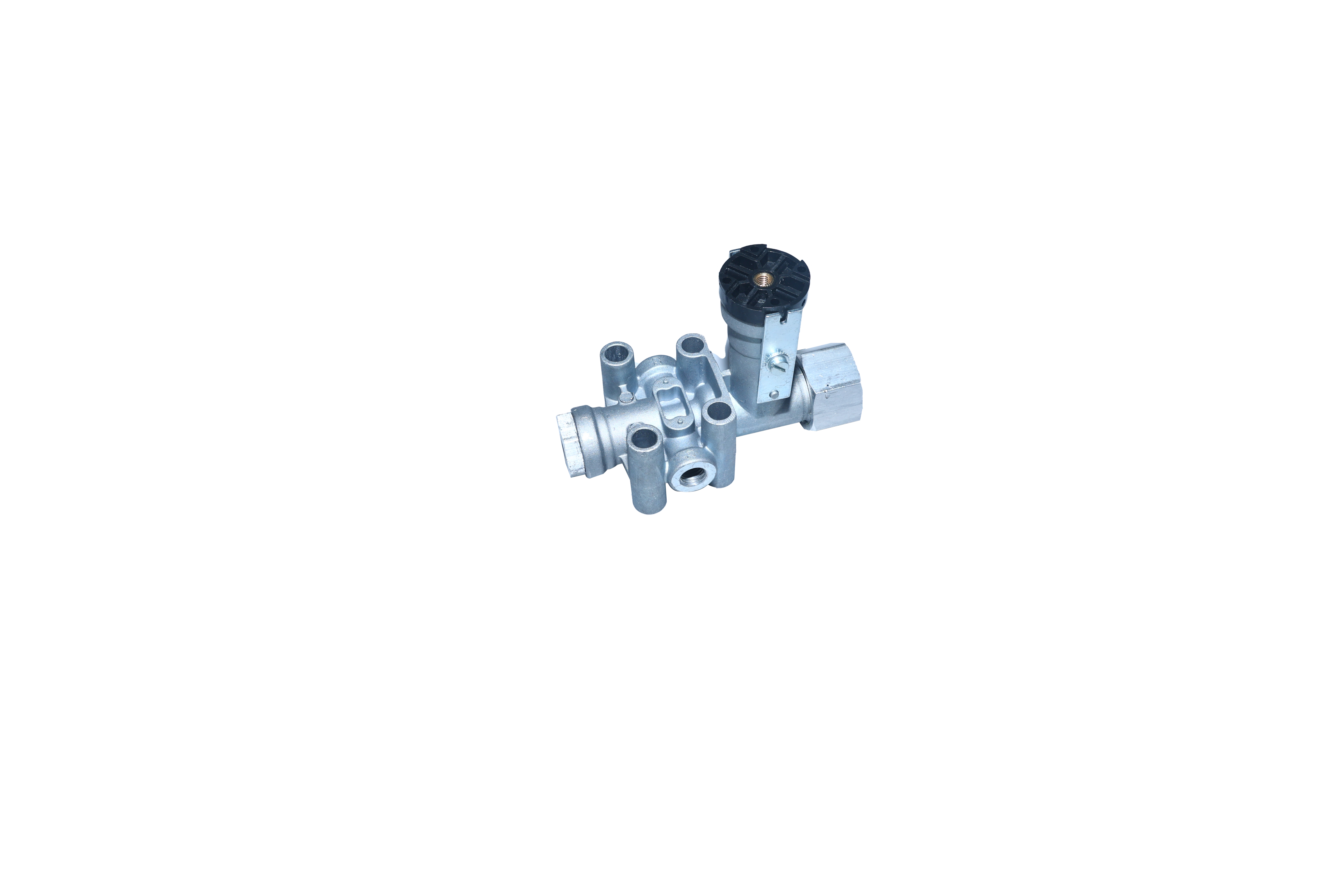

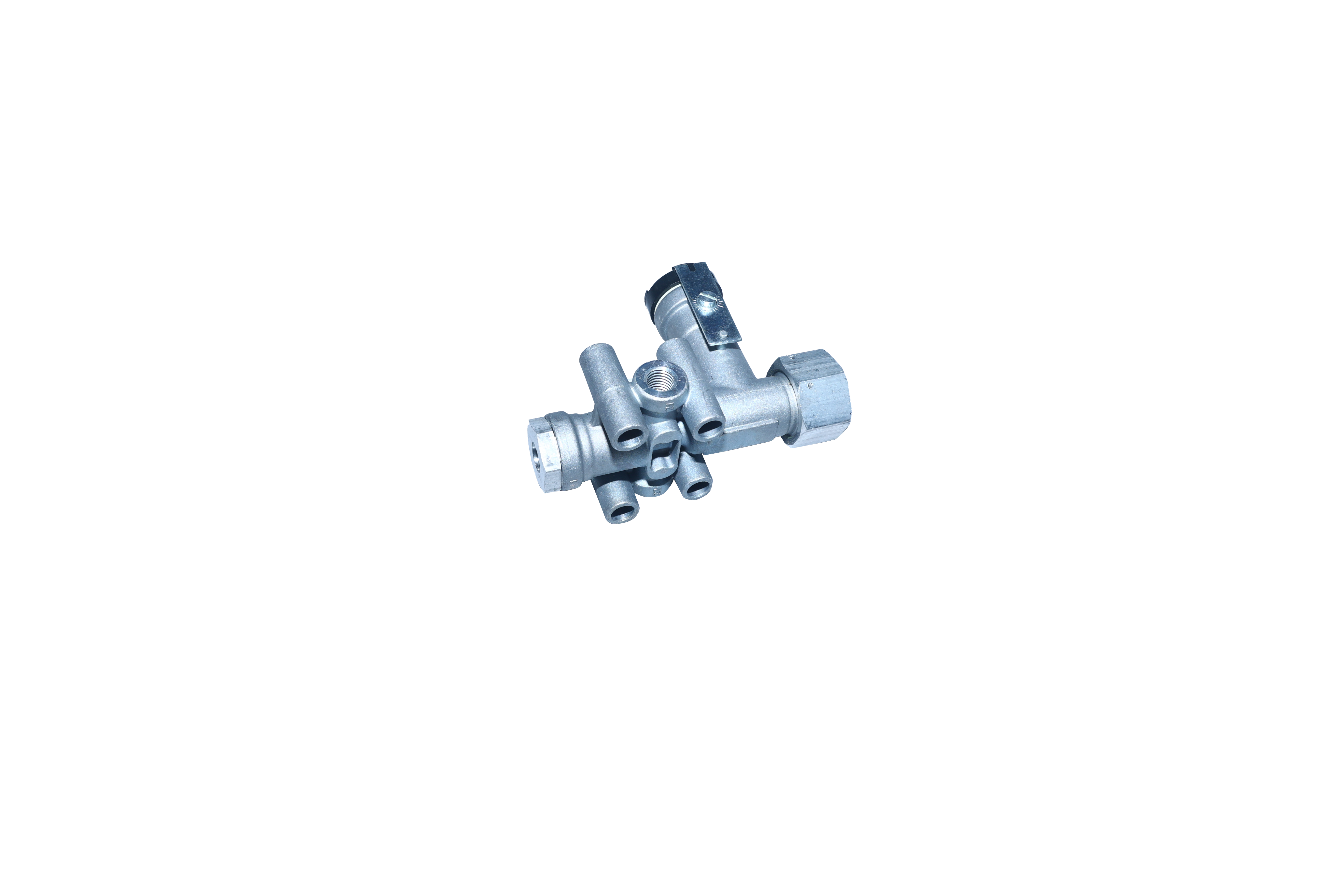

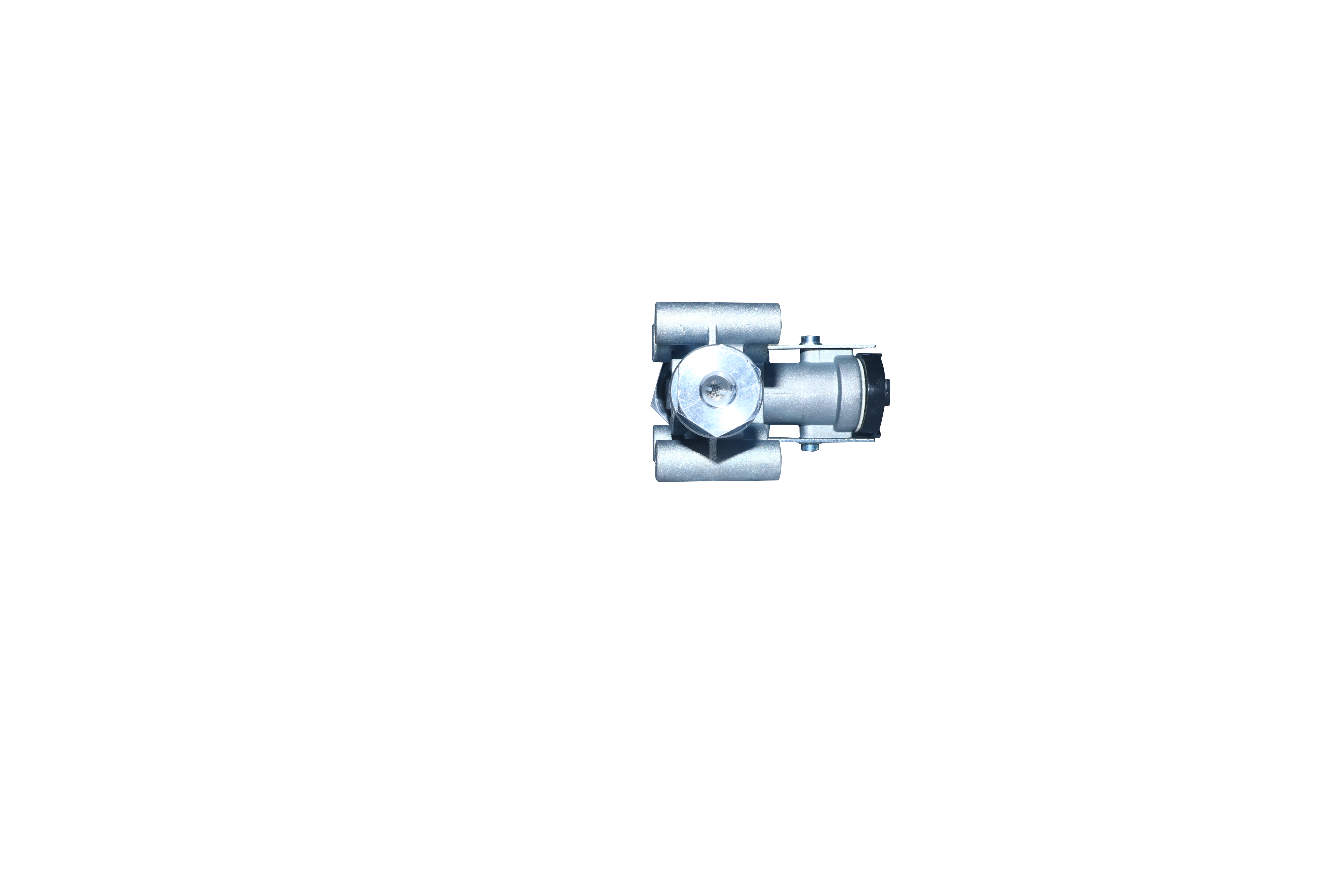

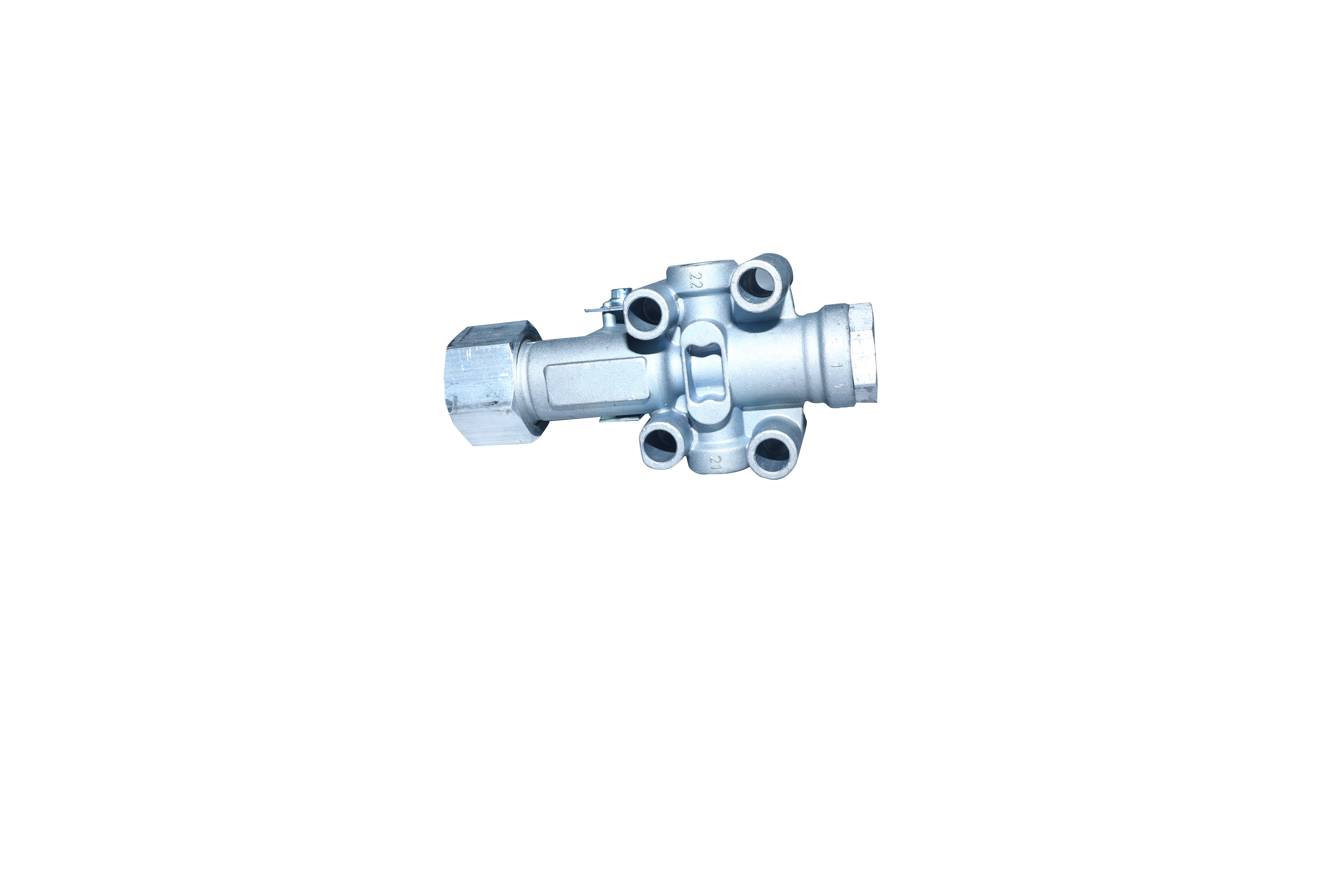

The function of the levelling valve is to maintain the car body on a set level, in order to safeguard a safe embarking or disembarking of passengers at the station and to increase the driving comfort by an optimum setting of the air suspension.
Technical Specification:OE specification
Actuation:Ø 16 x 3 x 8.27 inch
Actuation Angle:90°
Distance between holes:1.97/1.57 in
Height:No hight limitation
Max. operating pressure:188.5 psi
Mounting:4x Ø 0.352 in
Multi Nominal diameter (From Port 1 to x):0.28 in
Nominal diameter“”0.28 in
Port thread 1:M12 x 1.5
Port thread 21:M12 x 1.5
Port thread 22:M12 x 1.5
Port thread 3:M12 x 1.5
Side of mounting4-sided
Temperature range-40 to + 185° F
Type:2-circuit
Version:Without Lever
Calculated Volume (dm³):0.85378
Size (mm x mm x mm):132 x 98 x 66
Weight (kg):0.339
Weight (lb):0.74737
APPLICATION: ALEXANDER DENNIS,DAF,PACCAR,SCANIA,VOLVO
Vehicle type | Brand | Series | Type | Model | Engine type |
---|---|---|---|---|---|
TRUCK | DAF | --------- | --------- | --------- | --------- |
TRUCK | PACCAR | --------- | --------- | --------- | --------- |
TRUCK | SCANIA | --------- | --------- | --------- | --------- |
TRUCK | VOLVO | --------- | --------- | --------- | --------- |
