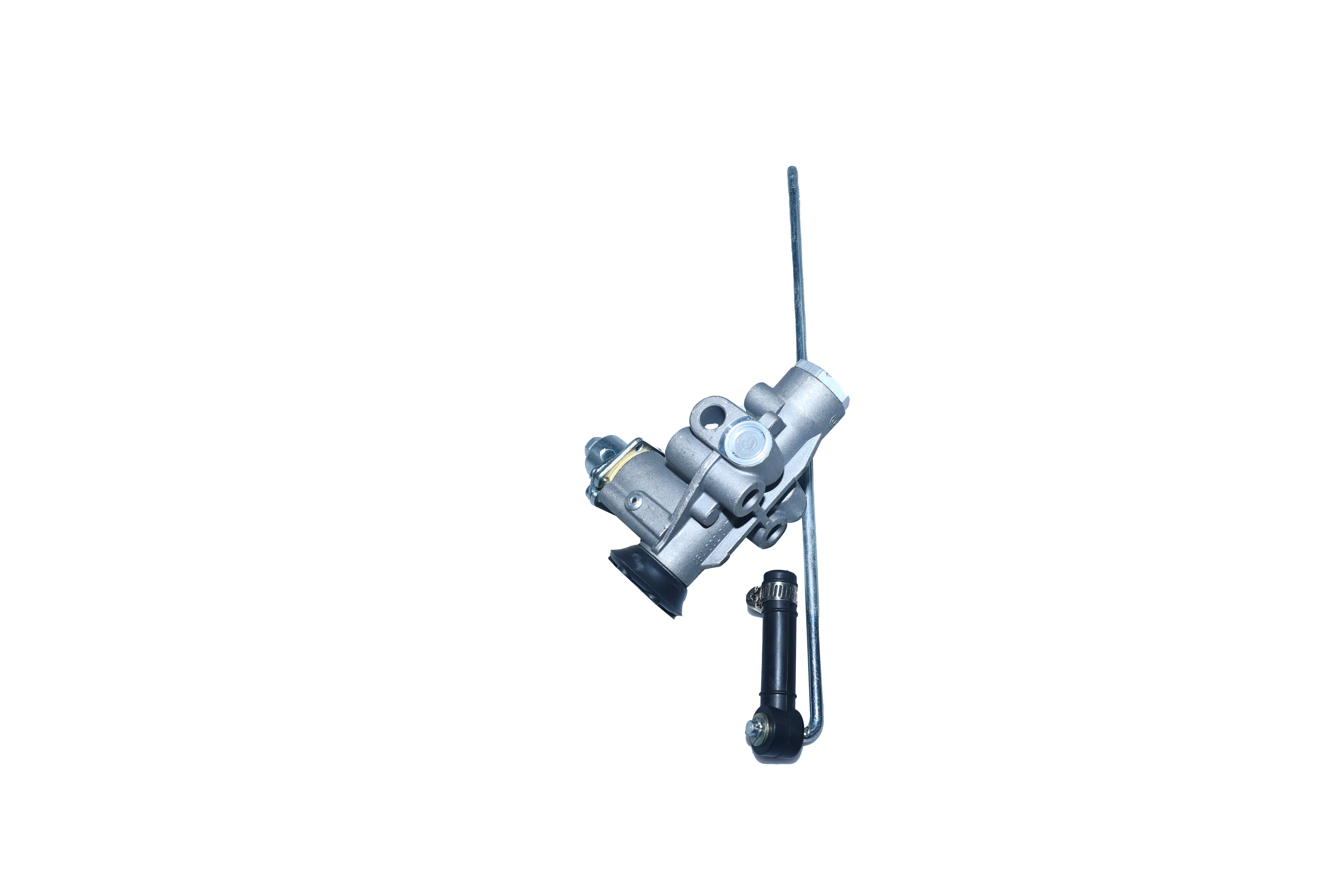

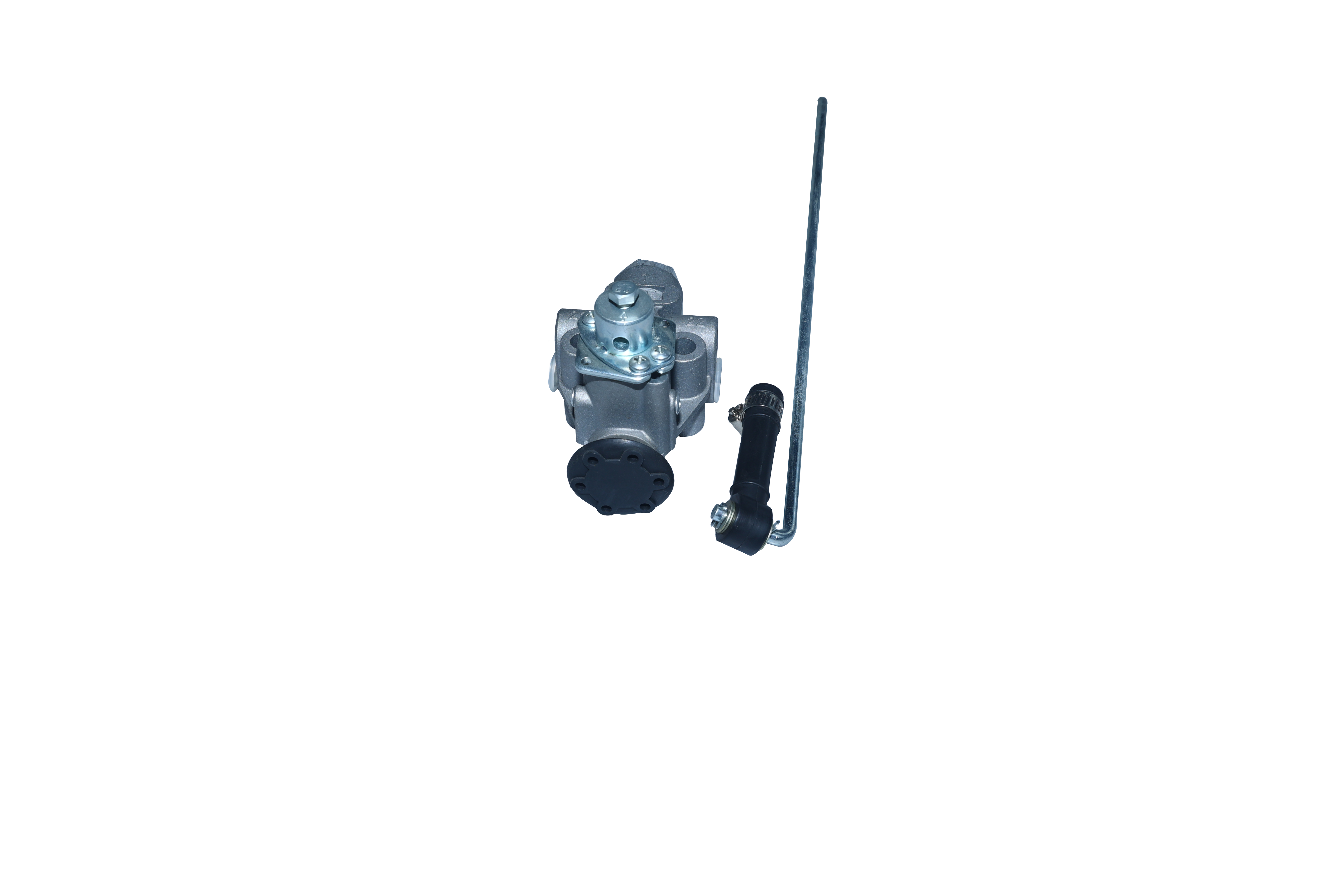

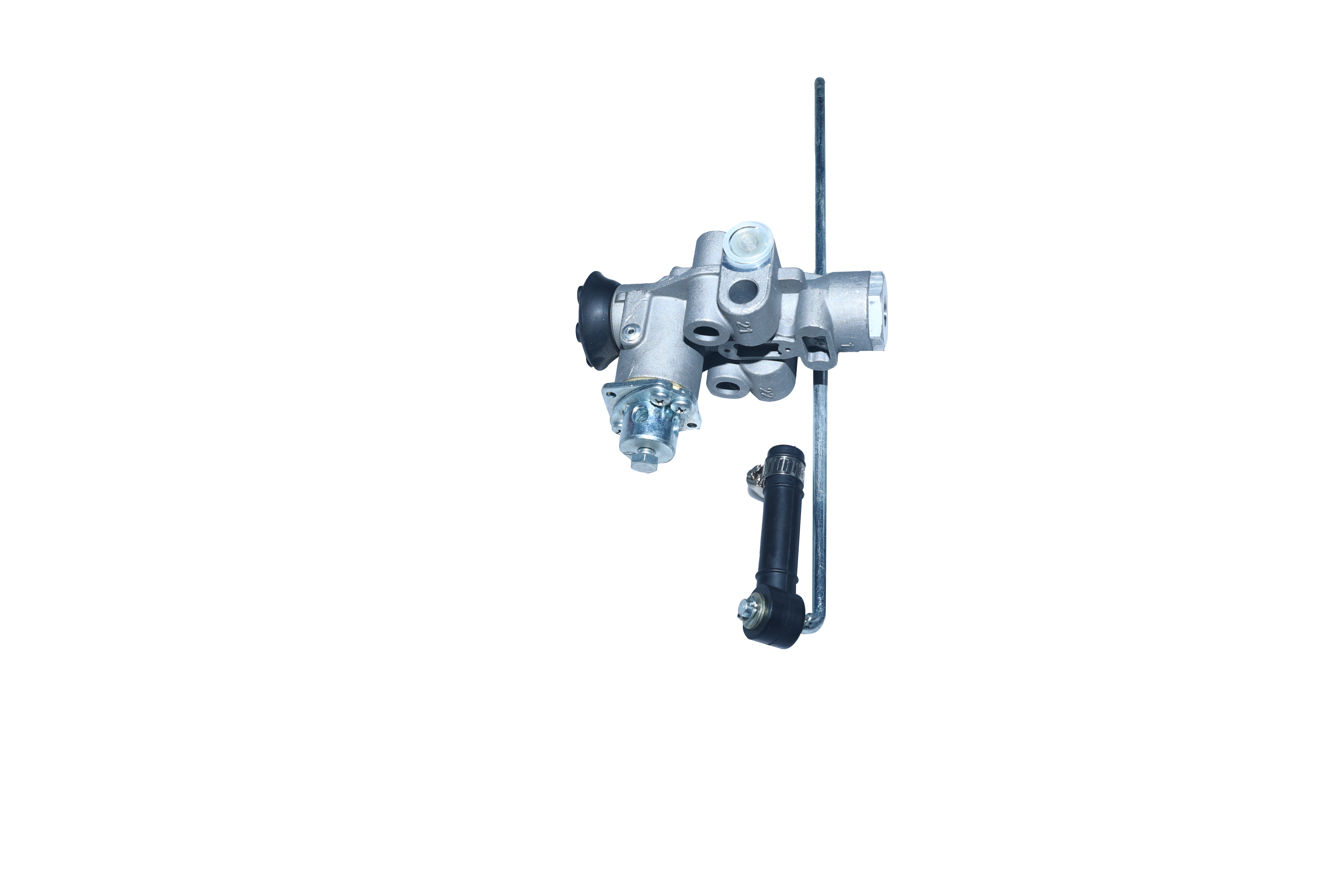

What is a levelling valve?
The function of the levelling valve is to maintain the car body on a set level, in order to safeguard a safe embarking or disembarking of passengers at the station and to increase the driving comfort by an optimum setting of the air suspension.
Technical Specification:OE specification
Actuation:Ø 6 x 12.32 inch
Actuation Angle:90°
Comments:2-stage
Distance between holes:1.57 in
Height:No hight limitation
Max. operating pressure:319.1 psi
Mounting:2x Ø 0.36 in
Multi Nominal diameter (From Port 1 to x):0.05 in
Nominal diameter:0.05 in
Port thread 1:M12 x 1.5
Port thread 21:M12 x 1.5
Port thread 22:M12 x 1.5
Port thread 3:Flap Exhaust
Side of mounting:4-sided
Temperature range:-40 to + 185° F
Type:2-circuit
Version：With Lever
Calculated Volume (dm³)：1.792
Size (mm x mm x mm)：316 x 70 x 81
Weight (kg)：0.572
Weight (lb)：1.261
| Vehicle type | Brand | Series | Type | Model | Engine type |
|---|---|---|---|---|---|
| TRUCK | DAF | --------- | --------- | --------- | --------- |
| TRUCK | IVECO | --------- | --------- | --------- | --------- |
| TRUCK | MACK | --------- | --------- | --------- | --------- |
| TRUCK | MAN | --------- | --------- | --------- | --------- |
| TRUCK | MERCEDES BENZ | --------- | --------- | --------- | --------- |
| TRUCK | RENAULT TRUCKS | --------- | --------- | --------- | --------- |
| TRUCK | SCANIA | --------- | --------- | --------- | --------- |
| TRUCK | VOLVO | --------- | --------- | --------- | --------- |
| BUS | IRISBUS | --------- | --------- | --------- | --------- |
| BUS | VDL BUS | --------- | --------- | --------- | --------- |
