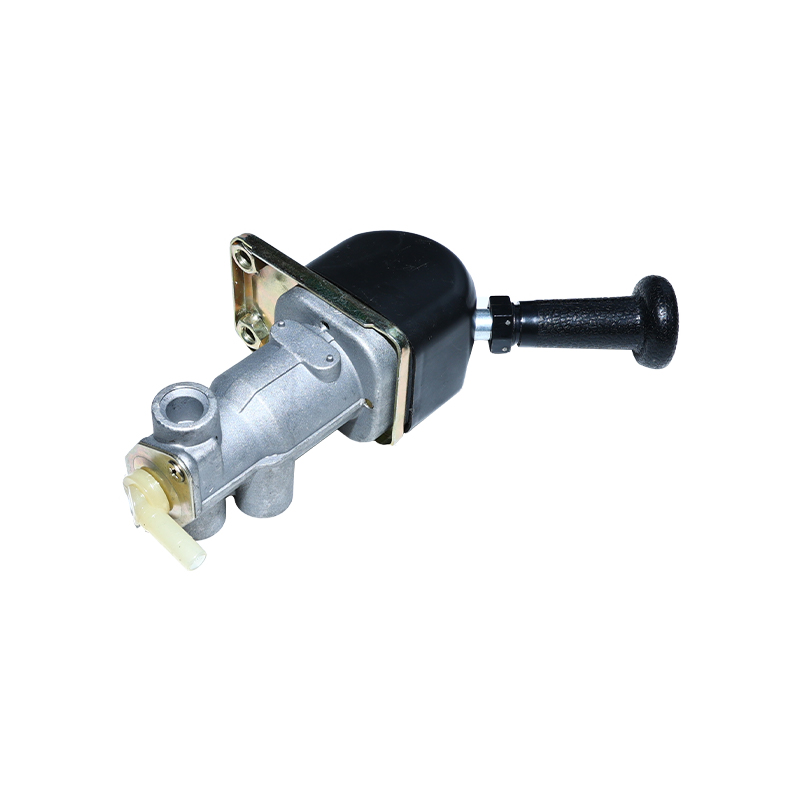

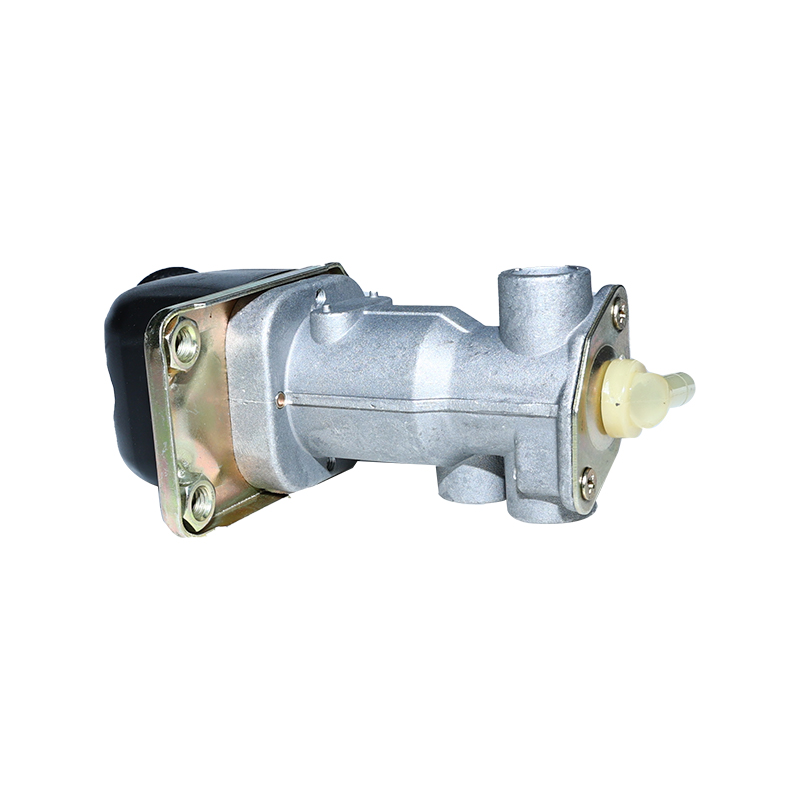

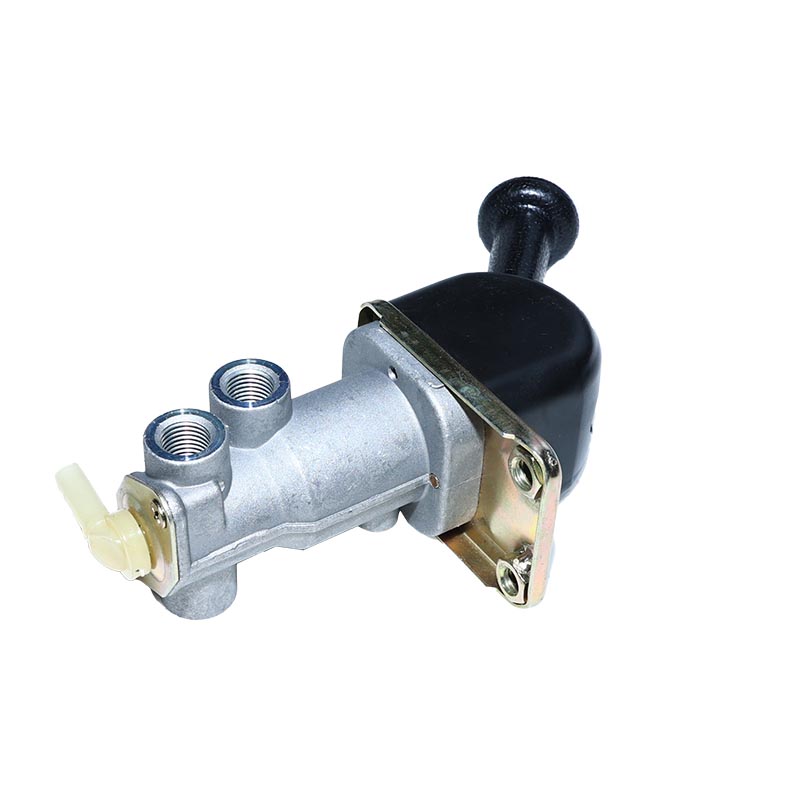

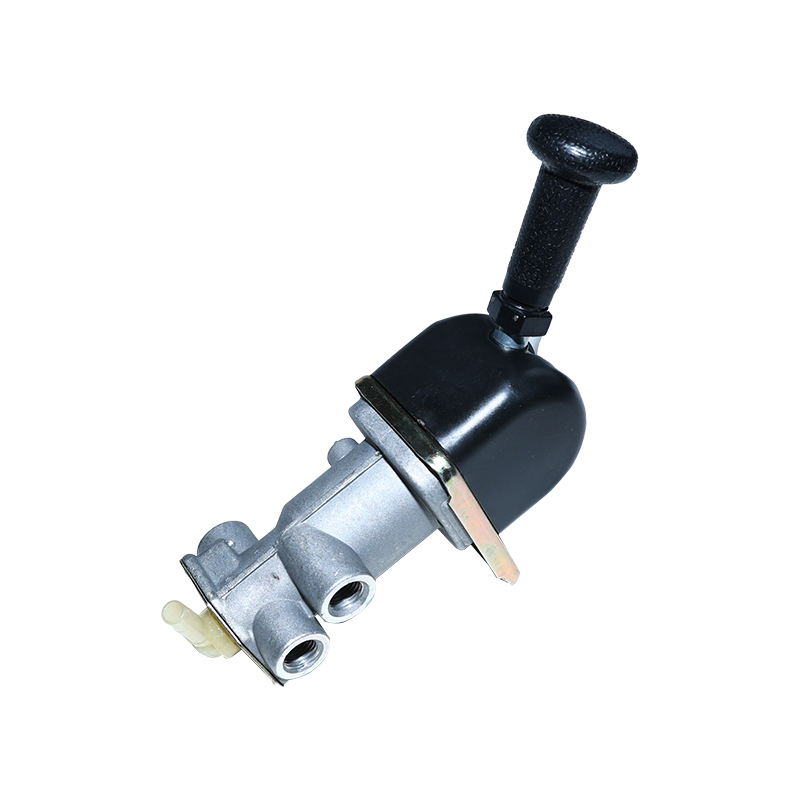

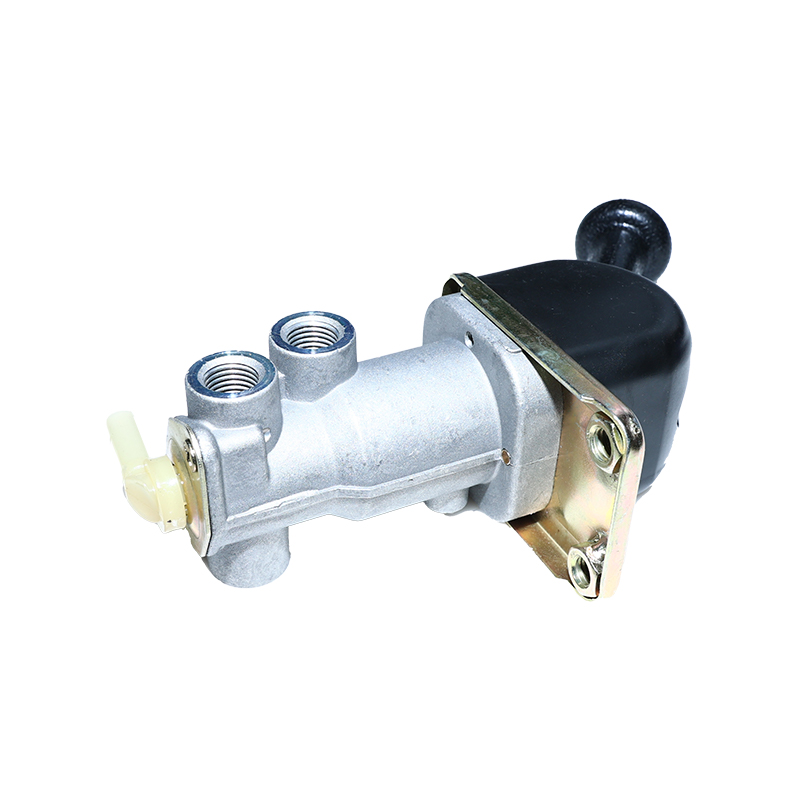

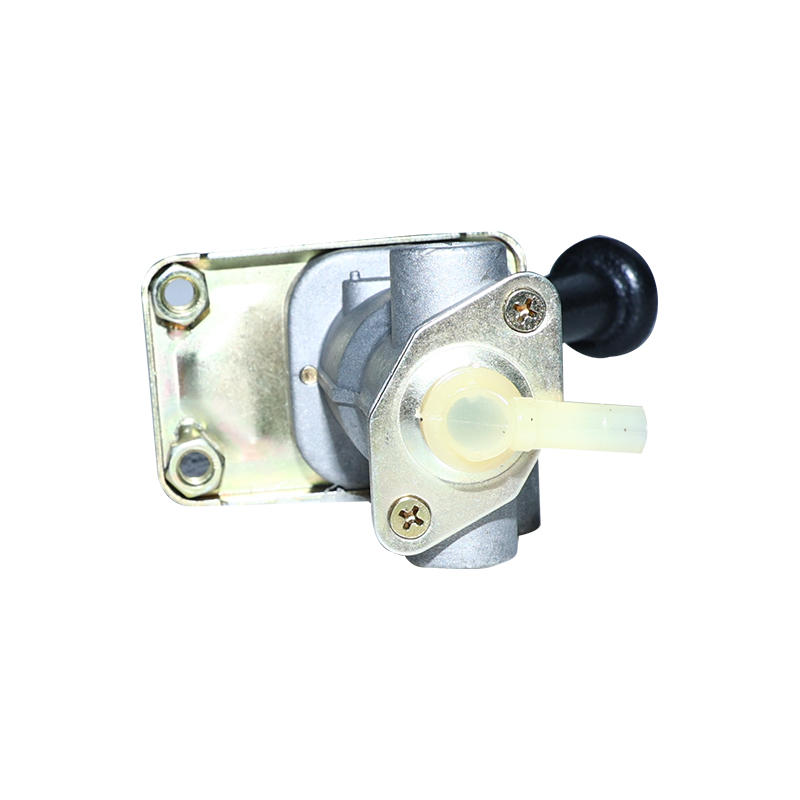

Vw ,iveco 9617221510 max. operating pressure:10.0 bar hand brake valves

Details
Type of vehicle
Leave a message

What is the function of hand brake valve?

These are used to activate and release the parking brake. In the control position, the pneumatic brake in the trailer can be released so that the effectiveness of the spring brake in the towing vehicle can be checked.

Actuation angle:	73°
Color:	Black/Black
Distance between holes:	40.0 mm
Exhaust:	Hose nozzle Ø 8.5 mm
Max. operating pressure:	10.0 bar
Mounting:	M8
Port thread 1:	M14 x 1.5
Port thread 21:	M14 x 1.5
Port threads:	M14 x 1.5
Temperature range:	-40°C to +80°C
Calculated Volume (dm³):	1.9125
Size (mm x mm x mm):	211 x 103 x 88
Weight (kg):	0.863
Weight (lb):	1.9026
Application:	DAF EVOBUS IVECO MERCEDES-BENZ TEREX VW

If you want to know us, please contact us!

We always adhere to the quality policy of "innovation is infinity, to keep improving", adhering to the enterprise tenet of "veracity, customer regarded supreme".
- Company.
- E-mail*.
- Name*.
- Phone*.
- Message*.

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as Wholesale Vw ,iveco 9617221510 max. operating pressure:10.0 bar hand brake valves Supplier and Custom Vw ,iveco 9617221510 max. operating pressure:10.0 bar hand brake valves Company, Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
