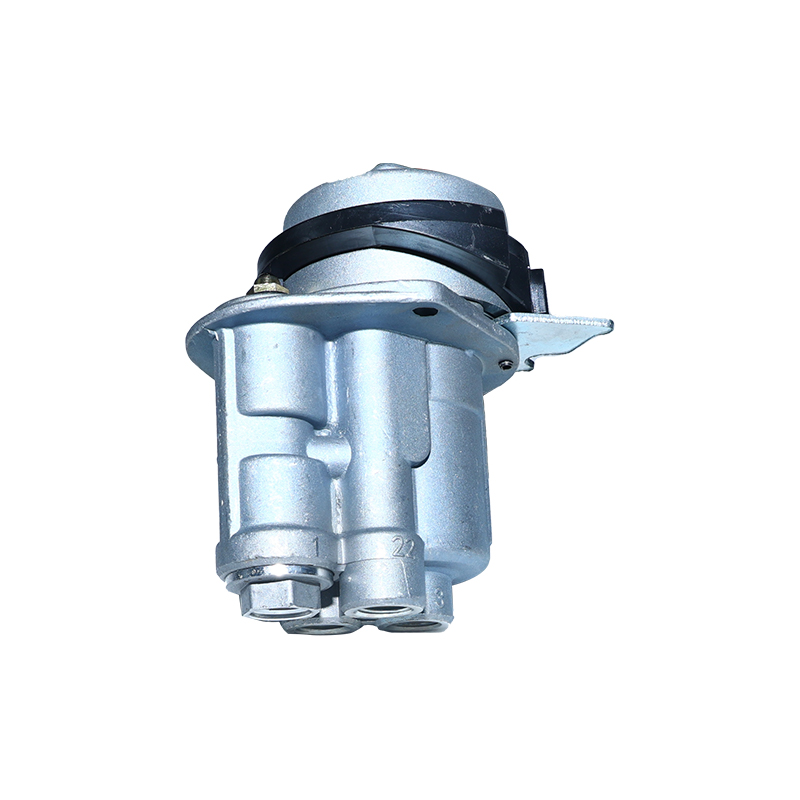

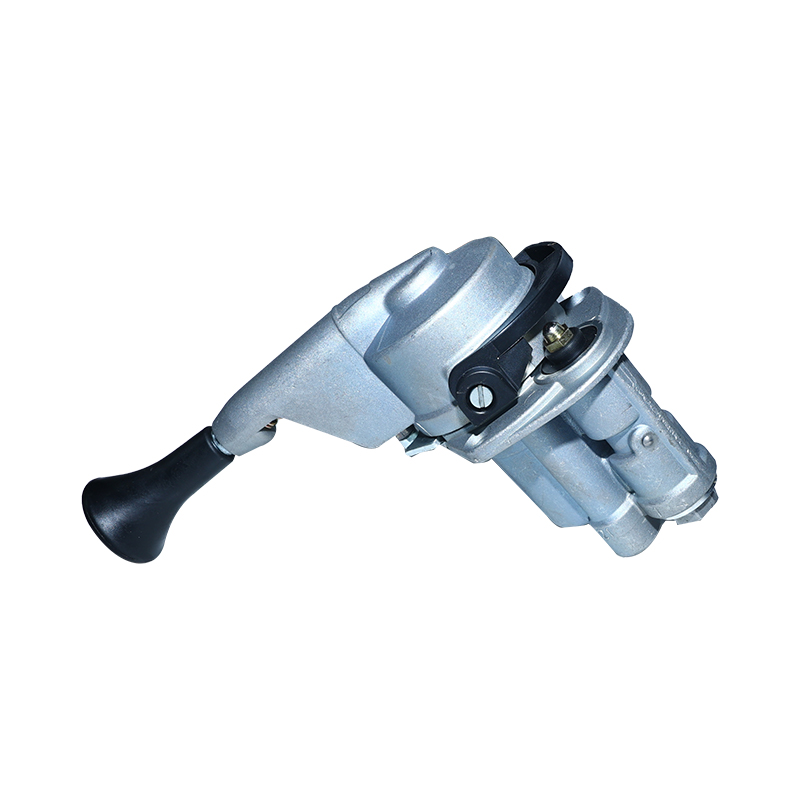

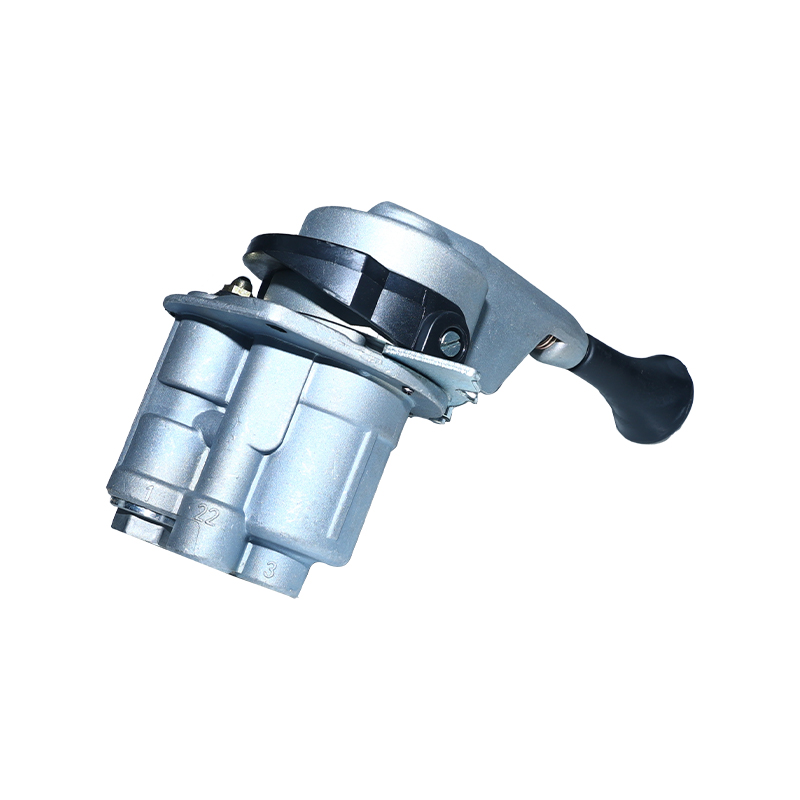

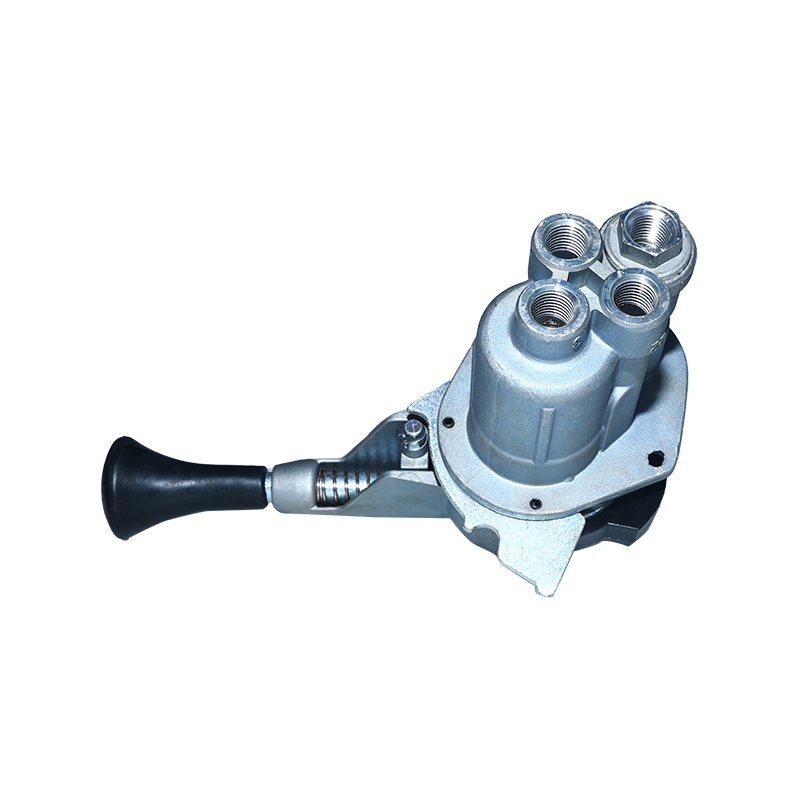

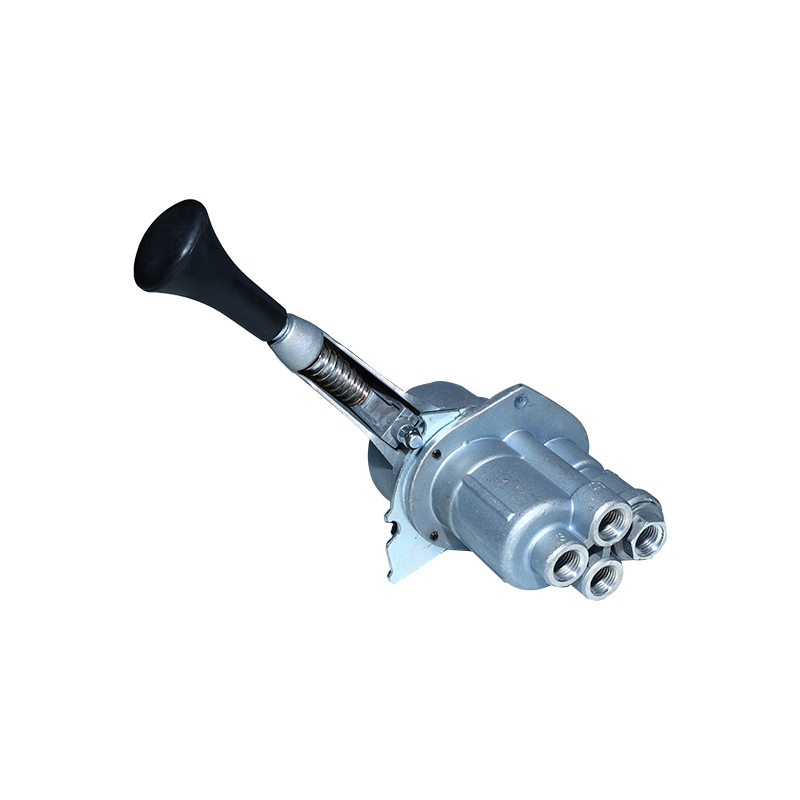

Daf iveco 9617020010 exhaust:M14 x 1.5 hand brake valve

Details
Type of vehicle
Leave a message

What is the function of hand brake valve?

Hand brake valves These are used to activate and release the parking brake. In the control position, the pneumatic brake in the trailer can be released so that the effectiveness of the spring brake in the towing vehicle can be checked.

Actuation angle:	90°
Color:	Black
Distance between holes:	75.0 mm
Exhaust:	M14 x 1.5
Max. operating pressure:	8.0 bar
Mounting:	2x Ø 7 mm
Port thread 1:	M14 x 1.5
Port thread:	22M14 x 1.5
Port threads:	M14 x 1.5
Temperature range:	-40°C to +80°C
Calculated Volume (dm³):	5.5055
Size (mm x mm x mm):	297 x 167 x 111
Weight (kg):	1.323
