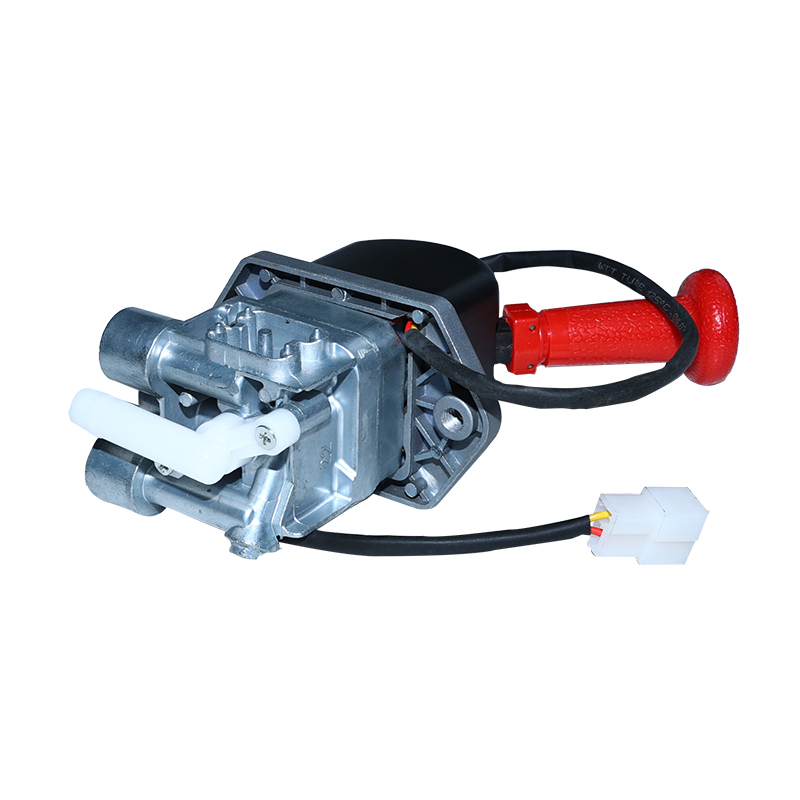

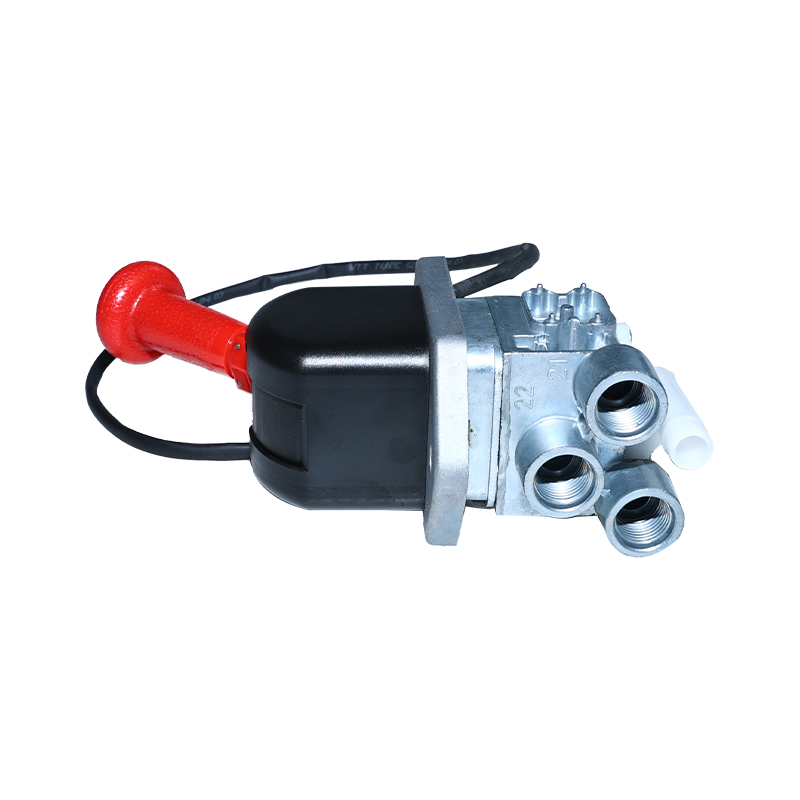

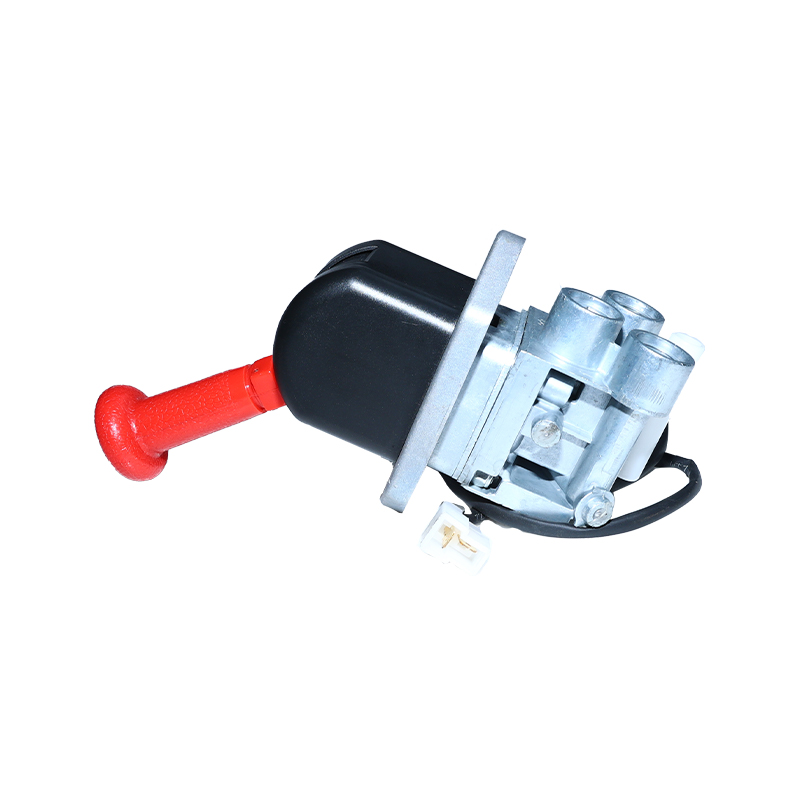

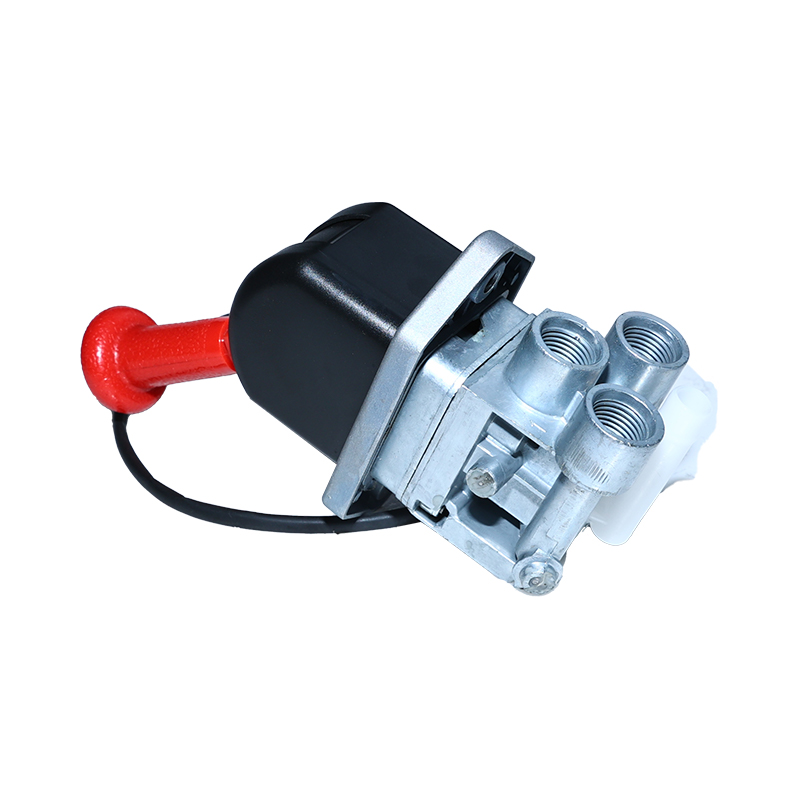

9617232140/ 9617230310 For agrale,iveco,mercedes-benz hand brake valve

Details
Type of vehicle
Leave a message

How do hand valves work?

The tractor-protection valve and relay emergency valve are operated by application air, as explained in the foot-valve application. Closing the hand valve releases the brakes by closing off application air. Air pressure in the chambers and lines will exhaust, also as explained in the previous foot-valve application.

Actuation angle:	85°
Distance between holes:	90.0 mm
Exhaust:	Flap
Max. operating pressure:	11.0 bar
Mounting:	2x M8
Port thread 1:	M16 x 1.5 JED - 388
Port thread 21:	M16 x 1.5 JED - 388
Port thread 22:	M16 x 1.5 JED - 388
Rated current:	500 mA
Temperature range:	-40°C to +80°C
Voltage:	24 V

AGRALE6009005136002

IVECO41002766

MERCEDES-BENZ6934317105

MERCEDES-BENZA6934317105
