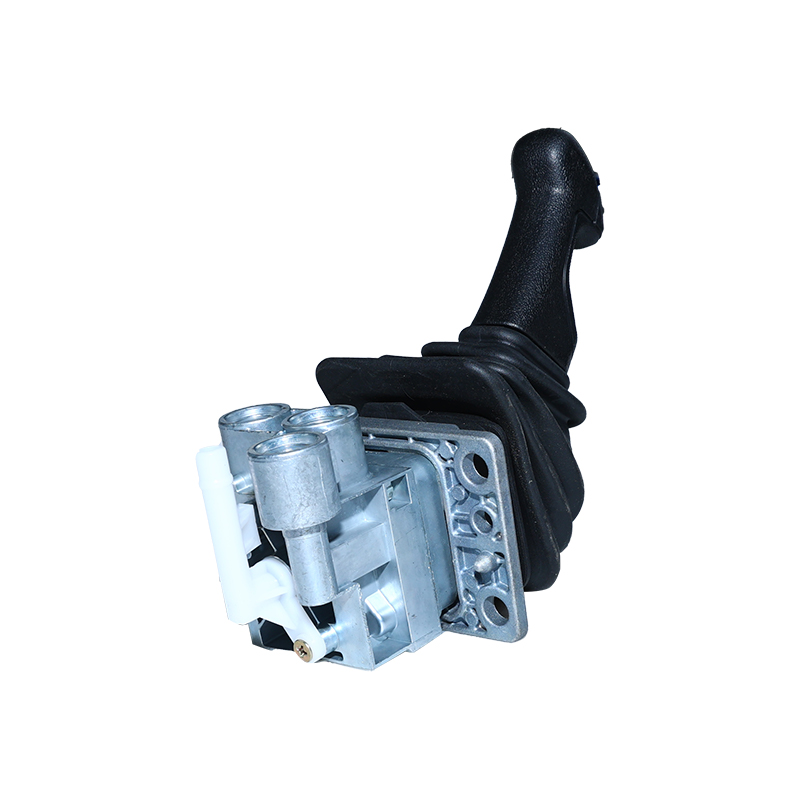

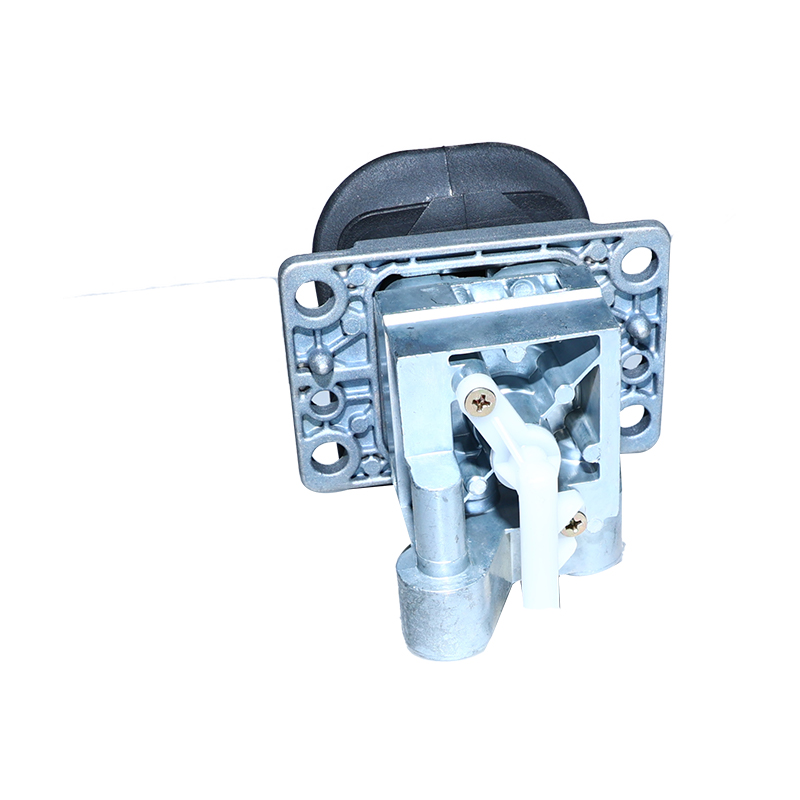

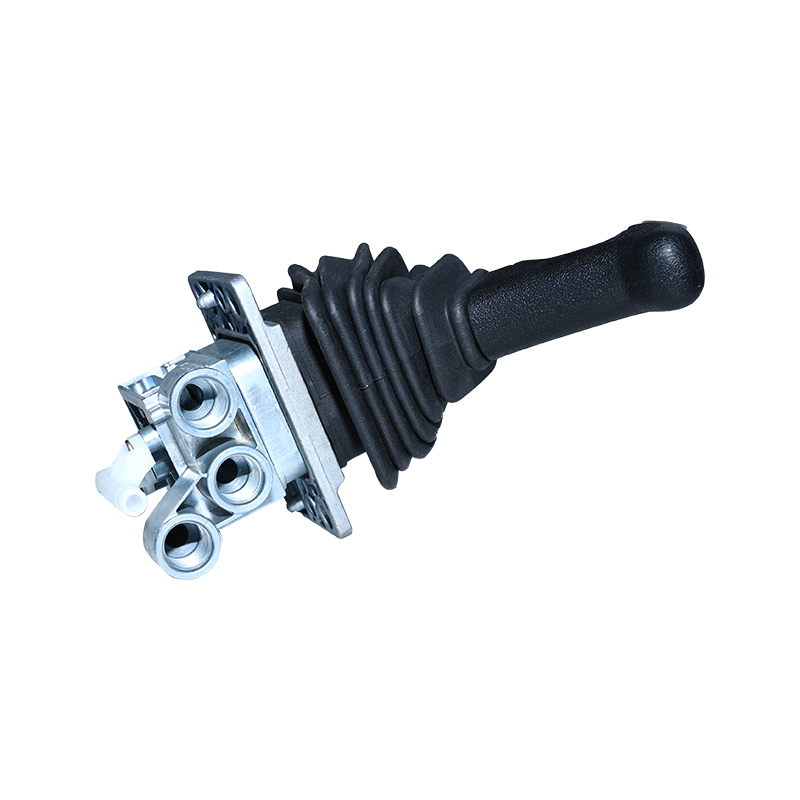

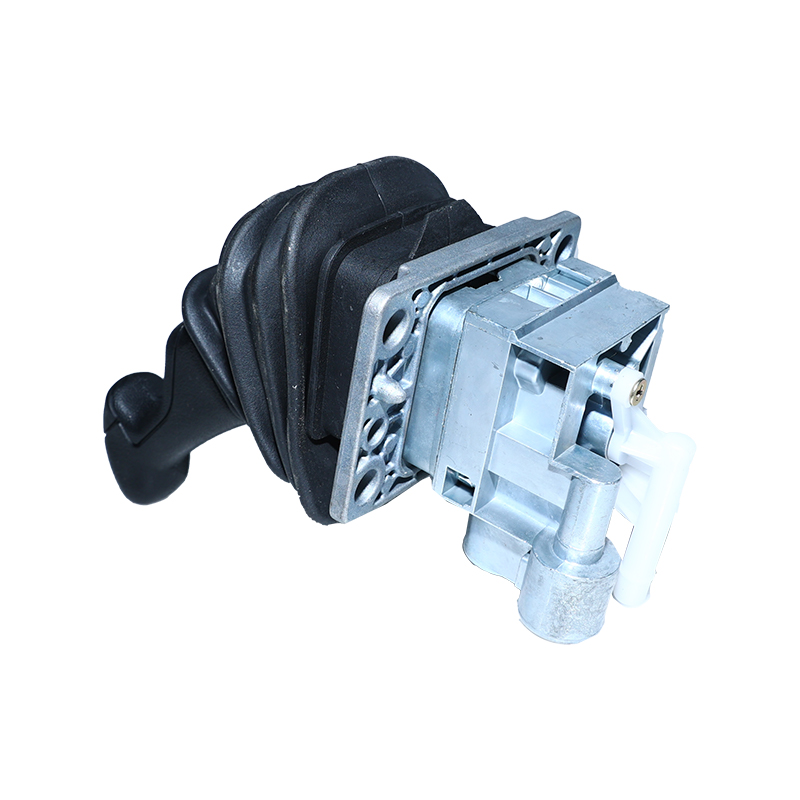

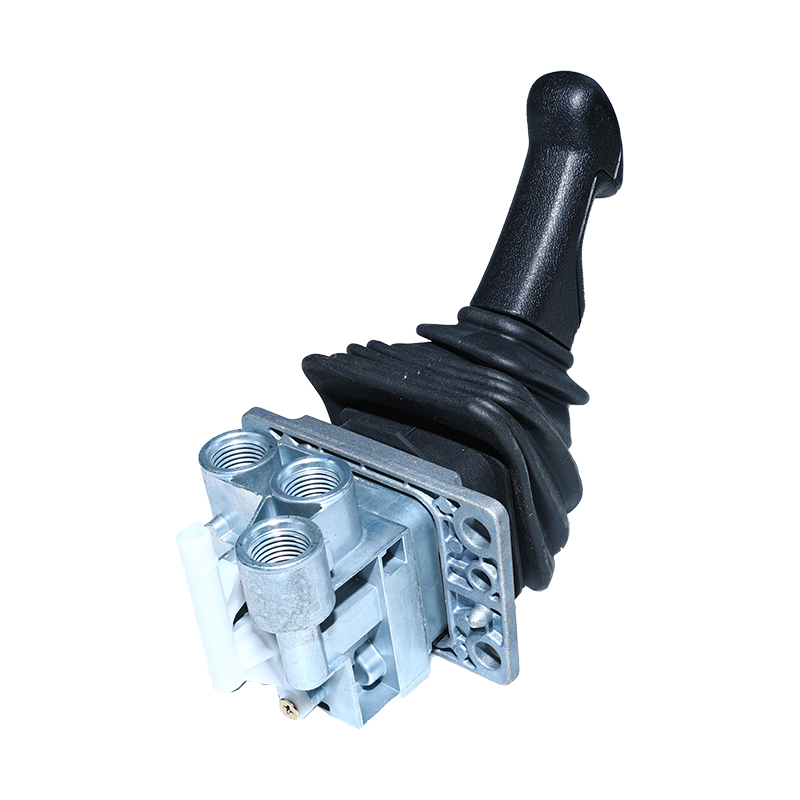

9617231220 /9617232170 For scania,daf, paccar hand brake valve

Details
Type of vehicle
Leave a message

What is a trailer brake hand valve used for?
1 – Trailer Hand Valve. The trailer hand valve (also called the trolley valve or Johnson bar) works the trailer brakes. The trailer hand valve should be used only to test the trailer brakes. Do not use it in driving because of the danger of making the trailer skid.

Actuation angle:	73°
Color:	White
Distance between holes:	44.0 x 80 mm
Exhaust:	Flap
Max. operating pressure:	10.0 bar
Mounting:	4x Ø 9 mm / 2x Ø 6.5 mm / 2x Ø 6 mm
Port thread 1:	M16 x 1.5
Port thread 21:	M16 x 1.5
Port thread 22:	M16 x 1.5
Temperature range:	-40°C to +80°C
Calculated Volume (dm³):	2.1205
Size (mm x mm x mm):	199 x 111 x 96
Weight (kg):	0.813
Weight (lb):	1.7924

DAF1523989

PACCAR1523989

SCANIA1324425
