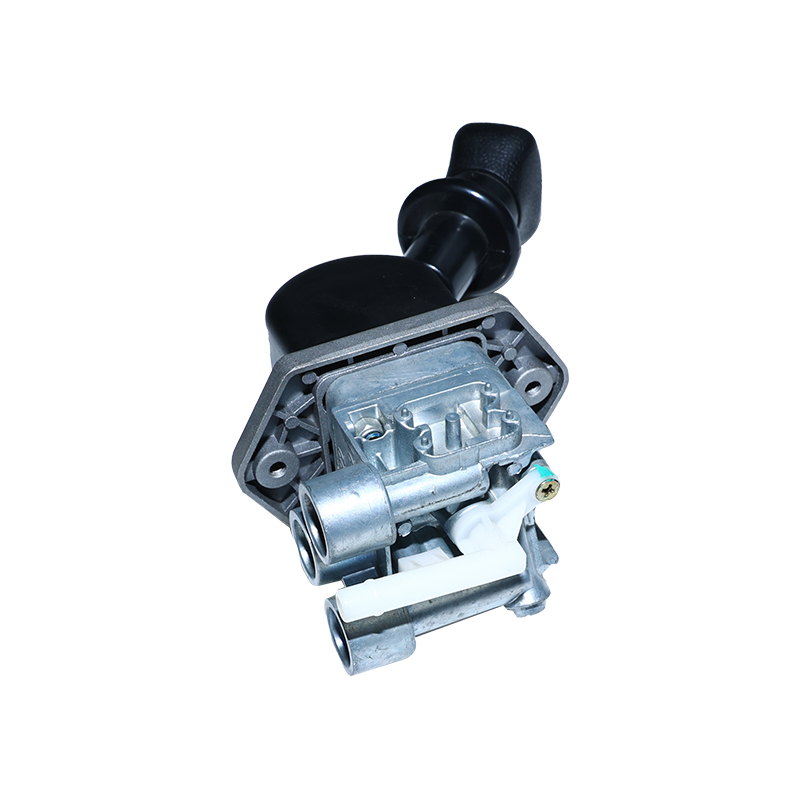

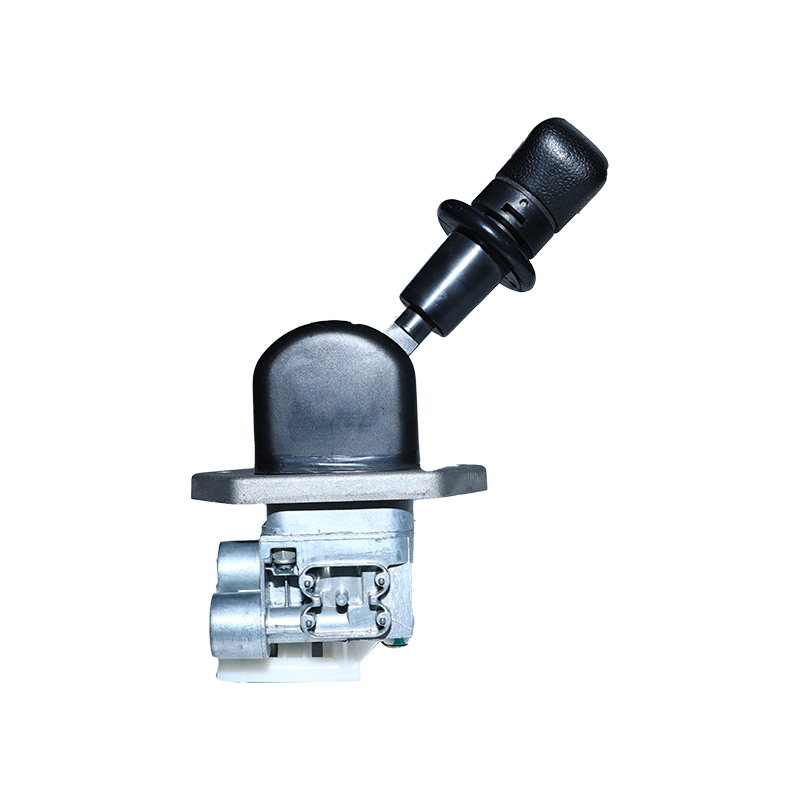

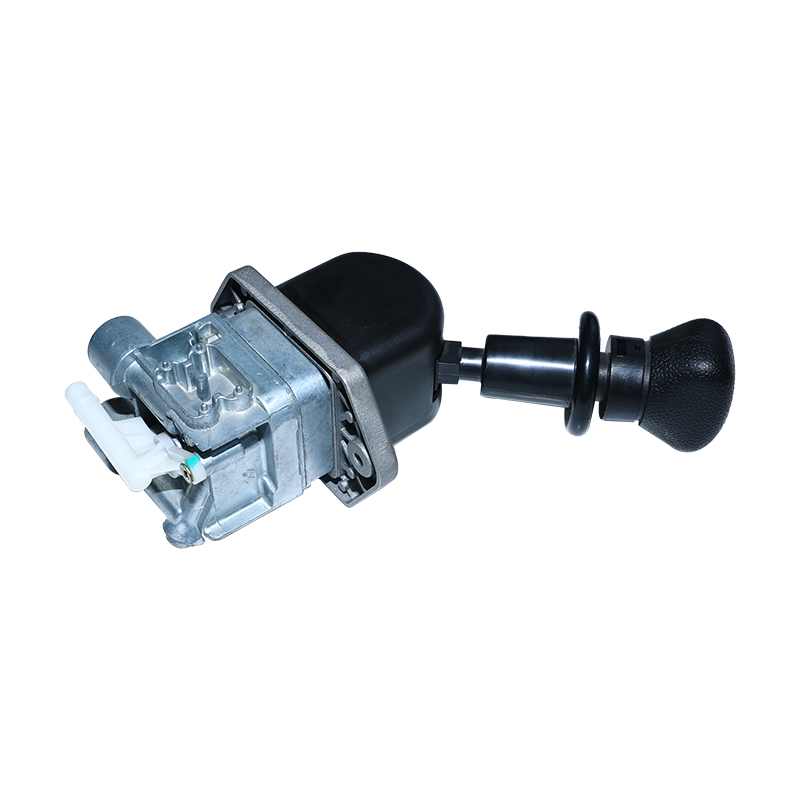

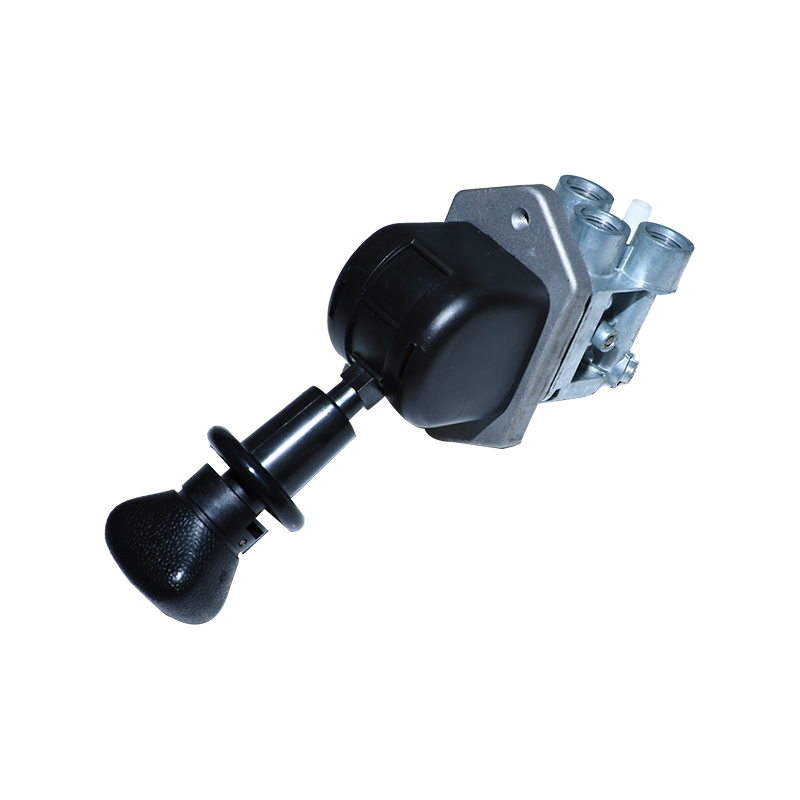

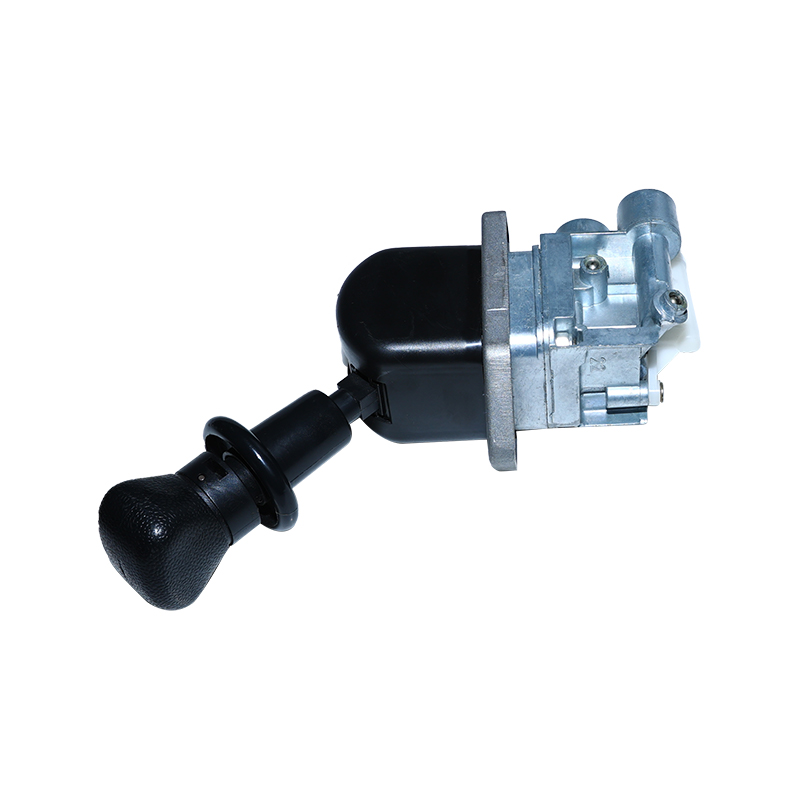

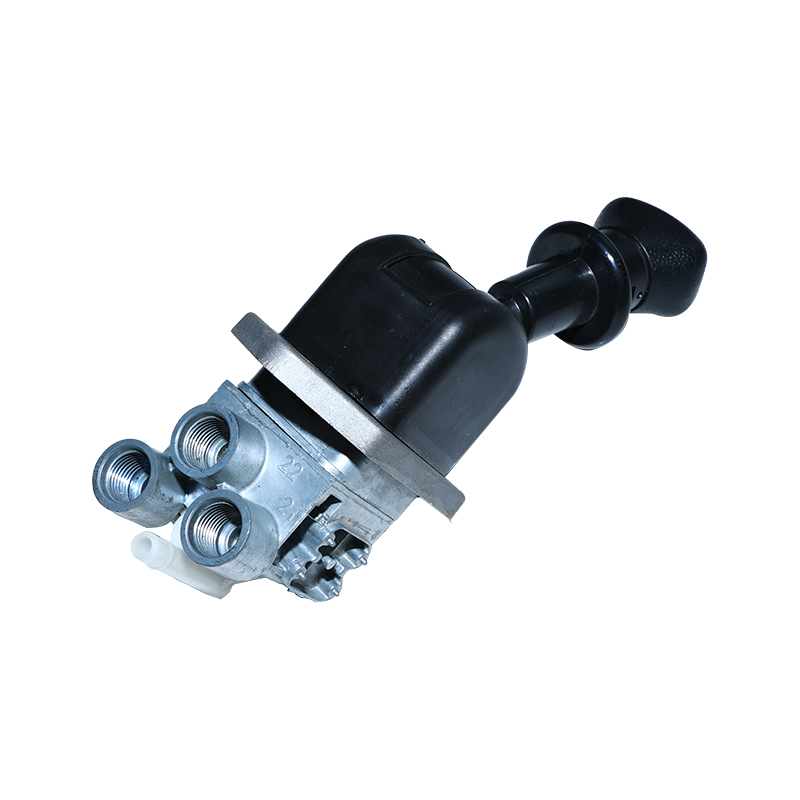

9617231180 Exhaust:flap for daf,scania hane brake valve

Details
Type of vehicle
Leave a message

What is a hand brake valve?
The hand brake valve is designed as a direct operated 3-way pressure reducing valve and is designed for use in spring loaded braking systems; other applications, however are also possible. In position 1 (see Unit dimensions) of the hand lever the through flow from S to B is open.

Actuation angle:	73°
Color:	Black
Distance between holes:	90.0 mm
Exhaust:	Flap
Max. operating pressure:	10.0 bar
Mounting:	2x M8
Port thread 1:	M16 x 1.5 JED - 388
Port thread 21:	M16 x 1.5 JED - 388
Port thread 22:	M16 x 1.5 JED - 388
Temperature range:	-40°C to +80°C
Calculated Volume (dm³):	1.4394
Size (mm x mm x mm):	193 x 113 x 66
Weight (kg):	0.792
Weight (lb):	1.7461
Application:	DAF,ERF,MAN,NEOPLAN,PACCAR,SCANIA

DAF1518237 MAN81523156171
NEOPLAN81523156156
PACCAR1518237
SCANIA1935570 ERF81523156156
MAN81523156156
MAN81523156160
MAN81523156161
MAN81523159156
MAN64523156012
