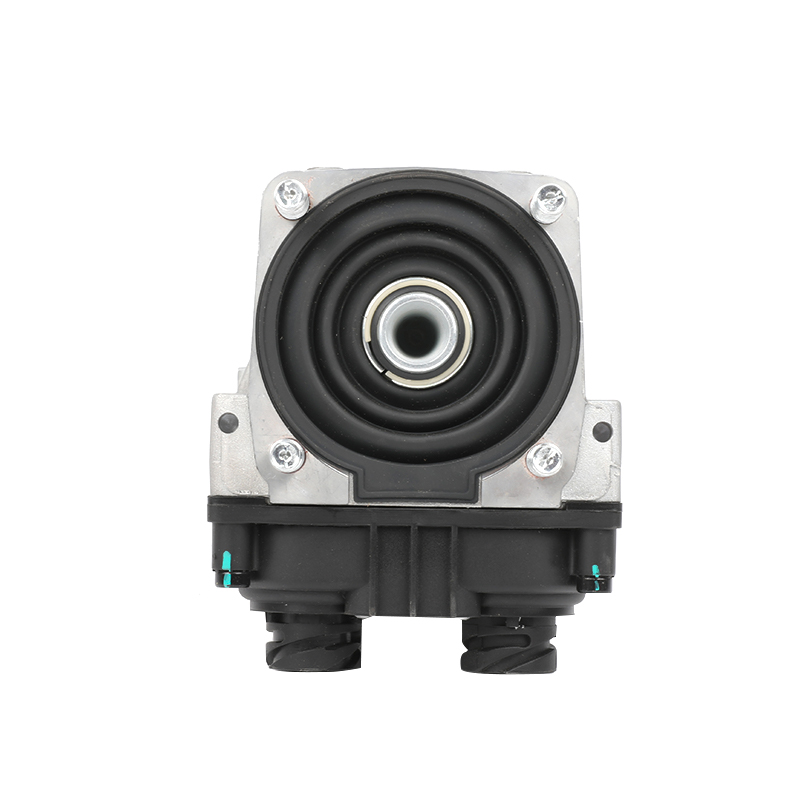

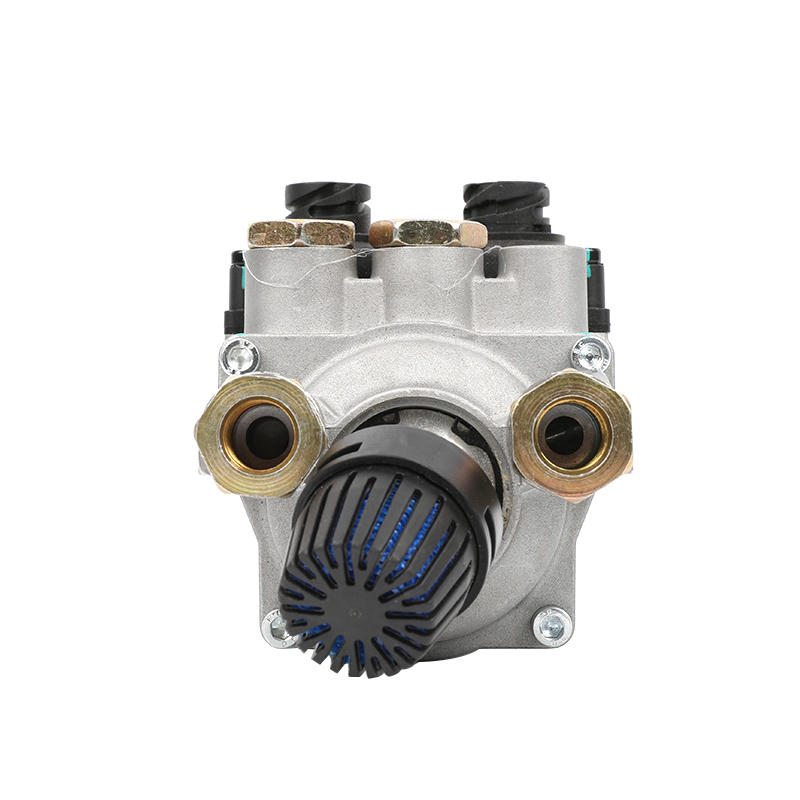

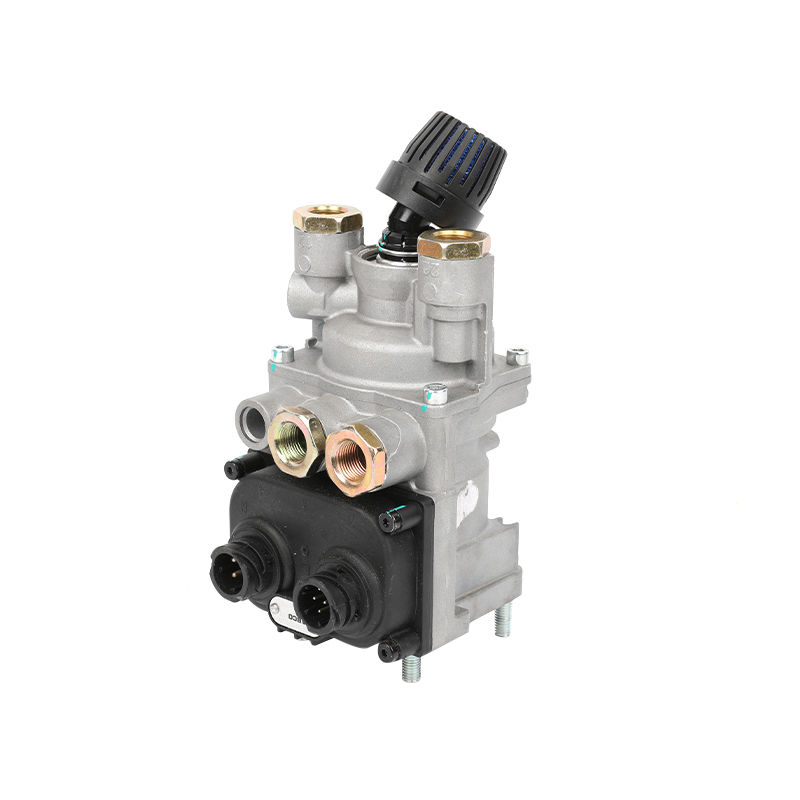

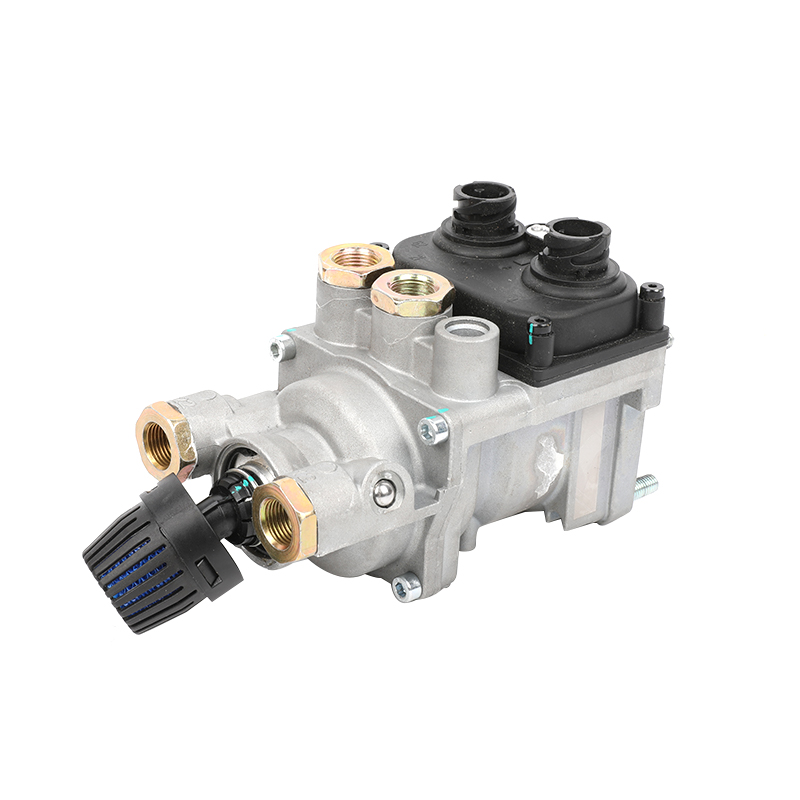

4800014000/4800010000 For hino motors, nissan diesel/ ud trucks brake signal transmitter

Details
Type of vehicle
Leave a message

Application:	Hino Motors, Nissan Diesel/ UD Trucks
Distance between holes:	61.0 x 61.0 mm
Electrical Connection:	DIN 72585-A1-4.1-Sn/K1, EXTERNAL CONTOUR DIN 72585 NECESSARY SOCKET AMP NO. 0-96-7650-1
Max. operating pressure:	10.0 bar
Mounting:	4x M8
Multi Nominal diameter (From Port 1 to x):	6 mm
Output force:	22000 N
Port thread 11:	M16 x 1.5 JED - 152
Port thread 12:	M16 x 1.5 JED - 152
Port thread 21:	M16x1.5 JED - 152
Port thread 22:	M16 x 1.5 JED - 152
Port thread 3:	Union Ø 16.0
Protection Class:	IP 66, IP 69K
Stroke:	12.0 mm
Temperature range:	-40°C to +80°C
Thread:	ISO
Type:	3
Voltage:	9 to 32 V
Calculated Volume (dm³):	2.5857
Size (mm x mm x mm):	173 x 141 x 106
Weight (kg):	1.71

If you want to know us, please contact us!

We always adhere to the quality policy of "innovation is infinity, to keep improving", adhering to the enterprise tenet of "veracity, customer regarded supreme".
- Company.
- E-mail*.
- Name*.
- Phone*.
- Message*.

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as Wholesale 4800014000/4800010000 For hino motors, nissan diesel/ ud trucks brake signal transmitter Supplier and Custom 4800014000/4800010000 For hino motors, nissan diesel/ ud trucks brake signal transmitter Company, Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
