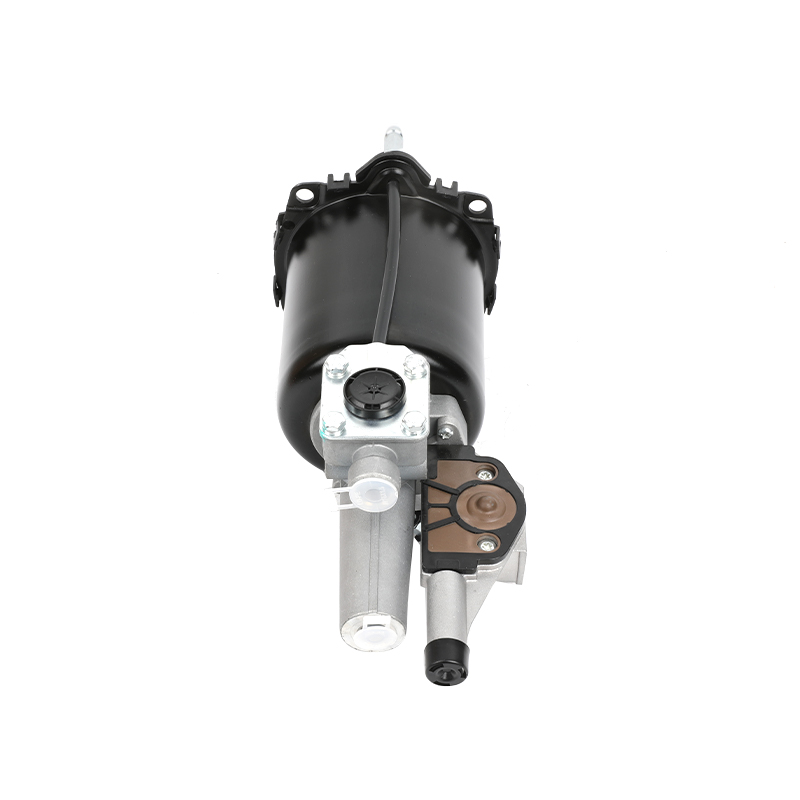

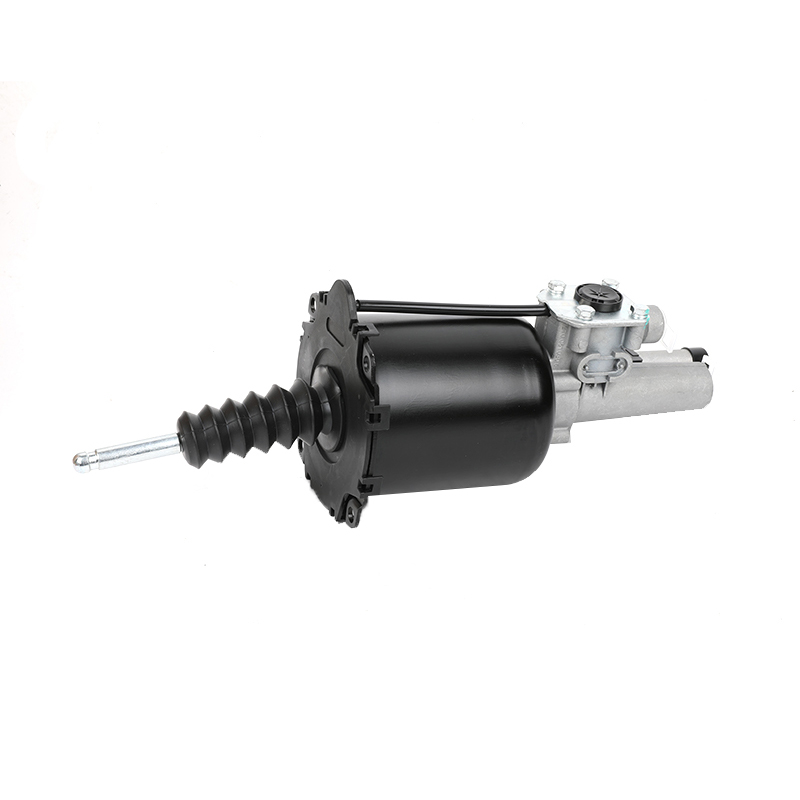

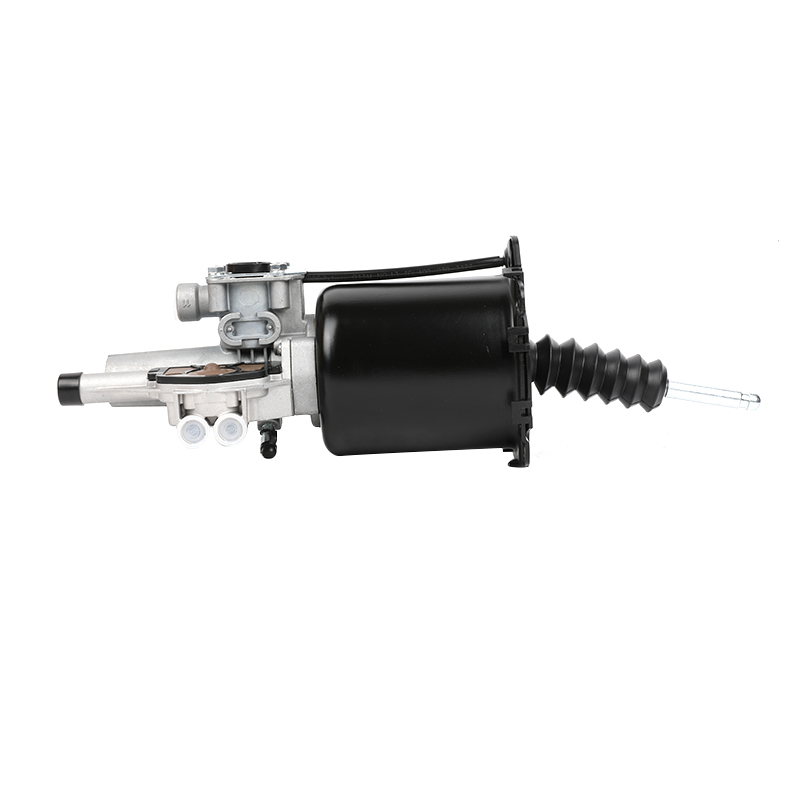

9700514550 Stroke:25.2 mm Servo Clutch

Details
Type of vehicle
Leave a message

A clutch servo is a pneumatically-assisted clutch-actuation device, enabling accurate and sensitive clutch use. It dramatically reduced the amount of effort required by the driver when actuating the clutch pedal.

Part type：Premium original quality

Distance between holes:130.0 mm

Length:348 mm

Max. operating pressure:10.0 bar

Mounting:4x Ø 9.0 mm

Oil inlet:Brake fluid SAE J 1703

Port thread 1-4:M14 x 1.5

Port thread 11:M16 x 1.5

Port thread 12:M12 x 1.5 JED - 464

Port thread 22:M12 x 1.5 JED - 464

Port thread 31:Flap Exhaust

Port thread 32:Ø 8.0 mm

Product category:Device

Push-rod thread:Ball Ø 12.0 mm

Stroke:25.2 mm

Technical specification:OE specification

Temperature range:-40°C to +80°C

Calculated Volume (dm³):7.315

Size (mm x mm x mm):423 x 131 x 132

Weight (kg):2.835

Weight (lb):6.2501

FORD:7C467K626BA

IVECO；504177095

IVECO：580131

ZF：0501008720
