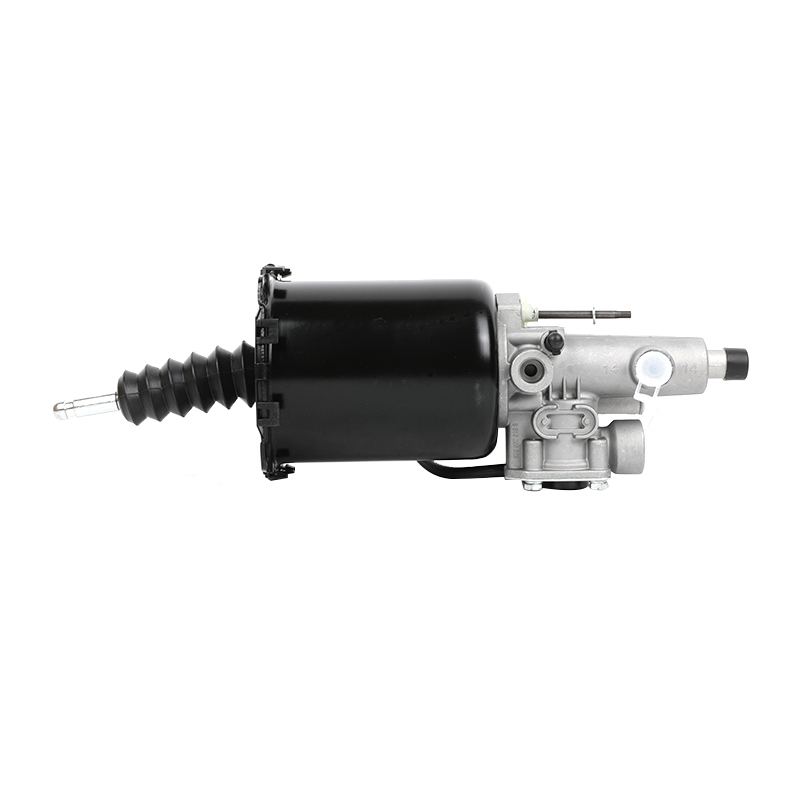

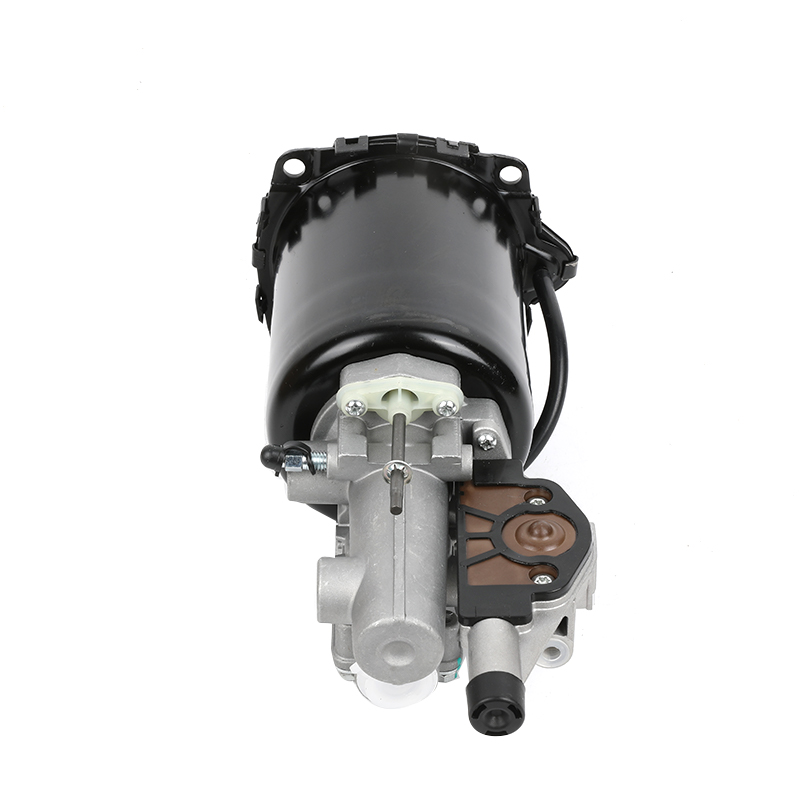

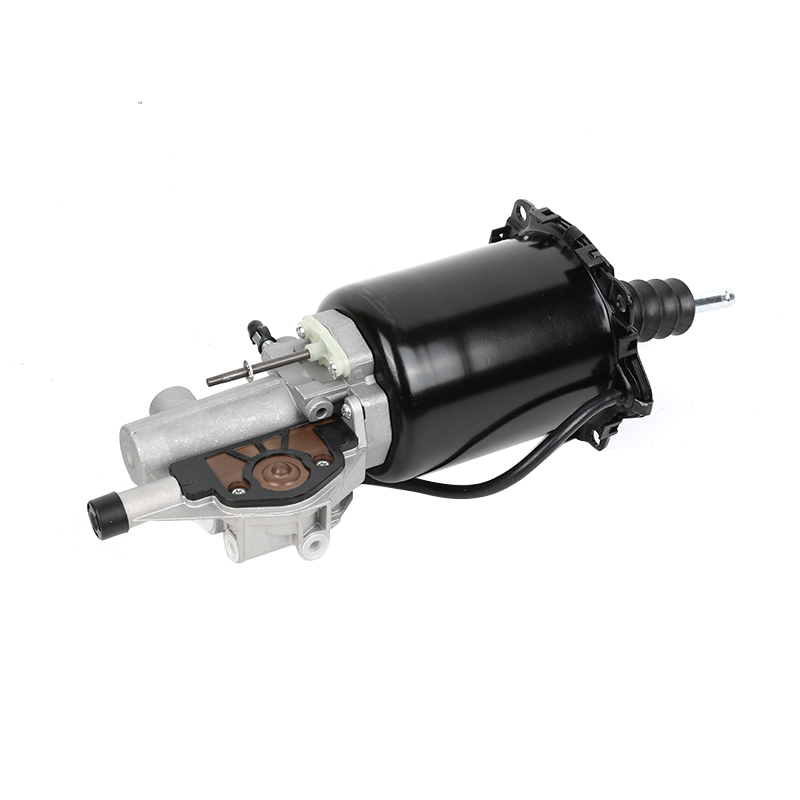

Wholesale Custom 9700514380 Clutch Servo FOR RENAULT 5010452511 Supplier Company

A clutch servo is a pneumatically-assisted clutch-actuation device, enabling accurate and sensitive clutch use. It dramatically reduced the amount of effort required by the driver when actuating the clutch pedal.

Part type：Premium original quality

Comments：RVI

Distance between holes：130.0 mm

Length：308 mm

Max. operating pressure：10.0 bar

Mounting：4x Ø 9.0 mm

Oil inlet：Brake fluid SAE J 1703

Port thread 1-4：M14 x 1.5 ( G )

Port thread 11：M22 x 1.5 JED - 388

Port thread 31：Flap Exhaust

Port thread 32：Ø 8.0 mm

Push-rod thread：M12 x 1.75

Stroke：25.2 mm

Technical specification：OE specification

Temperature range：-30°C to +100°C

Calculated Volume (dm³);7.1174

Size (mm x mm x mm)：382 x 137 x 136

Weight (kg)：2.983

Weight (lb)：6.5764

CNHTC：WG9114230025/2

CNHTC：WG91142300252

CNHTC：WG97192300251

DAF：1519286

DONGFENG (DFM)：1608ZD2A-010

IRISBUS：504103066

IRISBUS：0504103066

IVECO：504103066

IVECO：E504103066

IVECO：0504103066

IVECO：5010452511

KING LONG：216500060

PACCAR：1519286

RENAULT：5010452511

RENAULT：5010245488

RENAULT：5010245868

RENAULT：504103066

SINOTRUK (CNHTC)：WG9114230025/2

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as Wholesale 9700514380 Clutch Servo FOR RENAULT 5010452511 Supplier and Custom 9700514380 Clutch Servo FOR RENAULT 5010452511 Company, Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
