9700514230 Max. operating pressure：10.0 bar Servo Clutch

Details
Type of vehicle
Leave a message

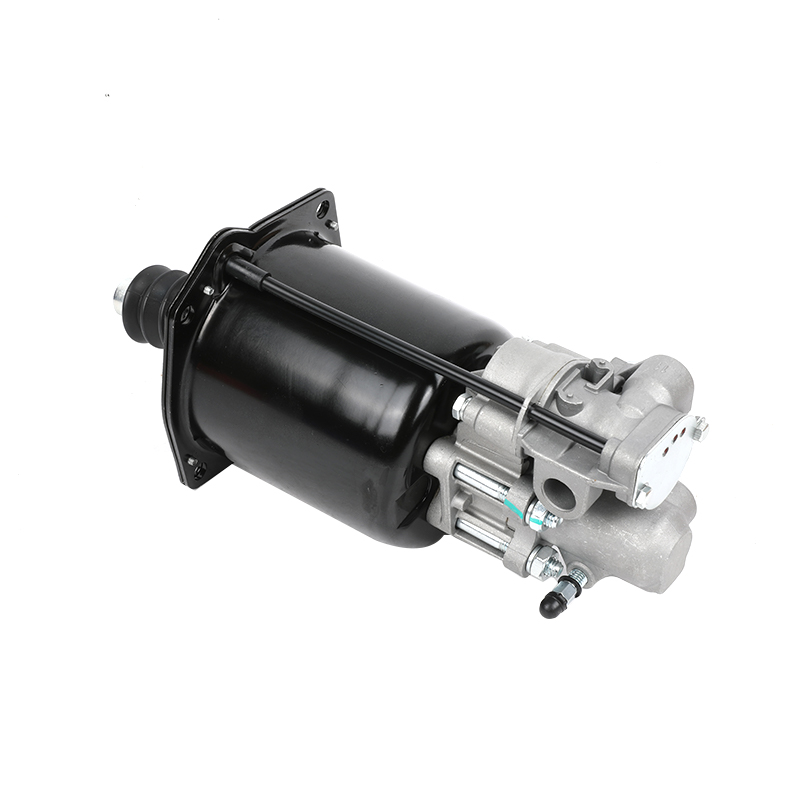

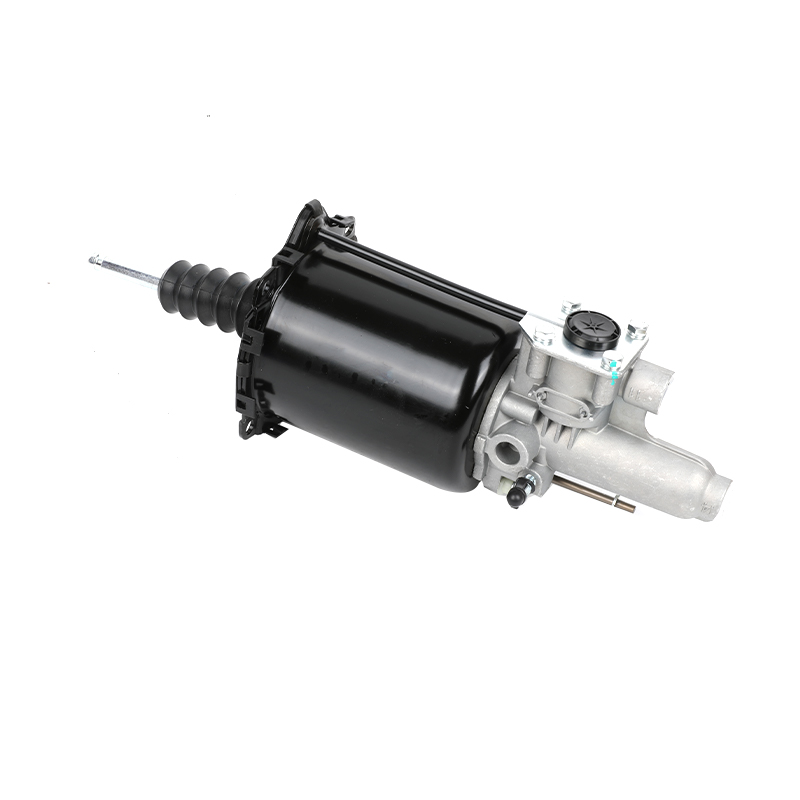

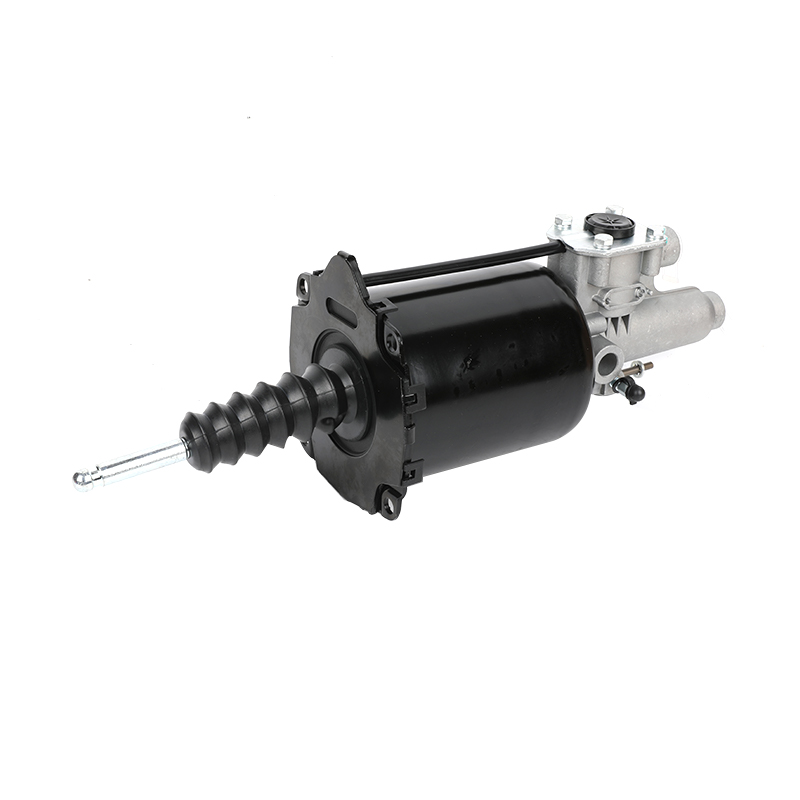

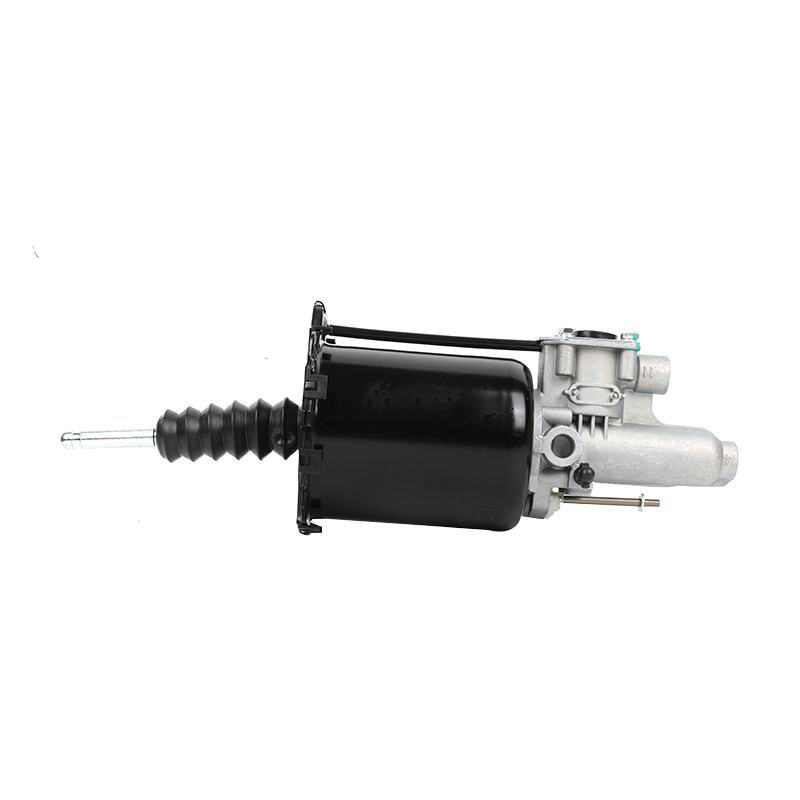

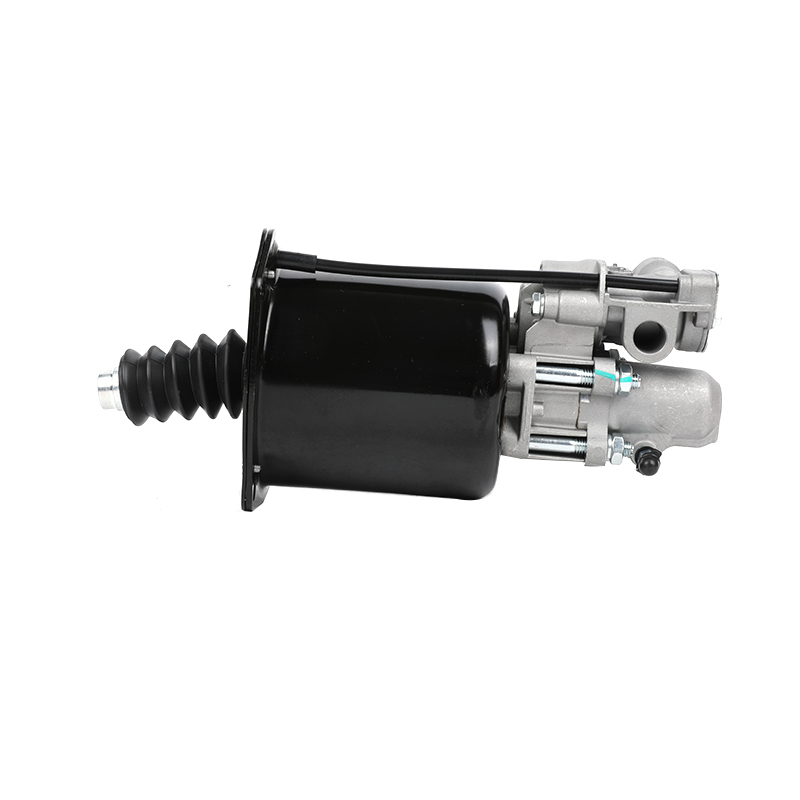

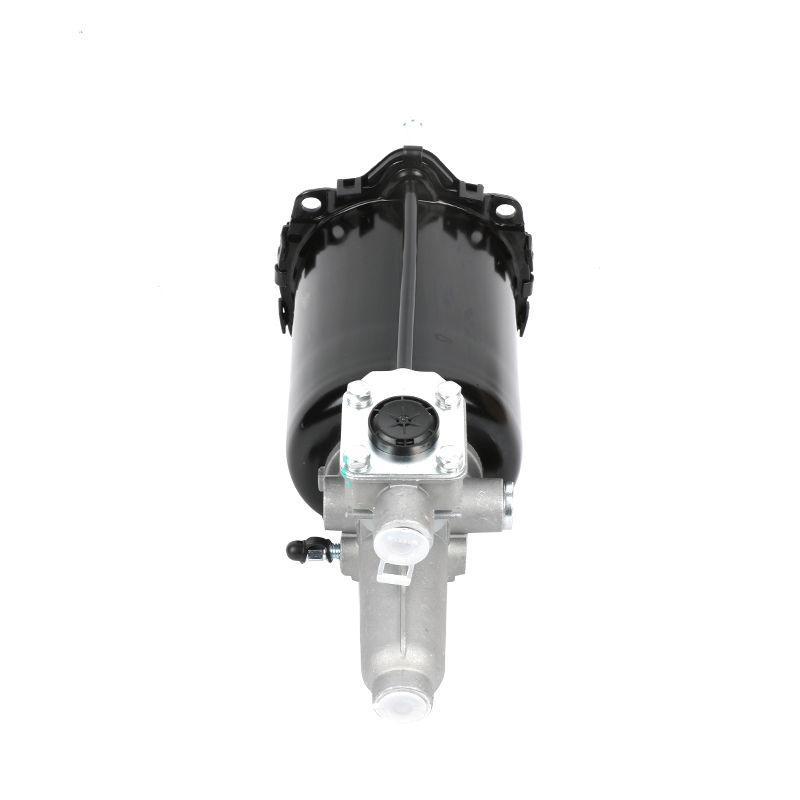

A clutch servo is a pneumatically-assisted clutch-actuation device, enabling accurate and sensitive clutch use. It dramatically reduced the amount of effort required by the driver when actuating the clutch pedal.
Part type：Premium original quality

Comments：ZF

Distance between holes：130.0 mm

Length：409 mm

Max. operating pressure：10.0 bar

Mounting：4x Ø 9.0 mm

Oil inlet：Brake fluid SAE J 1703

Port thread 1-4：M14 x 1.5 ( B )

Port thread 11：M16 x 1.5 JED - 464

Port thread 31：Flap Exhaust

Port thread 32：Ø 8.0 mm

Push-rod thread：Ball Ø 12.0

Stroke：85.0 mm

Technical specification：OE specification

Temperature range：-40°C to +80°C

Calculated Volume (dm³)：6.8458

Size (mm x mm x mm)：412 x 134 x 124

Weight (kg)：2.658

Weight (lb)：5.8599

DAEWOO：3329101151

DAEWOO：3329101150

DAEWOO：P33291 07070

DAF：1506466

FAW：1602305A70A

FORD：7C467K626AA

HINO：S31A0E0780

HYUNDAI：4170077000K

HYUNDAI：41700 7000K

KING LONG：216500010

RENAULT：501006570

RENAULT：0501006570

SCANIA：1935601

VAN HOOL：10730817

YUTONG：160400241

ZF：0501006570
