9700511580 Application for daf, evobus, mercedes-benz servo clutch

Details
Type of vehicle
Leave a message

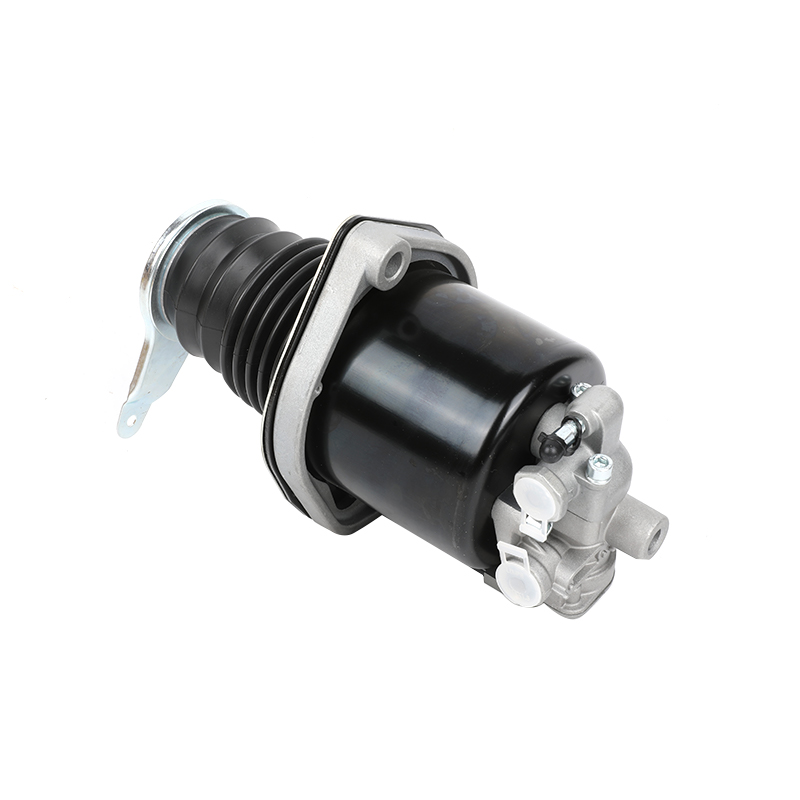

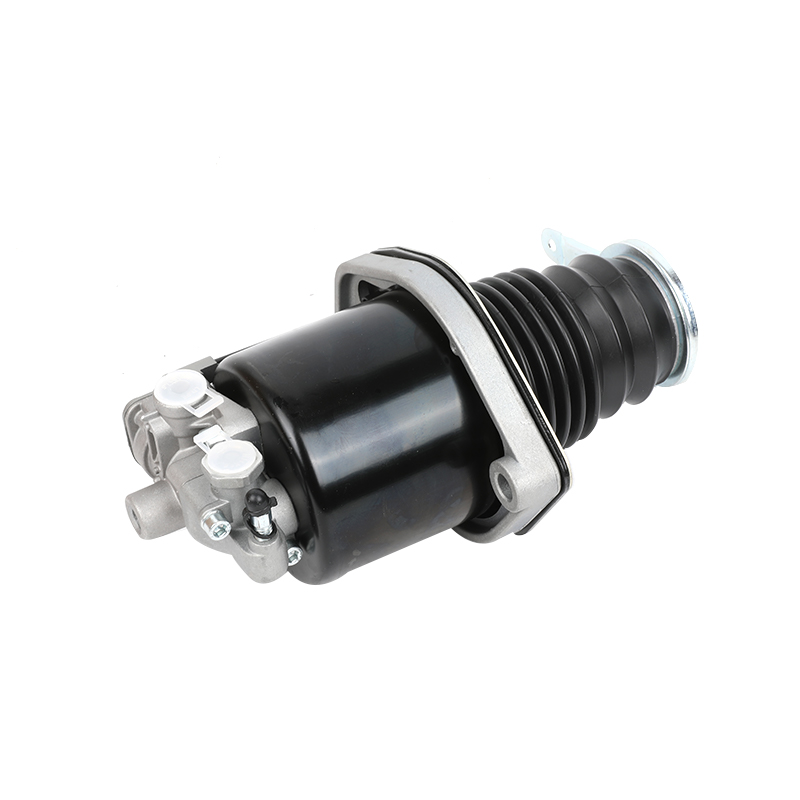

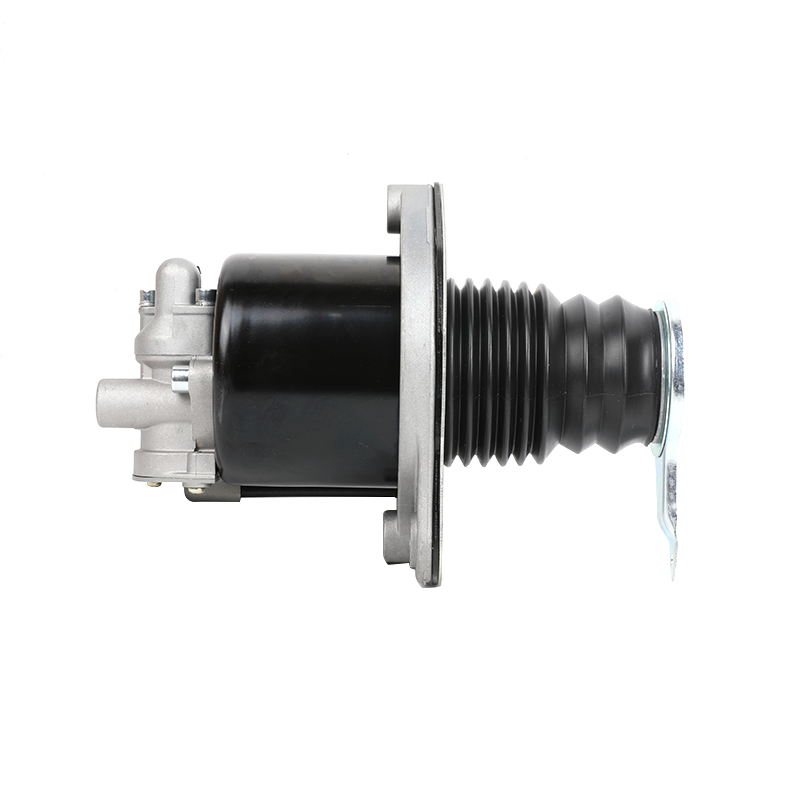

A clutch servo is a pneumatically-assisted clutch-actuation device, enabling accurate and sensitive clutch use. It dramatically reduced the amount of effort required by the driver when actuating the clutch pedal.

Suitable For

FOR DAF

Oem No

FOR DAF 1506456, 1519277

FOR WABCO 9700511580

Suitable For

FOR MERCEDES 0403

Oem No

FOR MERCEDES 0002950618, 0002950318, 0002951518

FOR WABCO 9700511580

Distance between holes:	146.0 mm
Length:	188 mm
Max. operating pressure:	8.0 bar
Mounting:	2x Ø 11.0 mm
Oil inlet:	Brake fluid SAE J 1703
Port Thread 1-4:	M14 x 1.5 ( K )
Port Thread 32:	Ø 8.0 mm
Port thread 11:	M16 x 1.5
Port thread 31:	Flap Exhaust
Push-rod thread:	Hole Ø 12.0 mm
Stroke:	75.0 mm
Temperature range:	-20°C to +140°C
Calculated Volume (dm³):	6.4919
Size (mm x mm x mm):	263 x 187 x 132
Weight (kg):	2.849
Weight (lb):	6.28
