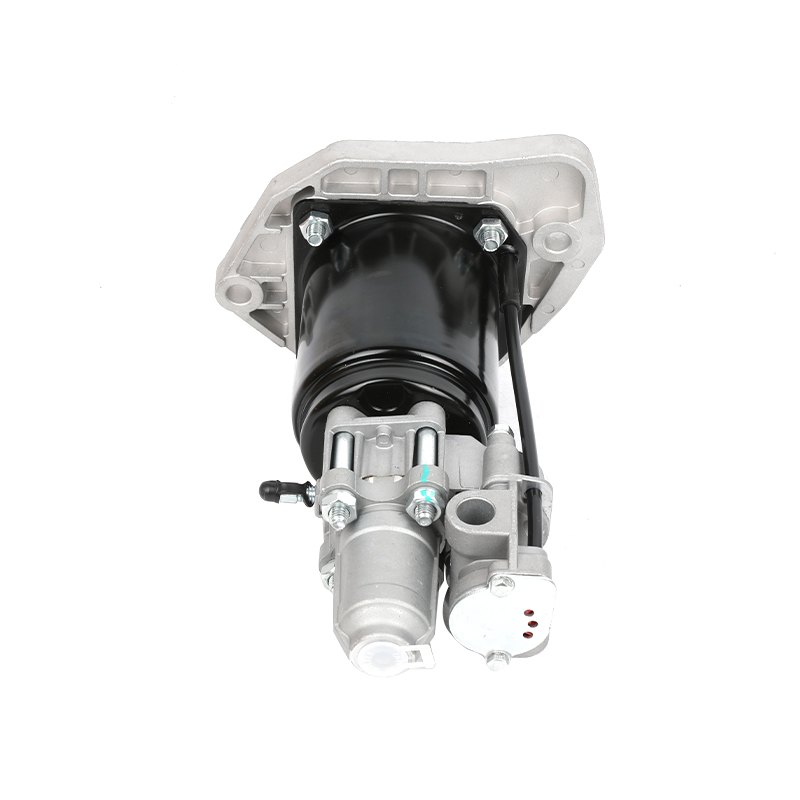

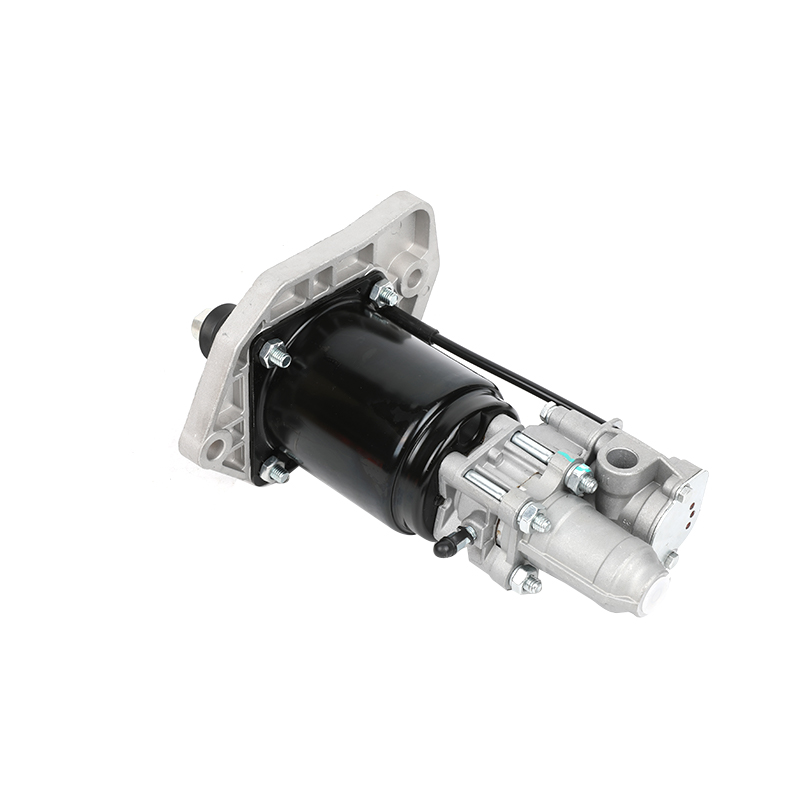

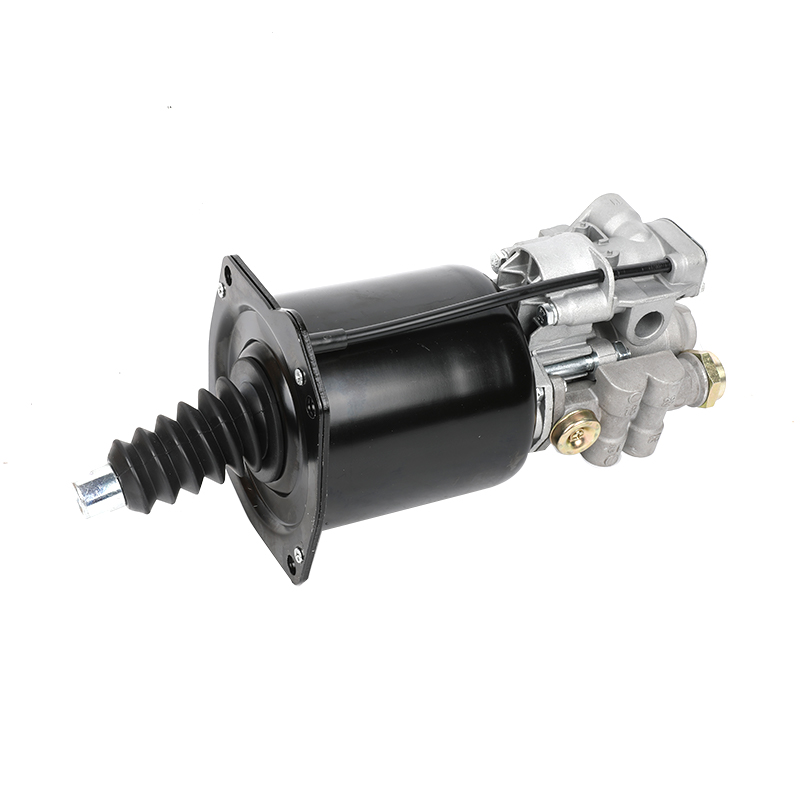

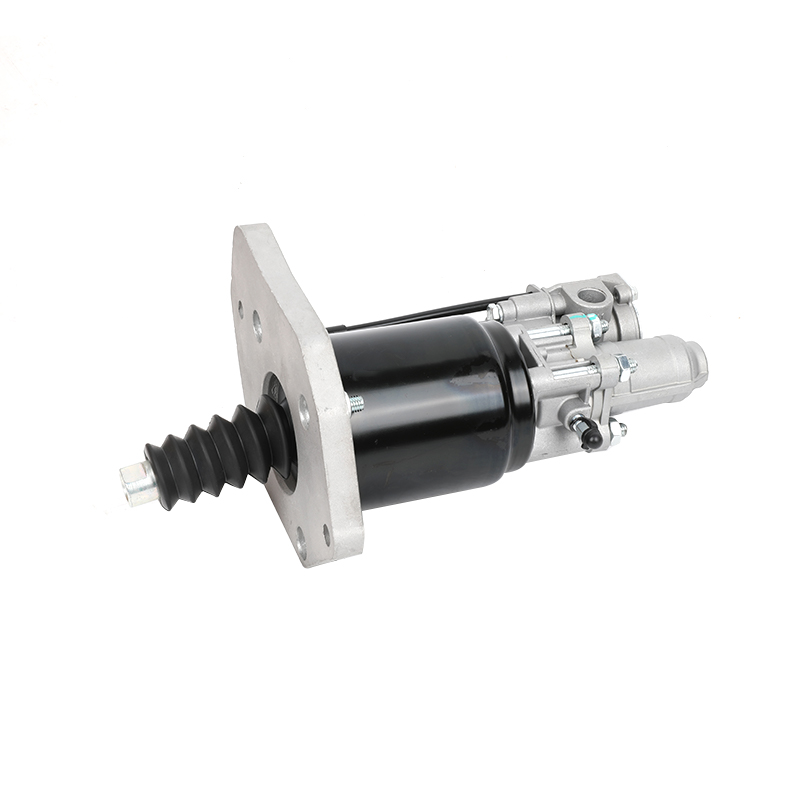

9700511510 Max. operating pressure：10.0 bar CLUTCH SERVO

Details
Type of vehicle
Leave a message

A clutch servo is a pneumatically-assisted clutch-actuation device, enabling accurate and sensitive clutch use. It dramatically reduced the amount of effort required by the driver when actuating the clutch pedal.

Comments：MB G4

Distance between holes：110.0 mm

Length：314 mm

Max. operating pressure：10.0 bar

Mounting：2x Ø 11.0 mm

Oil inlet：Brake fluid SAE J 1703

Port thread 1-4：M14 x 1.5 ( B )

Port thread 11：M16 x 1.5

Port thread 31：Flap Exhaust

Port thread 32：Ø 8.0 mm

Push-rod thread：Hole Ø12.1 mm

Stroke：65.0 mm

Technical specification：OE specification

Temperature range：-20°C to +140°C

Test connection：M16 x 1.5 (J)

Calculated Volume (dm³)：7.5435

Size (mm x mm x mm)：314 x 182 x 132

Weight (kg)：2.834

MERCEDES-BENZ：0002950818

PACCAR：1518250
