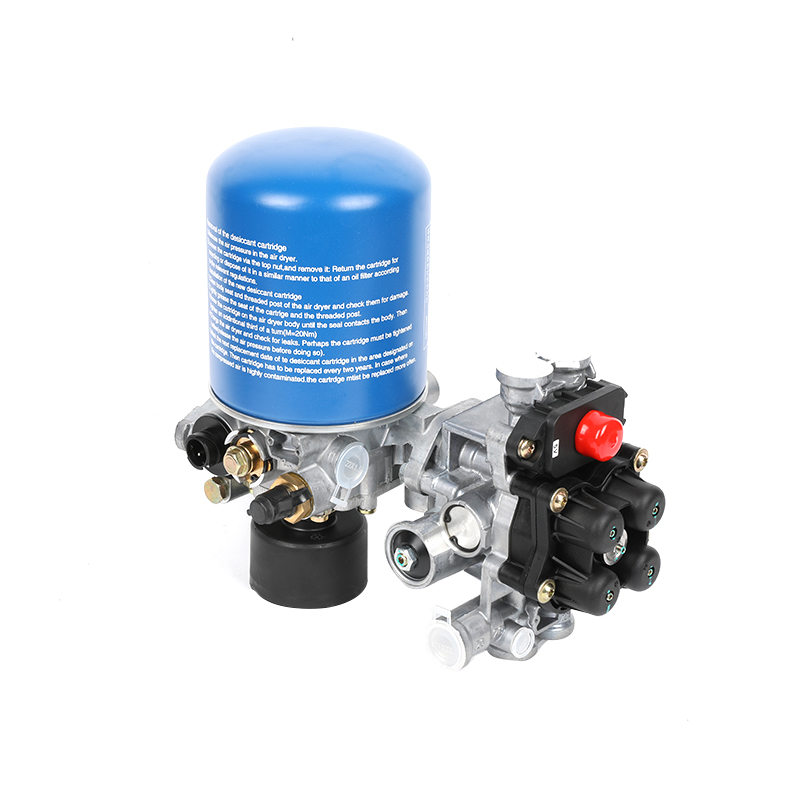

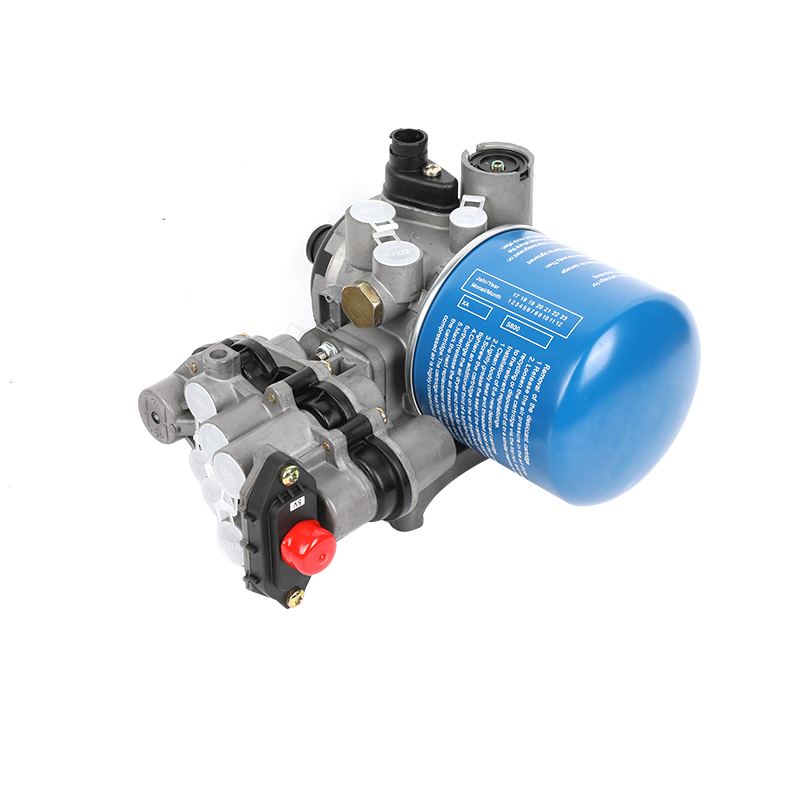

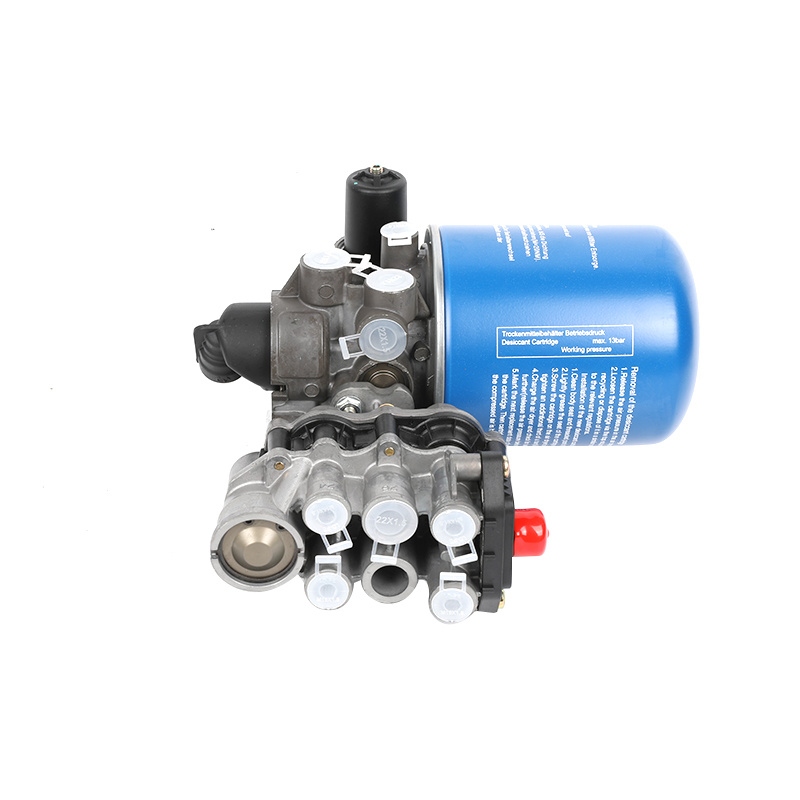

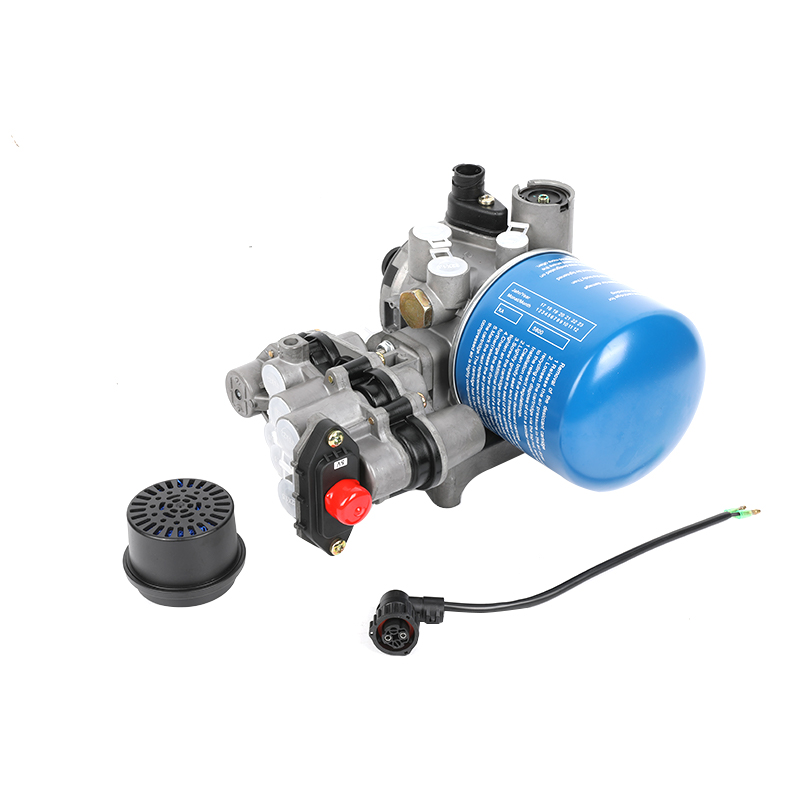

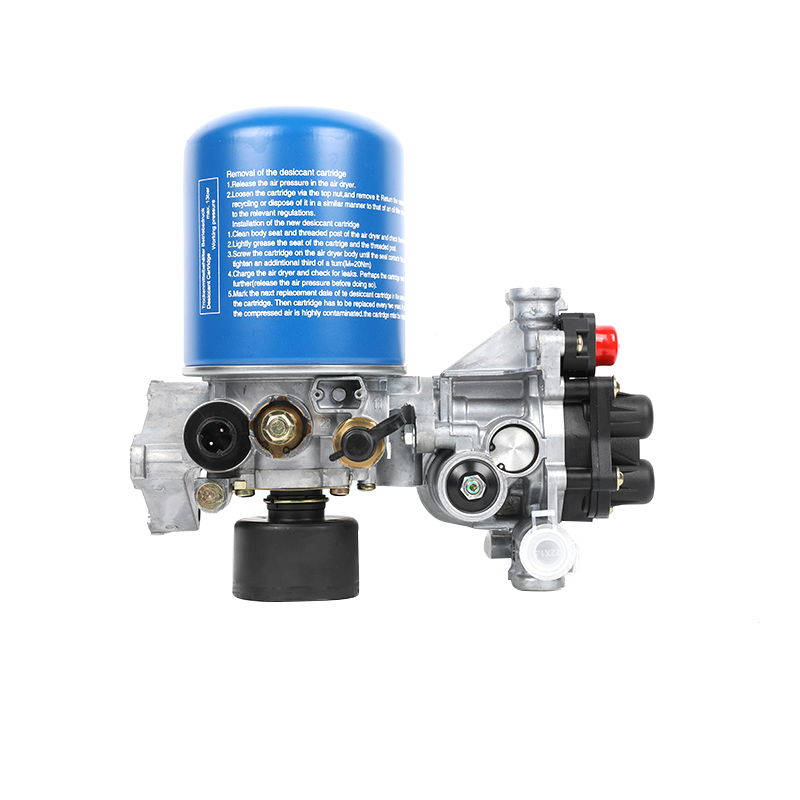

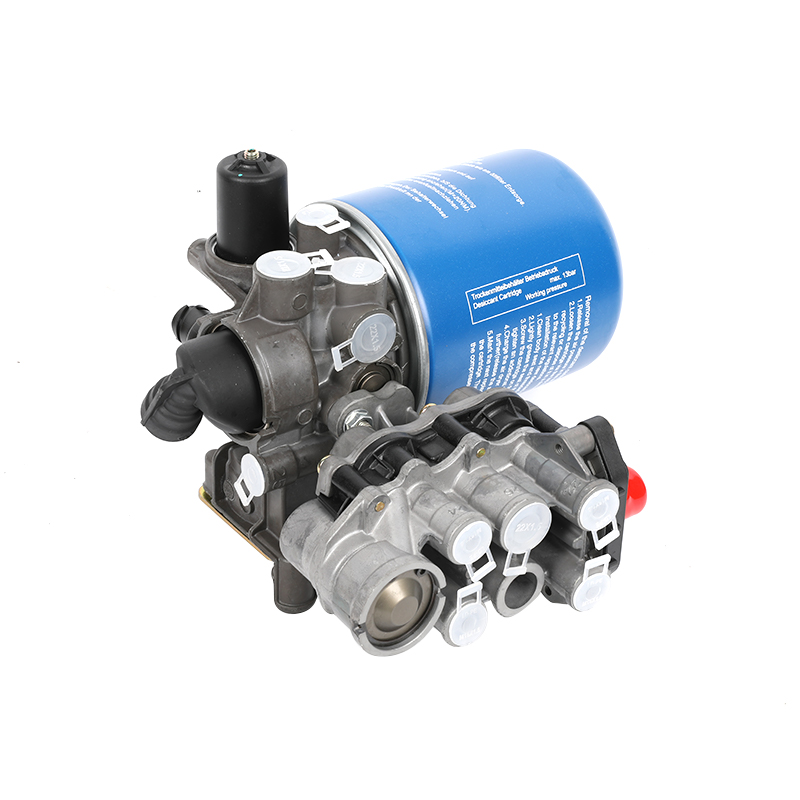

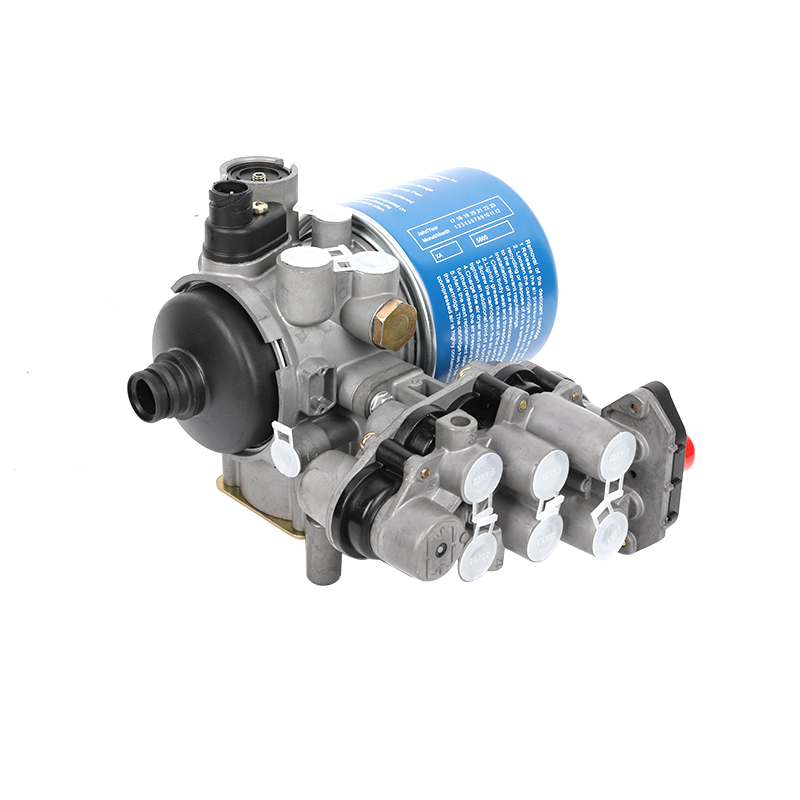

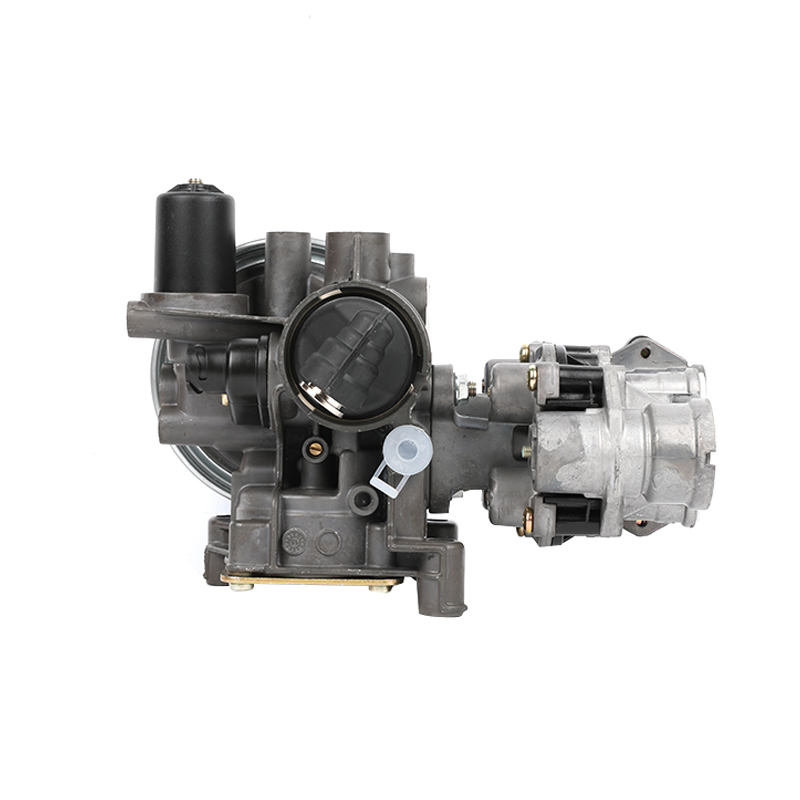

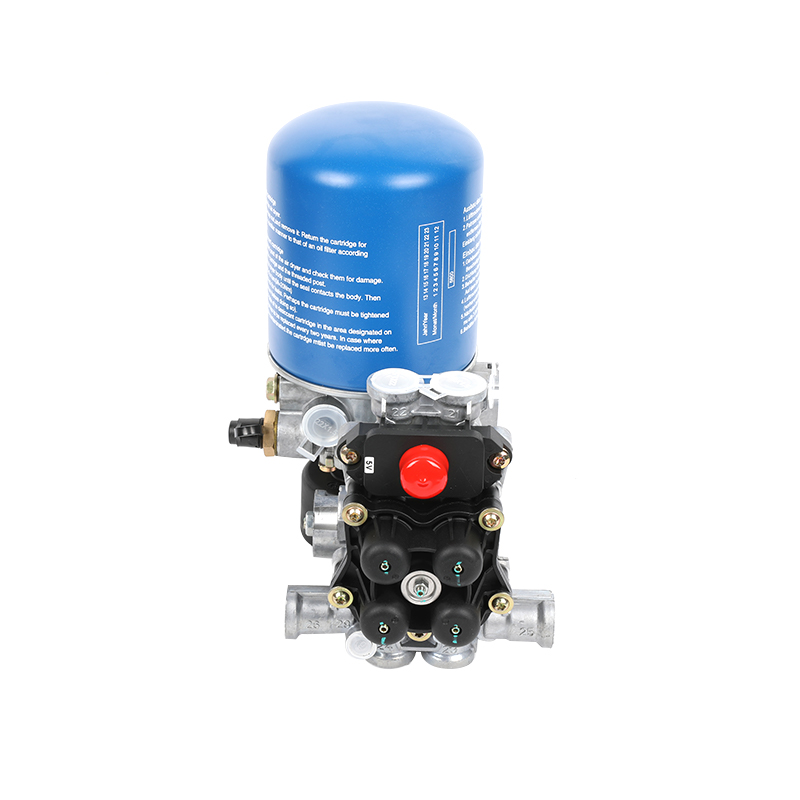

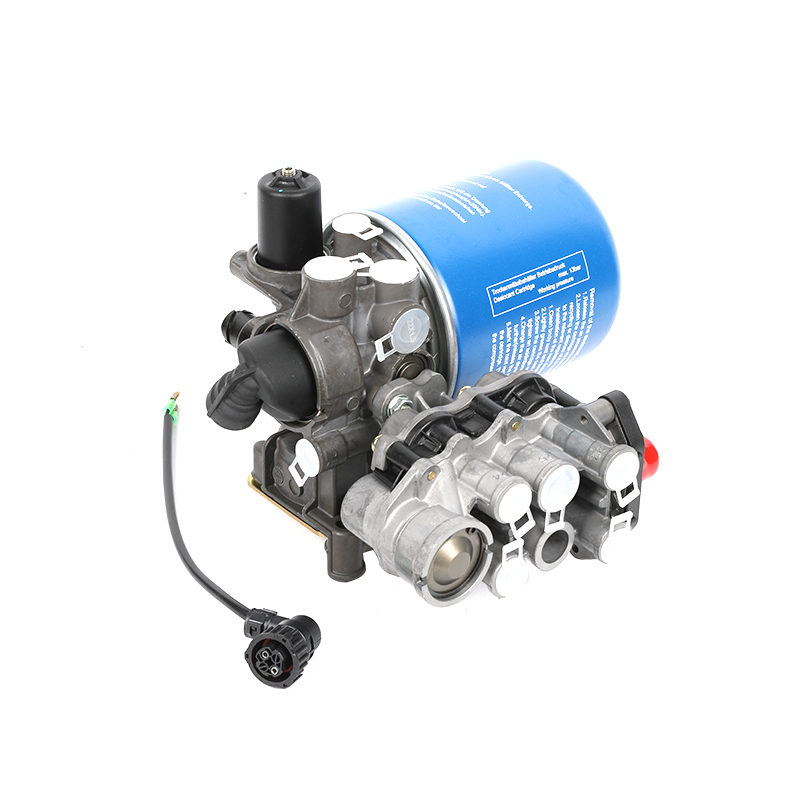

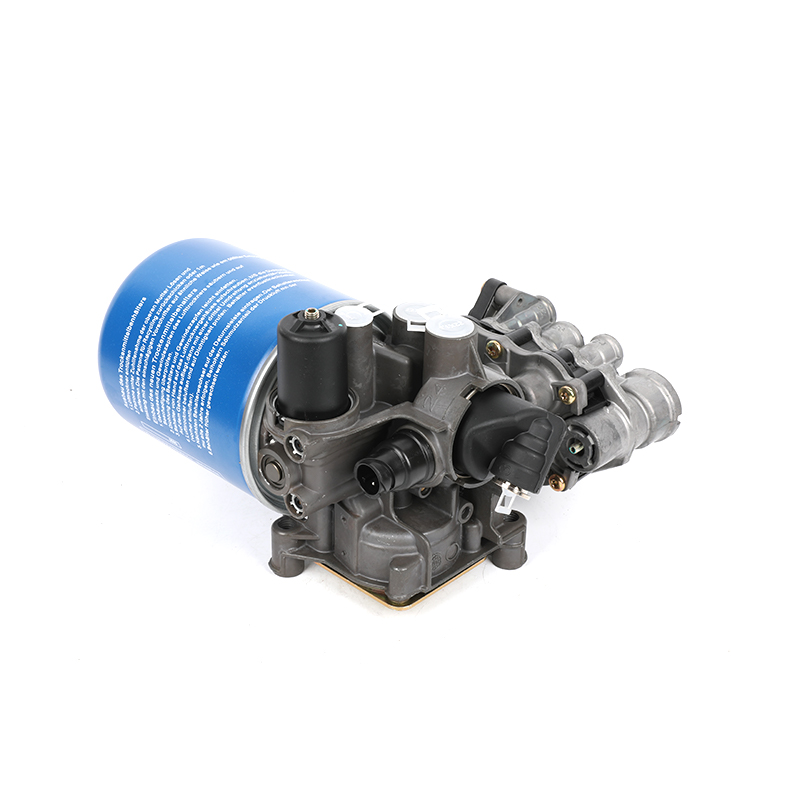

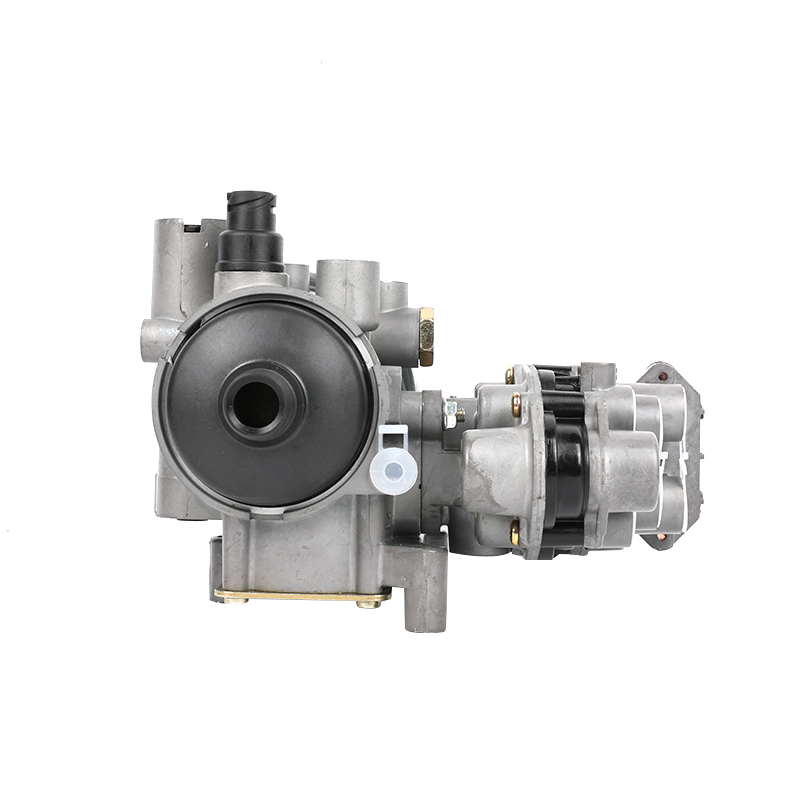

ZB4734/9325001020 Max. operating pressure:13.0 bar air processing unit Wholesale

ZB4734/9325001020 Max. operating pressure:13.0 bar air processing unit

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • Air Drye:

    r4324160020

    Back flow

    4.6 psi

    Closing pressure static 21

    94.3 psi

    Closing pressure static 22

    94.3 psi

    Closing pressure static 23

    85.6 psi

    Closing pressure static 24

    85.6 psi

    Comments

    MCPV pressure sensor Yes (DIN bayonet 72585, 7-pin)

    Cut-out pressure

    152.29 psi

    Electrical Connection

    DIN 72585 A1-2.1-1-Sn/K2

    Heating connection

    Bayonet DIN 72585-A1-2.1-1-Sn/K2

    MCPV

    9347050220

    Max. operating pressure

    188.5 psi

    Opening pressure 21

    108.78 psi

    Opening pressure 22

    108.78 psi

    Opening pressure 23

    108.78 psi

    Opening pressure 24

    108.78 psi

    Operational range

    11.60 psi

    Port thread 1

    M22 x 1.5

    Port thread 12

    M22 x 1.5

    Port thread 21

    M16 x 1.5

    Port thread 22

    M16 x 1.5

    Port thread 23

    M16 x 1.5

    Port thread 24

    M16 x 1.5

    Port thread 25

    M16 x 1.5

    Port thread 26

    M22 x 1.5

    Port thread 4

    M16 x 1.5

    Silencer

    Elbow for PA tube connection

    Temperature range

    -40 to + 185° F

    Voltage

    24 V

    Calculated Volume (dm³)

    18.142

    Size (mm x mm x mm)

    292 x 327 x 190

    Weight (kg)

    6.45

    Weight (lb)

    14.22

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as Wholesale ZB4734/9325001020 Max. operating pressure:13.0 bar air processing unit Supplier and Custom ZB4734/9325001020 Max. operating pressure:13.0 bar air processing unit Company, Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
