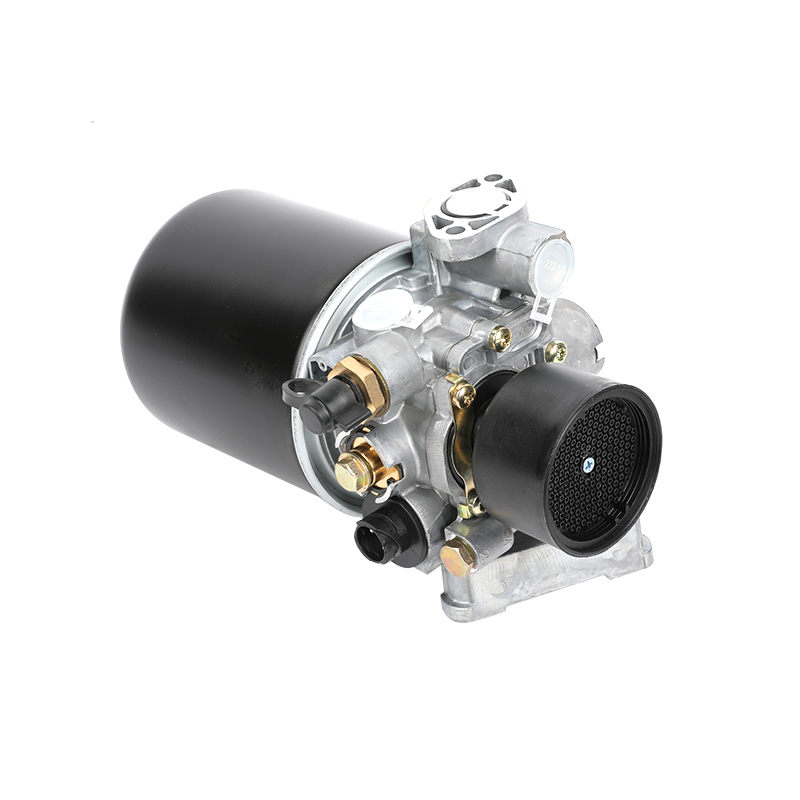

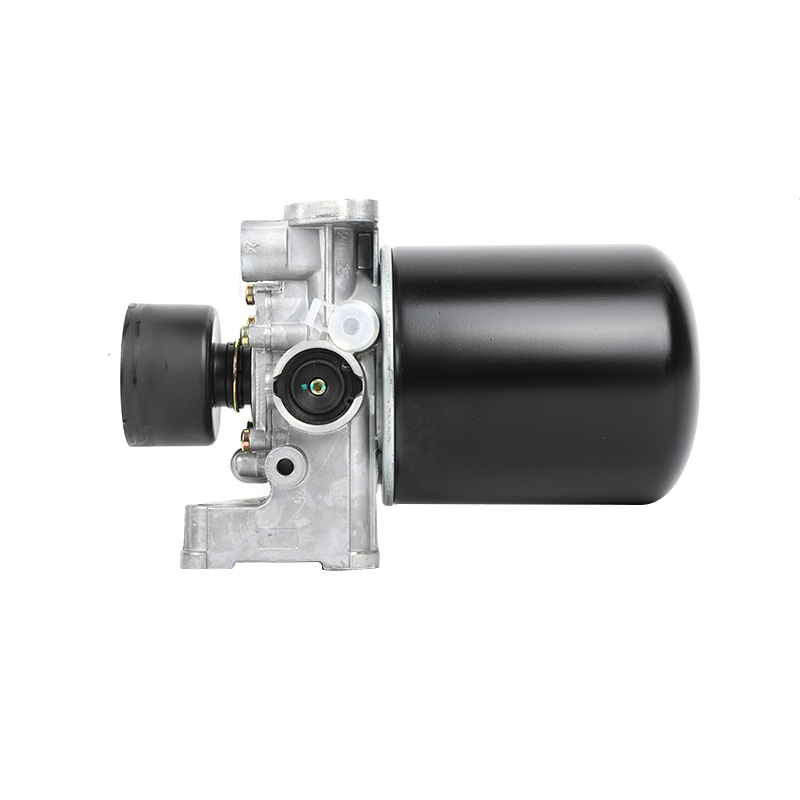

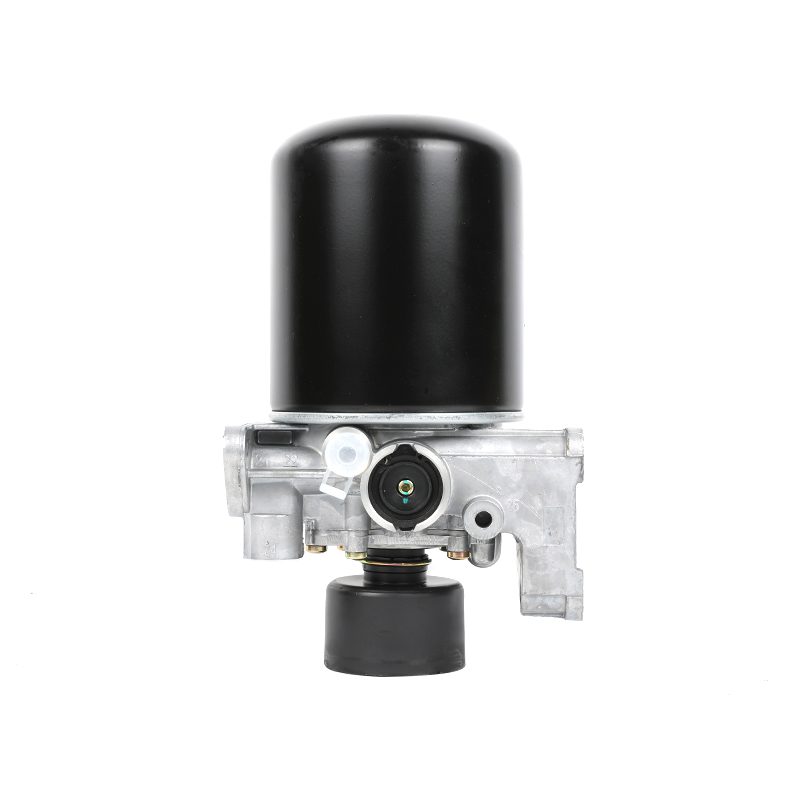

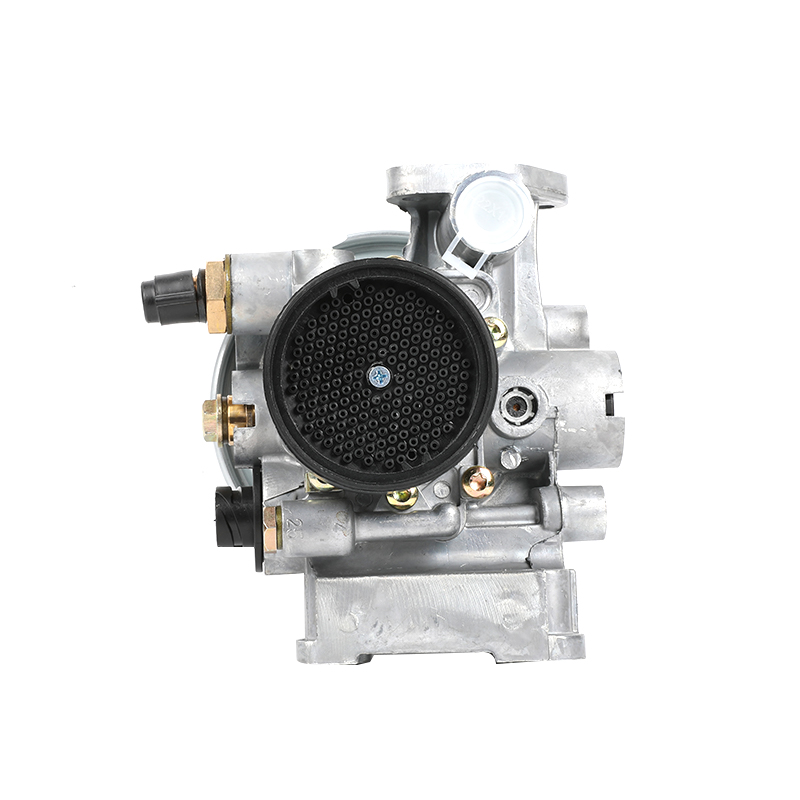

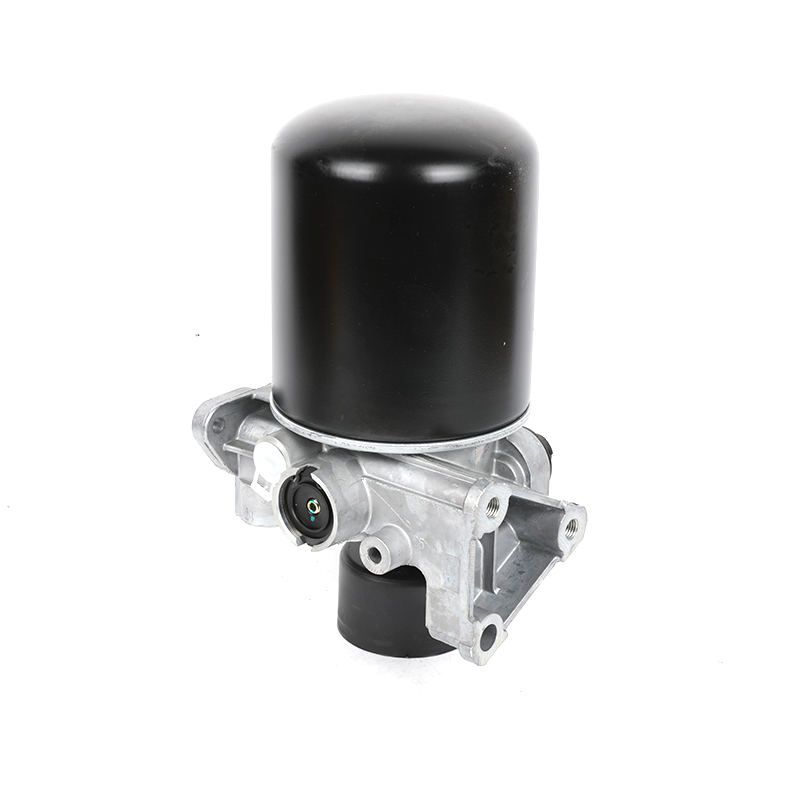

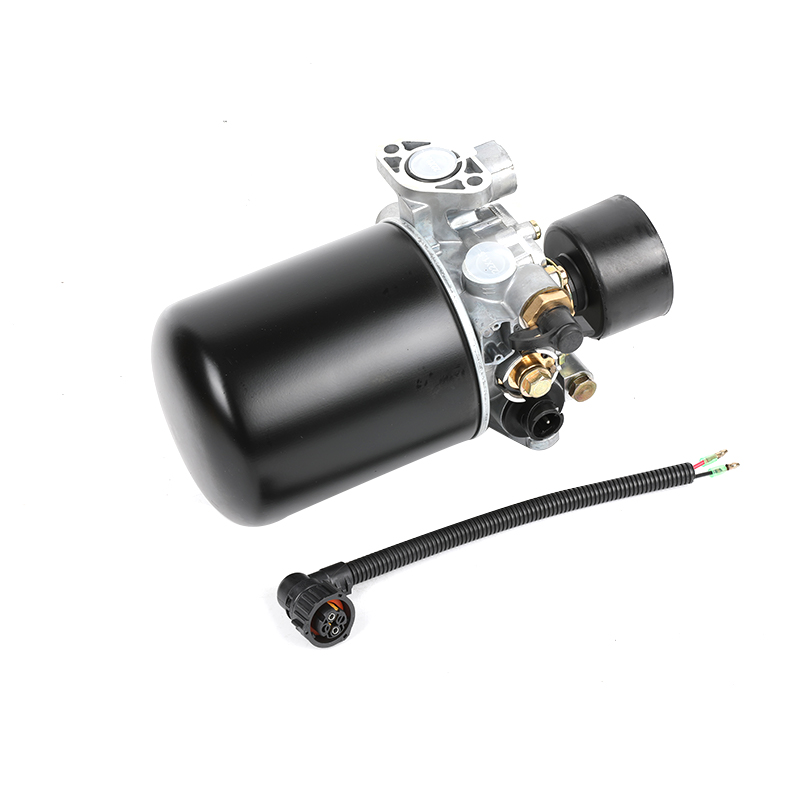

LA9000/9324000240 Single chamber air dryer+unloader

Details
Type of vehicle
Leave a message

Cartridge type：	Desiccant Cartrige
Cut-out pressure：	12.0 bar
Exhaust：	JED-463-1
Heating connection：	Bayonet DIN 72585-A1-2.1-1-Sn/K2
Max. operating pressure：	13.0 bar
Opening pressure：	14.50 bar
Operating pressure：	13.0 bar
Operational range：	1.5 bar
Port thread 11：	M22 x 1.5
Port thread 12：	M12 x 1.5
Port thread 21：	M22 x 1.5
Port thread 22：	M16 x 1.5 JED - 388
Port thread 23：	Tire inflation device M16 x 1.5
Port thread 24：	M22 x 1.5 JED - 388
Port thread 3：	JED-463-1
Port thread 4/23：	1/4" - 18 NPTF
Silencer：	No (432 407 015 0 retrofittable)
Temperature range：	-40°C to +65°C
Unloader：	Yes
Voltage：	24 V
Calculated Volume (dm³)：	9.661
Size (mm x mm x mm)：	272 x 192 x 185
Weight (kg)：	4.016
Weight (lb)：	8.8538
