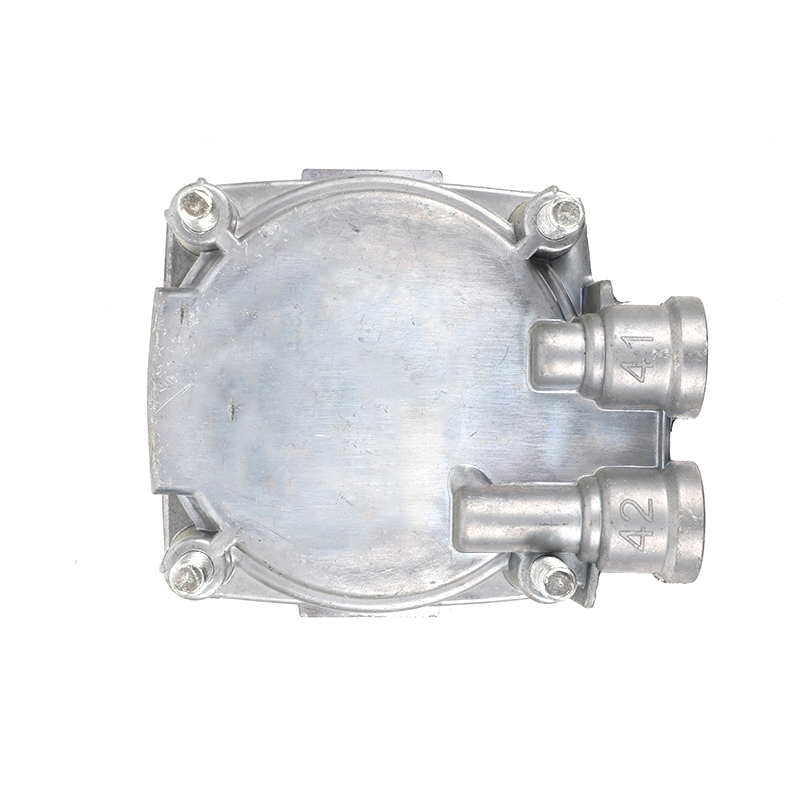

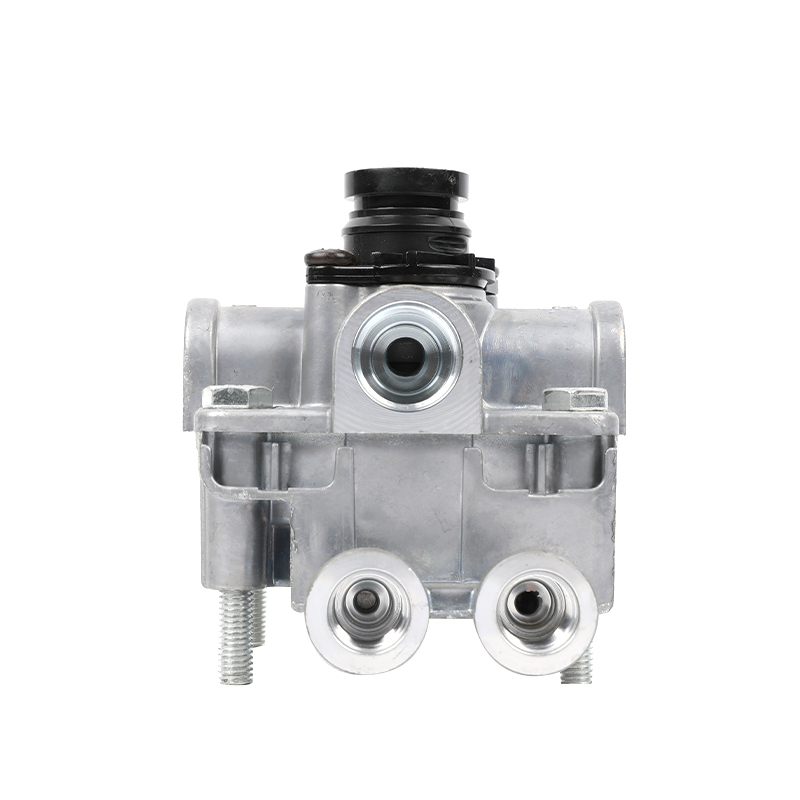

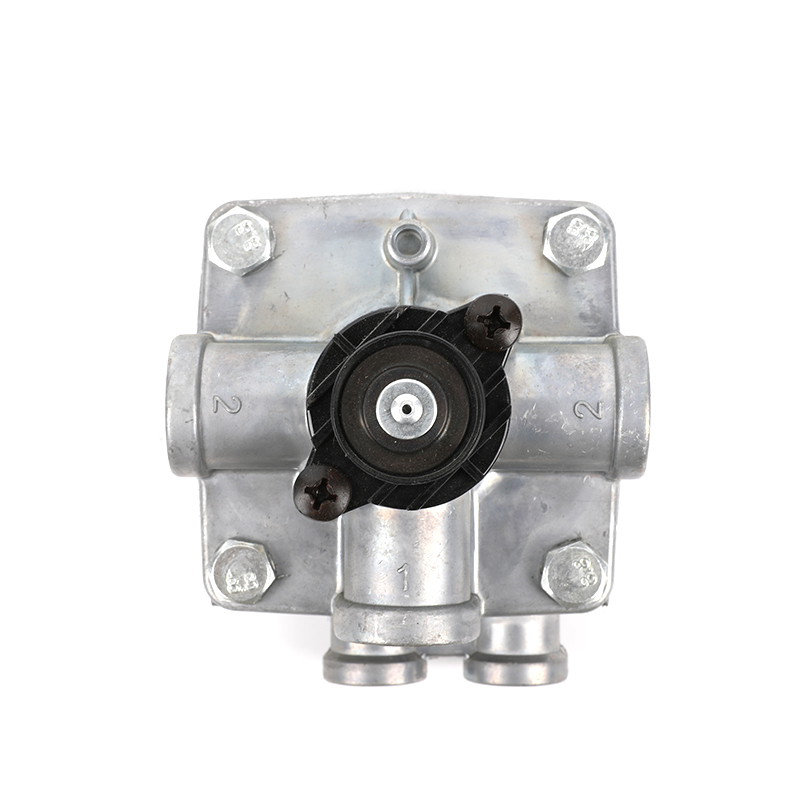

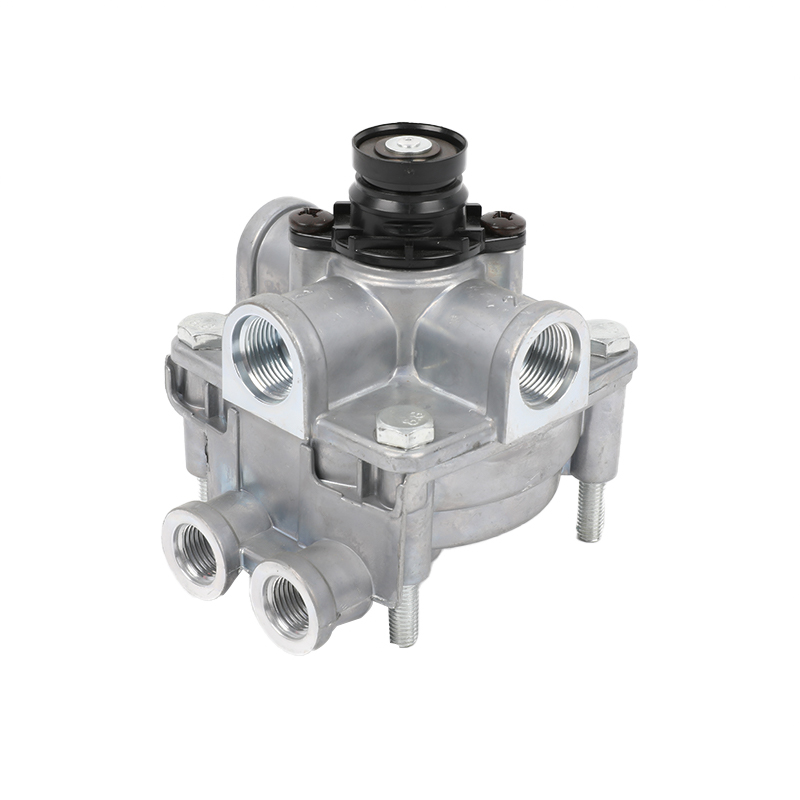

9730112000 9730112030 RELAY VALVE M 22X1,5 Max. operating pressure10.0 bar Wholesale

9730112000 9730112030 RELAY VALVE M 22X1,5 Max. operating pressure10.0 bar

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • Relay valve (10 bar; M16x1,5/M22x1,5) DAF 65 CF, 75 CF, 85 CF, 95 XF; MAN E 2000, F 2000, L 2000, M 2000 L, M 2000 M, TGA; MERCEDES O 405
    Brand OBT
    Part type Premium original quality
    Max. operating pressure 10.0 bar
    Mounting 4x M8
    Port thread 2 2x M22 x 1.5
    Port thread 3 Exhaust
    Port thread 4 M22 x 1.5
    Predominance 0.20 bar
    Product category Device
    Regulating ratio 1:01
    Technical specification OE specification
    Temperature range -40°C to +80°C
    Version Pressure reduction
    Calculated Volume (dm) 1.092
    Size (mm x mm x mm) 104 x 100 x 105
    UPC 1.93133E+11
    Weight (kg) 1.035
    Weight (lb) 2.282

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as Wholesale 9730112000 9730112030 RELAY VALVE M 22X1,5 Max. operating pressure10.0 bar Supplier and Custom 9730112000 9730112030 RELAY VALVE M 22X1,5 Max. operating pressure10.0 bar Company, Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
