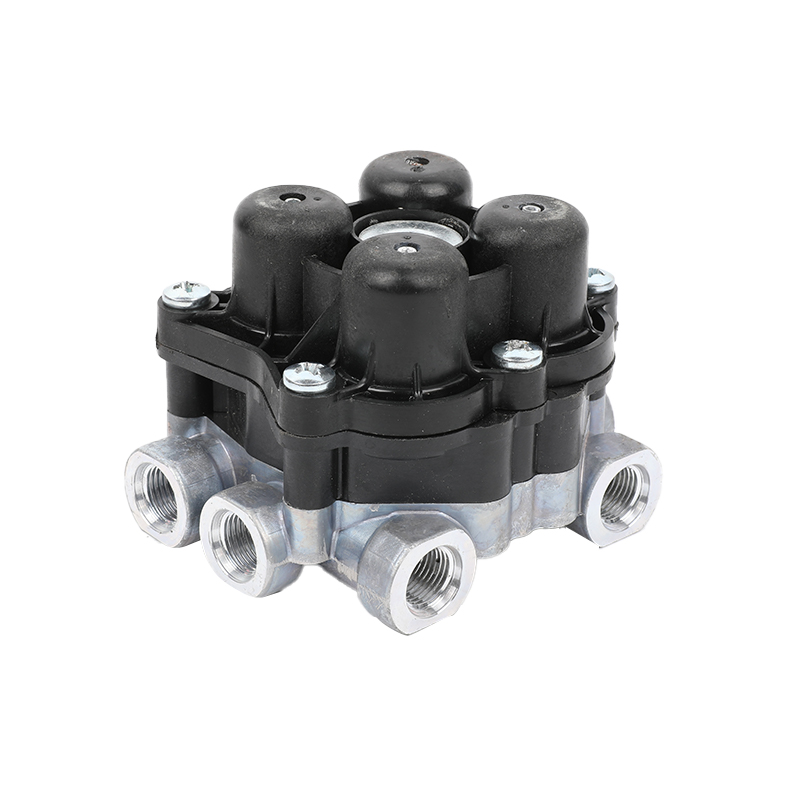

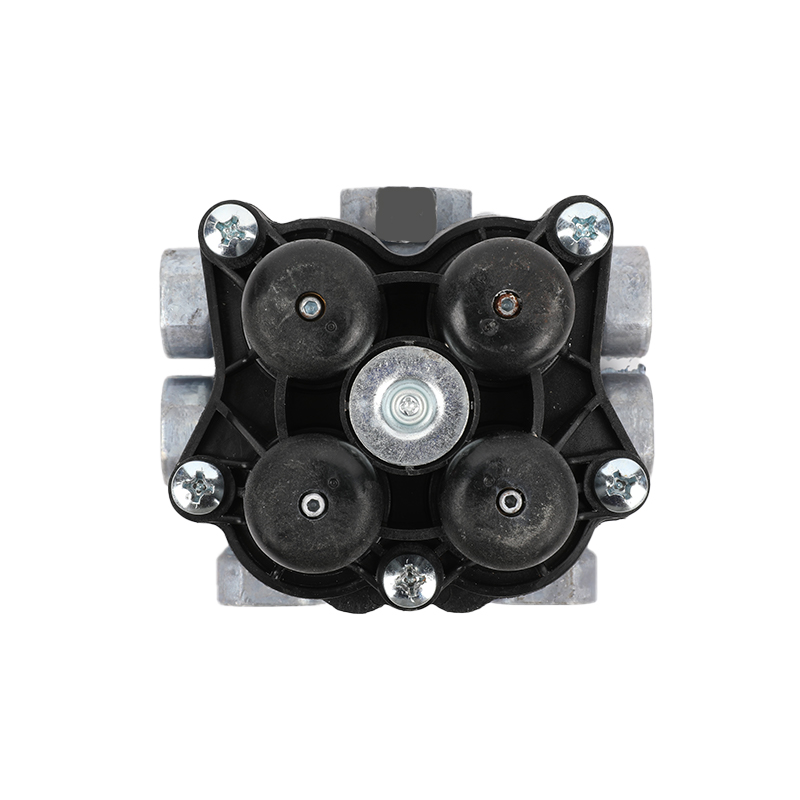

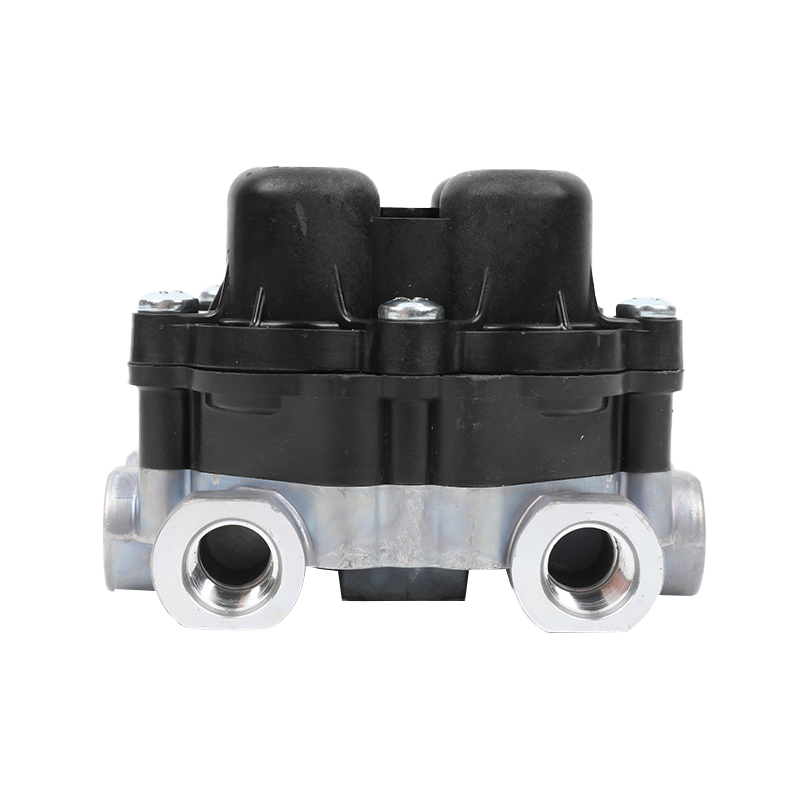

AE4604 For volvo four circuit protection valve

Details
Type of vehicle
Leave a message

The purpose of the Tractor Protection valve is to protect the tractor air brake system in the event of a trailer breakaway or severe air leak. They are also used to shut off air to the trailer before disconnecting the lines.

Air entering the supply port is blocked from flowing out the delivery port by the inlet valve, which is normally held closed by the pressure regulating spring above the piston. ...
If system air pressure decreases below the specified closing pressure, the regulating spring will close the inlet valve.

Circuit opening pressure 2:	6,3 bar (by-pass)
Circuit opening pressure 3:	5,8 bar
Circuit opening pressure 4:	5,8 bar
Connection 1:	M22x1,5
Connection 11:	M16x1,5
Connection 12:	M16x1,5
Connection 21:	M16x1,5
Connection 22:	M16x1,5
Connection 23:	M16x1,5
Connection 24:	M16x1,5
Safety device:	Si
Weight:	687.00 g
