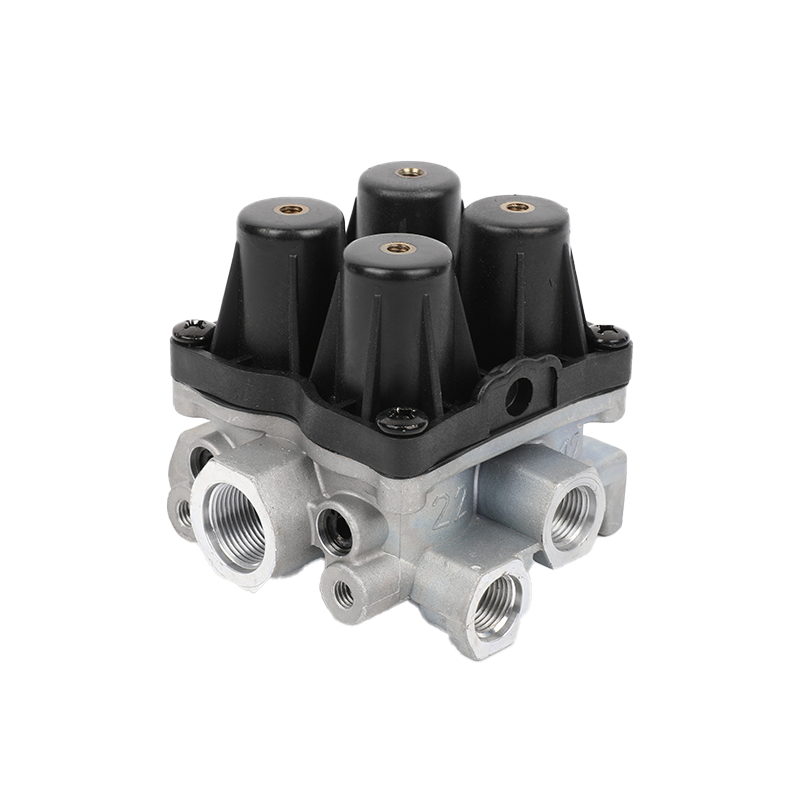

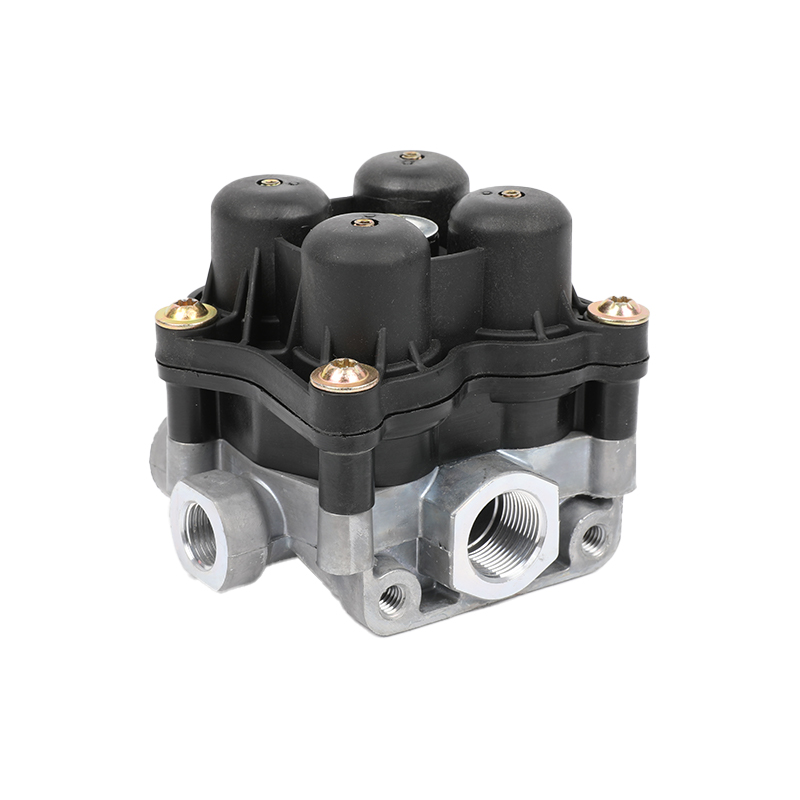

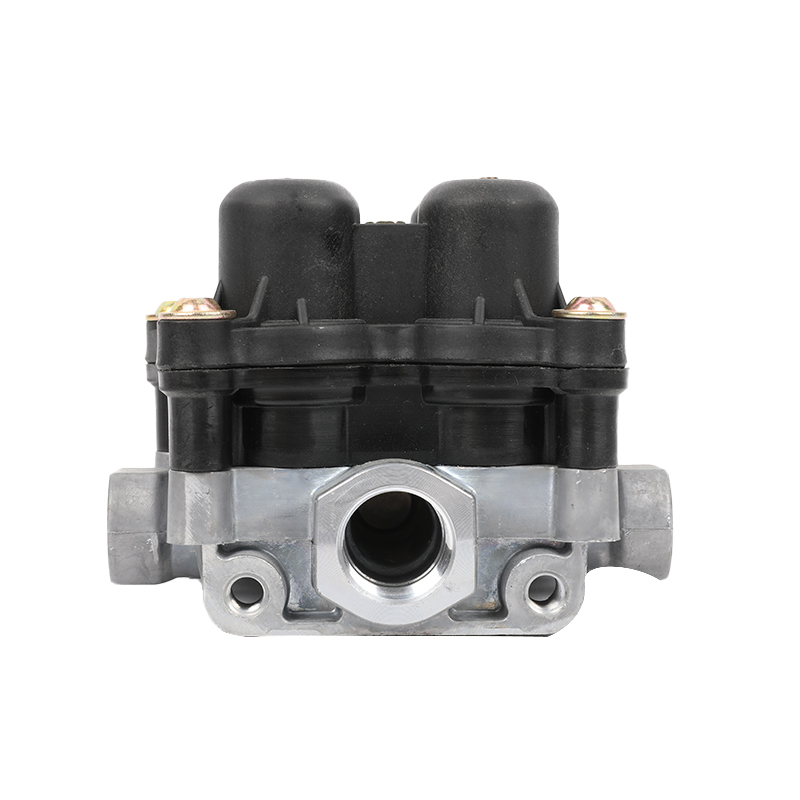

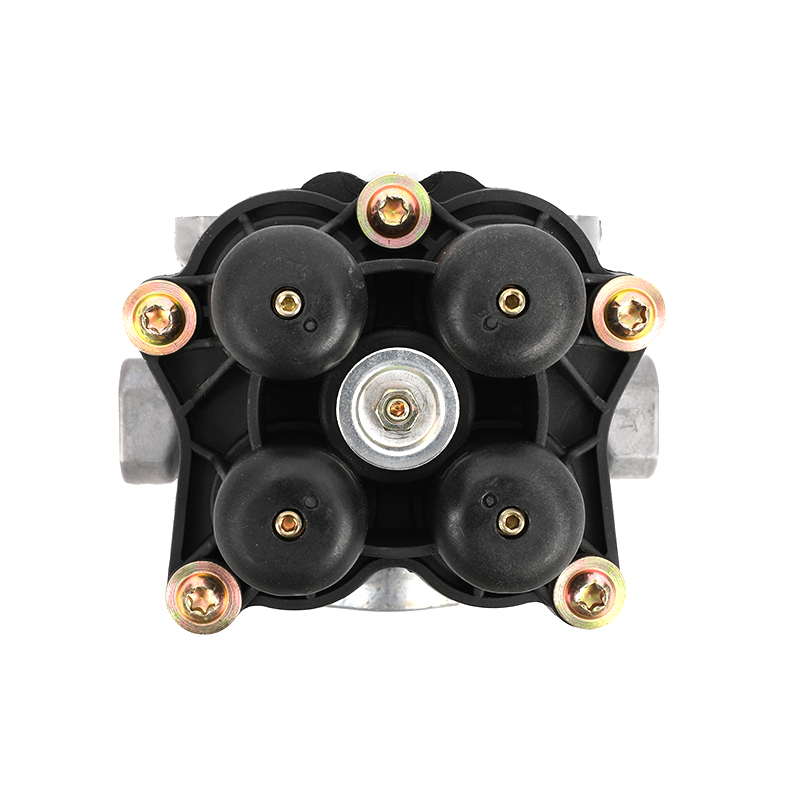

9347147400 Four circuit protection valve Max. operating pressure13.0 bar

Details
Type of vehicle
Leave a message

The purpose of the Tractor Protection valve is to protect the tractor air brake system in the event of a trailer breakaway or severe air leak. They are also used to shut off air to the trailer before disconnecting the lines.

Air entering the supply port is blocked from flowing out the delivery port by the inlet valve, which is normally held closed by the pressure regulating spring above the piston. ...
If system air pressure decreases below the specified closing pressure, the regulating spring will close the inlet valve.

Circuit opening pressure 1	6,3 bar (by-pass)
Circuit opening pressure 2	6,3 bar (by-pass)
Circuit opening pressure 3	5,8 bar
Circuit opening pressure 4	5,8 bar
Connection 1	M22x1,5
Connection 11	M16x1,5
Connection 12	M16x1,5
Connection 21	M16x1,5
Connection 22	M16x1,5
Connection 23	M16x1,5
Connection 24	M16x1,5
Safety device	No
Weight	828.00 g

APPLICATIONS

Vehicle type	Brand	Series	Type	Model	Engine type
TRUCK	DAF	---------	---------	1528375	---------
TRUCK	PACCAR	---------	---------	1528375	---------
TRUCK	VOLVO	---------	---------	21225479	---------
