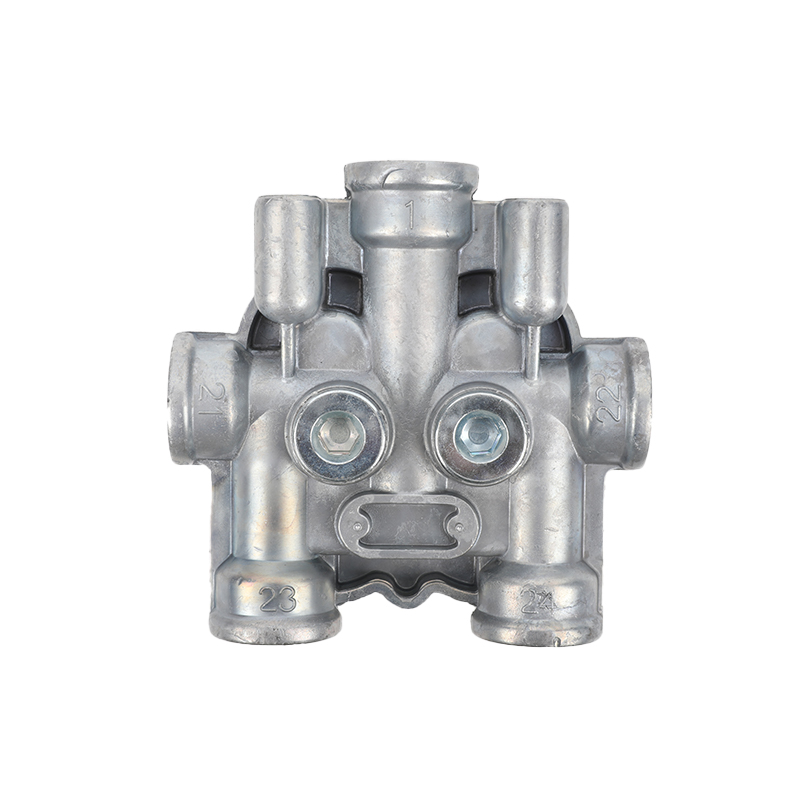

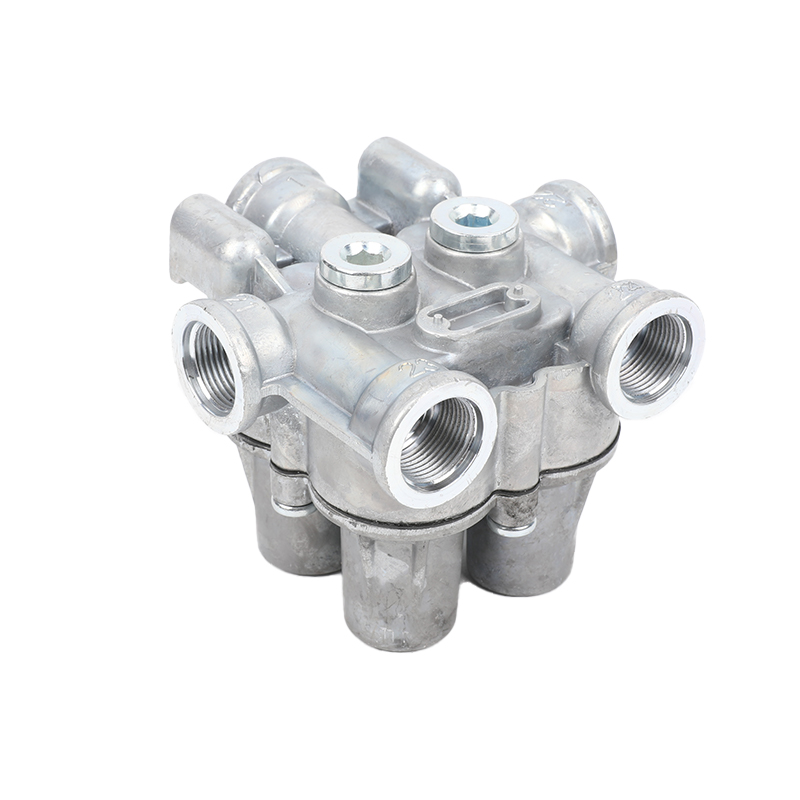

9347022600 Quadruple protection valve

Details
Type of vehicle
Leave a message

Closing pressure dynamic 21:	6.7 bar
Closing pressure dynamic 22:	6.7 bar
Closing pressure dynamic 23:	6.7 bar
Closing pressure dynamic 24:	6.7 bar
Closing pressure static 21:	6.7 bar
Closing pressure static 22:	6.7 bar
Closing pressure static 23:	6.0 bar
Closing pressure static 24:	6.0 bar
Max. operating pressure:	20.0 bar
Opening pressure 21:	7 bar
Opening pressure 22:	7 bar
Opening pressure 23:	7 bar
Opening pressure 24:	7 bar
Opening pressure circuit 1+2:	7.0 + 7.0 bar
Port thread 1:	M22 x 1.5
Port thread 21:	M22 x 1.5
Port thread 22:	M22 x 1.5
Port thread 23:	M22 x 1.5
Port thread 24:	M22 x 1.5
Port thread 4:	M22 x 1.5
Pressure sensor:	No
Technical specification:	OE specification
Temperature range:	-40°C to +90°C
Type:	dynamic
Calculated Volume (dm³):	1.2034
Size (mm x mm x mm):	114 x 116 x 91
Weight (kg):	0.991
Weight (lb):	2.1848
