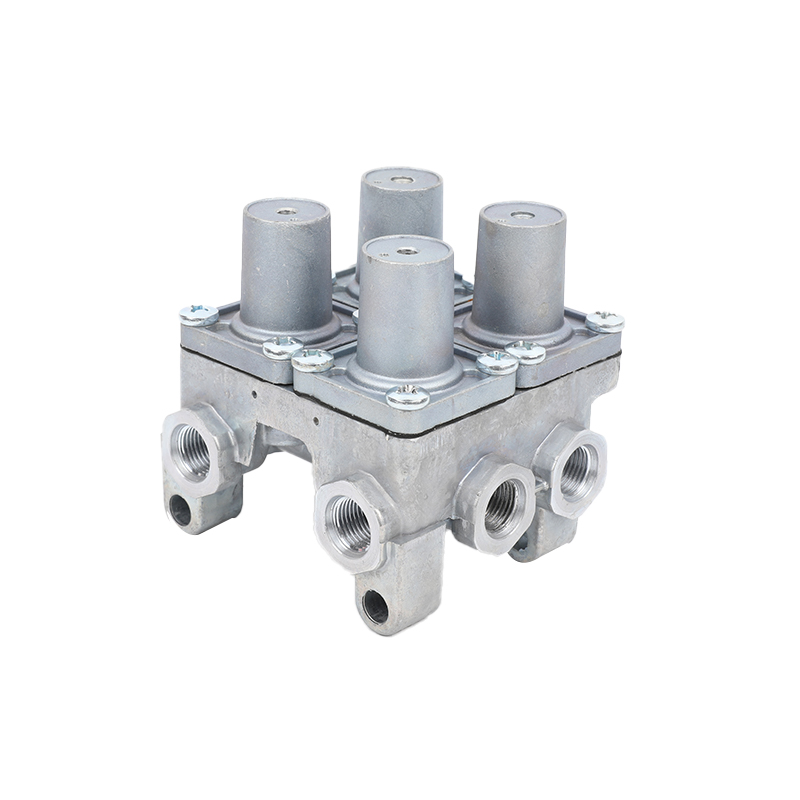

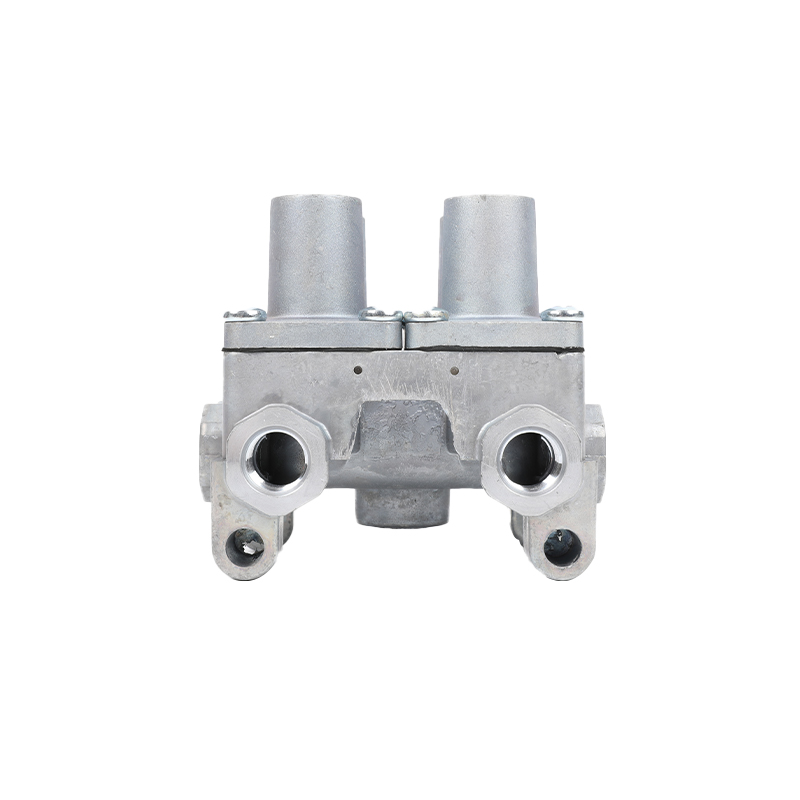

9347022100 Quadruple protection valve

Details
Type of vehicle
Leave a message

Closing pressure dynamic 21:	5.0 bar
Closing pressure dynamic 22:	5.0 bar
Closing pressure dynamic 23:	5.0 bar
Closing pressure dynamic 24:	5.0 bar
Max. operating pressure:	10.0 bar
Opening pressure 21:	7 bar
Opening pressure 22:	7 bar
Opening pressure 23:	7 bar
Opening pressure 24:	7 bar
Opening pressure circuit 1+2:	7.0 + 7.0 bar
Port thread 1:	M22 x 1.5934 702 210 0 Quadruple Protection Valve
Port thread 11:	M16 x 1.5
Port thread 12:	M16 x 1.5
Port thread 21:	M16 x 1.5
Port thread 22:	M16 x 1.5
Port thread 23:	M16 x 1.5
Port thread 24:	M16 x 1.5
Port thread 4:	M16 x 1.5
Pressure sensor:	No
Technical specification:	OE specification
Temperature rang:	e-40°C to +90°C
Type:	dynamic
Calculated Volume (dm³):	1.22
Size (mm x mm x mm):	)114 x 101 x 106
Weight (kg):	1.016
Weight (lb):	2.2399

If you want to know us, please contact us!

We always adhere to the quality policy of "innovation is infinity, to keep improving", adhering to the enterprise tenet of "veracity, customer regarded supreme".
- Company.
- E-mail*.
- Name*.
- Phone*.
- Message*.

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as Wholesale 9347022100 Quadruple protection valve Supplier and Custom 9347022100 Quadruple protection valve Company, Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.

Take A Factory Tour >>
