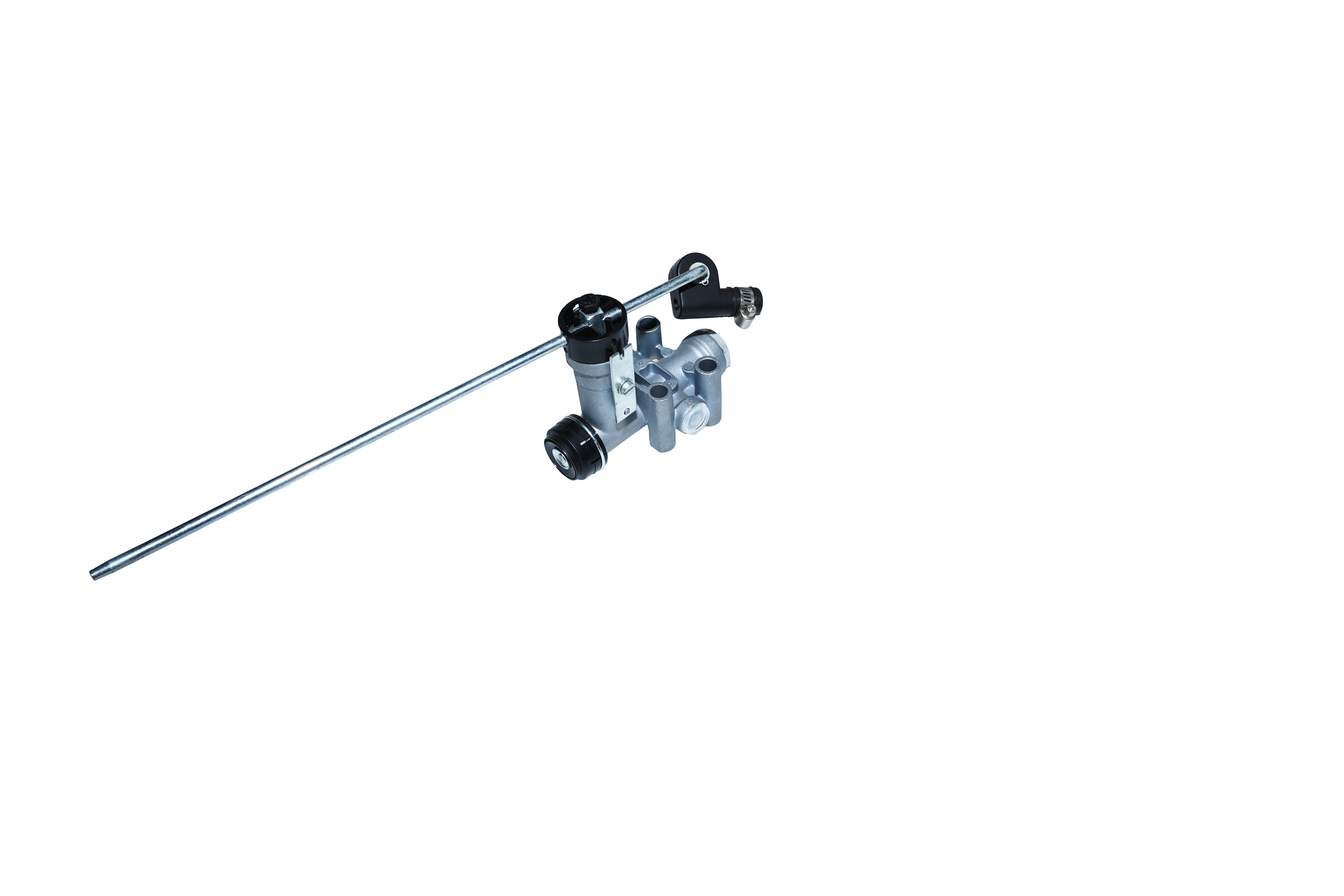

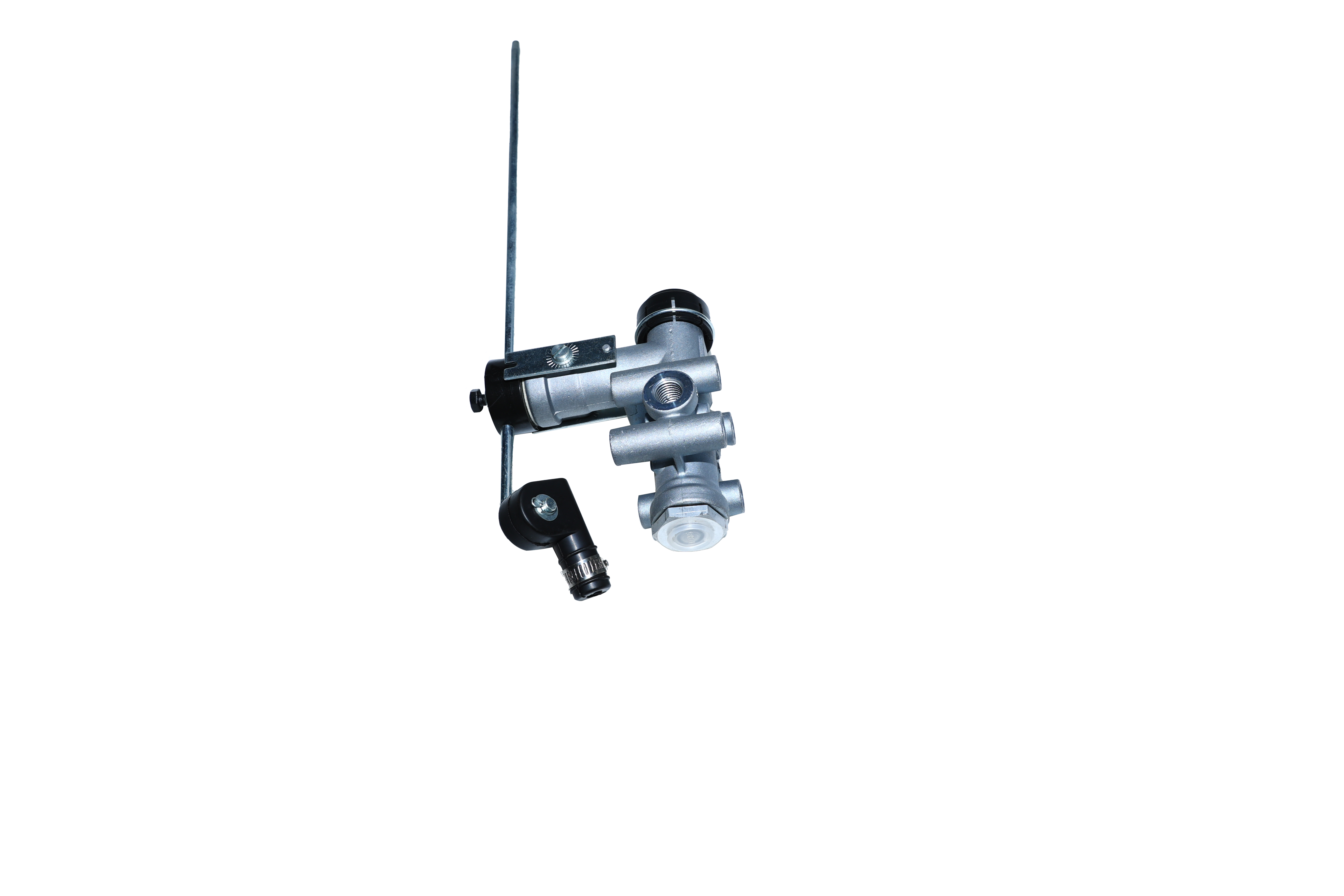

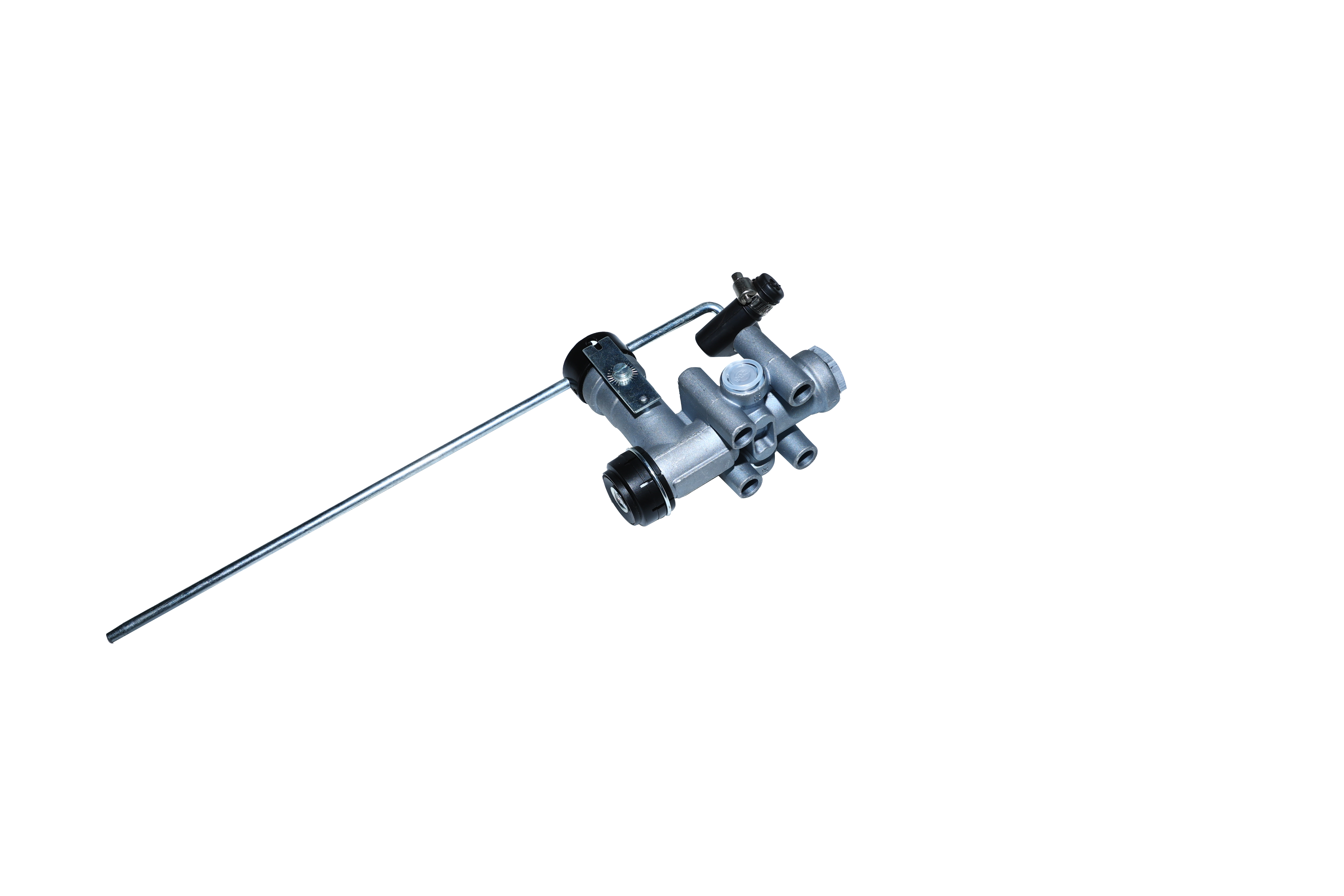

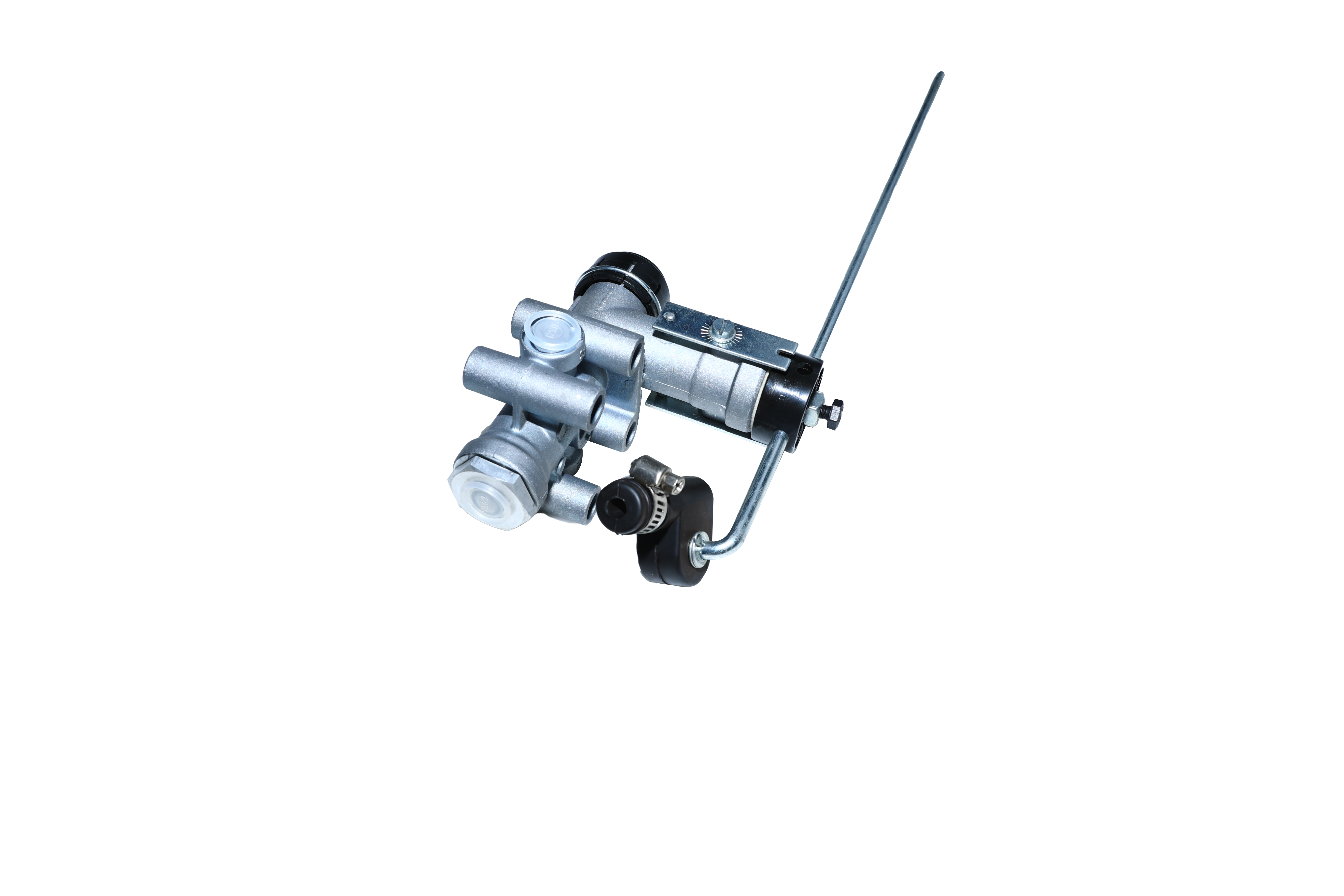

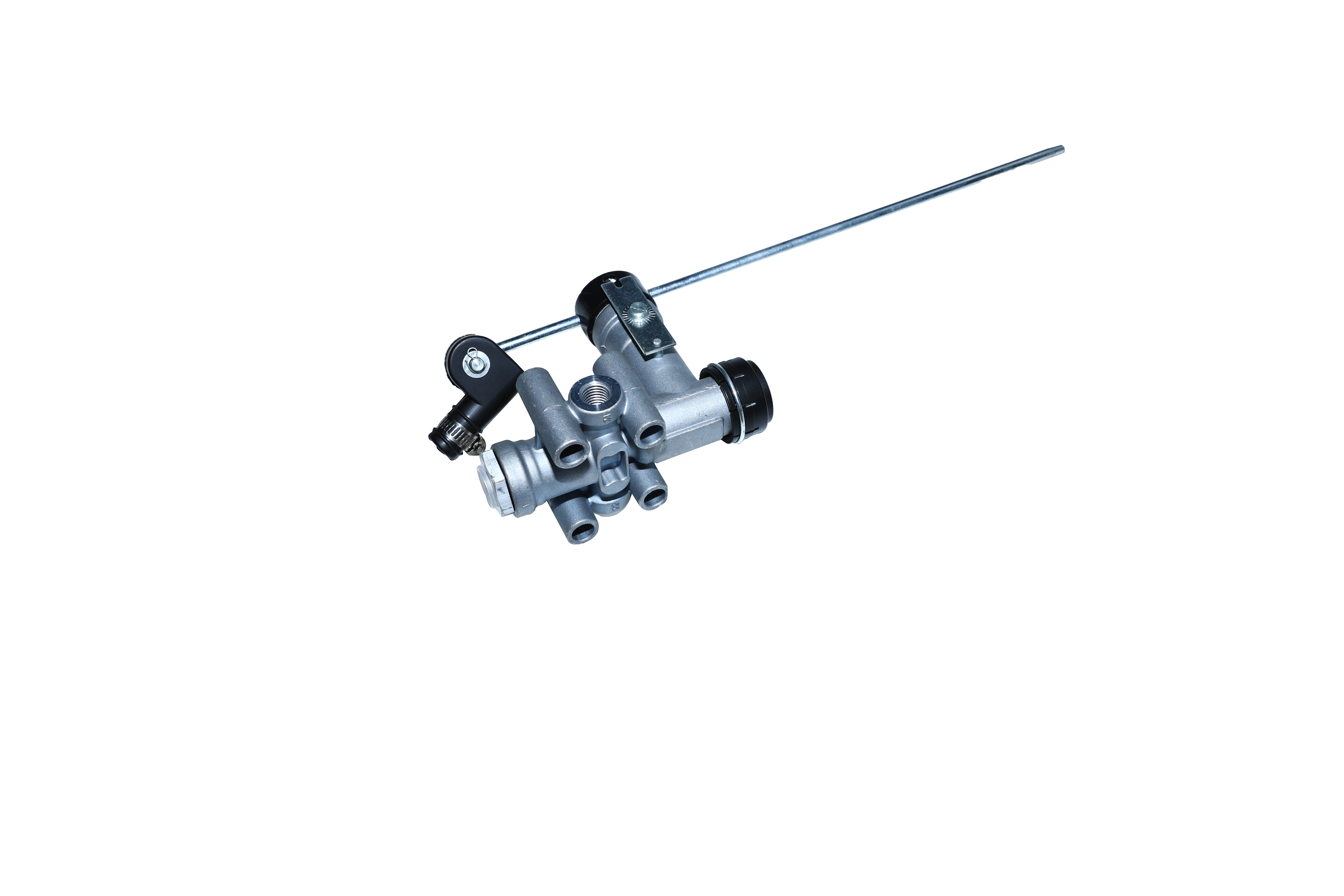

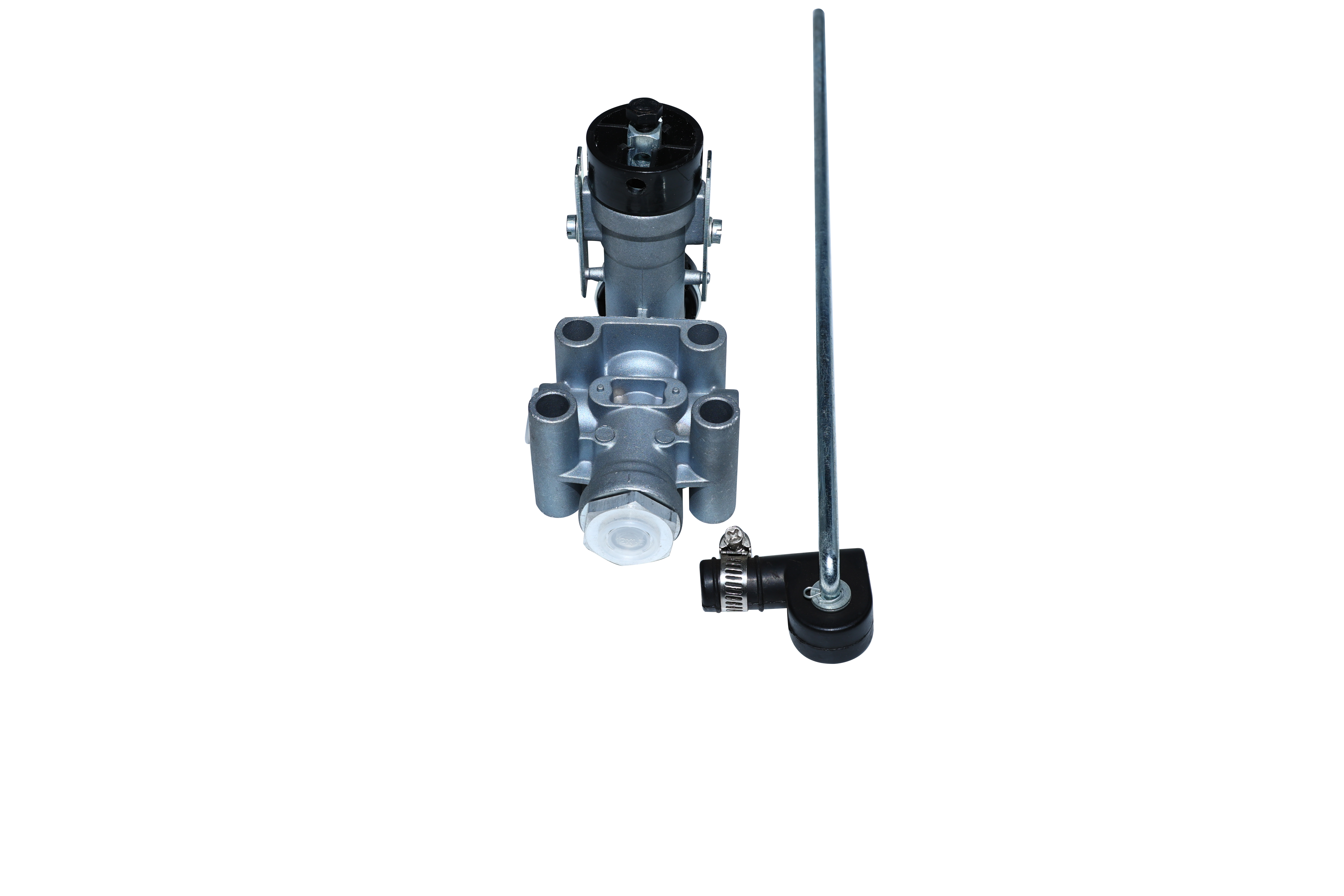

What is a levelling valve?
The function of the levelling valve is to maintain the car body on a set level, in order to safeguard a safe embarking or disembarking of passengers at the station and to increase the driving comfort by an optimum setting of the air suspension.
Technical SpecificationOE specification
Actuation angle90°
Body materialAluminium
Comments2-circuit
Distance between holes1.57/1.97 in
Max. operating pressure188.5 psi
Mounting4x Ø 0.352 in
Nominal diameter0.12 in
Port thread 1M12 x 1.5
Port thread 21M12 x 1.5
Port thread 22M12 x 1.5
Port thread 3Integrated Silencer
Temperature range-40 to + 185° F
Type2-stage without regulation
VersionWith Lever
Calculated Volume (dm³)0.49647
Size (mm x mm x mm)67 x 78 x 95
Weight (kg)0.448
Weight (lb)0.98767
| Vehicle type | Brand | Series | Type | Model | Engine type |
|---|---|---|---|---|---|
| TRAILER / SEMI-TRAILER | BPW | --------- | --------- | --------- | --------- |
| TRAILER / SEMI-TRAILER | FELDBINDER | --------- | --------- | --------- | --------- |
| TRAILER / SEMI-TRAILER | FRUEHAUF | --------- | --------- | --------- | --------- |
| TRAILER / SEMI-TRAILER | KÄSSBOHRER | --------- | --------- | --------- | --------- |
| TRAILER / SEMI-TRAILER | LECITRAILER | --------- | --------- | --------- | --------- |
| TRAILER / SEMI-TRAILER | SCHMITZ | --------- | --------- | --------- | --------- |
| BUS | VAN HOOL | --------- | --------- | --------- | --------- |
| BUS | EVOBUS | --------- | --------- | --------- | --------- |
| CONSTRUCTION MACHINERY | LIEBHERR | --------- | --------- | --------- | --------- |
| AGRICULTURAL MACHINERY | KRONE | --------- | --------- | --------- | --------- |
