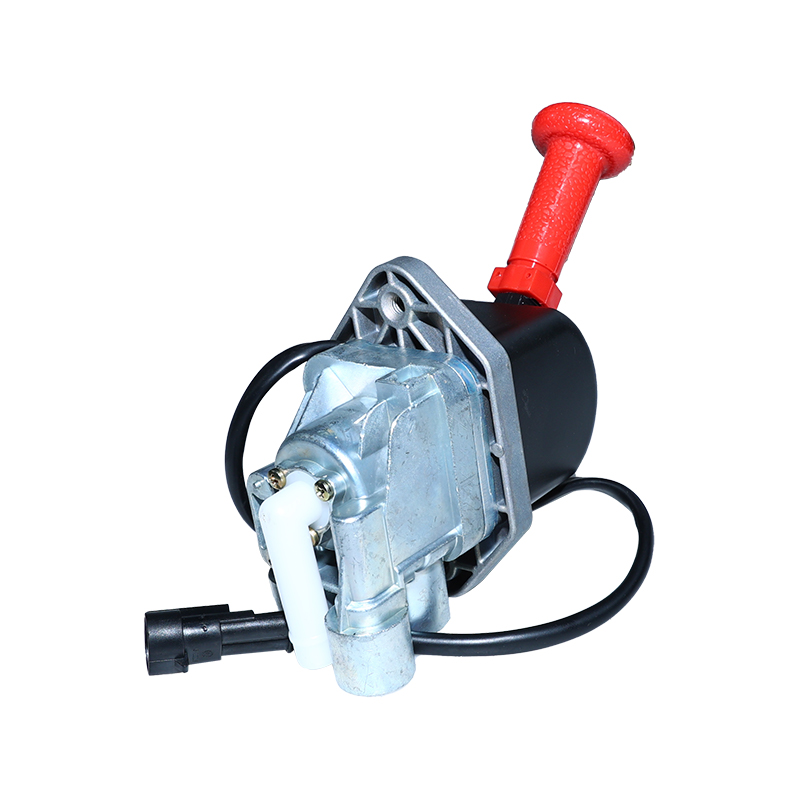

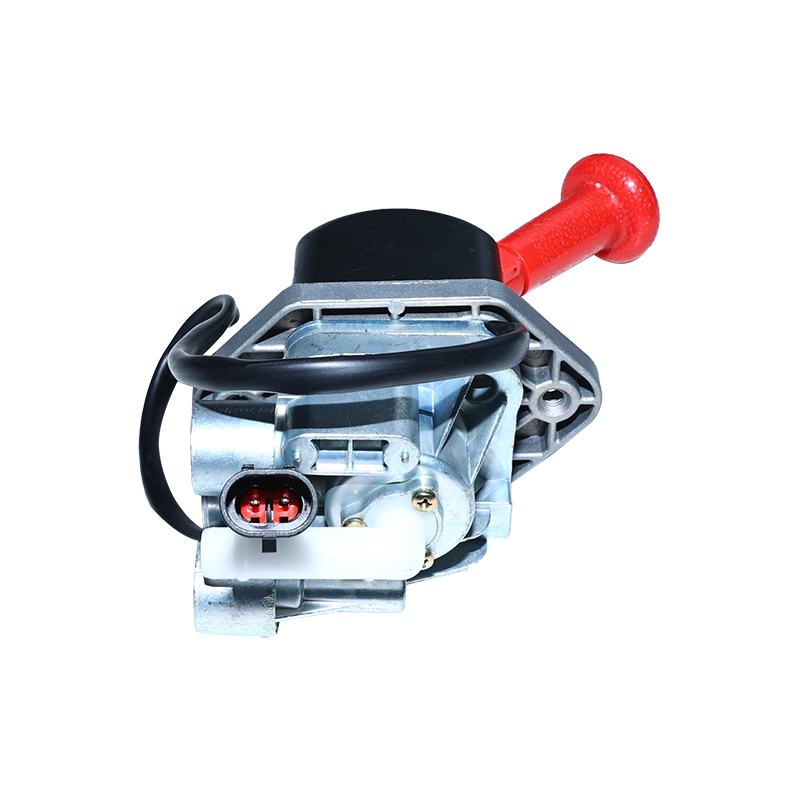

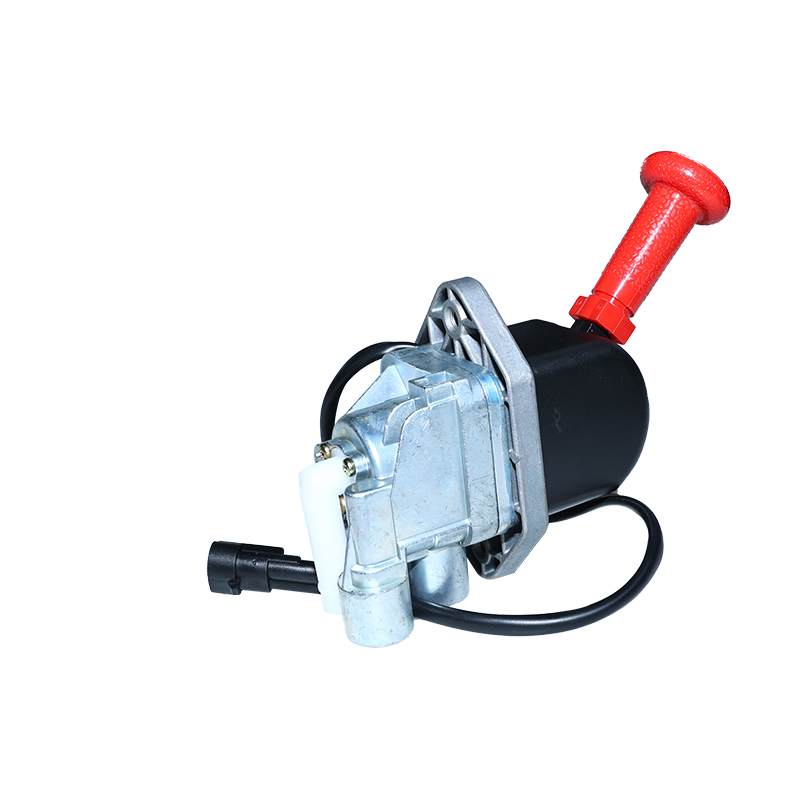

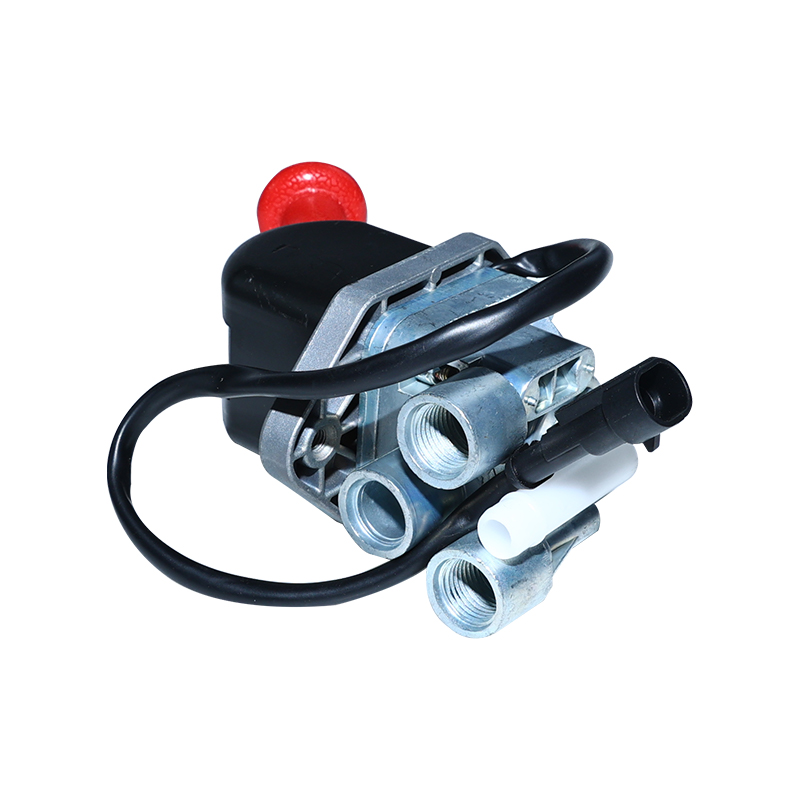

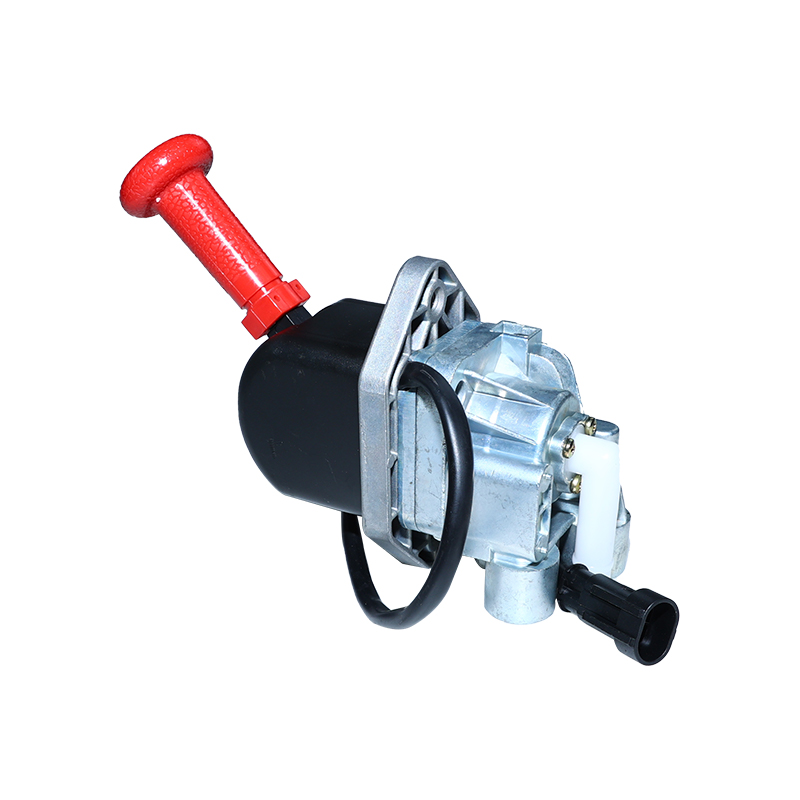

DPM94AAX Comments:with electrical switch for dafirisbus,iveco hand brake valve

Details
Type of vehicle
Leave a message

What is a trailer brake hand valve used for?

1 – Trailer Hand Valve. The trailer hand valve (also called the trolley valve or Johnson bar) works the trailer brakes. The trailer hand valve should be used only to test the trailer brakes. Do not use it in driving because of the danger of making the trailer skid.

Actuation angle:	73°
Comments:	With electrical switch
Distance between holes:	80.0 mm
Exhaust:	Flap
Max. operating pressure:	11.0 bar
Mounting:	M6
Port thread 1:	M16 x 1.5
Port thread 21:	M16 x 1.5
Port threads:	M16 x 1.5
Rated Current:	500 mA
Temperature range:	-40°C to +80°C
Voltage:	24 V
Calculated Volume (dm³):	1.655
Size (mm x mm x mm):	185 x 126 x 71
Weight (kg):	0.784
Weight (lb):	1.7284
