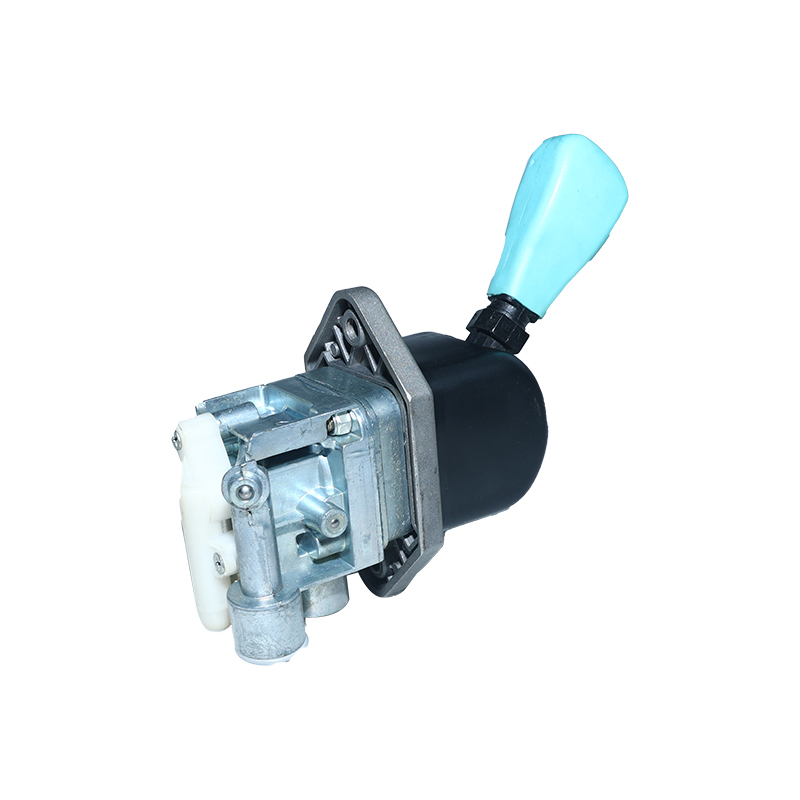

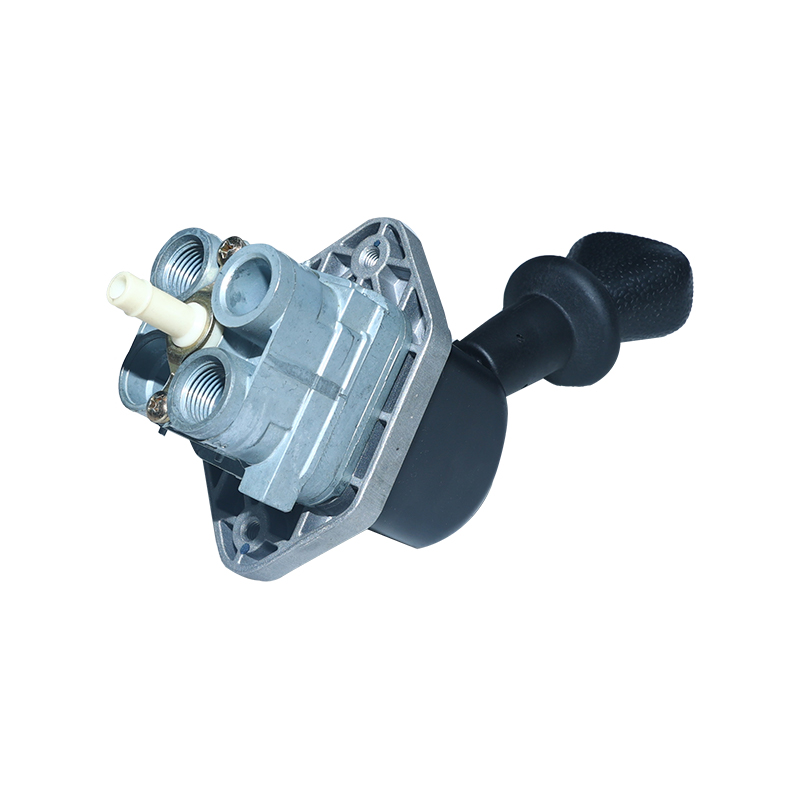

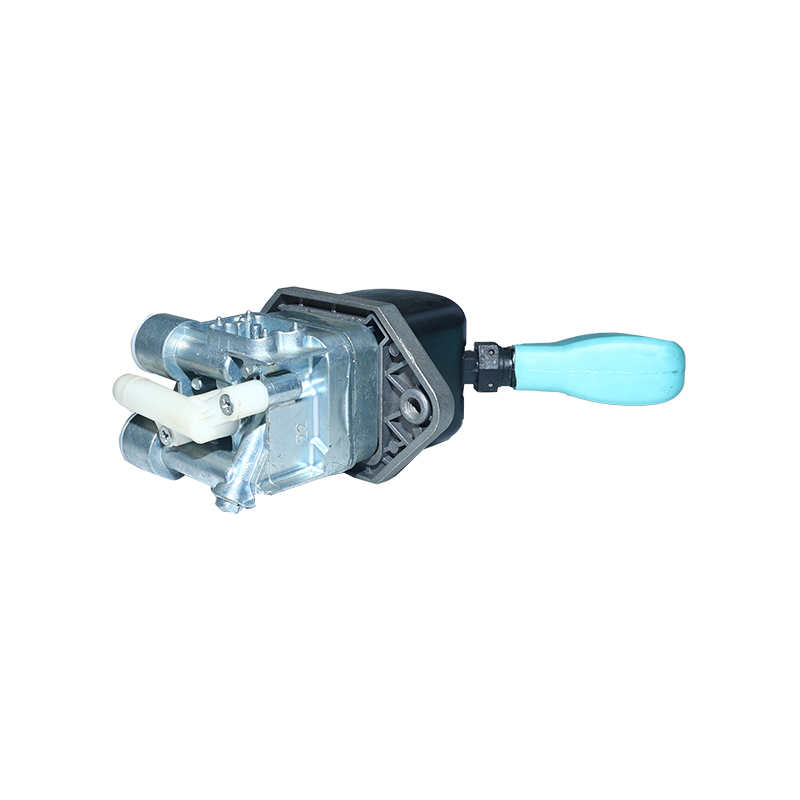

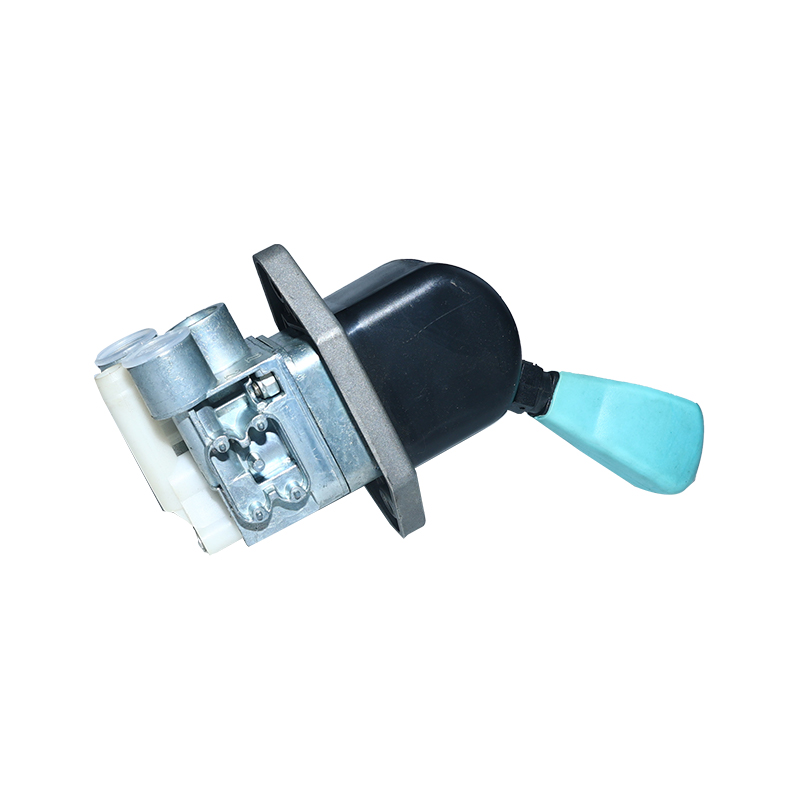

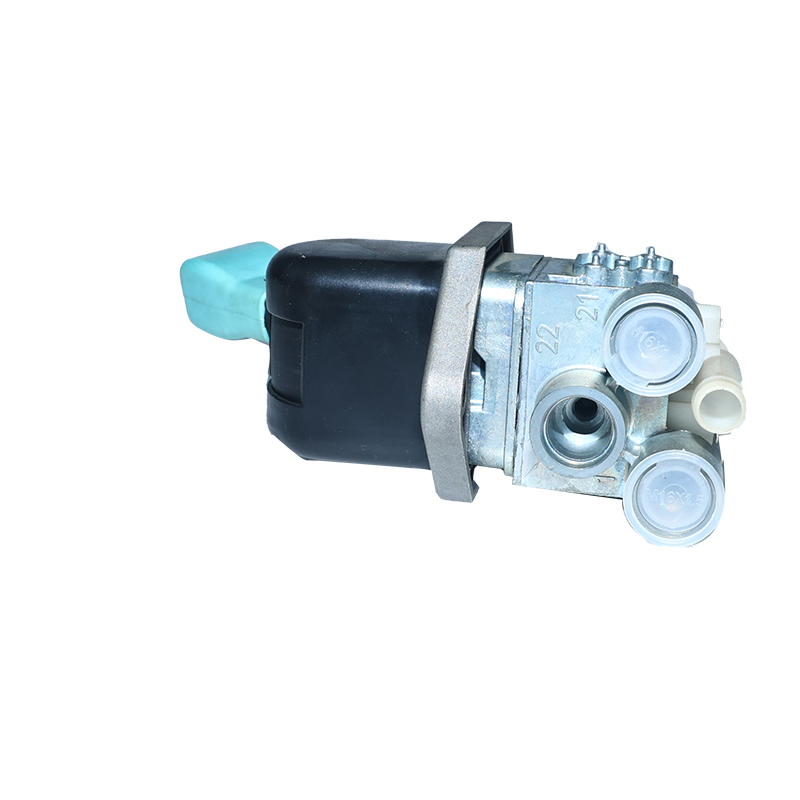

9617234210 For evobus,mercedes-benz hane brake valve

Details
Type of vehicle
Leave a message

What is a hand brake valve?

The hand brake valve is designed as a direct operated 3-way pressure reducing valve and is designed for use in spring loaded braking systems; other applications, however are also possible. In position 1 (see Unit dimensions) of the hand lever the through flow from S to B is open.

Actuation angle:	73°
Color:	Black/Black
Distance between holes:	80.0 mm
Exhaust:	Flap
Max. operating pressure:	10.0 bar
Mounting:	2x M8
Port thread 1:	M16 x 1.5 JED - 388
Port thread 21:	M16 x 1.5 JED - 388
Temperature range:	-40°C to +80°C
Calculated Volume (dm³):	1.143
Size (mm x mm x mm):	185 x 103 x 60
Weight (kg):	0.744
Weight (lb):	1.6402

EVOBUSA0034305981
MERCEDES-BENZ0034305981
MERCEDES-BENZA0034305981
MERCEDES-BENZA0034305981007 MERCEDES-BENZA0034305981Z007
MERCEDES-BENZ0034305981007
MERCEDES-BENZ0034305981Z007
