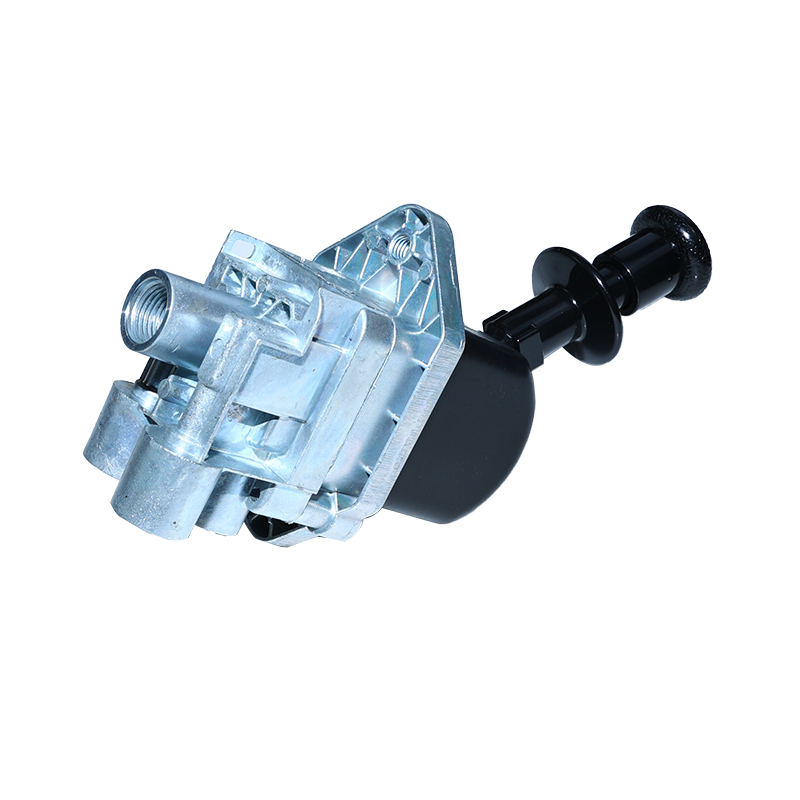

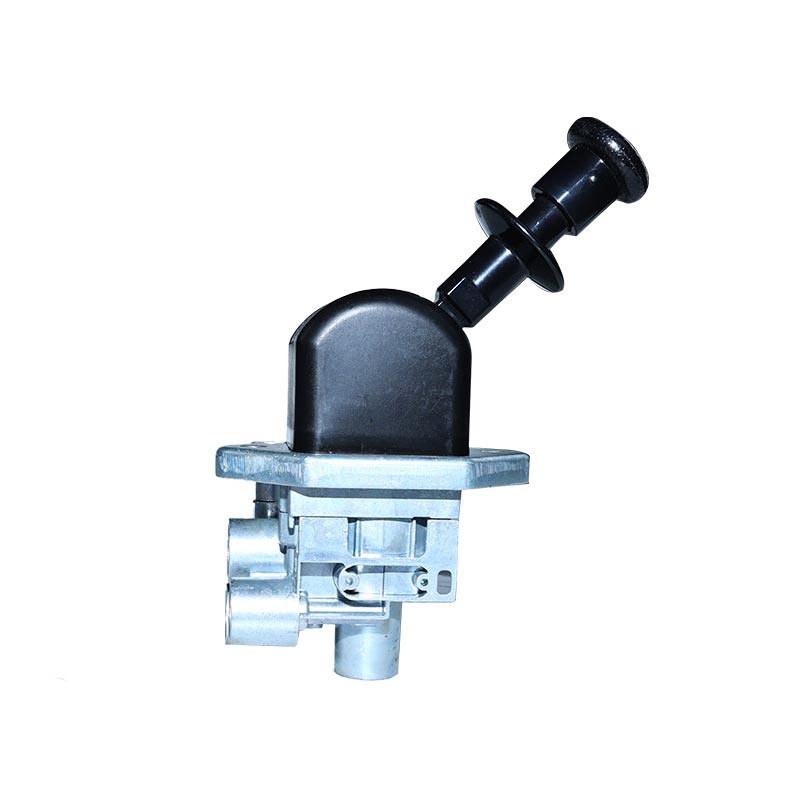

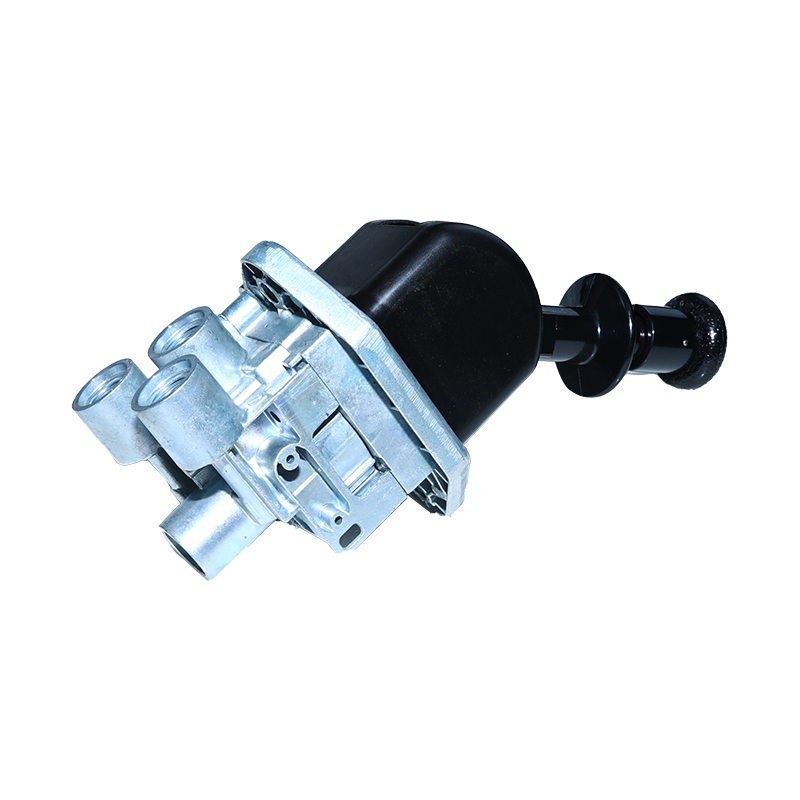

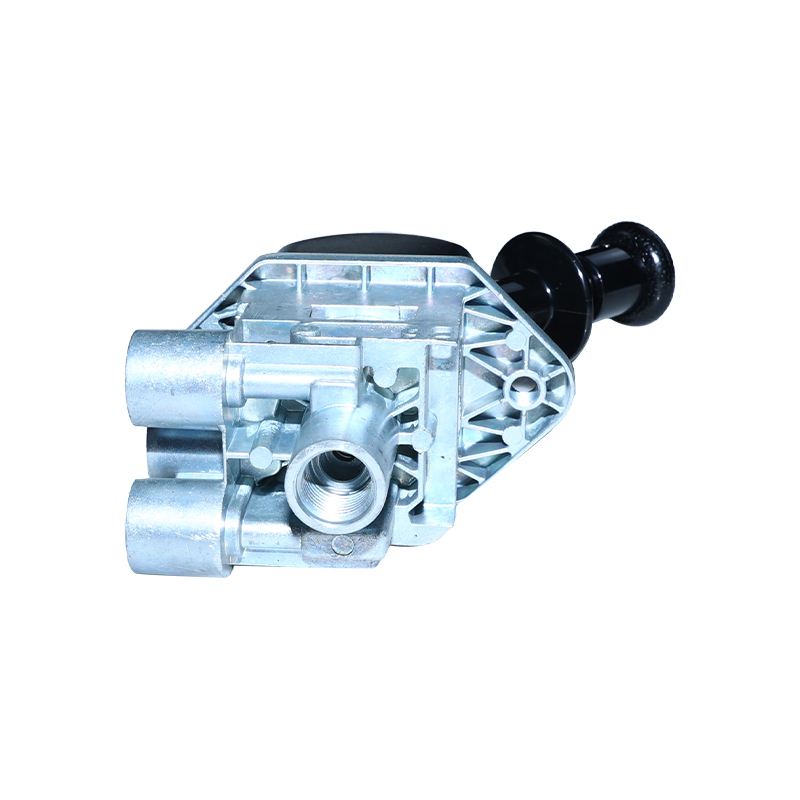

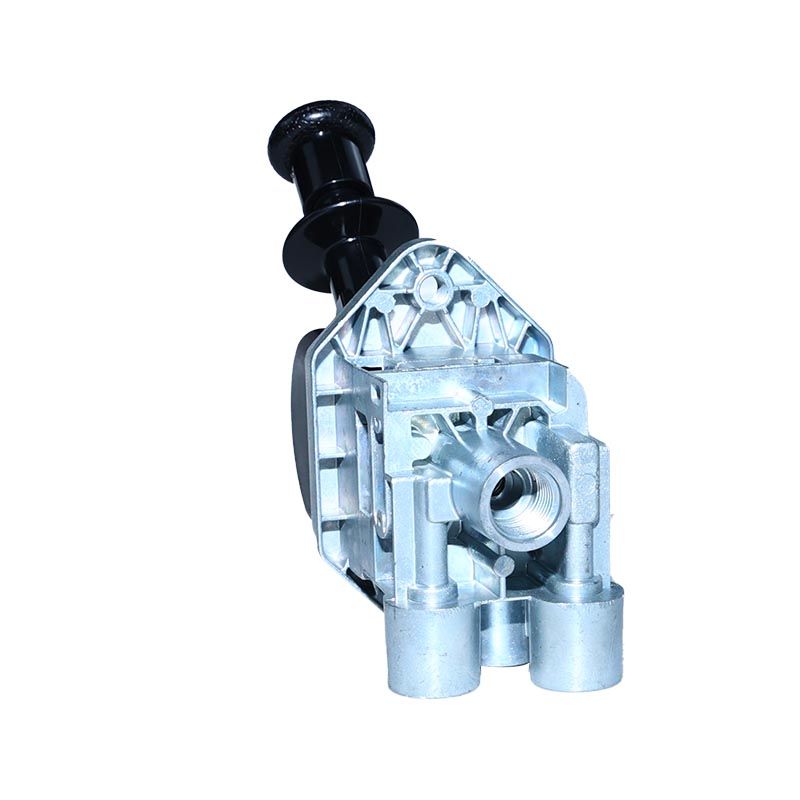

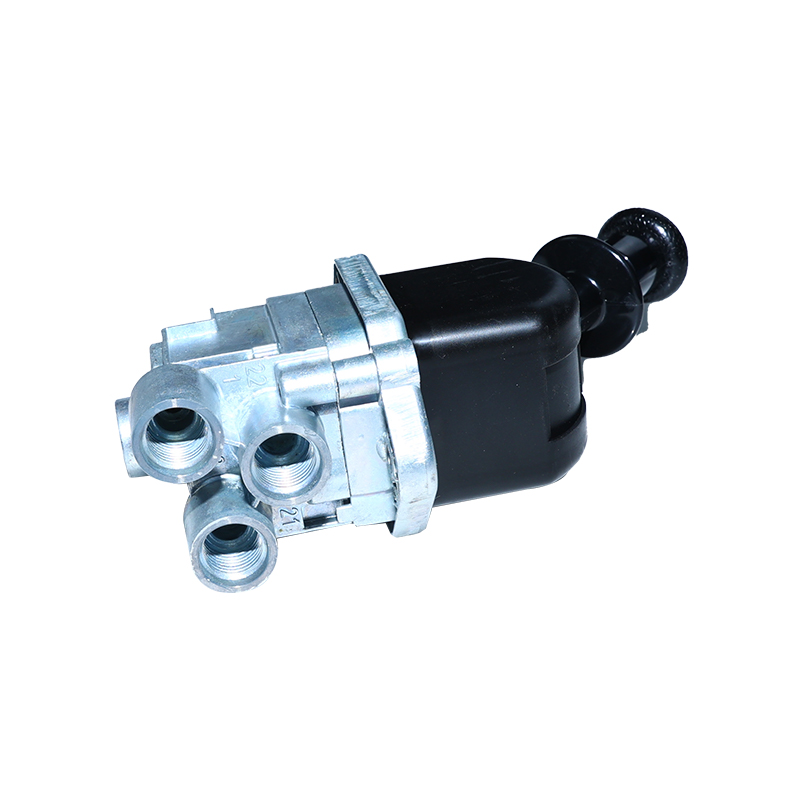

9617231250 Exhaust:m16 x 1.5 jed-388 for mercedes-benz,scania hand brake valve

Details
Type of vehicle
Leave a message

How do hand valves work?

The tractor-protection valve and relay emergency valve are operated by application air, as explained in the foot-valve application. Closing the hand valve releases the brakes by closing off application air. Air pressure in the chambers and lines will exhaust, also as explained in the previous foot-valve application.

Actuation angle:	73°
Color:	Black
Distance between holes:	80.0 mm
Exhaust:	M16 x 1.5 JED-388
Max. operating pressure:	11.0 bar
Mounting:	2x M8
Port thread 1:	M16 x 1.5 JED - 388
Port thread 21:	M16 x 1.5 JED - 388
Port thread 22:	M16 x 1.5 JED - 388
Temperature range:	-40°C to +80°C
Calculated Volume (dm³):	1.3704
Size (mm x mm x mm):	179 x 116 x 66
Weight (kg):	0.948
Weight (lb):	2.09
Application:	DAF,EVOBUS,FAUN,MERCEDES-BENZ,SCANIA

DAF1519266
EVOBUSA0034307481
FAUN99707005875
MERCEDES-BENZ0034307381
MERCEDES-BENZ0034307481 MERCEDES-BENZA0034307481
MERCEDES-BENZA0034307481004
MERCEDES-BENZ0034307481004
SCANIA1935571
