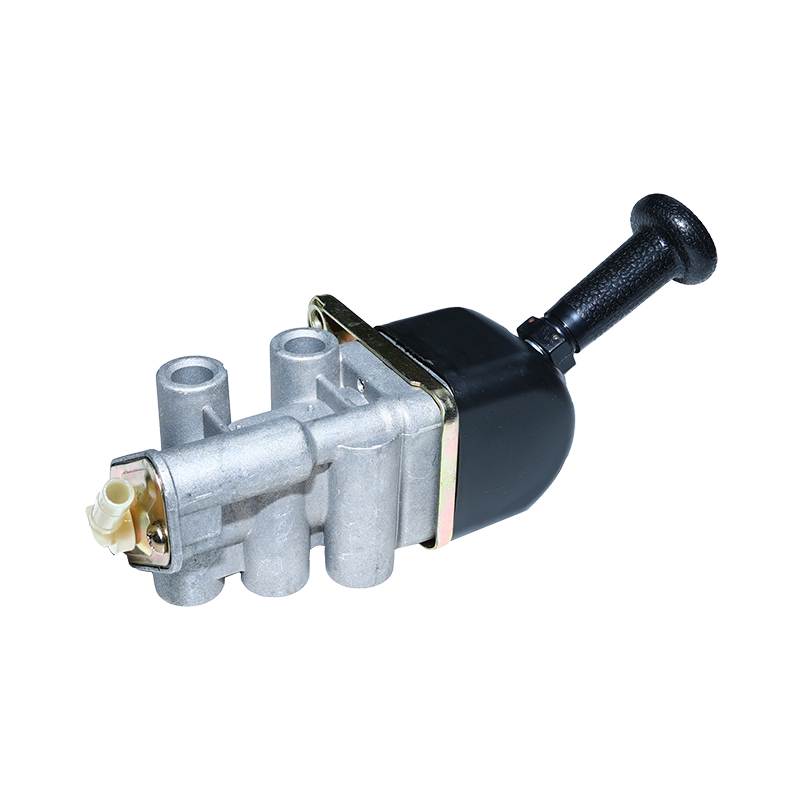

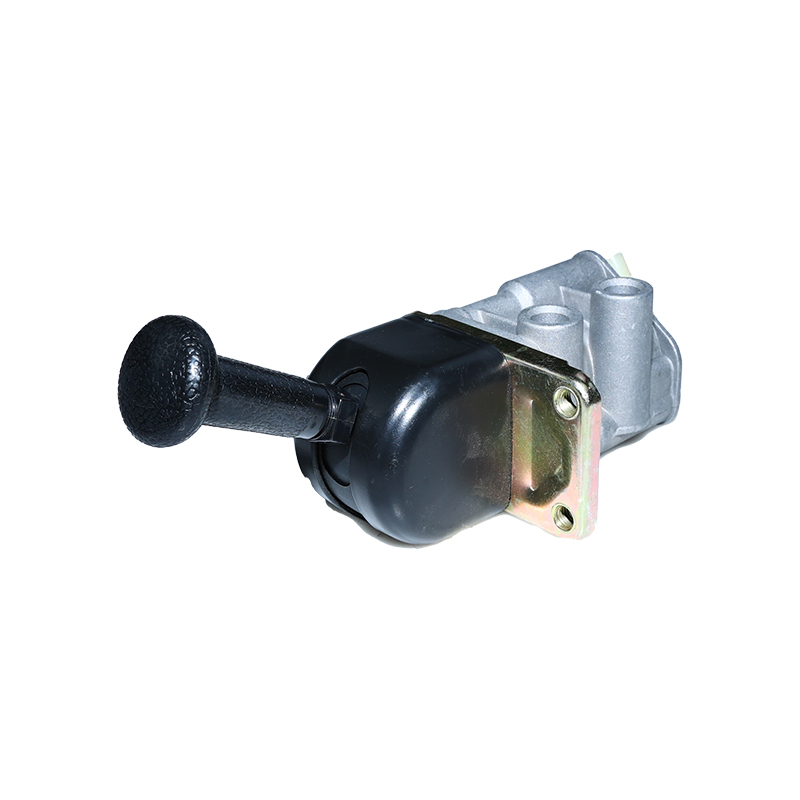

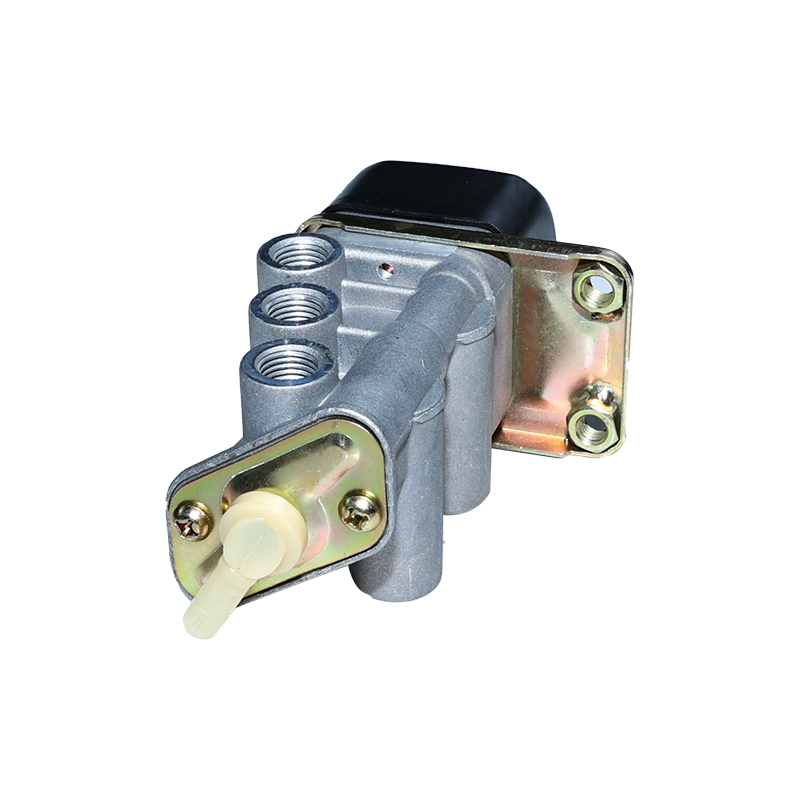

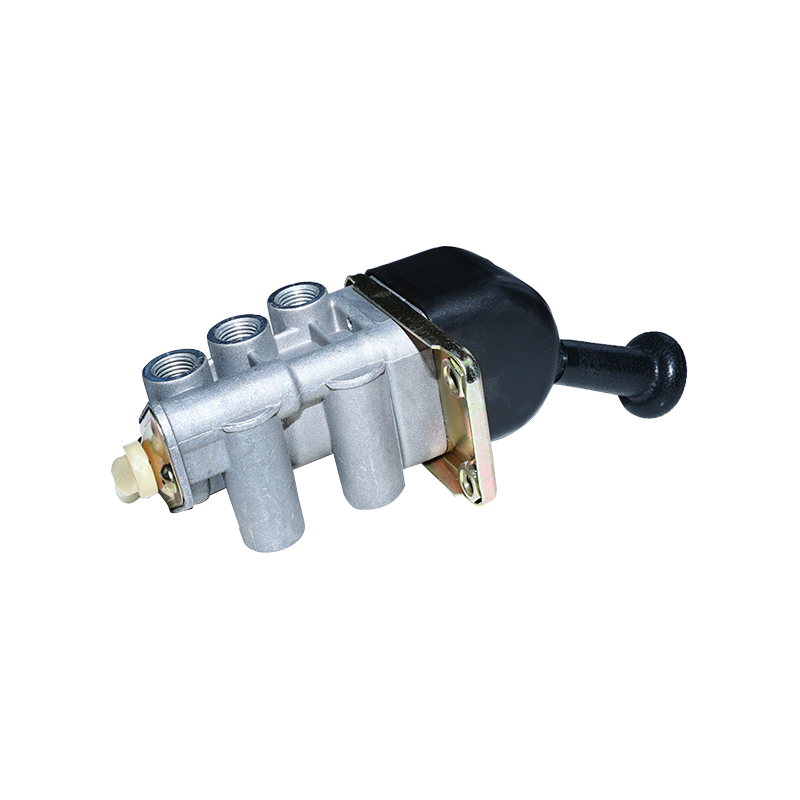

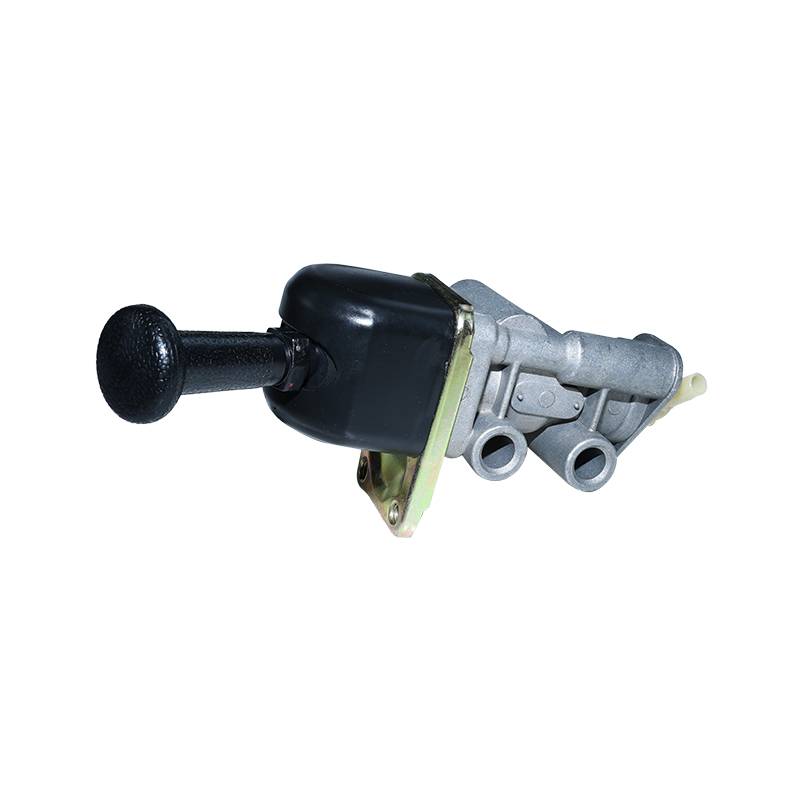

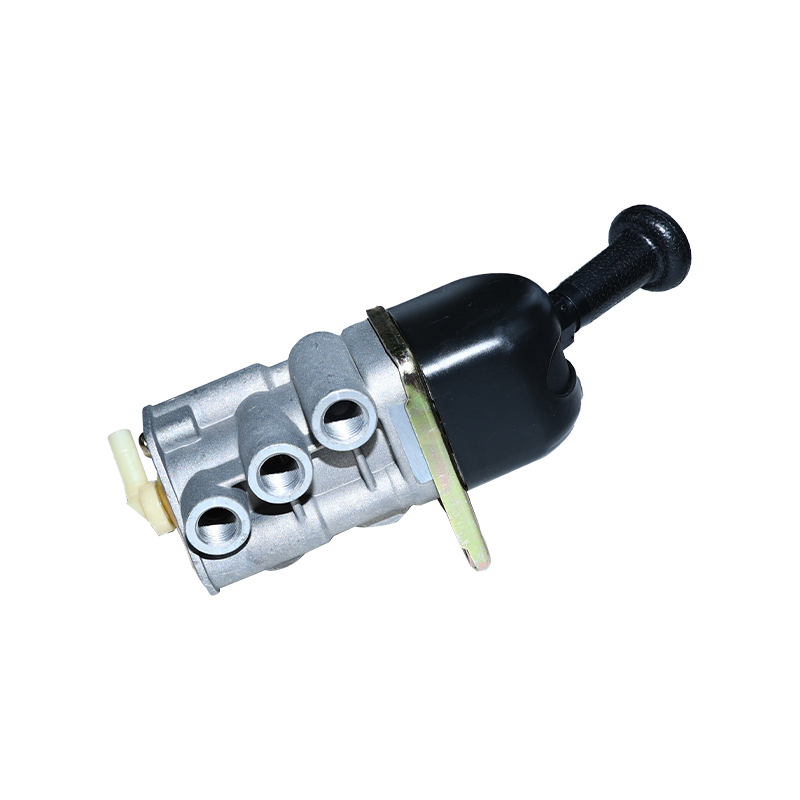

9617222520 Max. operating pressure:10.0 bar for volvo hand brake valve

Details
Type of vehicle
Leave a message

How do hand valves work?

The tractor-protection valve and relay emergency valve are operated by application air, as explained in the foot-valve application. Closing the hand valve releases the brakes by closing off application air. Air pressure in the chambers and lines will exhaust, also as explained in the previous foot-valve application.

Actuation angle:	73°
Color:	Black/Black
Distance between holes:	40.0 mm
Exhaust:	Hose Nozzle Ø 8.5 mm
Max. operating pressure:	10.0 bar
Mounting:	M8
Port thread 11:	M14 x 1.5
Port thread 21:	M14 x 1.5
Port thread 22:	M14 x 1.5
Port threads:	M14 x 1.5
Temperature range:	-40°C to +80°C
Calculated Volume (dm³):	1.875
Size (mm x mm x mm):	211 x 101 x 88
Weight (kg):	1.152
Weight (lb):	2.5397
Application:	DAF, EVOBUS, FAUN, FORD, IRISBUS, IVECO, KENWORTH, MACK, MERCEDES-BENZ, MERITOR, NEOPLAN, PETERBILT, STEYR, VOLVO

If you want to know us, please contact us!

We always adhere to the quality policy of "innovation is infinity, to keep improving", adhering to the enterprise tenet of "veracity, customer regarded supreme".
- Company.
- E-mail*.
- Name*.
- Phone*.
- Message*.

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as Wholesale 9617222520 Max. operating pressure:10.0 bar for volvo hand brake valve Supplier and Custom 9617222520 Max. operating pressure:10.0 bar for volvo hand brake valve Company, Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
