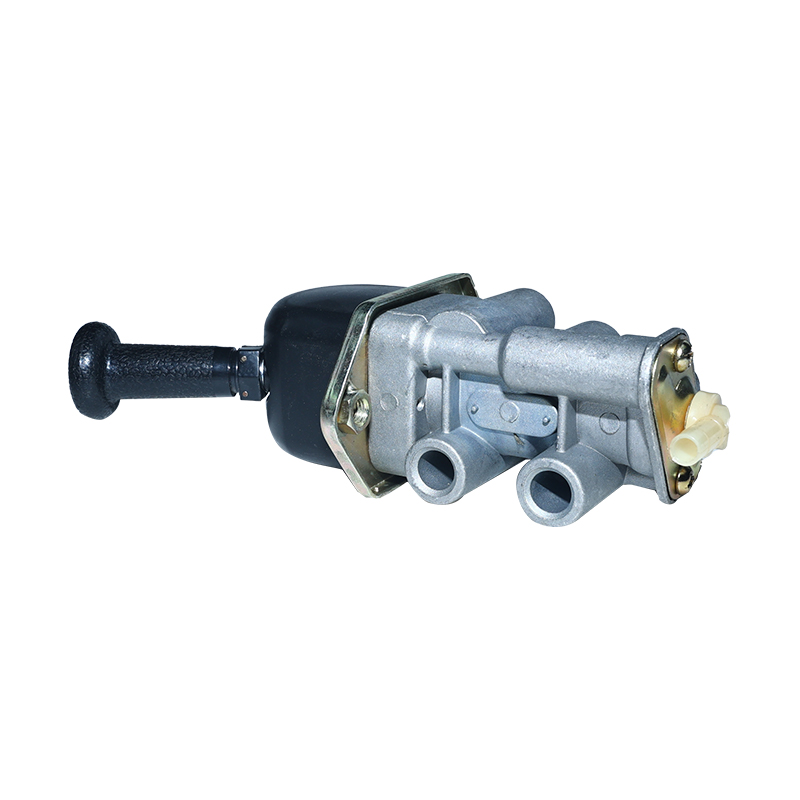

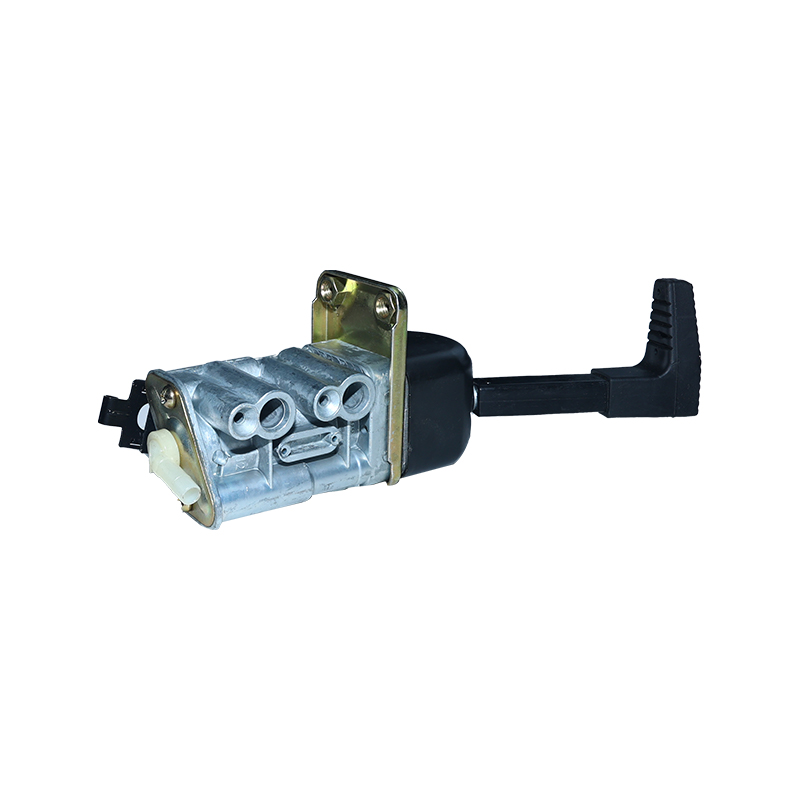

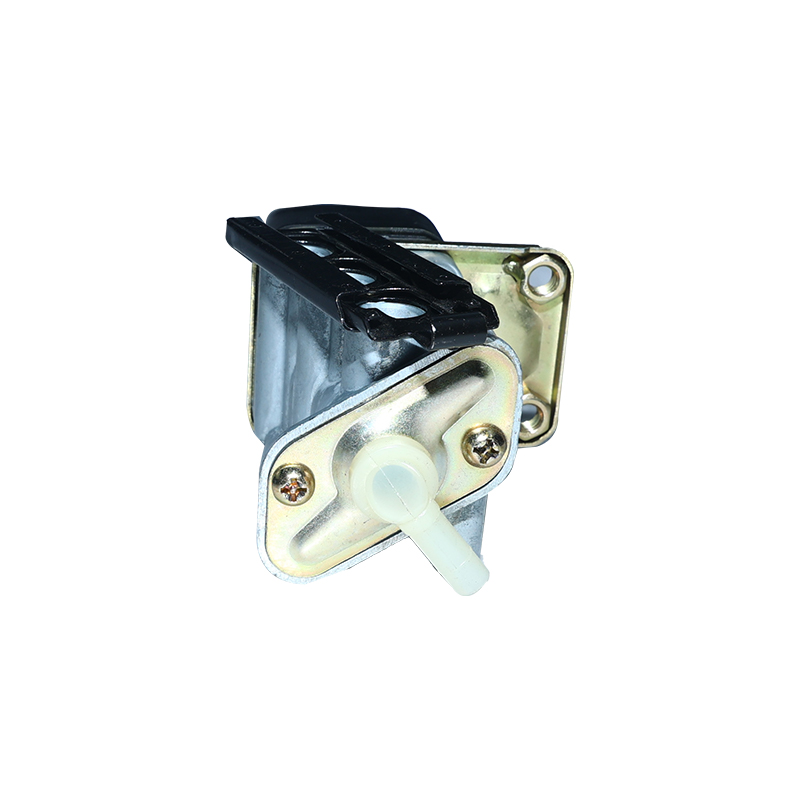

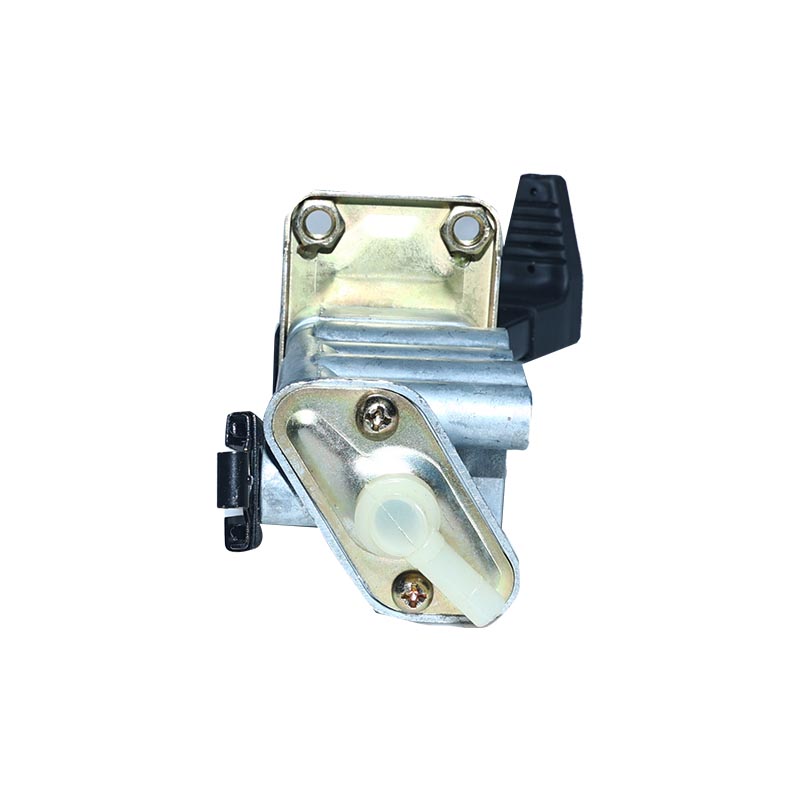

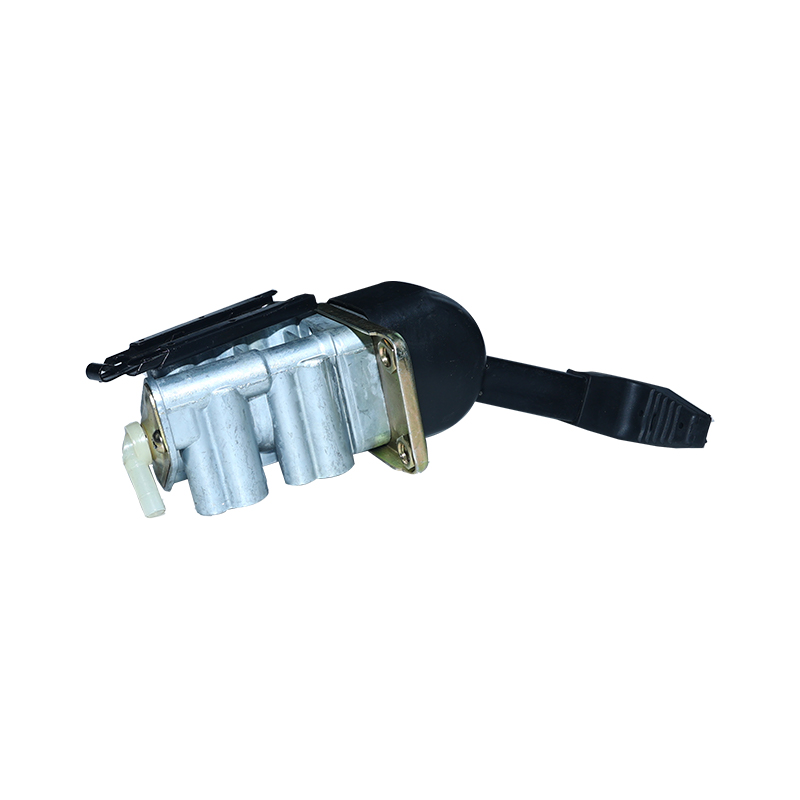

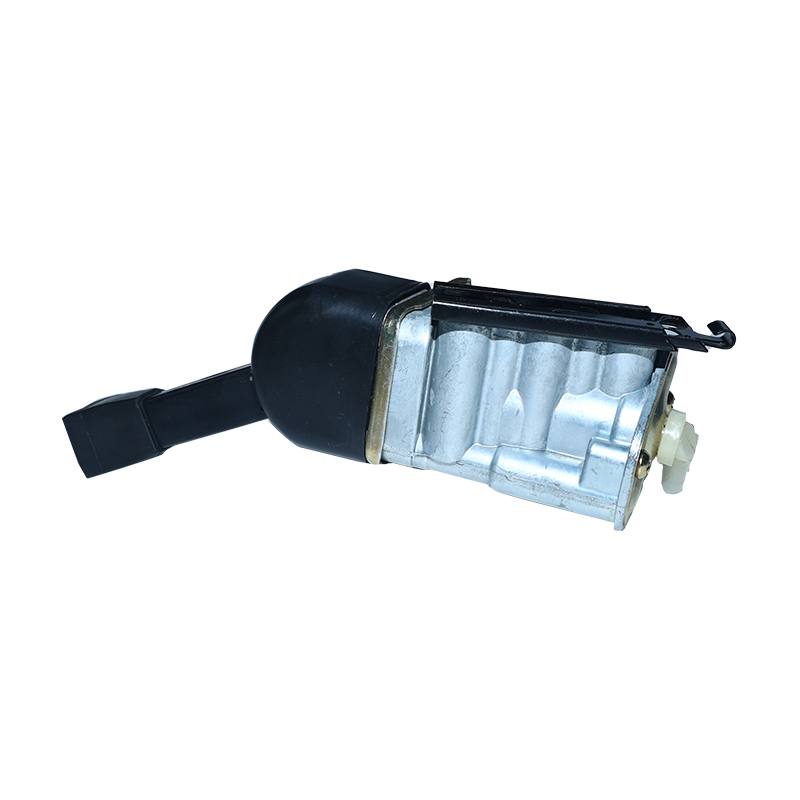

9617222120 For daf,evobus,mercedes-benz hand brake valve

Details
Type of vehicle
Leave a message

What is a trailer brake hand valve used for?

1 – Trailer Hand Valve. The trailer hand valve (also called the trolley valve or Johnson bar) works the trailer brakes. The trailer hand valve should be used only to test the trailer brakes. Do not use it in driving because of the danger of making the trailer skid.

Actuation angle:	73°
Color:	Black/Black
Distance between holes:	40.0 mm
Exhaust:	Hose nozzle Ø 8.5 mm
Max. operating pressure:	10.0 bar
Mounting:	M8
Port thread 11:	Ø 12.5 mm
Port thread 21:	Ø 12.5 mm
Port thread 22:	Ø 12.5 mm
Port threads:	VOSS block
Temperature range:	-40°C to +80°C
Calculated Volume (dm³):	3.0053
Size (mm x mm x mm):	244 x 113 x 109
Weight (kg):	1.333
Weight (lb):	2.9388

DAF1518221
EVOBUSA0014306081
MERCEDES-BENZ0004309581
MERCEDES-BENZ0014300281
MERCEDES-BENZ0014301681 MERCEDES-BENZ0014303681
MERCEDES-BENZ0014306081
MERCEDES-BENZA0014306081
