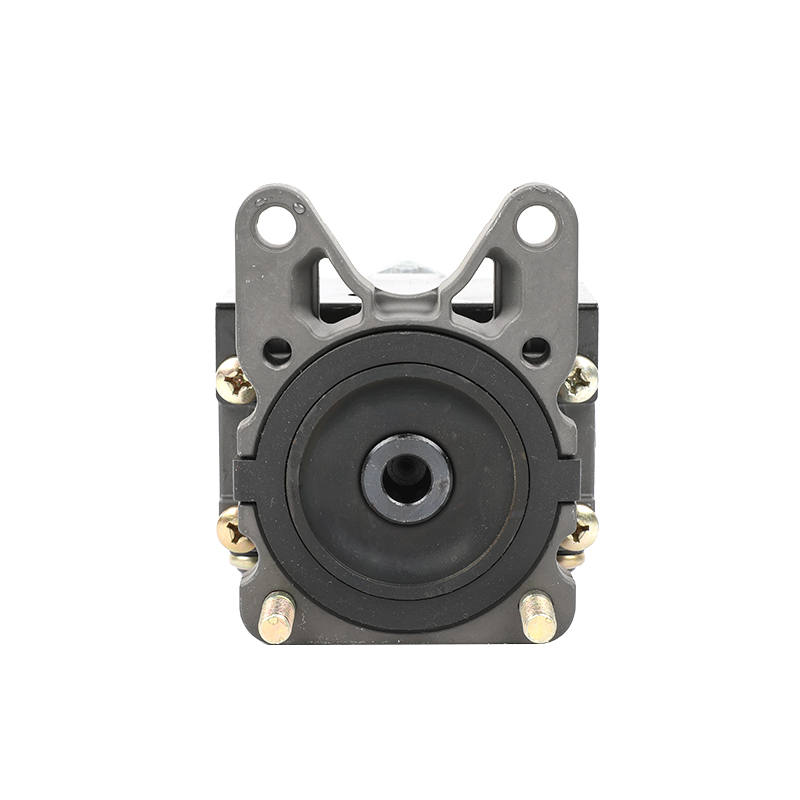

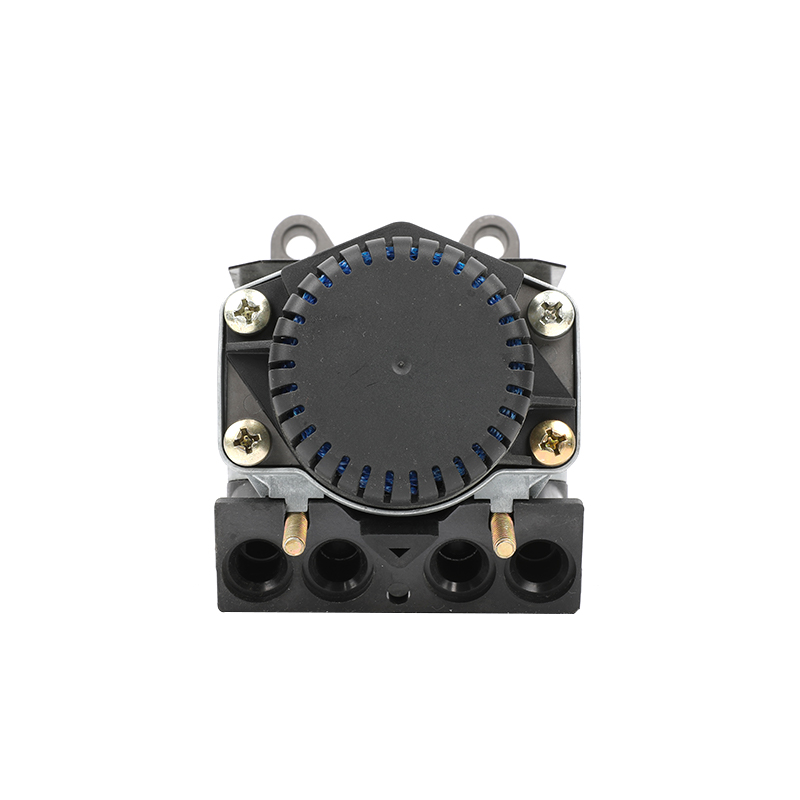

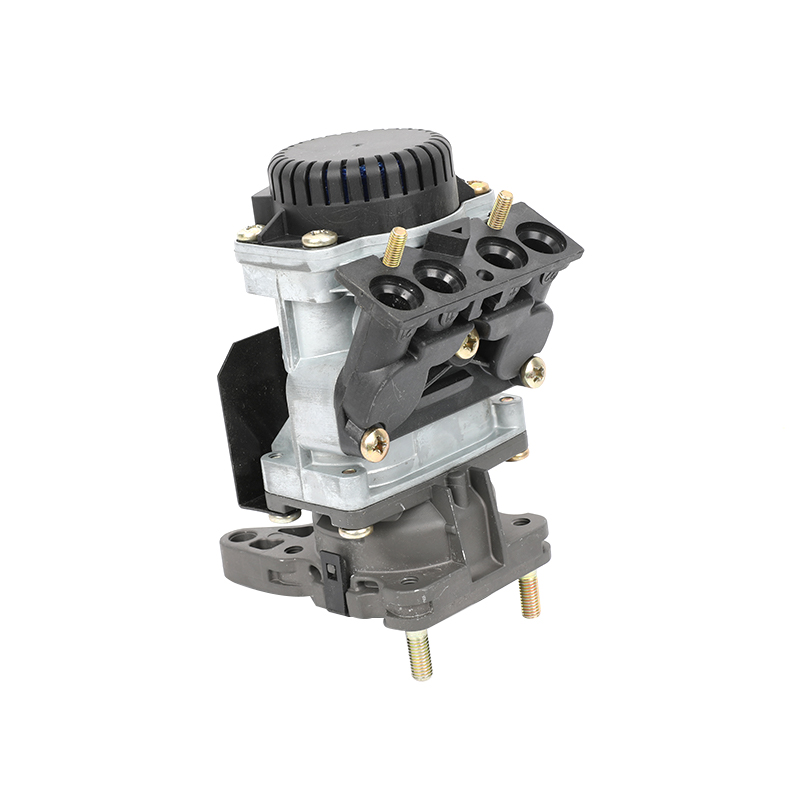

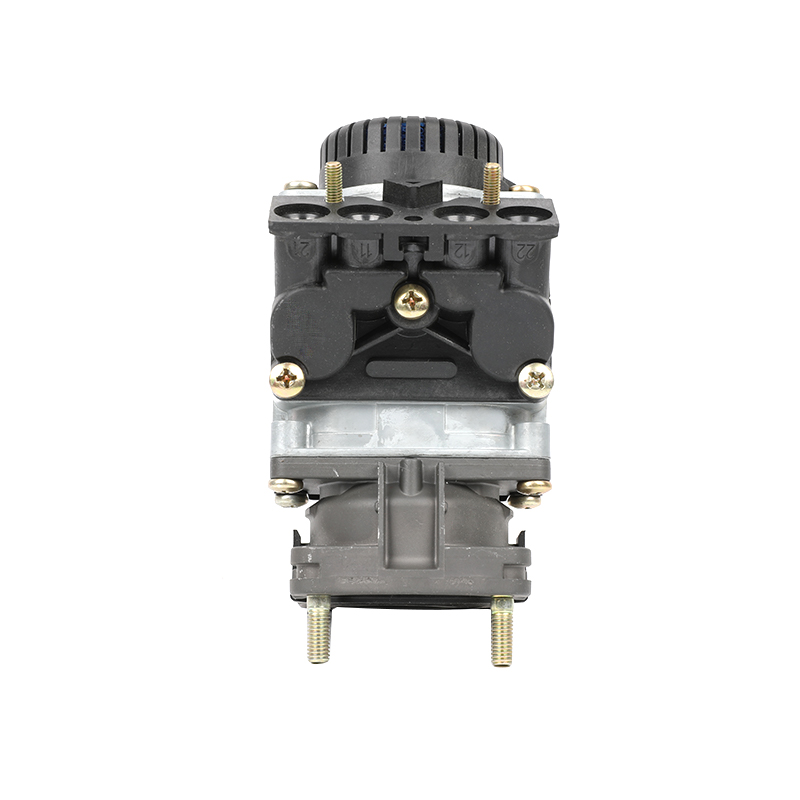

4614945020 With silencer for daf,renault foot brake valve

Details
Type of vehicle
Leave a message

How does an air brake foot valve work?
When the brake pedal is depressed, air flows from the primary reservoir and through the primary portion of the dual-control foot valve to actuate the rear axle brakes. Meanwhile, air flows from the secondary reservoir, through the secondary portion of the dual-control foot valve, to actuate the front axle brakes.

Basic Valve:	461 494 026 4
Distance between holes:	61.0 x 90.5 mm
Exhaust:	Silencer
Max. operating pressure:	12.5 bar
Mounting:	2x M8
Predominance:	0.30 bar
Temperature range:	-40°C to +80°C
Calculated Volume (dm³):	1.9467
Size (mm x mm x mm):	188 x 95 x 109
Weight (kg):	1.788
Weight (lb):	3.9419
