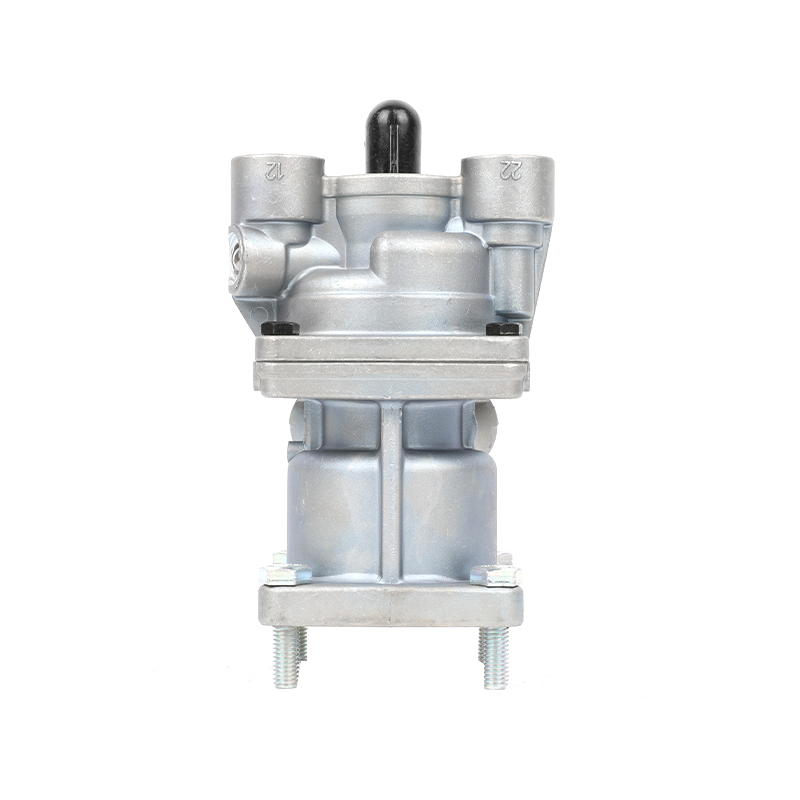

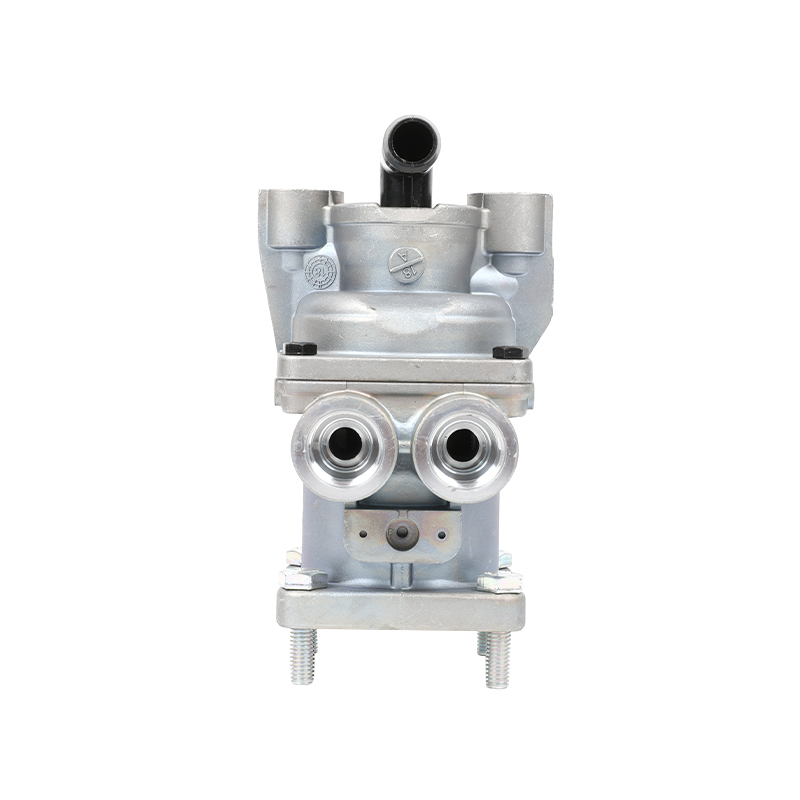

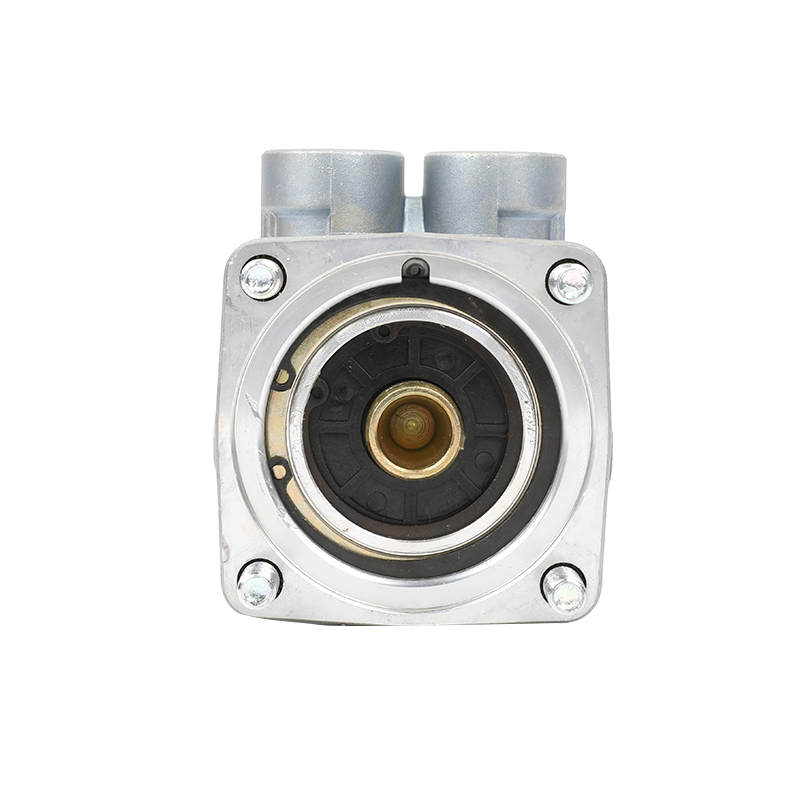

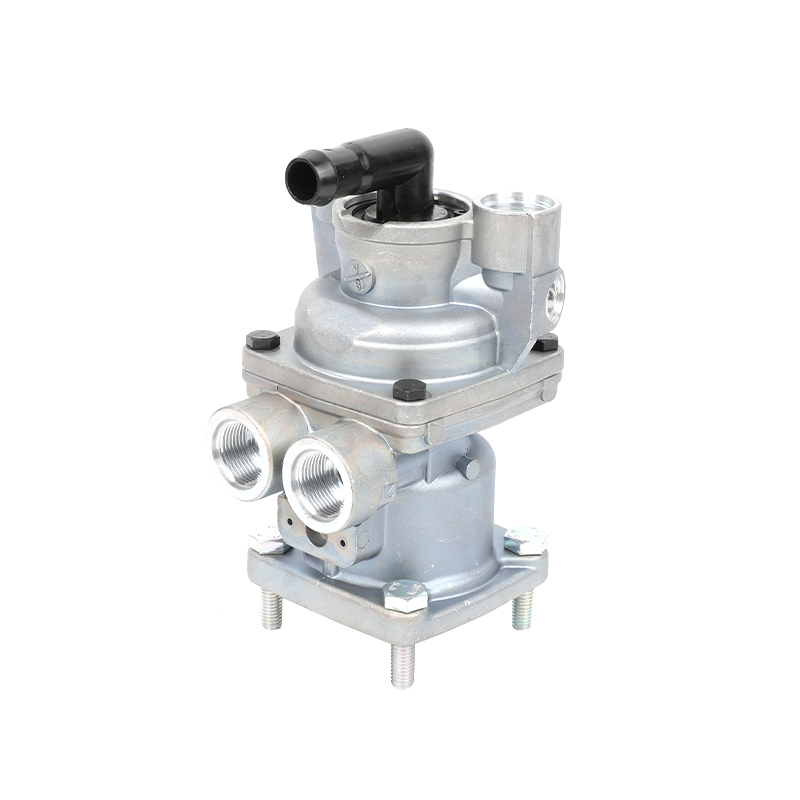

4613152580 Exhaust:union with alexander,dennis,daf,evobus foot brake valve

Details
Type of vehicle
Leave a message

How does an air brake foot valve work?
When the brake pedal is depressed, air flows from the primary reservoir and through the primary portion of the dual-control foot valve to actuate the rear axle brakes. Meanwhile, air flows from the secondary reservoir, through the secondary portion of the dual-control foot valve, to actuate the front axle brakes.

Comments:	For Voss push-in fittings
Distance between holes:	61.0 x 61.0 mm
Exhaust:	Union
Max. operating pressure:	10.0 bar
Mounting:	4x M8
Pedal:	No
Port thread 11:	M22 x 1.5
Port thread 12:	M22 x 1.5
Port thread 21:	M22 x 1.5
Port thread 22:	M22 x 1.5
Port thread 3Union
Predominance:	0.40 bar
Temperature range:	-40°C to +80°C
Calculated Volume (dm³):	1.8056
Size (mm x mm x mm):	101 x 177 x 101
Weight (kg):	1.07
Weight (lb):	2.3589
Application:	ALEXANDER,DENNIS,DAF,EVOBUS,KENWORTH,MERCEDES-BENZ,MERITOR,PETERBILT
