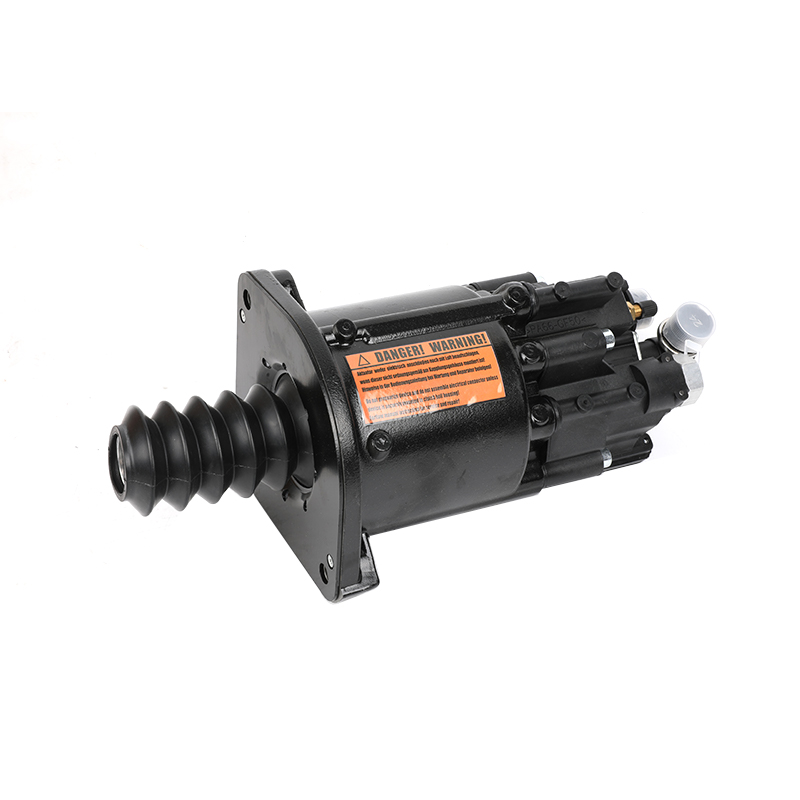

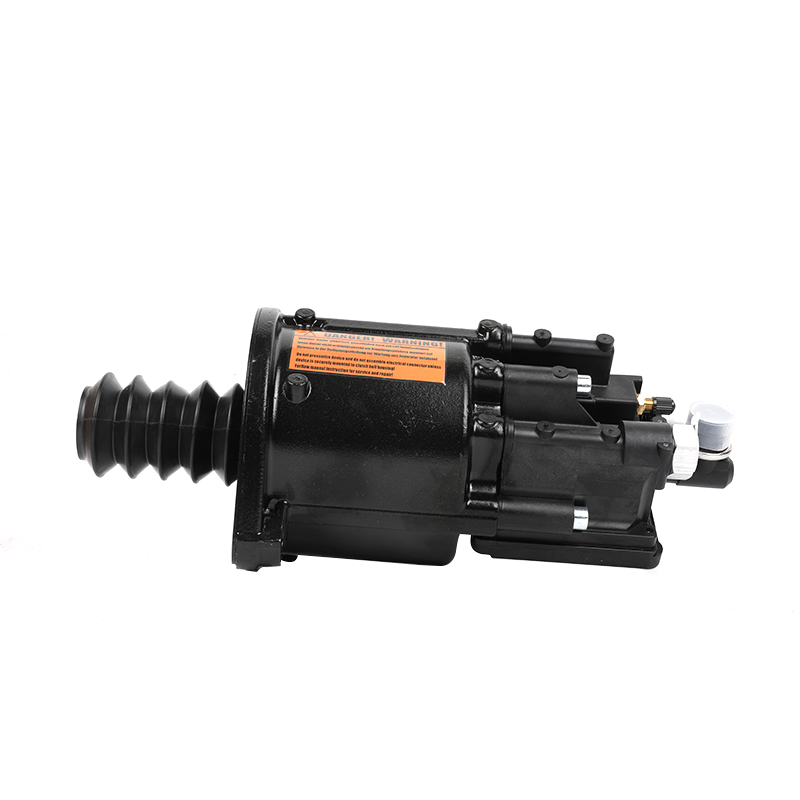

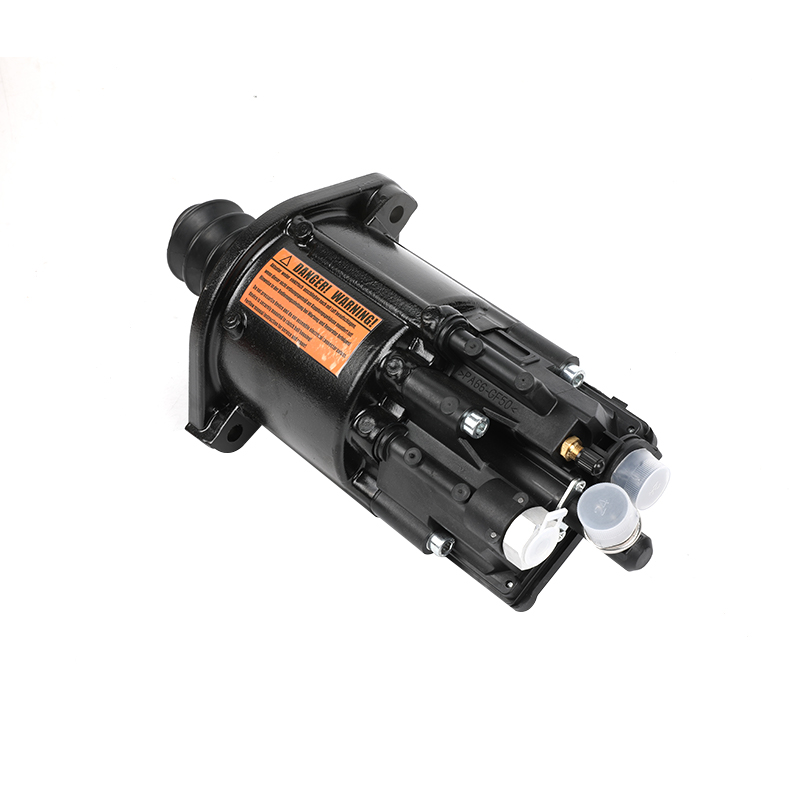

9701500010 Max. operating pressure 8.5 bar for evobus, mercedes-benz,paccar pneumatic clutch actuator Wholesale

9701500010 Max. operating pressure 8.5 bar for evobus, mercedes-benz,paccar pneumatic clutch actuator

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • A clutch servo is a pneumatically-assisted clutch-actuation device, enabling accurate and sensitive clutch use. It dramatically reduced the amount of effort required by the driver when actuating the clutch pedal.

    Technical Specification:

    OE specification

    Distance between holes

    44.0 x 150 mm

    Electrical Connection

    Bayonet DIN 72585 A1-7.1 & Bayonet DIN 72585 A1-2.1

    Max. operating pressure

    8.5 bar

    Mounting

    2x Ø 11 mm

    Output force

    7000 N

    Port thread 1

    M16 x 1.5

    Protection Class

    IP 67

    Rated Current Connector

    1.5 A

    Rated Current Sensor

    0.09 A

    Rated Current Solenoid Valve

    1.60 A

    Stroke

    69.5 mm

    System

    EPS III

    Temperature range:

     -30°C to +90°C

    Voltage:

    12/24 V

    Calculated Volume (dm³):

     7.9168

    Size (mm x mm x mm):

    357 x 154 x 144

    Weight (kg):

    3.969

    Weight (lb):

    8.7501
