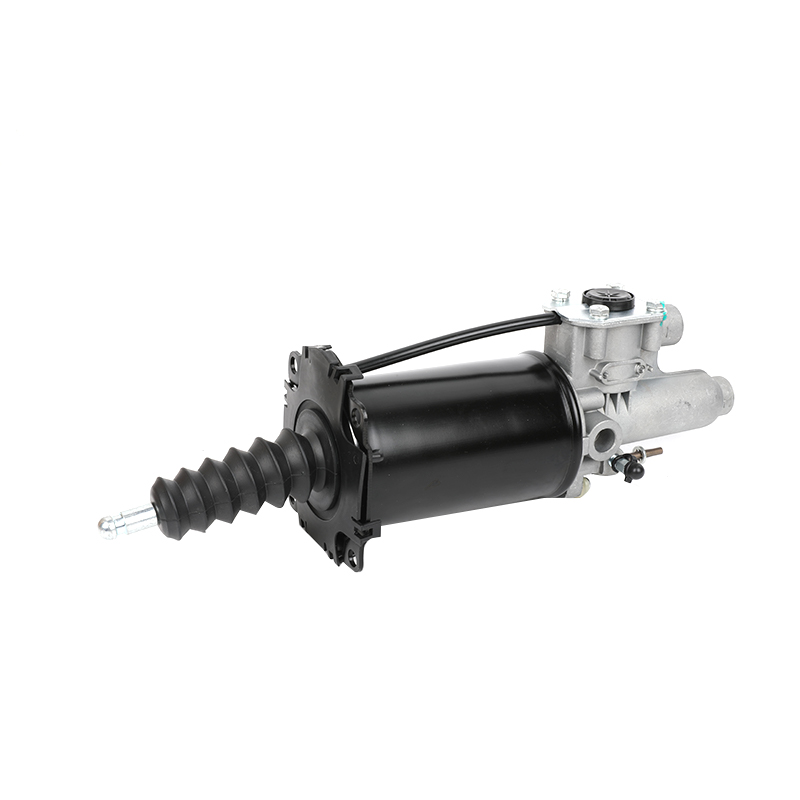

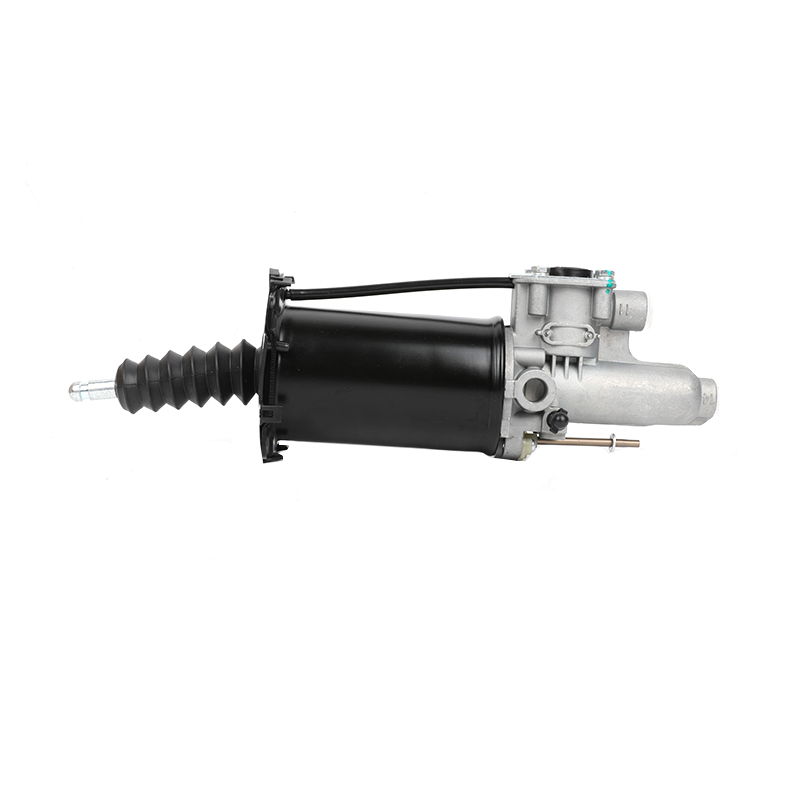

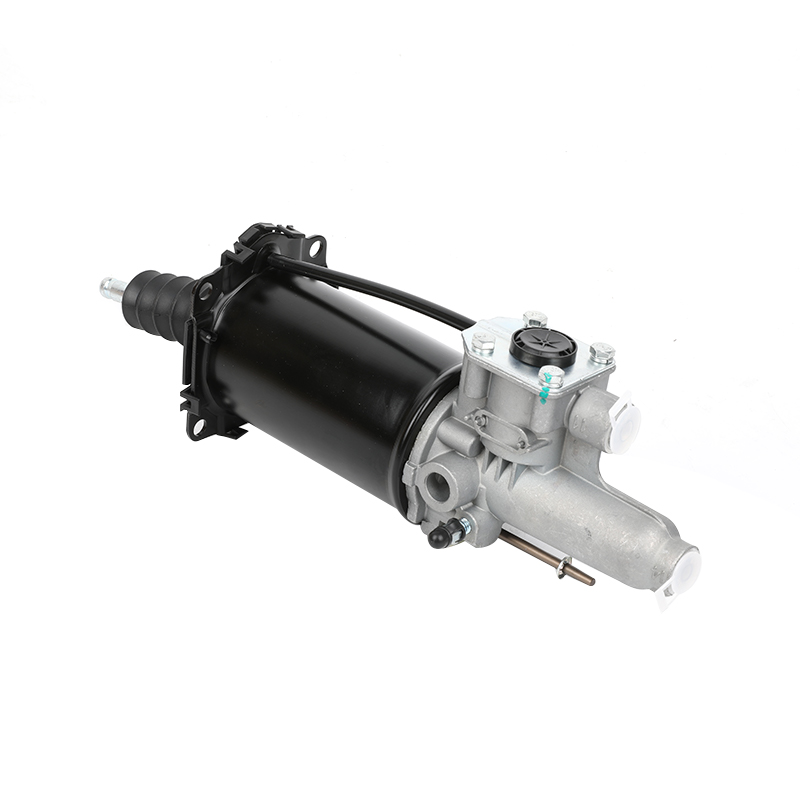

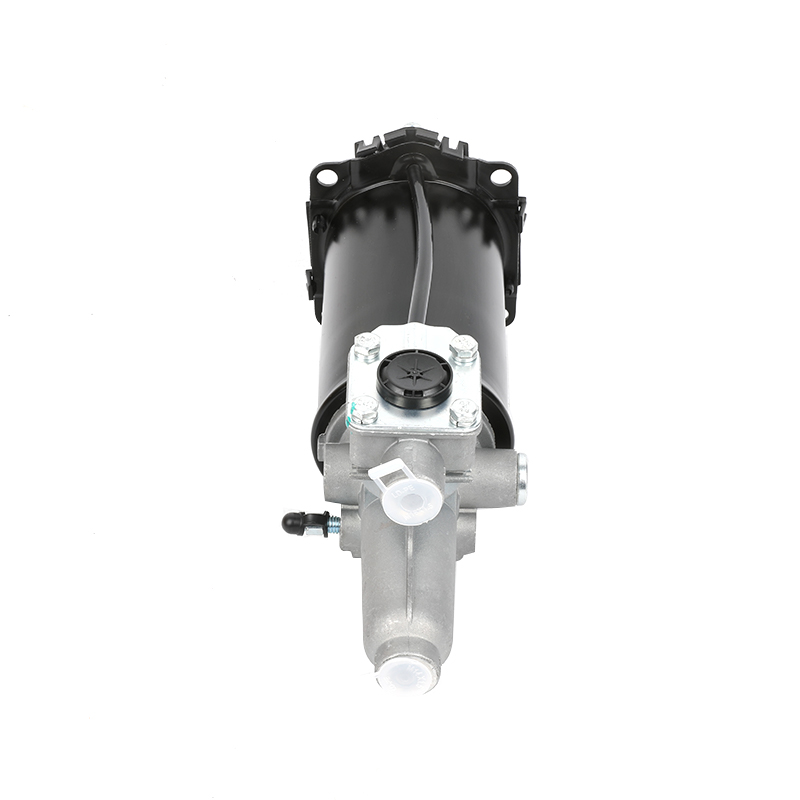

Wholesale Custom 9700514350 Stroke 85.0 mm Clutch Servo Supplier Company

A clutch servo is a pneumatically-assisted clutch-actuation device, enabling accurate and sensitive clutch use. It dramatically reduced the amount of effort required by the driver when actuating the clutch pedal.

Part type：Premium original quality

Comments：ZF

Distance between holes：110.0 mm

Length：373 mm

Max. operating pressure：10.0 bar

Mounting：4x Ø 9.0 mm

Oil inlet：Brake fluid SAE J 1703

Port thread 1-4：M14 x 1.5 ( A )

Port thread 11：M16 x 1.5 JED - 464

Port thread 31：Flap Exhaust

Port thread 32：Ø 8.0 mm

Product category：Device

Push-rod thread：Ball Ø 12.0 mm

Stroke：85.0 mm

Technical specification：OE specification

Temperature range：-30°C to +100°C

Calculated Volume (dm³)：4.792

Size (mm x mm x mm)：379 x 116 x 109

Weight (kg)：1.978

Weight (lb)：4.3607

车型：

IVECO：5801275320

KING LONG：16L0204010

KING LONG：16L02-04010

OTOKAR：13F1023250AA

YUTONG：160400204

YUTONG：1604-00204

ZF：0501007075

ZF：0501007075A

ZF：501007075

ZHONGTONG：1609-10-00016

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as Wholesale 9700514350 Stroke 85.0 mm Clutch Servo Supplier and Custom 9700514350 Stroke 85.0 mm Clutch Servo Company, Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
