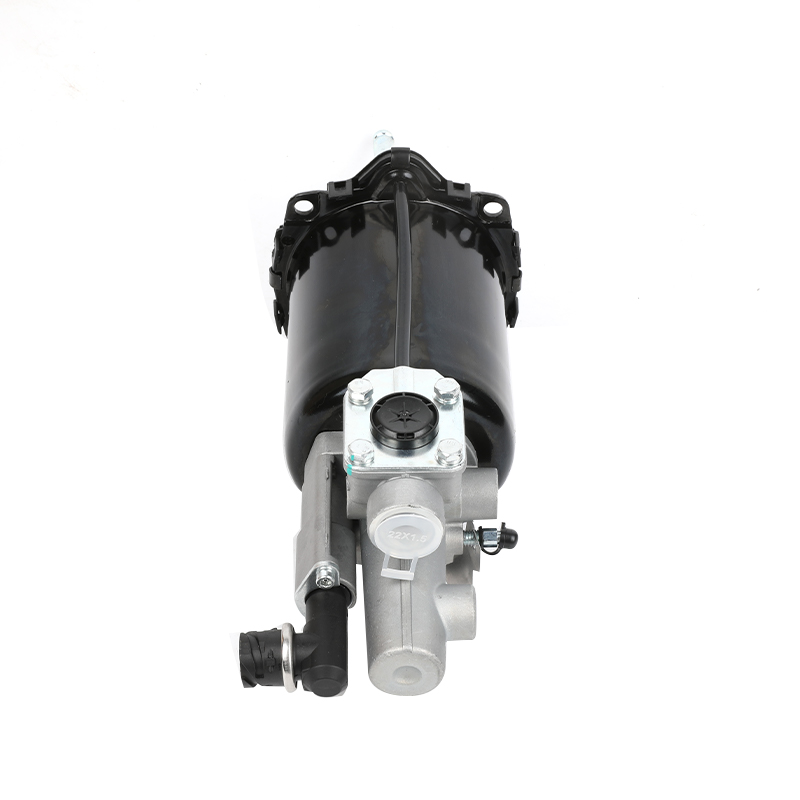

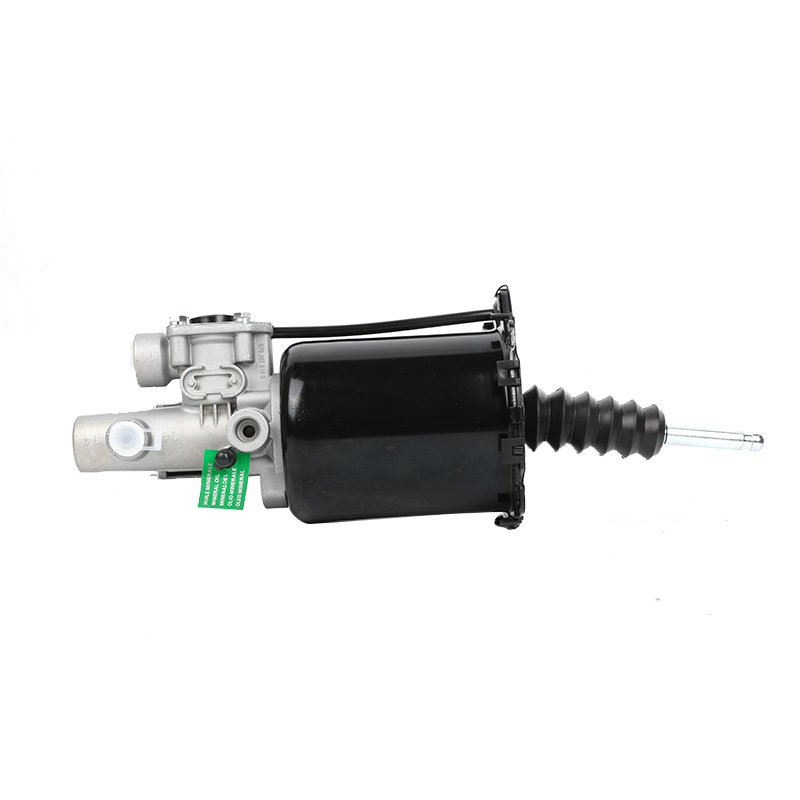

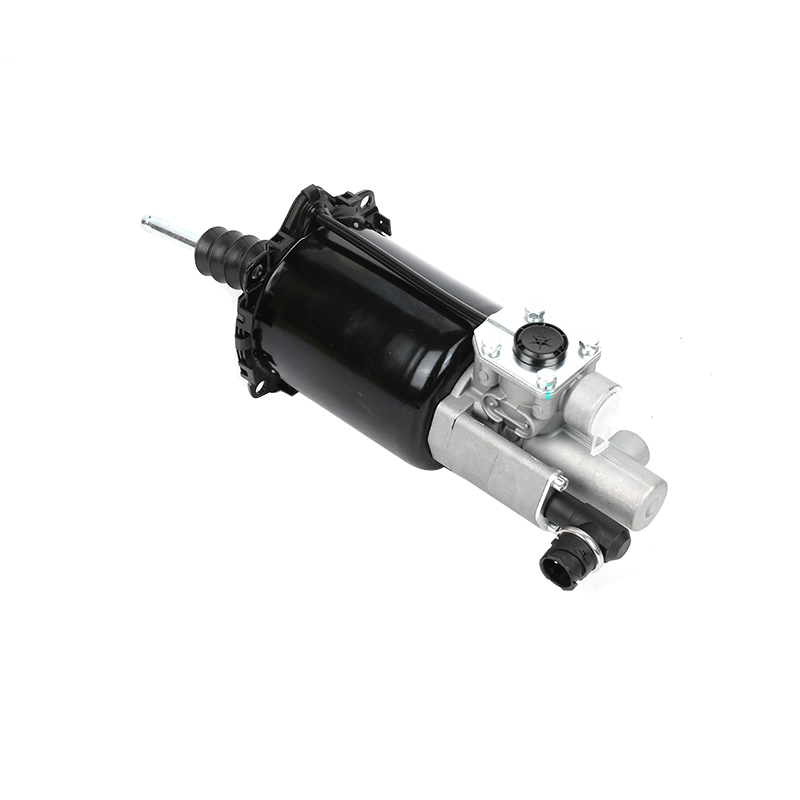

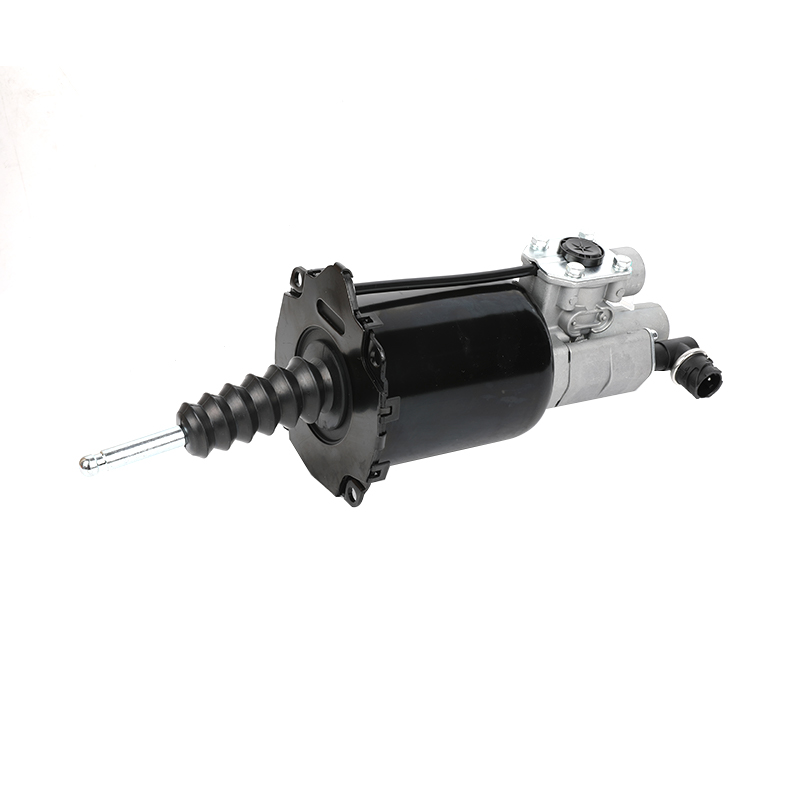

9700514120 FOR MAN Servo Clutch

Details
Type of vehicle
Leave a message

A clutch servo is a pneumatically-assisted clutch-actuation device, enabling accurate and sensitive clutch use. It dramatically reduced the amount of effort required by the driver when actuating the clutch pedal.

Part type：Premium original quality

Comments：MAN

Distance between holes：130.0 mm

Electrical connection:Bayonet DIN 72585 - A1 - 2.1 - SN K2

Length:409 mm

Max. operating pressure:10.0 bar

Mounting:4x Ø 9.0 mm

Oil inlet:Mineral oil

Port thread 1-4:M14 x 1.5 ( G )

Port thread 11:M22 x 1.5 JED - 388

Port thread 31:Flap Exhaust

Port thread 32:Ø 8.0 mm

Push-rod thread:Ball Ø 12.0 mm

Stroke:85.0 mm

Technical specification:OE specification

Temperature range:-40°C to +80°C

Voltage:12 V

Calculated Volume (dm³):7.501

Size (mm x mm x mm):409 x 140 x 131

Weight (kg):2.8

Weight (lb):6.173

DAF:1506465

DAF:1506465R

MAN:81307256084

MAN:81307256107

MAN:81307259084

MAN:81307256092

MAN:81307256109

NEOPLAN:81307256084

PACCAR:1506465R

SCANIA:1935599
