9700511700 Max. operating pressure：10.0 bar clutch servo

Details
Type of vehicle
Leave a message

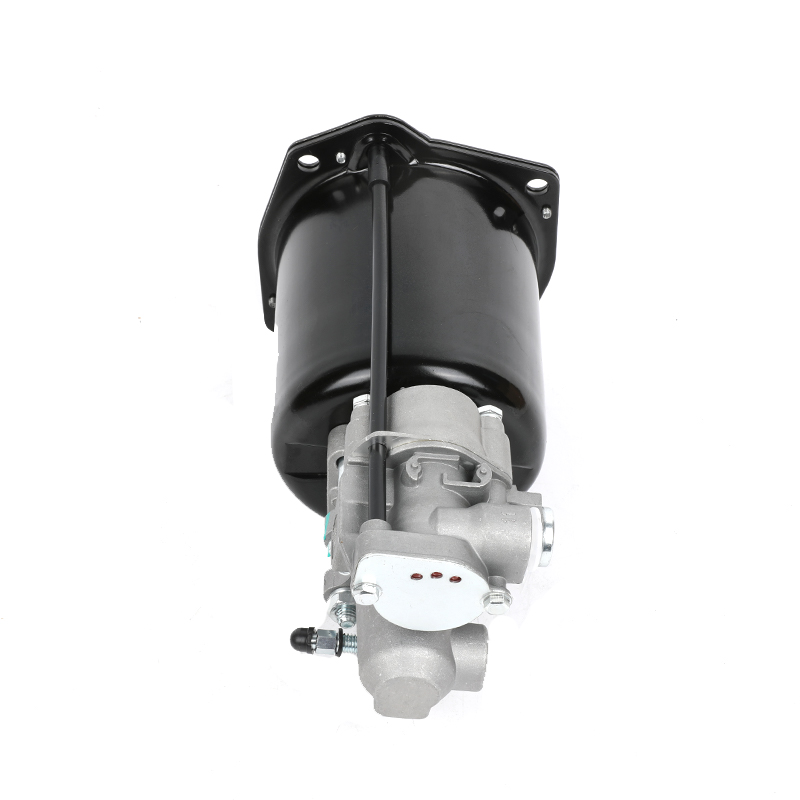

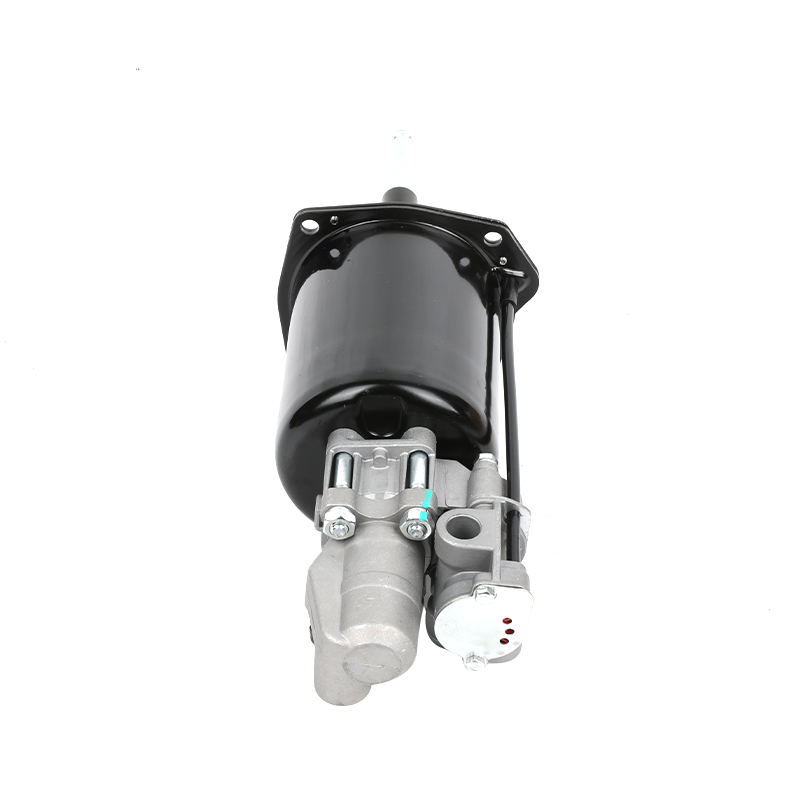

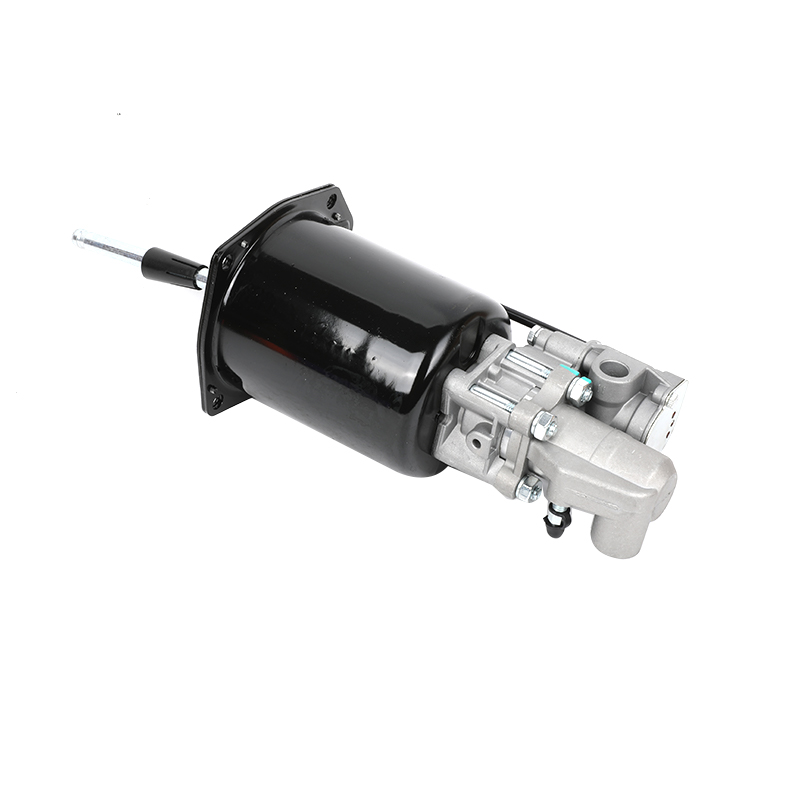

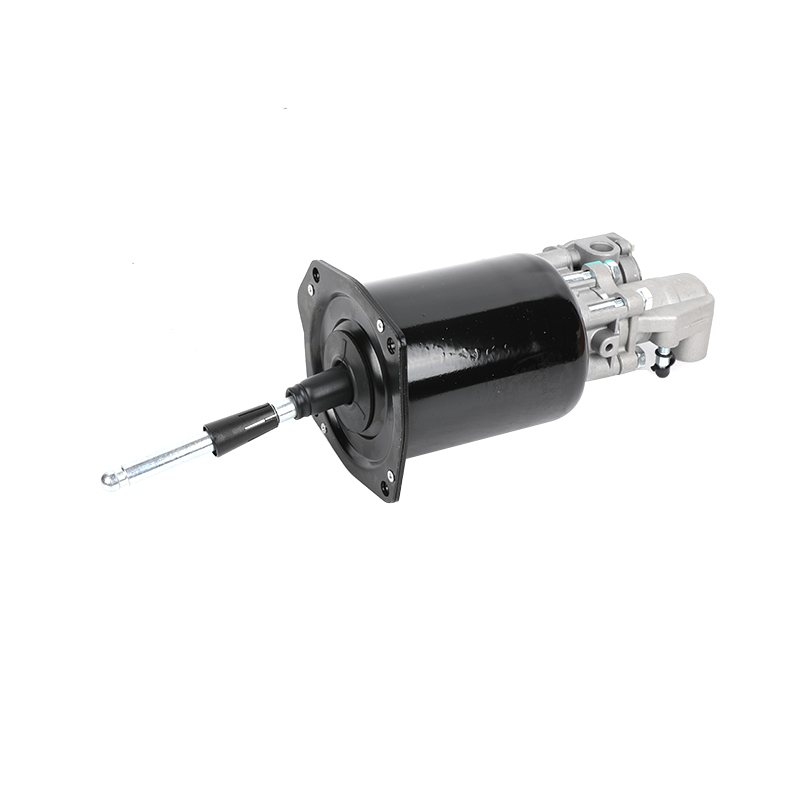

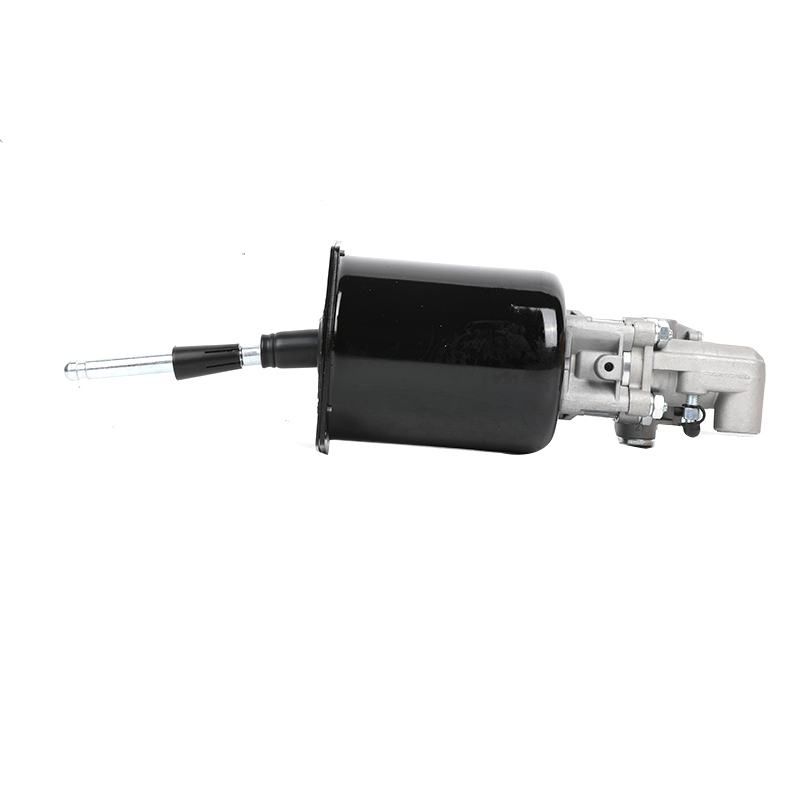

A clutch servo is a pneumatically-assisted clutch-actuation device, enabling accurate and sensitive clutch use. It dramatically reduced the amount of effort required by the driver when actuating the clutch pedal.
MAN81307256062

MAN81307259062

NEOPLAN81307256062

Part type：Premium original quality

Comments：MAN

Distance between holes：130.0 mm

Length：401 mm

Max. operating pressure：10.0 bar

Mounting：4x Ø 9.0 mm

Oil inlet：Brake fluid SAE J 1703

Port thread 1-4：M14 x 1.5 ( K )

Port thread 11：M16 x 1.5

Port thread 31：Flap Exhaust

Port thread 32：Ø 8.0 mm

Push-rod thread：Ball Ø 12.0 mm

Stroke：85.0 mm

Technical specification：OE specification

Temperature range：-40°C to +80°C

Calculated Volume (dm³)：6.3468

Size (mm x mm x mm)：400 x 123 x 129

Weight (kg)：3.349
