9700511590 Max. operating pressure：8.0 bar Servo Clutch

Details
Type of vehicle
Leave a message

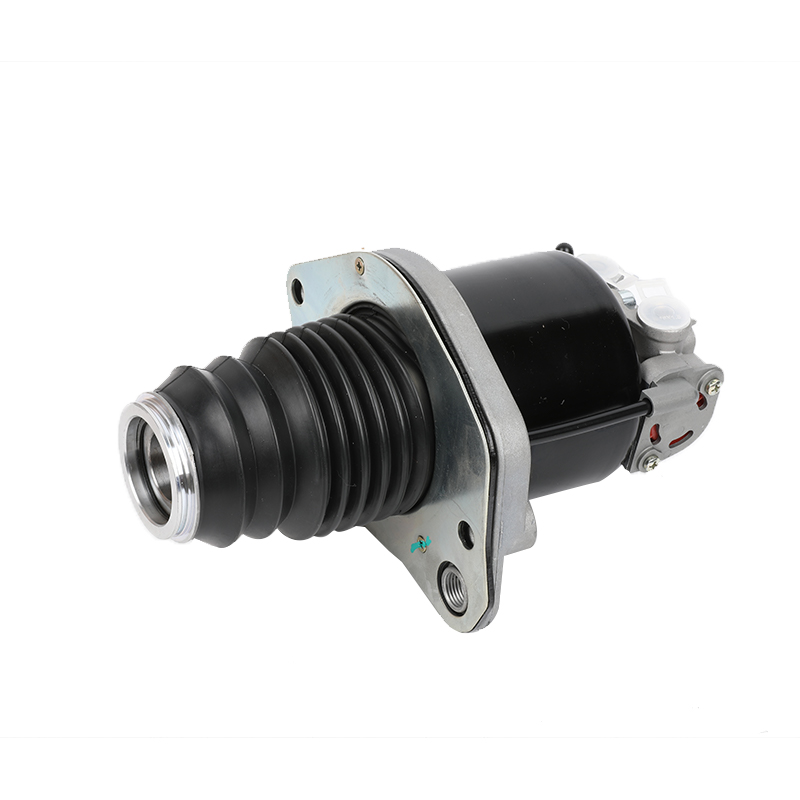

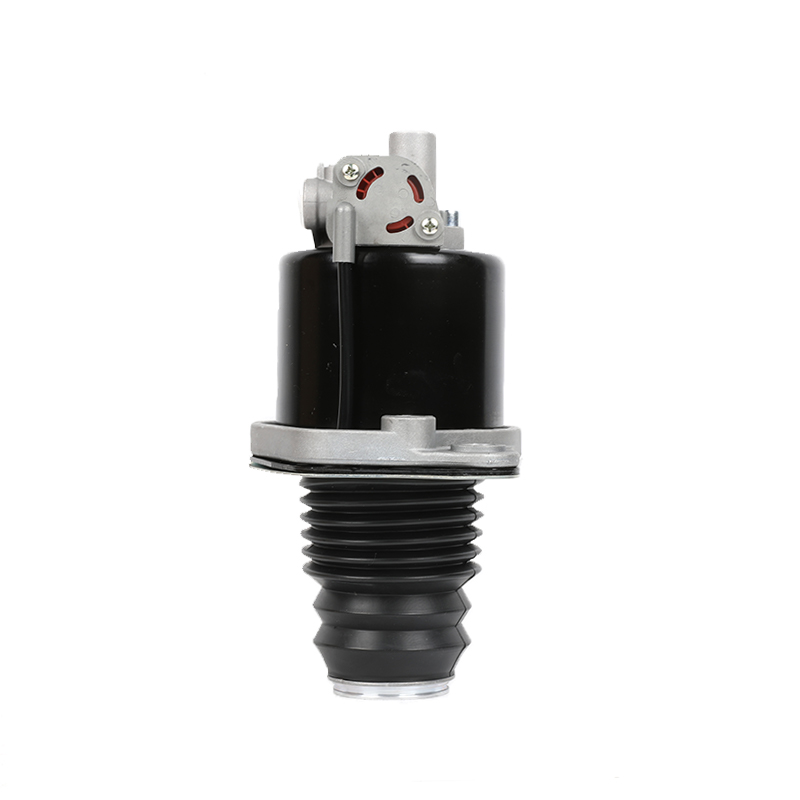

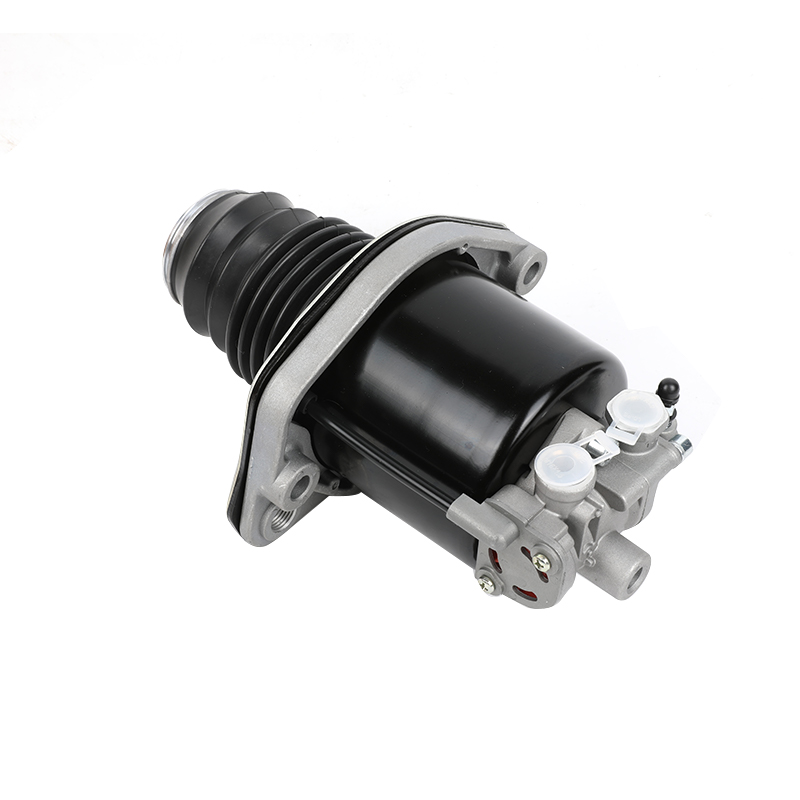

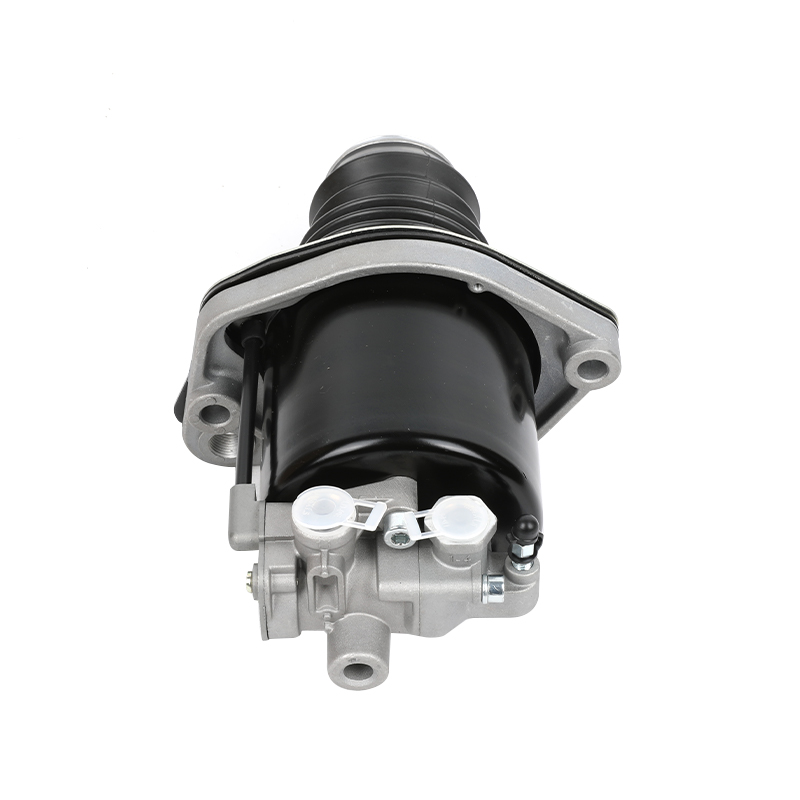

A clutch servo is a pneumatically-assisted clutch-actuation device, enabling accurate and sensitive clutch use. It dramatically reduced the amount of effort required by the driver when actuating the clutch pedal.

Part type：Premium original quality

Comments：MB G4

Distance between holes：146.0 mm

Length：188 mm

Max. operating pressure：8.0 bar

Mounting：2x Ø 11.0 mm

Oil inlet：Brake fluid SAE J 1703

Port thread 1-4：M14 x 1.5 ( K )

Port thread 11：M16 x 1.5

Port thread 31：Flap Exhaust

Port thread 32：Ø 8.0 mm

Push-rod thread

Hole Ø 12.0 mm

Stroke：75.0 mm

Technical specification：OE specification

Temperature range：-20°C to +140°C

Calculated Volume (dm³):6.4865

Size (mm x mm x mm):260 x 189 x 132

Weight (kg):2.812

Weight (lb):6.1994

DAF：1518252

EVOBUS：A0002951418

MERCEDES-BENZ：0002951418

MERCEDES-BENZ：A0002951418

MERCEDES-BENZ：0002950918
