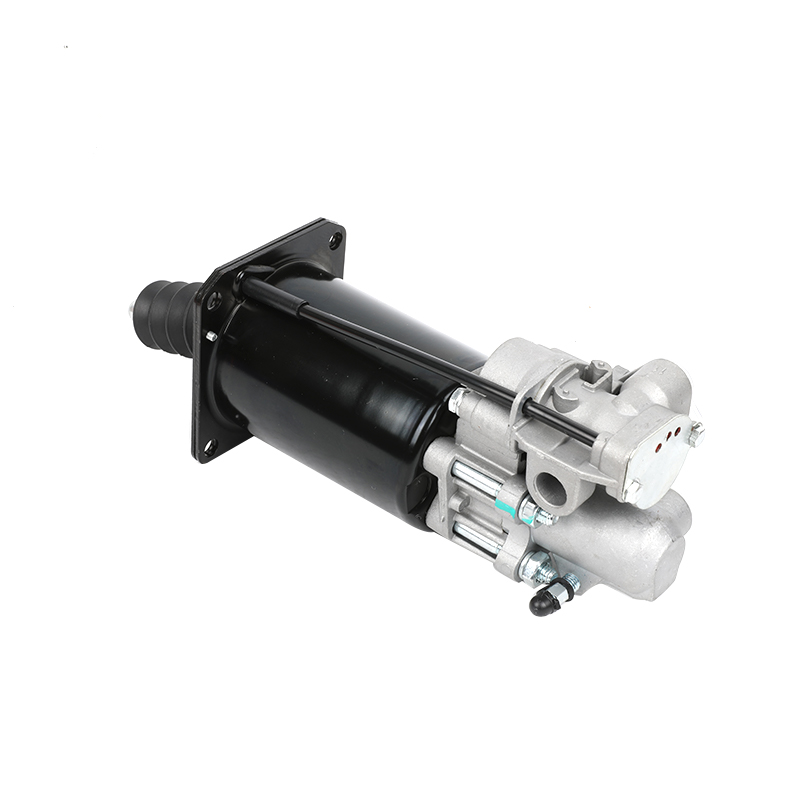

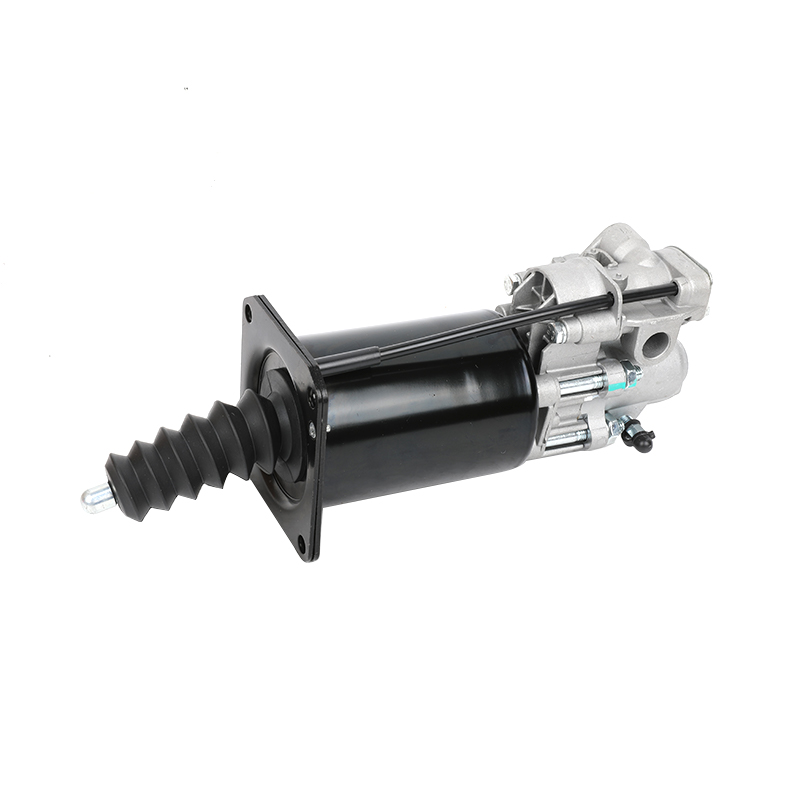

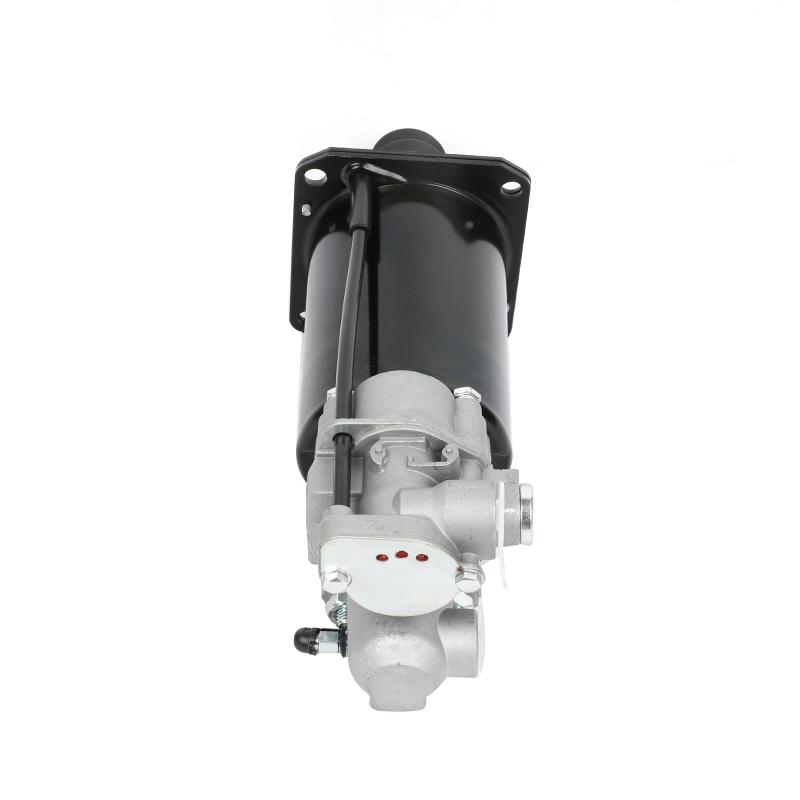

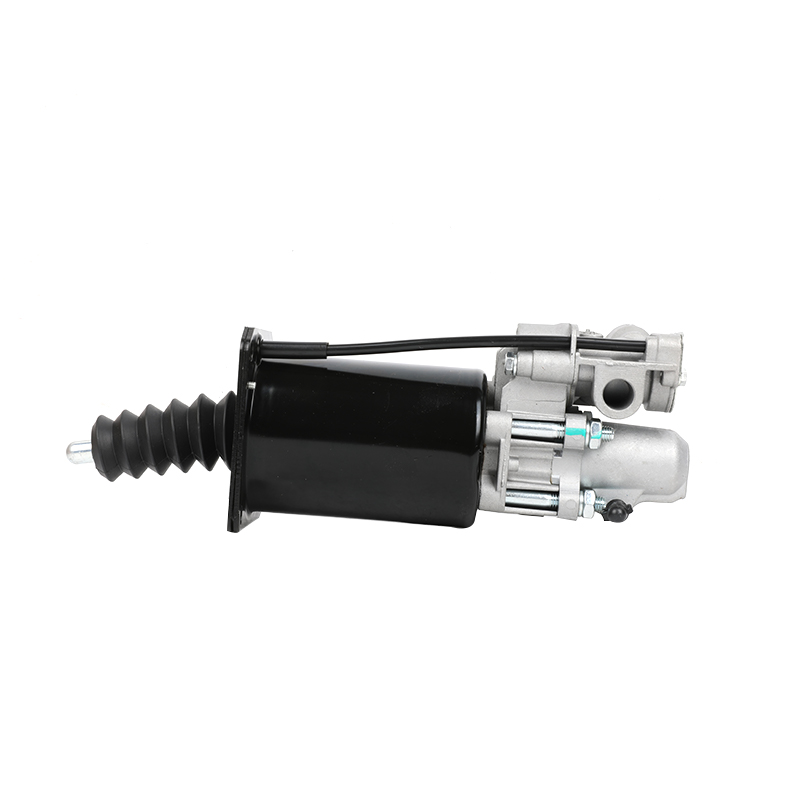

9700511260/ VG3208 Distance between holes 110.0 mm for neoplan,daf clutch servo

Details
Type of vehicle
Leave a message

A clutch servo is a pneumatically-assisted clutch-actuation device, enabling accurate and sensitive clutch use. It dramatically reduced the amount of effort required by the driver when actuating the clutch pedal.

Comments:	Iveco
Distance between holes:	110.0 mm
Length:	314 mm
Max. operating pressure:	10.0 bar
Mounting:	4x Ø 9.0 mm
Oil inlet:	Brake fluid SAE J 1703
Port Thread 1-4:	M14 x 1.5 ( K )
Port Thread:	32Ø 8.0 mm
Port thread 11:	M16 x 1.5
Port thread 31:	Flap Exhaust
Push-rod thread:	Ball Ø 12.0 mm
Stroke:	67.0 mm
Temperature range:	-40°C to +80°C
Calculated Volume (dm³):	3.095
Size (mm x mm x mm):	320 x 93 x 104
Weight (kg):	2.147
Application:	DAF,IRISBUS,IVECO, NEOPLAN,RENAULT, VAN HOOL
