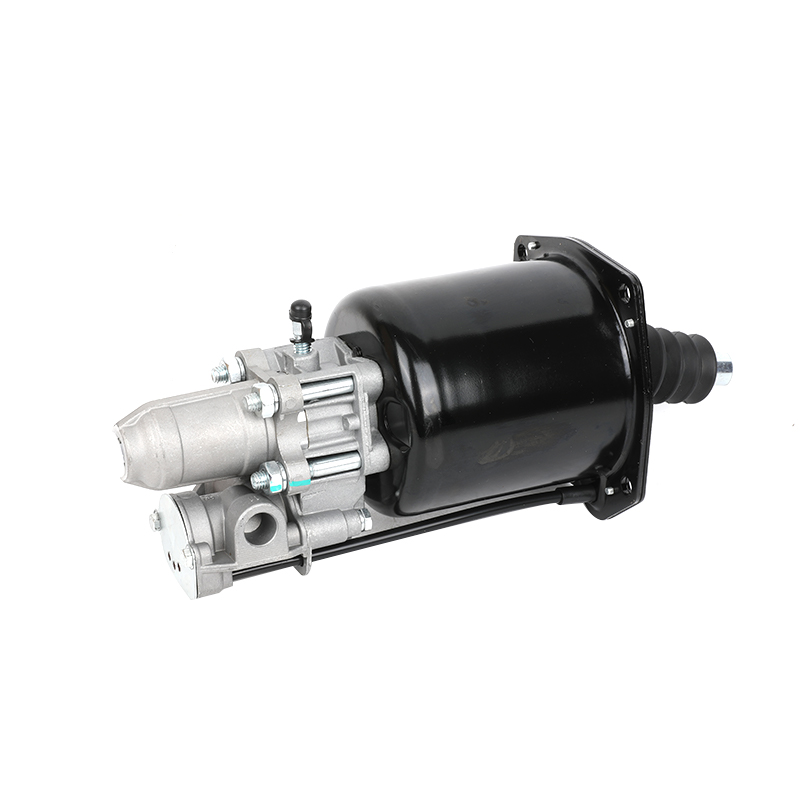

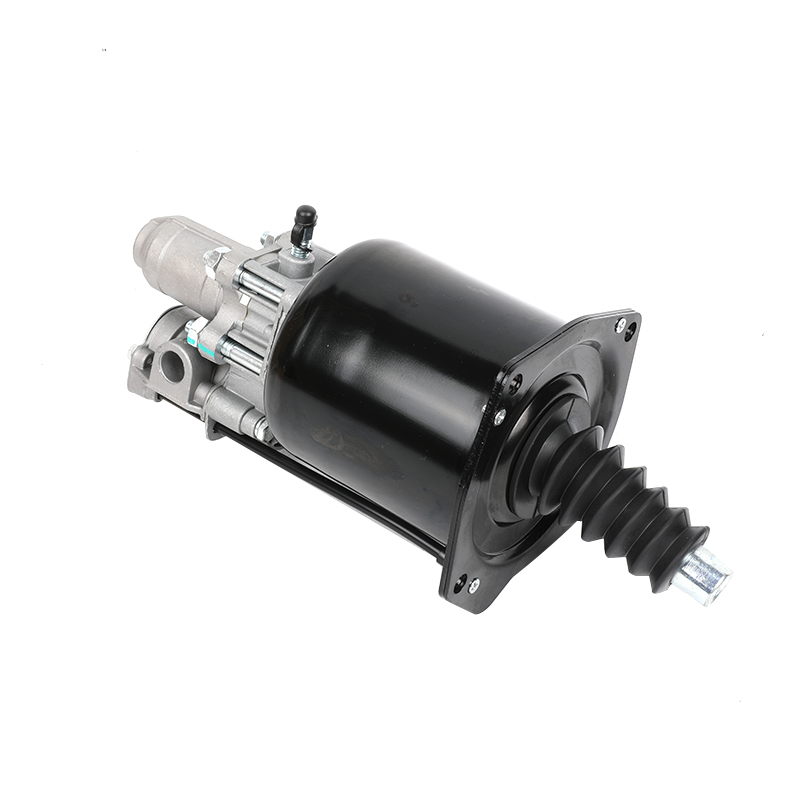

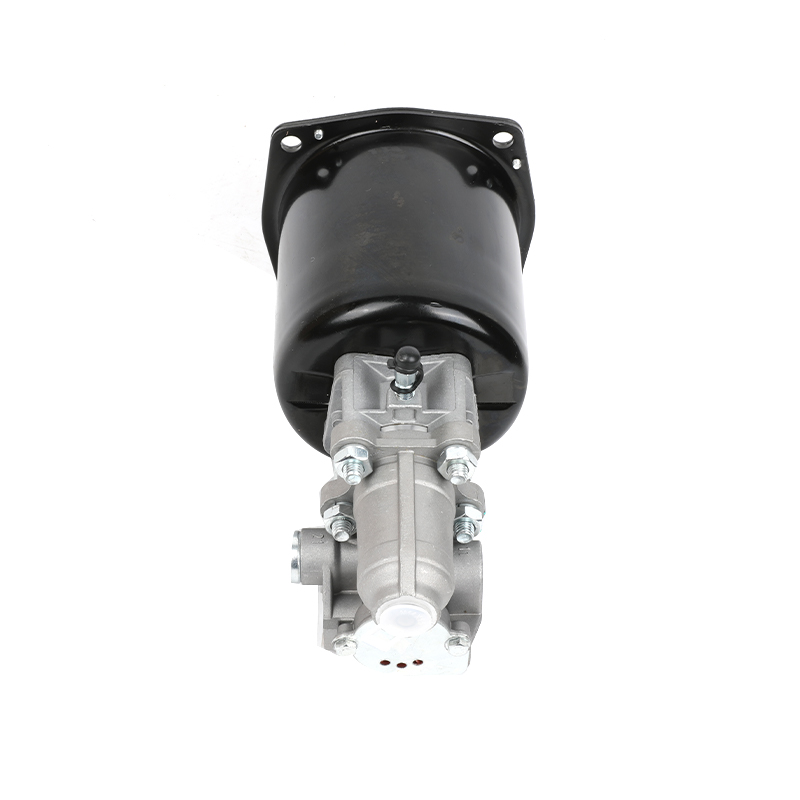

9700511240 Mounting 4x Ø 9.0 mm for Iveco,volvo clutch booster

Details
Type of vehicle
Leave a message

What is a clutch servo?
A clutch servo is a pneumatically-assisted clutch-actuation device, enabling accurate and sensitive clutch use. It dramatically reduced the amount of effort required by the driver when actuating the clutch pedal.

Comments：	RVI
Distance between holes：	130.0 mm
Length：	315 mm
Max. operating pressure：	10.0 bar
Mounting：	4x Ø 9.0 mm
Oil inlet：	Brake fluid SAE J 1703
Port Thread 1-4：	M14 x 1.5 ( B )
Port Thread 32：	Ø 8.0 mm
Port thread 11：	M16 x 1.5
Port thread 31：	Flap Exhaust
Push-rod thread：	M12 x 1.0
Stroke：	56.5 mm
Temperature range：	-40°C to +80°C
Test Connection：	M16 x 1.5 (J)
Calculated Volume (dm³)：	3.9214
Size (mm x mm x mm)：	236 x 134 x 124
Weight (kg)：	3.013
Weight (lb)：	6.6425
Application：	DAF,Dimetal,FREIGHTLINER,IRISBUS,IVECO,KENWORTH,MACK,MERITOR,PETERBILT,RENAULT,VOLVO
