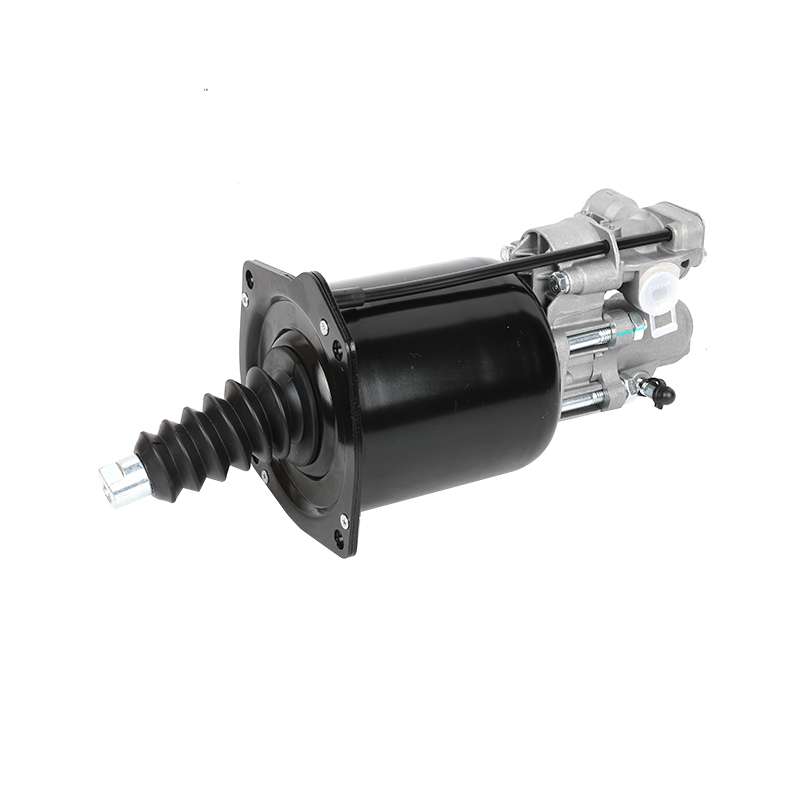

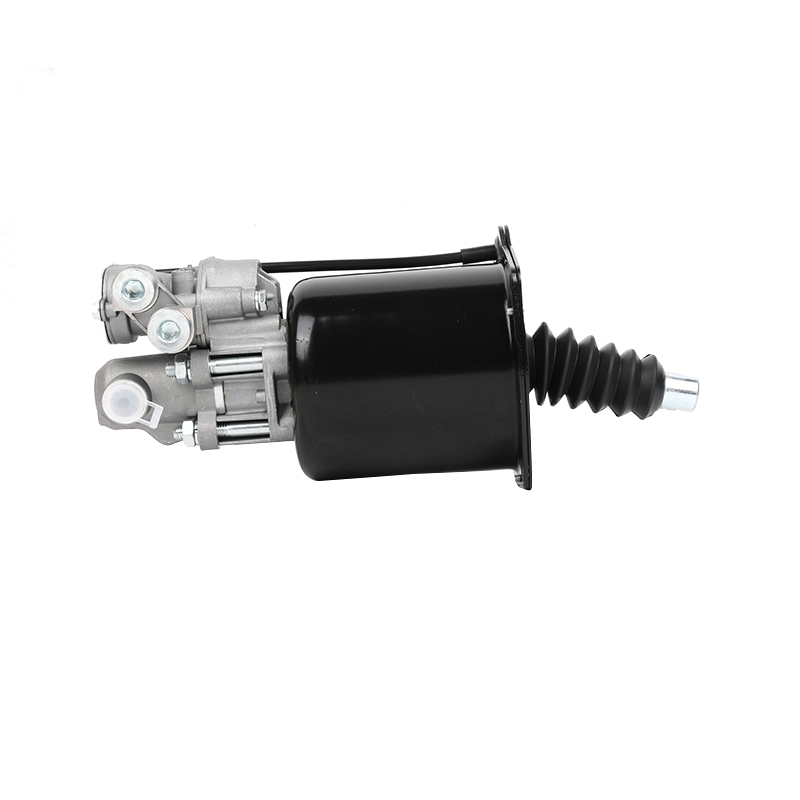

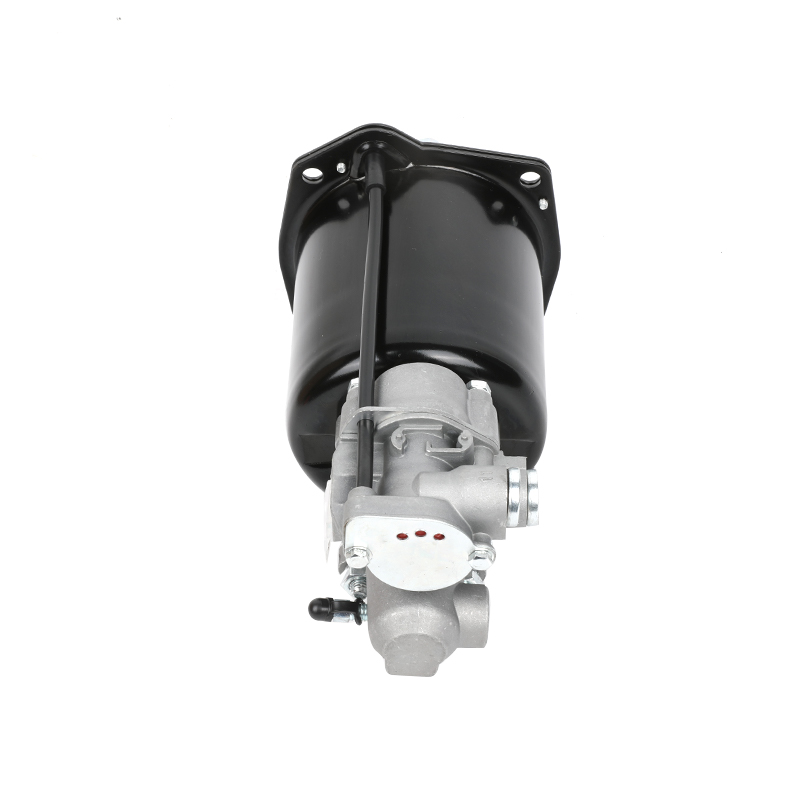

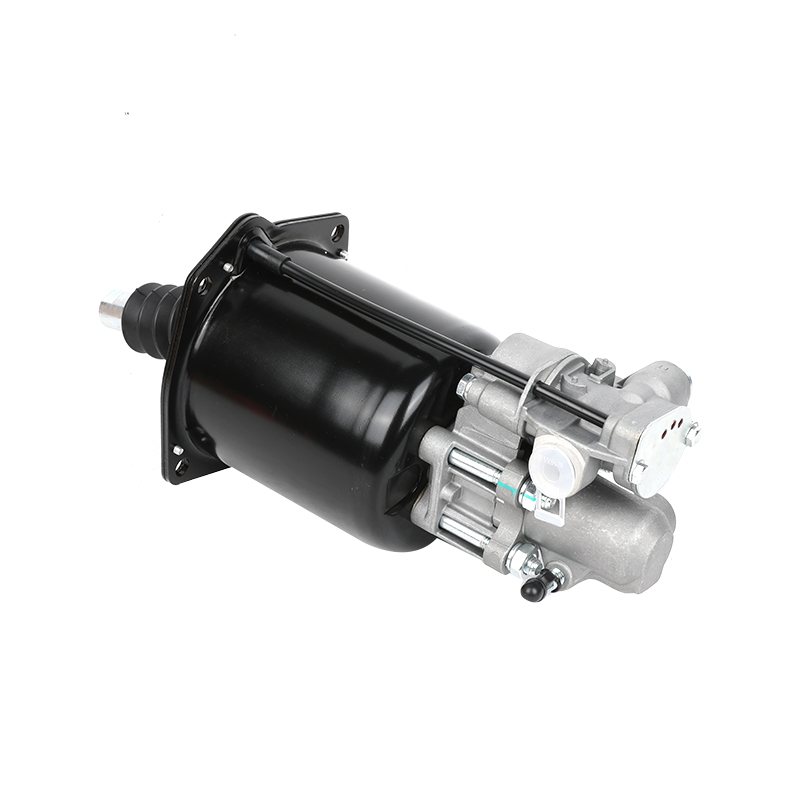

9700511070 CLUTCH SERVO

Details
Type of vehicle
Leave a message

A clutch servo is a pneumatically-assisted clutch-actuation device, enabling accurate and sensitive clutch use. It dramatically reduced the amount of effort required by the driver when actuating the clutch pedal.

Part type：Premium original quality

Comments：Scania

Distance between holes：130.0 mm

Length：305 mm

Max. operating pressure：10.0 bar

Mounting：4x Ø 9.0 mm

Oil inlet：Brake fluid SAE J 1703

Port thread 1-4：M14 x 1.5 ( K )

Port thread 11：M16 x 1.5

Port thread 31：Flap Exhaust

Port thread 32：Ø 8.0 mm

Push-rod thread：M12 x 1.0

Stroke：58.5 mm

Technical specification：OE specification

Temperature range：-40°C to +80°C

Calculated Volume (dm³):4.9029

Size (mm x mm x mm)：309 x 123 x 129

Weight (kg)：2.987

Weight (lb)：6.5852

DAF:1518242

Dimetal:4614340

SCANIA:343362

SCANIA:345362

SCANIA:0345362
