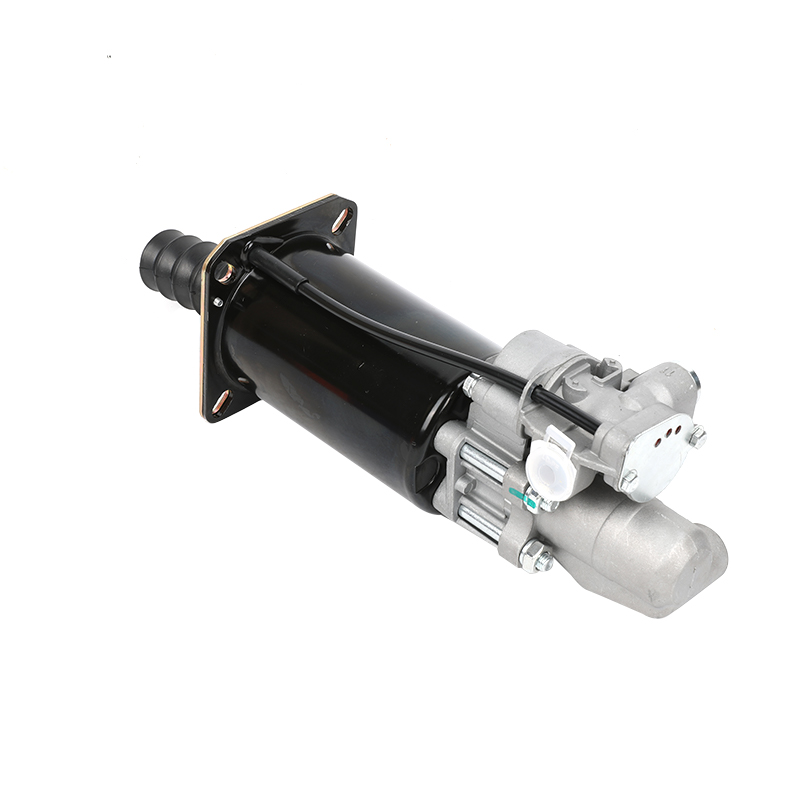

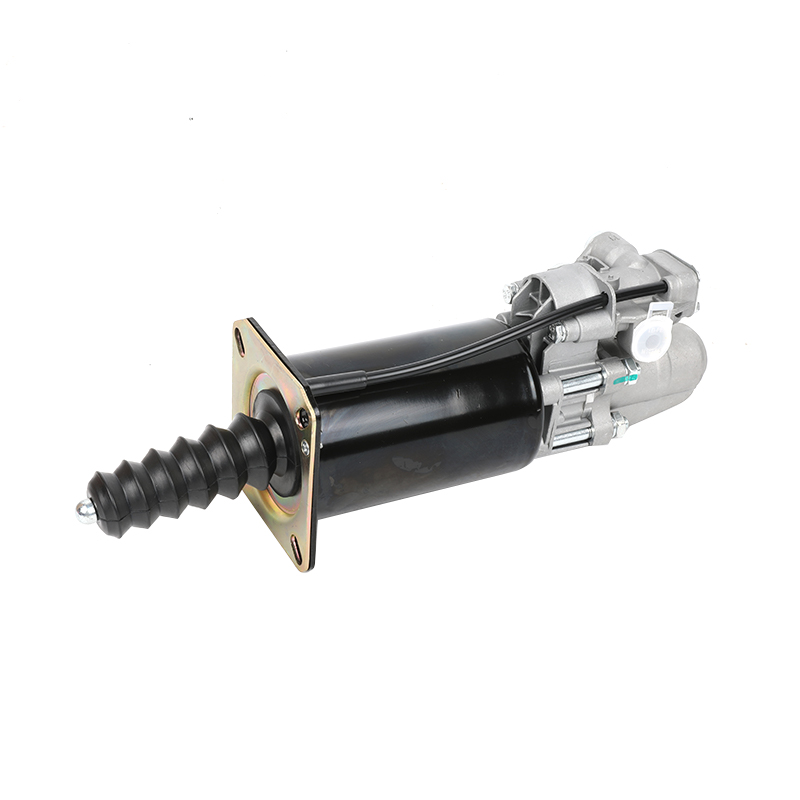

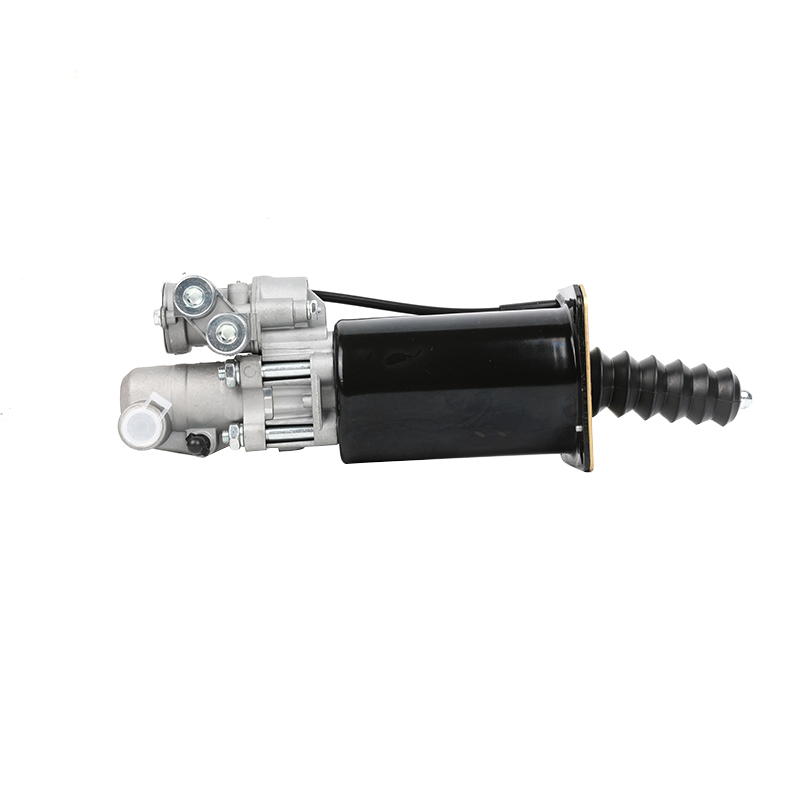

970 0511110 Max. operating pressure 10.0 bar for daf,scania clutch servo

Details
Type of vehicle
Leave a message

What is a clutch servo?
A clutch servo is a pneumatically-assisted clutch-actuation device, enabling accurate and sensitive clutch use. It dramatically reduced the amount of effort required by the driver when actuating the clutch pedal.

Comments：	MAN F80/F81
Distance between holes：	98.0 mm
Length：	351 mm
Max. operating pressure：	10.0 bar
Mounting：	4x Ø 9.0 mm
Oil inlet：	Brake fluid SAE J 1703
Port Thread 1-4：	M14 x 1.5 ( K )
Port Thread 32：	8.0 mm
Port thread 11：	M16 x 1.5
Port thread 31：	Flap Exhaust
Push-rod thread：	Ball Ø 12.0 mm
Stroke：	85.0 mm
Temperature range：	-40°C to +80°C
Calculated Volume (dm³)：	3.5173
Size (mm x mm x mm)：	356 x 95 x 104
Weight (kg)：	2.285
Application:	DAF,Dimetal,IRISBUS,IVECO,MAN,NEOPLAN,TEREX

If you want to know us, please contact us!

We always adhere to the quality policy of "innovation is infinity, to keep improving", adhering to the enterprise tenet of "veracity, customer regarded supreme".
- Company.
- E-mail*.
- Name*.
- Phone*.
- Message*.

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as Wholesale 970 0511110 Max. operating pressure 10.0 bar for daf,scania clutch servo Supplier and Custom 970 0511110 Max. operating pressure 10.0 bar for daf,scania clutch servo Company, Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.

Take A Factory Tour >>
